This topic describes how to use the LogReduce feature of Log Service. You can enable the feature, view log clustering results and raw logs, adjust clustering precision, and compare the number of log entries in different time periods.

Background information

The LogReduce feature allows you to cluster similar logs and extract patterns from the logs. The feature supports text logs of multiple formats. You can use the feature to locate errors, detect anomalies, roll back versions, and perform other O&M operations in DevOps scenarios. You can also use the feature to detect network intrusions to ensure data security. In addition, you can save log clustering results as charts to a dashboard, and then view the clustered data in real time.

Benefits

  • You can cluster logs of multiple formats, such as Log4j logs, JSON-formatted logs, and single-line logs.
  • Hundreds of millions of log entries can be clustered in seconds.
  • Log data can be clustered in multiple mode.
  • Raw log entries can be retrieved based on pattern signatures.
  • You can compare log patterns of different time periods.
  • You can adjust the clustering precision of logs.

Indexes

If you enable the LogReduce feature, the size of indexes increases by 10% of the raw log size. For example, if the size of raw log data is 100 GB per day, the size of indexes increases by 10 GB.
Raw log size Index percentage Size of indexes that are generated by LogReduce Index size
100 GB 20% (20 GB) 100 * 10% 30 GB
100 GB 40% (40 GB) 100 * 10% 50 GB
100 GB 100% (100 GB) 100 * 10% 110 GB

Enable LogReduce of a Logstore

  1. Log on to the Log Service console.
  2. In the Projects section, click a project.
  3. On the Log Management > Logstores tab, choose Management icon > Search & Analysis.
  4. Enable the LogReduce feature.
    1. Choose Index Attributes > Modify.
      If the indexing feature is not enabled, click Enable.
    2. In the Search & Analysis dialog box, turn on the LogReduce switch.
    3. Optional. Configure a whitelist or blacklist to filter fields.
      You can filter logs by keyword. Logs that are filtered based on keywords are automatically clustered.
    4. Click OK.

View log clustering results and raw logs

  1. On the Search & Analysis page, enter a search statement in the search box, and then click Search & Analyze.
    Note You can use only search statements to filter logs. However, you cannot use analytic statements to analyze logs because the LogReduce feature cannot cluster analysis results.
  2. Click the LogReduce tab to view the log clustering results.
    Log clustering details
    Parameter Description
    Number The sequence number of a log cluster.
    Count The number of log entries of a pattern. The log entries are obtained in the current time range.
    Pattern The log pattern. Each log cluster has one or more sub-patterns.
    • Move the pointer over a value in the Count column to view the sub-patterns of the corresponding log cluster and the percentage of each sub-pattern in the log cluster. Click the plus sign (+) next to the value to expand the sub-pattern list.
    • Click a value in the Count column. You are redirected to the Raw Logs tab. On the tab, you can view the raw logs of the corresponding pattern.

Adjust the precision of log clustering

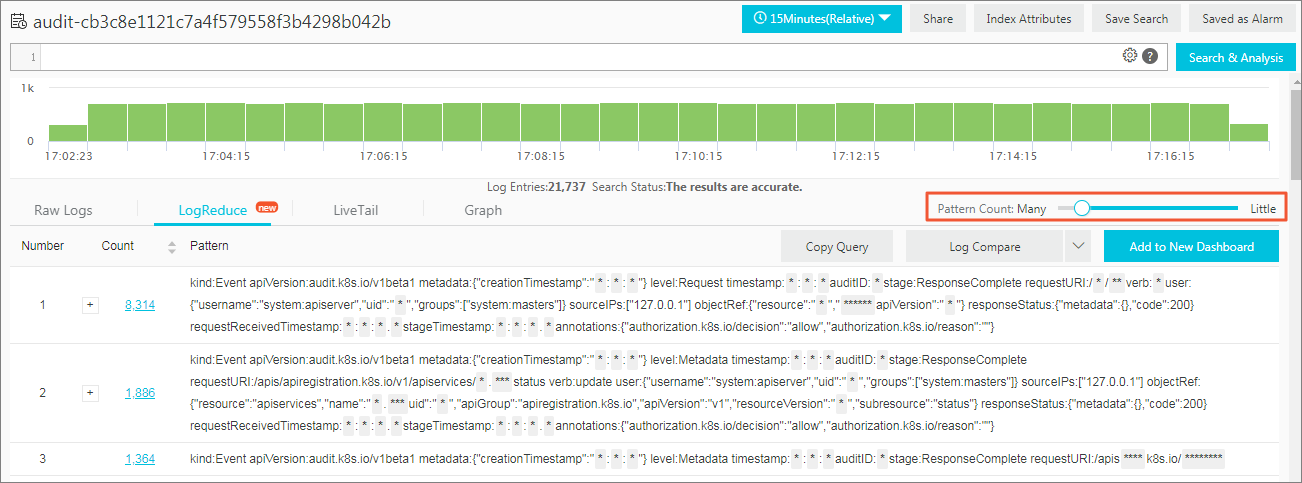

On the LogReduce tab, you can drag the Pattern Count slider to adjust the clustering precision.
  • If you drag the slider towards Many, you can obtain a more precise log clustering result with more detailed patterns.
  • If you drag the slider towards Little, you can obtain a less precise log clustering result with fewer detailed patterns.

Compare the number of log entries that are clustered in different time periods

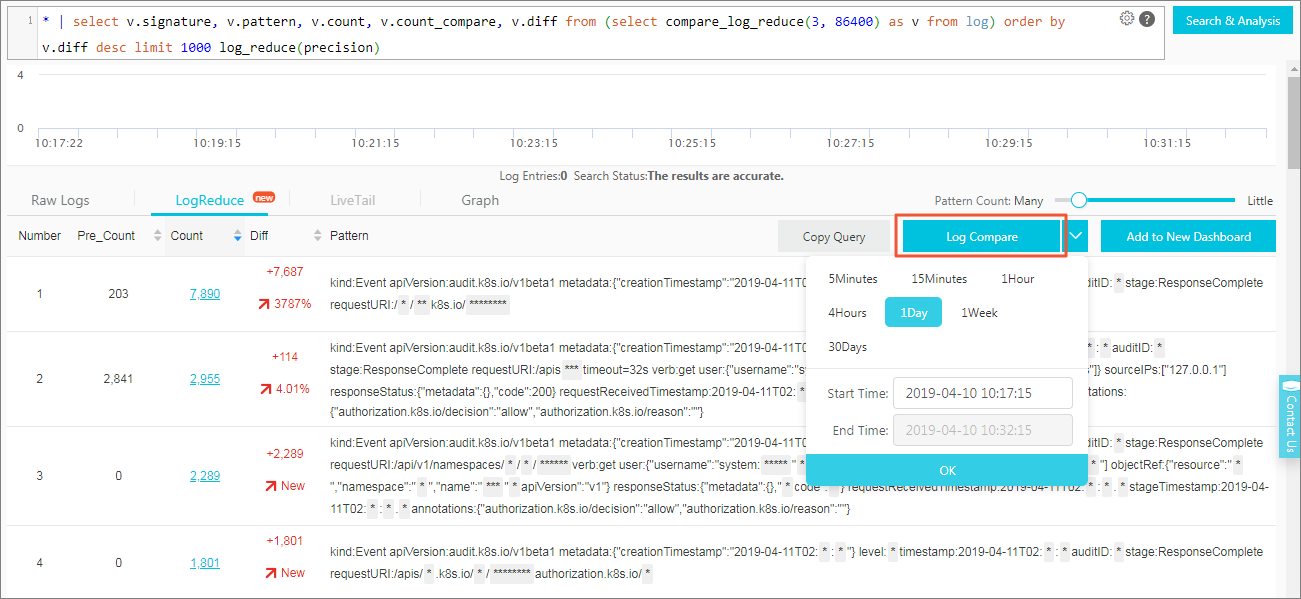

  1. On the LogReduce tab, click Log Compare.
  2. Set a time range, and then click OK.
    For example, if you set the time range to 15 minutes when you perform a query, and select 1 Day for Log Compare, the start time and end time for log comparison are displayed. The time range is 15 minutes.Compare the number of log entries
    Parameter Description
    Number The sequence number of a log cluster.
    Pre_Count The number of log entries of a pattern that are obtained in the time range specified by Log Compare.
    Count The number of log entries of a pattern. The log entries are obtained in the current time range.
    Diff The difference between the number of log entries that are specified by the Pre_Count and Count parameters and the growth rate.
    Pattern The log pattern.

Examples

You can use search and analytic statements to query clustered log data.

  • Obtain log clustering results.
    • Query statement
      * | select a.pattern, a.count,a.signature, a.origin_signatures from (select log_reduce(3) as a from log) limit 1000
      Note When you view log clustering results, you can click Copy Query to obtain the search and analytic statement.
    • Modify parameter settings

      In the search and analytic statement, the log_reduce(precision) function indicates the clustering precision. Valid values: 1 to 16. A smaller value indicates a higher clustering precision and more patterns. Default value: 3.

    • Returned fields
      You can view the clustering details on the Graph tab.
      Parameter Description
      pattern The log pattern.
      count The number of log entries of a pattern. The log entries are obtained in the current time range.
      signature The signature of the log pattern.
      origin_signatures The secondary signature of the log pattern. You can use this signature to query corresponding raw data.
  • Compare the number of log entries that are clustered in different time periods.
    • Query statement
      * | select v.pattern, v.signature, v.count, v.count_compare, v.diff from (select compare_log_reduce(3, 86400) as v from log) order by v.diff desc limit 1000
      Note When you use Log Compare to compare log clustering results in different time periods, you can click Copy Query to obtain the search and analytic statement.
    • Modify parameter settings
      Modify parameter settings in the compare_log_reduce(precision, compare_interval) function.
      • The precision parameter indicates the clustering precision. Valid values: 1 to 16. A smaller number indicates a higher clustering precision and more patterns. Default value: 3.
      • The compare_interval parameter indicates the time difference between the two time ranges when the number of log entries are compared. The value is a positive integer. Unit: seconds.
    • Returned fields
      Parameter Description
      pattern The log pattern.
      count_compare The number of log entries of a pattern that are obtained in the time range specified by Log Compare.
      count The number of log entries of a pattern. The log entries are obtained in the current time range.
      diff The difference between the number of log entries that are indicated by the count and count_compare fields.
      signature The signature of the log pattern.
