您可以将Spring Cloud微服务应用托管到EDAS,使用EDAS提供的共享组件、企业级安全加固和完整的微服务解决方案,帮助您节省运维成本、提升安全性和开发效率。本文将介绍如何在本地开发一个Spring
Cloud微服务示例应用(包含一个服务提供者Provider和一个服务消费者Consumer)并部署到EDAS。
背景信息
本文将从不同层面为您解释如何将Spring Cloud应用托管到EDAS:
- 如果您完全不了解Spring Cloud,只有简单的Spring和Maven基础,详细阅读本文后,您将了解如何通过Spring Cloud Alibaba Nacos
Discovery实现Spring Cloud应用的服务注册与发现,以及实现消费者对提供者的调用。
- 如果您熟悉Spring Cloud中的服务注册组件(如Eureka、Consul和ZooKeeper),可以直接将基于这些注册中心开发的应用部署到EDAS,无需修改任何代码和配置,详情请参见应用部署概述(ECS集群)和应用部署概述(K8s集群)),并使用EDAS完整的微服务能力。
- 如果您熟悉如何使用开源版本的Spring Cloud Alibaba Nacos Discovery实现Spring Cloud应用的服务注册与发现,那么您可以将应用直接部署到EDAS(详情请参见应用部署概述(ECS集群)和应用部署概述(K8s集群)),即可使用到EDAS提供的商业版服务注册与发现的能力。
EDAS服务注册中心提供了开源Nacos Server的商用版本,使用开源版本Spring Cloud Alibaba Nacos Discovery
开发的应用可以直接使用EDAS提供的共享型服务注册中心。
您也可以选择自建的Nacos、ZooKeeper集群、或者使用MSE托管的注册中心,详情请参见什么是微服务引擎MSE。
准备工作
本地开发中主要描述开发中涉及的关键信息,如果您想了解完整的Spring Cloud应用程序,可下载service-provider和service-consumer。
在开始开发前,请确保您已经完成以下工作:
- 下载Maven并设置环境变量。
- 下载最新版本的Nacos Server。
- 按以下步骤启动Nacos Server。
- 解压下载的Nacos Server压缩包。
- 进入
nacos/bin
目录,启动Nacos Server。
- Linux/Unix/Mac系统:执行命令
sh startup.sh -m standalone
。
- Windows系统:双击执行
startup.cmd
文件。
创建服务提供者
在本地创建服务提供者应用工程,添加依赖,开启服务注册与发现功能,并将注册中心指定为Nacos Server。
- 创建命名为
nacos-service-provider
的Maven工程。
- 在
pom.xml
文件中添加依赖。
以Spring Boot 2.1.4.RELEASE和Spring Cloud Greenwich.SR1为例,依赖如下:
<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.4.RELEASE</version>
<relativePath/>
</parent>
<dependencies>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
<version>2.1.1.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Greenwich.SR1</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
示例中使用的版本为Spring Cloud Greenwich,对应Spring Cloud Alibaba版本为2.1.1.RELEASE。
- 如果使用Spring Cloud Finchley版本,对应Spring Cloud Alibaba版本为2.0.1.RELEASE。
- 如果使用Spring Cloud Edgware版本,对应Spring Cloud Alibaba版本为1.5.1.RELEASE。
说明 Spring Cloud Edgware版本的生命周期已结束,不推荐使用这个版本开发应用。
- 在
src\main\java
下创建Packagecom.aliware.edas
。
- 在Package
com.aliware.edas
中创建服务提供者的启动类ProviderApplication
,并添加如下代码。
其中@EnableDiscoveryClient
注解表明此应用需开启服务注册与发现功能。
package com.aliware.edas;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
@SpringBootApplication
@EnableDiscoveryClient
public class ProviderApplication {
public static void main(String[] args) {
SpringApplication.run(ProviderApplication.class, args);
}
}
- 在Package
com.aliware.edas
中创建EchoController
,指定URL mapping为 {/echo/{String}},指定HTTP方法为GET,方法参数从URL路径中获得,回显收到的参数。 package com.aliware.edas;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
@RestController
public class EchoController {
@RequestMapping(value = "/echo/{string}", method = RequestMethod.GET)
public String echo(@PathVariable String string) {
return string;
}
}
- 在
src\main\resources
路径下创建文件application.properties
,在application.properties
中添加如下配置,指定Nacos Server的地址。
其中127.0.0.1
为Nacos Server的地址。如果您的Nacos Server部署在另外一台机器,则需要修改成对应的IP地址。如果有其它需求,可以参考配置项参考在application.properties
文件中增加配置。
spring.application.name=service-provider
server.port=18081
spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848
- 验证结果。
- 执行
nacos-service-provider
中ProviderApplication
的main
函数,启动应用。
- 登录本地启动的Nacos Server控制台
http://127.0.0.1:8848/nacos
(本地Nacos控制台的默认用户名和密码同为nacos)。
- 在左侧导航栏中选择服务管理 > 服务列表。
可以看到服务列表中已经包含了service-provider
,且在详情中可以查询该服务的详情。
创建服务消费者
本内容除介绍服务注册的功能,还将介绍Nacos服务与RestTemplate和FeignClient两个客户端如何配合使用。
- 创建命名为
nacos-service-consumer
的Maven工程。
- 在
pom.xml
中添加依赖。<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.1.4.RELEASE</version>
<relativePath/>
</parent>
<dependencies>
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-nacos-discovery</artifactId>
<version>2.1.1.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-starter-openfeign</artifactId>
</dependency>
</dependencies>
<dependencyManagement>
<dependencies>
<dependency>
<groupId>org.springframework.cloud</groupId>
<artifactId>spring-cloud-dependencies</artifactId>
<version>Greenwich.SR1</version>
<type>pom</type>
<scope>import</scope>
</dependency>
</dependencies>
</dependencyManagement>
<build>
<plugins>
<plugin>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-maven-plugin</artifactId>
</plugin>
</plugins>
</build>
- 在
src\main\java
下创建Packagecom.aliware.edas
。
- 在Package
com.aliware.edas
中配置RestTemplate和FeignClient。
- 在Package
com.aliware.edas
中创建一个接口类EchoService
,添加@FeignClient
注解,并配置对应的HTTP URL地址及HTTP方法。package com.aliware.edas;
import org.springframework.cloud.openfeign.FeignClient;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
@FeignClient(name = "service-provider")
public interface EchoService {
@RequestMapping(value = "/echo/{str}", method = RequestMethod.GET)
String echo(@PathVariable("str") String str);
}
- 在Package
com.aliware.edas
中创建启动类ConsumerApplication
并添加相关配置。
- 使用
@EnableDiscoveryClient
注解启用服务注册与发现。
- 使用
@EnableFeignClients
注解激活FeignClient。
- 添加
@LoadBalanced
注解将RestTemplate与服务发现集成。
package com.aliware.edas;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.client.discovery.EnableDiscoveryClient;
import org.springframework.cloud.client.loadbalancer.LoadBalanced;
import org.springframework.cloud.openfeign.EnableFeignClients;
import org.springframework.context.annotation.Bean;
import org.springframework.web.client.RestTemplate;
@SpringBootApplication
@EnableDiscoveryClient
@EnableFeignClients
public class ConsumerApplication {
@LoadBalanced
@Bean
public RestTemplate restTemplate() {
return new RestTemplate();
}
public static void main(String[] args) {
SpringApplication.run(ConsumerApplication.class, args);
}
}
- 在Package
com.aliware.edas
中创建类TestController
以演示和验证服务发现功能。 package com.aliware.edas;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;
import org.springframework.web.client.RestTemplate;
@RestController
public class TestController {
@Autowired
private RestTemplate restTemplate;
@Autowired
private EchoService echoService;
@RequestMapping(value = "/echo-rest/{str}", method = RequestMethod.GET)
public String rest(@PathVariable String str) {
return restTemplate.getForObject("http://service-provider/echo/" + str,
String.class);
}
@RequestMapping(value = "/echo-feign/{str}", method = RequestMethod.GET)
public String feign(@PathVariable String str) {
return echoService.echo(str);
}
}
- 在
src\main\resources
路径下创建文件application.properties
,在application.properties
中添加如下配置,指定Nacos Server的地址。
其中127.0.0.1:8848
为Nacos Server的地址。如果您的Nacos Server部署在另外一台机器,则需要修改成对应的地址。如果有其它需求,可以参考配置项参考在application.properties
文件中增加配置。
spring.application.name=service-consumer
server.port=18082
spring.cloud.nacos.discovery.server-addr=127.0.0.1:8848
- 验证结果。
- 执行
nacos-service-consumer
中ConsumerApplication
的main
函数,启动应用。
- 登录本地启动的Nacos Server控制台
http://127.0.0.1:8848/nacos
(本地Nacos控制台的默认用户名和密码同为nacos)。
- 在左侧导航栏中选择服务管理 > 服务列表,可以看到服务列表中已经包含了
service-consumer
,且在详情中可以查询该服务的详情。
本地测试
在本地测试消费者对提供者的服务调用结果。
将应用部署到EDAS
当在本地完成应用的开发和测试后,便可将应用程序打包并部署到EDAS。您可以根据您的实际情况选择将Spring Cloud应用可以部署到ECS集群或容器服务Kubernetes集群。部署应用的详细步骤请参见应用部署概述(ECS集群)和应用部署概述(K8s集群)。
说明

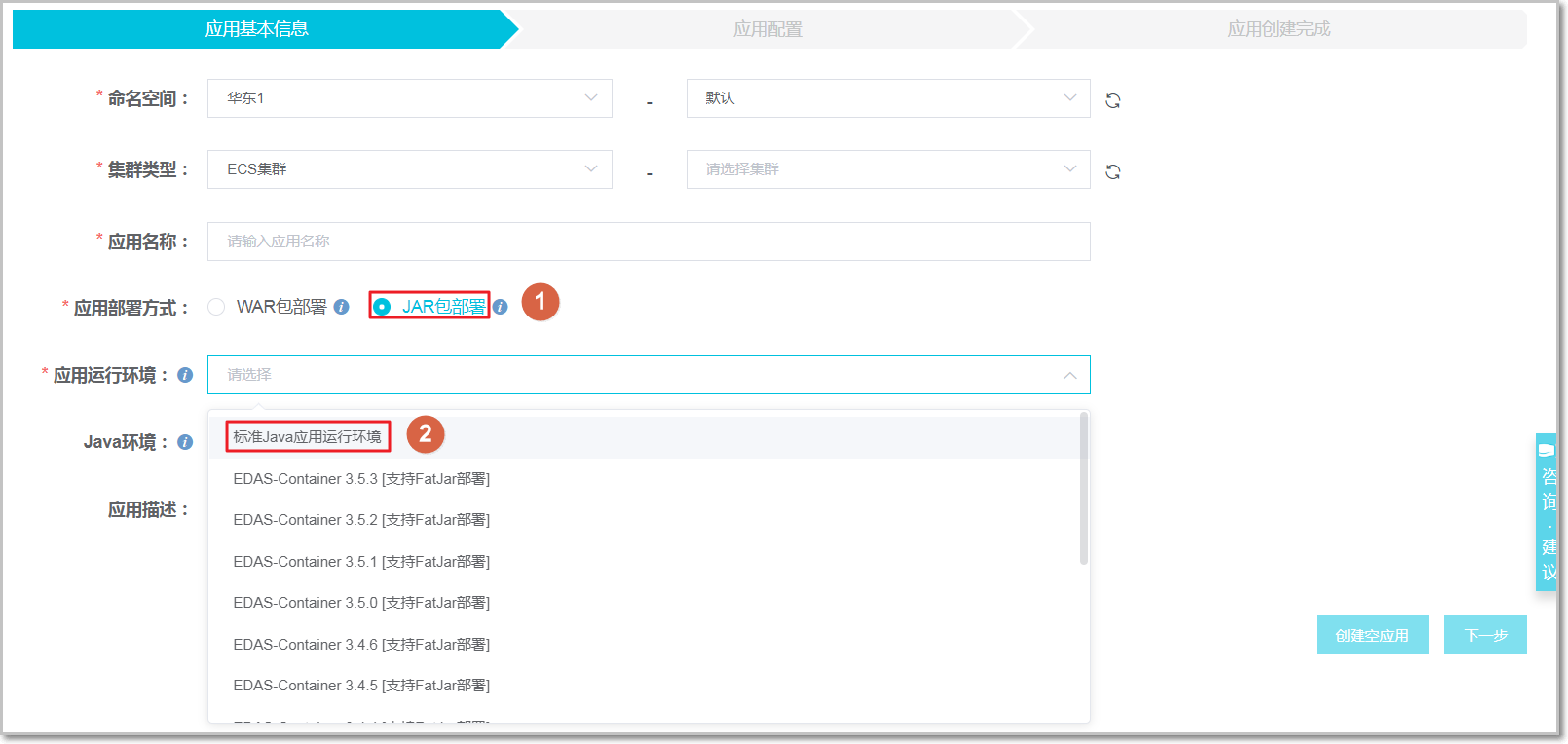

- 第一次部署建议通过控制台部署,且如果使用JAR包部署,在创建应用时应用运行环境务必选择标准Java应用运行环境。
- EDAS提供了Nacos的商用版本,基于Nacos开发的应用部署到EDAS时,EDAS会自动将您本地的Nacos server地址(
http://127.0.0.1:8848/nacos
)替换为EDAS提供的Nacos商用版本地址,您无需修改。

当您将应用部署到EDAS的时候,EDAS会通过优先级更高的方式去设置Nacos Server服务端地址和服务端口,以及namespace、access-key、secret-key、context-path信息。您无需进行任何额外的配置,原有的配置内容可以选择保留或删除。
结果验证
在部署完成之后,在EDAS控制台左侧导航栏选择,在服务查询页面选择地域和命名空间,然后通过搜索service-provider
和service-consumer
查询您部署的应用。
配置项参考
配置项 |
Key |
默认值 |
说明 |
服务端地址 |
spring.cloud.nacos.discovery.server-addr |
无 |
Nacos Server启动监听的IP地址和端口。 |
服务名 |
spring.cloud.nacos.discovery.service |
${spring.application.name} |
给当前的服务命名。 |
网卡名 |
spring.cloud.nacos.discovery.network-interface |
无 |
当IP未配置时,注册的IP为此网卡所对应的IP地址。如果此项也未配置,则默认取第一块网卡的地址。 |
注册的IP地址 |
spring.cloud.nacos.discovery.ip |
无 |
优先级最高。 |
注册的端口 |
spring.cloud.nacos.discovery.port |
-1 |
默认情况下不用配置,系统会自动探测。 |
命名空间 |
spring.cloud.nacos.discovery.namespace |
无 |
常用场景之一是不同环境的注册的区分隔离,例如开发测试环境和生产环境的资源(如配置、服务)隔离等。 |
Metadata |
spring.cloud.nacos.discovery.metadata |
无 |
使用Map格式配置,用户可以根据自己的需要自定义一些和服务相关的元数据信息。 |
集群 |
spring.cloud.nacos.discovery.cluster-name |
DEFAULT |
配置成Nacos集群名称。 |
接入点 |
spring.cloud.nacos.discovery.endpoint |
UTF-8 |
地域的某个服务的入口域名,通过此域名可以动态地拿到服务端地址,此配置在部署到EDAS时无需填写。 |
是否集成Ribbon |
ribbon.nacos.enabled |
true |
一般不需要修改。 |
更多关于Spring Cloud Alibaba Nacos Discovery的信息请参见开源版本的Spring Cloud Alibaba Nacos Discovery文档。
