扩容云盘只是扩大存储容量,不会扩容文件系统。您需要参照本文描述自行格式化新增的存储容量,以便扩展存储空间。

使用限制

本文仅适用于扩容前已挂载到实例的数据盘。对于待挂载数据盘,请参见挂载云盘分区格式化数据盘

扩容指引

表 1. Linux实例数据盘的不同扩容场景
扩容场景 相关操作
数据盘已挂载到实例上 数据盘已分区并格式化 参考本文档的操作步骤完成扩容。
空数据盘,未分区,未格式化 在控制台扩容磁盘空间后,分区并格式化数据盘,然后参考本文档的操作步骤完成扩容。
数据盘已格式化,未分区 在控制台扩容磁盘空间后,扩容文件系统
数据盘未挂载到实例上 您可以选择离线扩容数据盘,或者挂载数据盘到实例后再扩容。

本示例中,数据盘为高效云盘,ECS实例的操作系统为CentOS 7.5 64 位。数据盘挂载点为/dev/vdb,已有分区为/dev/vdb1。扩容前的数据盘容量为20 GiB,扩容为40 GiB。已挂载到实例上并操作过分区格式化的数据盘有如下选项。

准备工作

  1. 通过ECS控制台或者API扩容云盘。
  2. 创建快照以备份数据。
  3. 实例已处于运行中状态。连接方式请参见连接方式导航

确认分区和文件系统

  1. 运行fdisk -lu <DeviceName>确认磁盘是否分区。
    本示例中,原有的磁盘空间已做分区 /dev/vdb1
    [root@localhost ~]# fdisk -lu /dev/vdb

    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x9277b47b

    Device Boot Start End Blocks Id System
    /dev/vdb1 2048 41943039 20970496 83 Linux
  2. 运行blkid <PartionName>确认文件系统的类型。
    本示例中, /dev/vdb1的文件系统类型为 ext4。
    [root@localhost ~]# blkid /dev/vdb1

    /dev/vdb1: UUID="e97bf1e2-fc84-4c11-9652-73554546c324" TYPE="ext4"
    说明 未分区并且未格式化的数据盘,以及已分区但未格式化的数据盘,不会返回结果。
  3. 运行以下命令确认文件系统的状态。
    • ext系列文件系统:e2fsck -n <dst_dev_part_path>
    • xfs文件系统:xfs_repair -n <dst_dev_part_path>

    本示例中,文件系统状态为clean。如果状态不是clean,请排查并修复。

    [root@localhost ~]# e2fsck -n /dev/vdb1

    e2fsck 1.42.9 (28-Dec-2013)
    Warning! /dev/vdb1 is mounted.
    Warning: skipping journal recovery because doing a read-only filesystem check.
    /dev/vdb1: clean, 11/1310720 files, 126322/5242624 blocks
说明 如果检查后发现数据盘还未操作过分区格式化,请完成分区初始化工作。具体操作步骤参见格式化数据盘_Linux

选项一:扩展已有分区

为了防止数据丢失,不建议扩容已挂载( mount)的分区和文件系统。请先取消挂载( umount)分区,完成扩容并正常使用后,重新挂载( mount)。如果确实需要扩容已挂载( mount)的分区,则操作如下:
  • 实例内核版本 < 3.6:先取消挂载该分区,再修改分区表,最后扩容文件系统。
  • 实例内核版本 ≥ 3.6:先修改对应分区表,再通知内核更新分区表,最后扩容文件系统。

如果新磁盘空间用于扩容已有的分区,按照以下步骤在实例中完成扩容:

步骤一:修改分区表

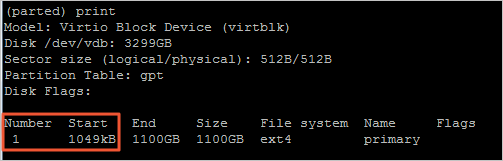

  1. 运行fdisk -lu /dev/vdb,并记录旧分区的起始和结束的扇区位置。
    本示例中, /dev/vdb1 的起始扇区位置是 2048,结束扇区位置是 41943039
    [root@localhost ~]# fdisk -lu /dev/vdb

    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x9277b47b

    Device Boot Start End Blocks Id System
    /dev/vdb1 2048 41943039 20970496 83 Linux
  2. 使用fdisk命令删除旧分区。
    1. 运行fdisk -u /dev/vdb:分区数据盘。
    2. 输入p:打印分区表。
    3. 输入d:删除分区。
    4. 输入p:确认分区已删除。
    5. 输入w:保存修改并退出。
    [root@localhost ~]# fdisk -u /dev/vdb

    Welcome to fdisk (util-linux 2.23.2).
    Changes will remain in memory only, until you decide to write them.
    Be careful before using the write command.
    Command (m for help): p
    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x9277b47b
    Device Boot Start End Blocks Id System
    /dev/vdb1 2048 41943039 20970496 83 Linux
    Command (m for help): d
    Selected partition 1
    Partition 1 is deleted
    Command (m for help): p
    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x9277b47b
    Device Boot Start End Blocks Id System
    Command (m for help): w
    The partition table has been altered!
    Calling ioctl() to re-read partition table.
    WARNING: Re-reading the partition table failed with error 16: Device or resource busy.
    The kernel still uses the old table. The new table will be used at
    the next reboot or after you run partprobe(8) or kpartx(8)
    Syncing disks.
  3. 使用fdisk命令新建分区。
    1. 运行fdisk -u /dev/vdb:分区数据盘。
    2. 输入p:打印分区表。
    3. 输入n:新建分区。
    4. 输入p:选择分区类型为主分区。
    5. 输入<分区号>:选择分区号。本示例选取了1。
      警告
      • 新分区的起始位置,必须和旧分区的起始位置相同。
      • 新分区的结束位置,必须大于旧分区的结束位置,否则会导致扩容失败。
    6. 输入w:保存修改并退出。

    本示例中,将 /dev/vdb1 由20 GiB扩容到40 GiB。

    [root@localhost ~]# fdisk -u /dev/vdb

    Welcome to fdisk (util-linux 2.23.2).
    Changes will remain in memory only, until you decide to write them.
    Be careful before using the write command.
    Command (m for help): p
    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x9277b47b
    Device Boot Start End Blocks Id System
    Command (m for help): n
    Partition type:
    p primary (0 primary, 0 extended, 4 free)
    e extended
    Select (default p): p
    Partition number (1-4, default 1): 1
    First sector (2048-83886079, default 2048):
    Using default value 2048
    Last sector, +sectors or +size{K,M,G} (2048-83886079, default 83886079):
    Partition 1 of type Linux and of size 30 GiB is set
    Command (m for help): p
    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x9277b47b
    Device Boot Start End Blocks Id System
    /dev/vdb1 2048 62916607 31457280 83 Linux
    Command (m for help): w
    The partition table has been altered!
    Calling ioctl() to re-read partition table.
    Syncing disks.
  4. 运行lsblk /dev/vdb确保分区表已经增加。
  5. 运行e2fsck -n /dev/vdb1再次检查文件系统,确认扩容分区后的文件系统状态为clean

步骤二:通知内核更新分区表

运行partprobe <dst_dev_path>或者partx -u <dst_dev_path>,以通知内核磁盘的分区表已经修改,需要同步更新。

步骤三:扩容文件系统

  • ext系列文件系统(例如ext3和ext4):运行resize2fs /dev/vdb1
    [root@localhost ~]# resize2fs /dev/vdb1
    resize2fs 1.42.9 (28-Dec-2013)
    Resizing the filesystem on /dev/vdb1 to 7864320 (4k) blocks.
    The filesystem on /dev/vdb1 is now 7864320 blocks long.
  • xfs文件系统:先运行mount /dev/vdb1 /mnt/命令,再运行xfs_growfs /dev/vdb1
    [root@localhost ~]# mount /dev/vdb1 /mnt/
    [root@localhost ~]# xfs_growfs /dev/vdb1

    meta-data=/dev/vdb1              isize=512    agcount=4, agsize=1310720 blks
             =                       sectsz=512   attr=2, projid32bit=1
             =                       crc=1        finobt=0 spinodes=0
    data     =                       bsize=4096   blocks=5242880, imaxpct=25
             =                       sunit=0      swidth=0 blks
    naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
    log      =internal               bsize=4096   blocks=2560, version=2
             =                       sectsz=512   sunit=0 blks, lazy-count=1
    realtime =none                   extsz=4096   blocks=0, rtextents=0
    data blocks changed from 5242880 to 7864320

选项二:新增并格式化分区

如果新磁盘空间用于增加新的分区,按照以下步骤在实例中完成扩容:

  1. 运行fdisk -u /dev/vdb命令新建分区。

    本示例中,为新增的20GiB新建分区,作为/dev/vdb2

    [root@localhost ~]# fdisk -u /dev/vdb

    Welcome to fdisk (util-linux 2.23.2).

    Changes will remain in memory only, until you decide to write them.
    Be careful before using the write commad.


    Command (m for help): p

    Disk /dev/vdb: 42.9 GB, 42949672960 bytes, 83886080 sectors
    Units = sectors of 1 * 512 = 512 bytes
    Sector size (logical/physical): 512 bytes / 512 bytes
    I/O size (minimum/optimal): 512 bytes / 512 bytes
    Disk label type: dos
    Disk identifier: 0x2b31a2a3

       Device Boot      Start         End      Blocks   Id  System
    /dev/vdb1            2048    41943039    20970496   83  Linux

    Command (m for help): n
    Partition type:
       p   primary (1 primary, 0 extended, 3 free)
       e   extended
    Select (default p): p
    Partition number (2-4, default 2): 2
    First sector (41943040-83886079, default 41943040):
    Using default value 41943040
    Last sector, +sectors or +size{K,M,G} (41943040-83886079, default 83886079):
    Using default value 83886079
    Partition 2 of type Linux and of size 20 GiB is set

    Command (m for help): w
    The partition table has been altered!

    Calling ioctl() to re-read partition table.
    Syncing disks.
  2. 运行命令lsblk /dev/vdb查看分区。
    [root@localhost ~]# lsblk /dev/vdb

    NAME   MAJ:MIN RM SIZE RO TYPE MOUNTPOINT
    vdb    253:16   0  40G  0 disk
    ├─vdb1 253:17   0  20G  0 part
    └─vdb2 253:18   0  20G  0 part
  3. 格式化新的分区。
    • 创建ext4文件系统:mkfs.ext4 /dev/vdb2
      [root@localhost ~]# mkfs.ext4 /dev/vdb2

      mke2fs 1.42.9 (28-Dec-2013)
      Filesystem label=
      OS type: Linux
      Block size=4096 (log=2)
      Fragment size=4096 (log=2)
      Stride=0 blocks, Stripe width=0 blocks
      1310720 inodes, 5242880 blocks
      262144 blocks (5.00%) reserved for the super user
      First data block=0
      Maximum filesystem blocks=2153775104
      160 block groups
      32768 blocks per group, 32768 fragments per group
      8192 inodes per group
      Superblock backups stored on blocks:
              32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
              4096000

      Allocating group tables: done
      Writing inode tables: done
      Creating journal (32768 blocks): done
      Writing superblocks and filesystem accounting information: done


      [root@localhost ~]# blkid /dev/vdb2
      /dev/vdb2: UUID="e3f336dc-d534-4fdd-af71-b6ff1a55bdbb" TYPE="ext4"
    • 创建ext3文件系统:mkfs.ext3 /dev/vdb2
      [root@localhost ~]# mkfs.ext3  /dev/vdb2

      mke2fs 1.42.9 (28-Dec-2013)
      Filesystem label=
      OS type: Linux
      Block size=4096 (log=2)
      Fragment size=4096 (log=2)
      Stride=0 blocks, Stripe width=0 blocks
      1310720 inodes, 5242880 blocks
      262144 blocks (5.00%) reserved for the super user
      First data block=0
      Maximum filesystem blocks=4294967296
      160 block groups
      32768 blocks per group, 32768 fragments per group
      8192 inodes per group
      Superblock backups stored on blocks:
              32768, 98304, 163840, 229376, 294912, 819200, 884736, 1605632, 2654208,
              4096000

      Allocating group tables: done
      Writing inode tables: done
      Creating journal (32768 blocks): done
      Writing superblocks and filesystem accounting information: done

      [root@localhost ~]# blkid /dev/vdb2
      /dev/vdb2: UUID="dd5be97d-a630-4593-9b0f-5056def914ea" SEC_TYPE="ext2" TYPE="ext3"
    • 创建xfs文件系统:mkfs.xfs -f /dev/vdb2
      [root@localhost ~]# mkfs.xfs -f /dev/vdb2

      meta-data=/dev/vdb2              isize=512    agcount=4, agsize=1310720 blks
               =                       sectsz=512   attr=2, projid32bit=1
               =                       crc=1        finobt=0, sparse=0
      data     =                       bsize=4096   blocks=5242880, imaxpct=25
               =                       sunit=0      swidth=0 blks
      naming   =version 2              bsize=4096   ascii-ci=0 ftype=1
      log      =internal log           bsize=4096   blocks=2560, version=2
               =                       sectsz=512   sunit=0 blks, lazy-count=1
      realtime =none                   extsz=4096   blocks=0, rtextents=0

      [root@localhost ~]# blkid /dev/vdb2
      /dev/vdb2: UUID="66251477-3ae4-4b44-8b21-5604420dbecb" TYPE="xfs"
    • 创建trfs文件系统:mkfs.btrfs /dev/vdb2
      [root@localhost ~]# mkfs.btrfs /dev/vdb2

      btrfs-progs v4.9.1
      See http://btrfs.wiki.kernel.org for more information.

      Label:              (null)
      UUID:               6fb5779b-57d7-4aaf-bf09-82b46f54a429
      Node size:          16384
      Sector size:        4096
      Filesystem size:    20.00GiB
      Block group profiles:
        Data:             single            8.00MiB
        Metadata:         DUP               1.00GiB
        System:           DUP               8.00MiB
      SSD detected:       no
      Incompat features:  extref, skinny-metadata
      Number of devices:  1
      Devices:
         ID        SIZE  PATH
          1    20.00GiB  /dev/vdb2

      [root@localhost ~]# blkid /dev/vdb2
      /dev/vdb2: UUID="6fb5779b-57d7-4aaf-bf09-82b46f54a429" UUID_SUB="9bdd889a-ab69-4653-a583-d1b6b8723378" TYPE="btrfs"
  4. 运行mount /dev/vdb2 /mnt挂载文件系统。
  5. 运行df -h查看目前磁盘空间和使用情况。
    显示新建文件系统的信息,表示挂载成功,您可以使用新的文件系统。
    [root@localhost ~]# df -h

    Filesystem Size Used Avail Use% Mounted on
    /dev/vda1 40G 1.6G 36G 5% /
    devtmpfs 3.9G 0 3.9G 0% /dev
    tmpfs 3.9G 0 3.9G 0% /dev/shm
    tmpfs 3.9G 460K 3.9G 1% /run
    tmpfs 3.9G 0 3.9G 0% /sys/fs/cgroup
    /dev/vdb2 9.8G 37M 9.2G 1% /mnt
    tmpfs 783M 0 783M 0% /run/user/0
