本节介绍如何通过SDK给负载均衡的监控项设置报警规则。

前提条件

  • 已知负载均衡在云监控中设置报警的产品标签SLB。
  • 已知云监控中负载均衡的数据命名空间Namespace为acs_slb_dashboard,获取方式请参见DescribeProjectMeta

背景信息

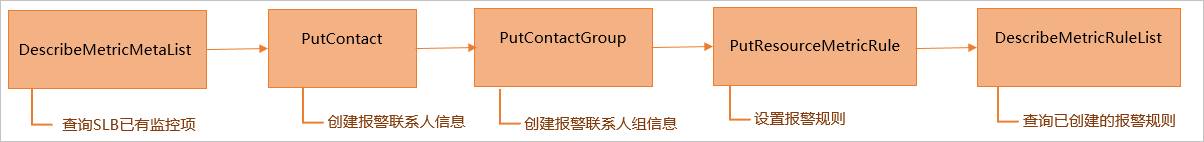

通过API设置报警规则的流程,如下图所示。

流程图

流程说明如下:

  1. 调用DescribeMetricMetaList查询云监控开放的SLB时序类指标监控项描述或直接查看监控项说明,详情参见监控报警项说明
  2. 调用PutContact创建或修改报警联系人信息。
  3. 调用PutContactGroup创建或修改报警联系人组。
  4. 调用PutResourceMetricRule接口对单个资源的性能指标设置阈值报警规则。
  5. 调用DescribeMetricRuleList接口查询报警规则列表。

Python

示例:为已经配置了TCP监听的实例(ID:lb-bp13hithhod4aoxc*****)设置三种级别的后端异常ECS阈值报警规则(Critical、Warn和Info)。

from aliyunsdkcms.request.v20190101 import DescribeMetricMetaListRequest, PutContactRequest, PutContactGroupRequest, \
    PutResourceMetricRuleRequest, DescribeMetricRuleListRequest
from aliyunsdkcore.client import AcsClient
import json, uuid

if __name__ == '__main__':
    # 1.初始化SDK
    ACS_CLIENT = AcsClient(
        'LTAI4FicM86BTPDyP*****',  # your-access-key-id
        'VRj7d6LOl2ZyFyfYTWYzGk0e*****',  # your-access-key-secret
        'cn-hangzhou',  # your-region-id
    )

    # 命名空间
    namespace = "acs_slb_dashboard"

    # 2.查询云监控开放的时序类指标监控项描述
    describeMetricMetaListRequest = DescribeMetricMetaListRequest.DescribeMetricMetaListRequest()
    # 设置命名空间
    describeMetricMetaListRequest.set_Namespace(namespace)
    # 分页大小,默认30
    describeMetricMetaListRequest.set_PageSize(100)
    describeMetricMetaListResponse = ACS_CLIENT.do_action_with_exception(describeMetricMetaListRequest)
    print(json.loads(describeMetricMetaListResponse))

    # 3.创建报警联系人
    putContactRequest = PutContactRequest.PutContactRequest()
    # 报警联系人姓名
    putContactRequest.set_ContactName("doctest")
    # 备注
    putContactRequest.set_Describe("doctest")
    # Email地址
    putContactRequest.set_ChannelsMail("test@example.com")
    putContactResponse = ACS_CLIENT.do_action_with_exception(putContactRequest)
    print(json.loads(putContactResponse))

    # 4.创建报警联系人组
    putContactGroupRequest = PutContactGroupRequest.PutContactGroupRequest()
    # 报警联系人组名称
    putContactGroupRequest.set_ContactGroupName("默认报警联系人组")
    # 报警联系人组描述信息
    putContactGroupRequest.set_Describe("默认报警联系人组")
    putContactGroupRequest.set_ContactNamess(["doctest"])
    putContactGroupResponse = ACS_CLIENT.do_action_with_exception(putContactGroupRequest)
    print(json.loads(putContactGroupResponse))

    # 5.对单个资源的性能指标设置阈值报警规则
    putResourceMetricRuleRequest = PutResourceMetricRuleRequest.PutResourceMetricRuleRequest()
    #  自定义报警规则ID
    putResourceMetricRuleRequest.set_RuleId(uuid.uuid1())
    # 报警规则名称
    putResourceMetricRuleRequest.set_RuleName("slb后端异常报警")
    # 报警联系人组,多个联系人组之间用英文逗号分隔
    putResourceMetricRuleRequest.set_ContactGroups("默认报警联系人组")
    # 设置负载均衡产品的数据命名空间acs_slb_dashboard
    putResourceMetricRuleRequest.set_Namespace(namespace)
    # 监控项名称,UnhealthyServerCount:后端异常ECS实例个数
    putResourceMetricRuleRequest.set_MetricName("UnhealthyServerCount")
    # 需要报警的资源
    putResourceMetricRuleRequest.set_Resources("[{'instanceId':'lb-bp13hithhod*******'}]")

    # Critical级别报警设置
    # Critical级别报警统计方法,Average:平均值
    putResourceMetricRuleRequest.set_EscalationsCriticalStatistics("Average")
    # Critical级别阈值比较符,GreaterThanOrEqualToThreshold:大于等于
    putResourceMetricRuleRequest.set_EscalationsCriticalComparisonOperator("GreaterThanOrEqualToThreshold")
    # Critical级别报警阈值
    putResourceMetricRuleRequest.set_EscalationsCriticalThreshold("2")
    # Critical级别报警重试次数
    putResourceMetricRuleRequest.set_EscalationsCriticalTimes(5)

    # Info级别报警设置
    # Info级别报警统计方法,Average:平均值
    putResourceMetricRuleRequest.set_EscalationsInfoStatistics("Average")
    # Info级别阈值比较符,GreaterThanOrEqualToThreshold:大于等于
    putResourceMetricRuleRequest.set_EscalationsInfoComparisonOperator("GreaterThanOrEqualToThreshold")
    # Info级别报警阈值
    putResourceMetricRuleRequest.set_EscalationsInfoThreshold("1")
    # Info级别报警重试次数
    putResourceMetricRuleRequest.set_EscalationsInfoTimes(5)

    # Warn级别报警设置
    # Warn级别报警统计方法,Average:平均值
    putResourceMetricRuleRequest.set_EscalationsWarnStatistics("Average")
    # Warn级别阈值比较符,GreaterThanOrEqualToThreshold:大于等于
    putResourceMetricRuleRequest.set_EscalationsWarnComparisonOperator("GreaterThanOrEqualToThreshold")
    # Warn级别报警阈值
    putResourceMetricRuleRequest.set_EscalationsWarnThreshold("1")
    # Warn级别报警重试次数
    putResourceMetricRuleRequest.set_EscalationsWarnTimes(5)

    putResourceMetricRuleResponse = ACS_CLIENT.do_action_with_exception(putResourceMetricRuleRequest)
    print(json.loads(putResourceMetricRuleResponse))

    # 6.查询报警规则列表
    describeMetricRuleListRequest = DescribeMetricRuleListRequest.DescribeMetricRuleListRequest()
    # 设置负载均衡的数据命名空间acs_slb_dashboard
    describeMetricRuleListRequest.set_Namespace(namespace)
    # 设置需要查询的报警项
    describeMetricRuleListRequest.set_MetricName("UnhealthyServerCount")
    describeMetricRuleListResponse = ACS_CLIENT.do_action_with_exception(describeMetricRuleListRequest)
    print(json.loads(describeMetricRuleListResponse))


Java

示例:为已经配置了TCP监听的实例(ID:lb-bp13hithhod4aoxc*****)设置三种级别的后端异常ECS阈值报警规则(Critical、Warn和Info)。

package com.aliyun.cms;

import com.aliyun.CommonConfig;
import com.aliyuncs.DefaultAcsClient;
import com.aliyuncs.IAcsClient;
import com.aliyuncs.cms.model.v20190101.*;
import com.aliyuncs.exceptions.ClientException;
import com.aliyuncs.profile.DefaultProfile;
import com.google.gson.Gson;

import java.util.ArrayList;
import java.util.List;
import java.util.UUID;

public class CreateMetricRuleDemo {

    public static void main(String[] args) throws ClientException {
        // 1.初始化SDK
        DefaultProfile profile = DefaultProfile.getProfile(
                "cn-hangzhou",// 地域ID
                CommonConfig.ACCESSKEY_ID,// 您的AccessKey ID
                CommonConfig.ACCESSKEY_SECRET);// 您的AccessKey Secret
        IAcsClient client = new DefaultAcsClient(profile);

        // 命名空间
        String namespace = "acs_slb_dashboard";
        Gson gson = new Gson();


        // 2.查询云监控开放的时序类指标监控项描述
        DescribeMetricMetaListRequest describeMetricMetaListRequest = new DescribeMetricMetaListRequest();
        // 设置命名空间
        describeMetricMetaListRequest.setNamespace(namespace);
        // 分页大小,默认30
        describeMetricMetaListRequest.setPageSize(100);
        DescribeMetricMetaListResponse describeMetricMetaListResponse = client.getAcsResponse(describeMetricMetaListRequest);
        System.out.println(gson.toJson(describeMetricMetaListResponse));


        // 3.创建报警联系人
        PutContactRequest putContactRequest = new PutContactRequest();
        // 报警联系人姓名
        putContactRequest.setContactName("doctest");
        // 备注
        putContactRequest.setDescribe("doctest");
        // Email地址
        putContactRequest.setChannelsMail("test@example.com");
        PutContactResponse putContactResponse = client.getAcsResponse(putContactRequest);
        System.out.println(gson.toJson(putContactResponse));


        // 4.创建报警联系人组
        PutContactGroupRequest putContactGroupRequest = new PutContactGroupRequest();
        // 报警联系人组名称
        putContactGroupRequest.setContactGroupName("默认报警联系人组");
        // 报警联系人组描述信息
        putContactGroupRequest.setDescribe("默认报警联系人组");
        // 报警联系人列表
        List<String> contactNames = new ArrayList<>();
        contactNames.add("doctest");
        putContactGroupRequest.setContactNamess(contactNames);
        PutContactGroupResponse putContactGroupResponse = client.getAcsResponse(putContactGroupRequest);
        System.out.println(gson.toJson(putContactGroupResponse));


        // 5.对单个资源的性能指标设置阈值报警规则
        PutResourceMetricRuleRequest putResourceMetricRuleRequest = new PutResourceMetricRuleRequest();
        // 生成全小写字母且不带短横线的UUID,作为报警规则的唯一ID
        String uuid = UUID.randomUUID().toString().replace("-", "").toLowerCase();
        // 自定义报警规则ID
        putResourceMetricRuleRequest.setRuleId(uuid);
        // 报警规则名称
        putResourceMetricRuleRequest.setRuleName("slb后端异常报警");
        // 报警联系人组,多个联系人组之间用英文逗号分隔
        putResourceMetricRuleRequest.setContactGroups("默认报警联系人组");
        // 设置负载均衡产品的数据命名空间acs_slb_dashboard
        putResourceMetricRuleRequest.setNamespace(namespace);
        // 监控项名称,UnhealthyServerCount:后端异常ECS实例个数
        putResourceMetricRuleRequest.setMetricName("UnhealthyServerCount");
        // 需要报警的资源
        putResourceMetricRuleRequest.setResources("[{\"instanceId\":\"lb-bp13hithhod4aoxc*****\"}]");

        // Critical级别报警设置
        // Critical级别报警统计方法,Average:平均值
        putResourceMetricRuleRequest.setEscalationsCriticalStatistics("Average");
        // Critical级别阈值比较符,GreaterThanOrEqualToThreshold:大于等于
        putResourceMetricRuleRequest.setEscalationsCriticalComparisonOperator("GreaterThanOrEqualToThreshold");
        // Critical级别报警阈值
        putResourceMetricRuleRequest.setEscalationsCriticalThreshold("2");
        // Critical级别报警重试次数
        putResourceMetricRuleRequest.setEscalationsCriticalTimes(5);

        // Info级别报警设置
        // Info级别报警统计方法,Average:平均值
        putResourceMetricRuleRequest.setEscalationsInfoStatistics("Average");
        // Info级别阈值比较符,GreaterThanOrEqualToThreshold:大于等于
        putResourceMetricRuleRequest.setEscalationsInfoComparisonOperator("GreaterThanOrEqualToThreshold");
        // Info级别报警阈值
        putResourceMetricRuleRequest.setEscalationsInfoThreshold("1");
        // Info级别报警重试次数
        putResourceMetricRuleRequest.setEscalationsInfoTimes(5);

        // Warn级别报警设置
        // Warn级别报警统计方法,Average:平均值
        putResourceMetricRuleRequest.setEscalationsWarnStatistics("Average");
        // Warn级别阈值比较符,GreaterThanOrEqualToThreshold:大于等于
        putResourceMetricRuleRequest.setEscalationsWarnComparisonOperator("GreaterThanOrEqualToThreshold");
        // Warn级别报警阈值
        putResourceMetricRuleRequest.setEscalationsWarnThreshold("1");
        // Warn级别报警重试次数
        putResourceMetricRuleRequest.setEscalationsWarnTimes(5);
        PutResourceMetricRuleResponse putResourceMetricRuleResponse = client.getAcsResponse(putResourceMetricRuleRequest);
        System.out.println(gson.toJson(putResourceMetricRuleResponse));


        // 6.查询报警规则列表
        DescribeMetricRuleListRequest describeMetricRuleListRequest = new DescribeMetricRuleListRequest();
        // 设置负载均衡的数据命名空间acs_slb_dashboard
        describeMetricRuleListRequest.setNamespace(namespace);
        // 设置需要查询的报警项
        describeMetricRuleListRequest.setMetricName("UnhealthyServerCount");
        DescribeMetricRuleListResponse describeMetricRuleListResponse = client.getAcsResponse(describeMetricRuleListRequest);
        System.out.println(gson.toJson(describeMetricRuleListResponse));
    }
}


返回结果

SDK返回结果如下:

{'TotalCount': 53, 'RequestId': '96E7FB37-8BD5-48C3-AE0C-CBC03F8B7FD7', 'Resources': {'Resource': [{'MetricName': 'ActiveConnection', 'Periods': '60,300', 'Description': '端口当前活跃连接数', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'DropConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'DropPacketRX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'DropPacketTX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'DropTrafficRX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"bits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'DropTrafficTX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"bits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'GroupTrafficRX', 'Periods': '60', 'Description': '', 'Dimensions': 'groupId', 'Labels': '[{"name":"alertUnit","value":"bits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"groupId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum,Sum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'GroupTrafficTX', 'Periods': '60', 'Description': '', 'Dimensions': 'groupId', 'Labels': '[{"name":"alertUnit","value":"bits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"groupId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum,Sum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'HeathyServerCount', 'Periods': '60,300', 'Description': '当前后端健康ECS实例个数', 'Dimensions': 'userId,instanceId,port,vip', 'Labels': '[{"name":"alertUnit","value":"Count"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InactiveConnection', 'Periods': '60,300', 'Description': '端口当前非活跃连接数', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceActiveConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceDropConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceDropPacketRX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceDropPacketTX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceDropTrafficRX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"bits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceDropTrafficTX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"bits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceInactiveConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceMaxConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceMaxConnectionUtilization', 'Periods': '60,300', 'Description': '最大连接数使用率', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"%"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': '%', 'Statistics': 'Average,Maximum,Minimum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceNewConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceNewConnectionUtilization', 'Periods': '60,300', 'Description': '新建连接数使用率', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"%"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': '%', 'Statistics': 'Average,Maximum,Minimum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstancePacketRX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstancePacketTX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceQps', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceQpsUtilization', 'Periods': '60,300', 'Description': 'QPS使用率', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"%"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': '%', 'Statistics': 'Average,Maximum,Minimum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceRt', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"ms"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'ms', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceStatusCode2xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceStatusCode3xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceStatusCode4xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceStatusCode5xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceStatusCodeOther', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceTrafficRX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Mbits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"unitFactor","value":"1048576"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceTrafficTX', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Mbits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"unitFactor","value":"1048576"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceUpstreamCode4xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceUpstreamCode5xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'InstanceUpstreamRt', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId', 'Labels': '[{"name":"alertUnit","value":"ms"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"instanceId"},{"name":"is_alarm","value":"true"}]', 'Unit': 'ms', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'MaxConnection', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Maximum,Minimum,Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'NewConnection', 'Periods': '60,300', 'Description': '端口当前新建连接数', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'PacketRX', 'Periods': '60,300', 'Description': '端口每秒流入数据包数', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'PacketTX', 'Periods': '60,300', 'Description': '端口每秒流出数据包数', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'Qps', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'Rt', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"ms"},{"name":"alertDefault","value":"ms"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': '', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'StatusCode2xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'StatusCode3xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'StatusCode4xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'StatusCode5xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'StatusCodeOther', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/Second"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/Second', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'TrafficRXNew', 'Periods': '60,300', 'Description': '端口每秒流入数据量', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Mbits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"unitFactor","value":"1048576"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'TrafficTXNew', 'Periods': '60,300', 'Description': '端口每秒流出数据量', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Mbits/s"},{"name":"minAlertPeriod","value":"60"},{"name":"unitFactor","value":"1048576"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'bits/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'UnhealthyServerCount', 'Periods': '60,300', 'Description': '当前后端异常ECS实例个数', 'Dimensions': 'userId,instanceId,port,vip', 'Labels': '[{"name":"alertUnit","value":"Count"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'UpstreamCode4xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'UpstreamCode5xx', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"Count/s"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'Count/s', 'Statistics': 'Average,Minimum,Maximum', 'Namespace': 'acs_slb_dashboard'}, {'MetricName': 'UpstreamRt', 'Periods': '60,300', 'Description': '', 'Dimensions': 'userId,instanceId,port,protocol', 'Labels': '[{"name":"alertUnit","value":"ms"},{"name":"minAlertPeriod","value":"60"},{"name":"metricCategory","value":"port"},{"name":"is_alarm","value":"true"}]', 'Unit': 'ms', 'Statistics': 'Average', 'Namespace': 'acs_slb_dashboard'}]}, 'Code': 200, 'Success': True}
{'RequestId': '653C4634-C32B-4858-B2BA-BAFC22DAF8FF', 'Code': '200', 'Success': True}
{'RequestId': '088D3BFF-DCED-4892-AE1D-468120BB6D74', 'Code': '200', 'Success': True}
{'Message': '', 'RequestId': '149A6CBC-1182-4749-8AD6-F55C563B9020', 'Code': 200, 'Success': True}
{'RequestId': '3E6ED37E-F5F3-472D-AF4D-8117329EAEC5', 'Total': 1, 'Alarms': {'Alarm': [{'GroupName': '', 'SilenceTime': 86400, 'ContactGroups': '默认报警联系人组', 'NoEffectiveInterval': '', 'MailSubject': '${serviceType}-${metricName}-${levelDescription}通知(${dimensions})', 'RuleId': 'edc0e1ae-7ef8-11ea-bf2d-54ee75d07c7c', 'SourceType': 'METRIC', 'Period': 300, 'Dimensions': '', 'EffectiveInterval': '', 'Namespace': 'acs_slb_dashboard', 'AlertState': 'OK', 'GroupId': '', 'MetricName': 'UnhealthyServerCount', 'EnableState': True, 'Escalations': {'Critical': {'ComparisonOperator': 'GreaterThanOrEqualToThreshold', 'Times': 5, 'Statistics': 'Average', 'Threshold': '2'}, 'Info': {'ComparisonOperator': 'GreaterThanOrEqualToThreshold', 'Times': 5, 'Statistics': 'Average', 'Threshold': '1'}, 'Warn': {'ComparisonOperator': 'GreaterThanOrEqualToThreshold', 'Times': 5, 'Statistics': 'Average', 'Threshold': '1'}}, 'Webhook': '', 'Resources': '[{"instanceId":"lb-bp13hithhod4aoxc*****"}]', 'RuleName': 'slb后端异常报警'}]}, 'Code': '200', 'Success': True}
