本文介绍基于reindex将阿里云Elasticsearch 5.x实例中的多type数据,迁移到高版本Elasticsearch 6.x实例的单type索引中。
注意事项
由于阿里云Elasticsearch网络架构调整,对创建的实例有以下影响:
- 2020年10月及之后创建的实例,暂不支持Watcher报警和LDAP认证功能。
- 2020年10月及之后创建的实例,不支持与10月之前创建的实例进行跨集群Reindex、跨集群搜索、跨集群复制等相关操作。如果需要使用跨集群操作,需要确保实例创建在同一网络架构下。
说明 阿里云Elasticsearch在华北3(张家口)、海外地域的网络架构调整时间在2020年10月之前,如果需要使用跨集群操作,请
提交工单联系技术支持同学校验网络架构是否可以使用。
操作流程
- 准备工作
准备阿里云Elasticsearch和Logstash实例,确保两者在同一专有网络下。
- 阿里云Elasticsearch实例:存储索引数据。
- 阿里云Logstash实例:通过管道配置功能,迁移处理后的数据。
- 步骤一:转换索引类型
通过reindex,将阿里云Elasticsearch 5.x实例中的多type索引转换为单type索引。您可以通过以下两种方式来实现:
- 合并type方式:将Elasticsearch 5.x实例中的单索引多type数据,通过reindex script方式合并成一个单索引单type数据。
- 拆分type方式:将Elasticsearch 5.x实例中的单索引多type数据,按照不同的type,通过reindex拆分成多个单索引单type数据的方式。
- 步骤二:通过Logstash迁移数据
使用阿里云Logstash,将处理后的索引数据迁移至高版本Elasticsearch 6.x实例中。
- 步骤三:查看数据迁移结果
在Kibana中查看迁移成功的索引。
准备工作
- 准备低版本(5.5.3)和高版本(6.7.0)的阿里云Elasticsearch实例,并准备待迁移的多type数据。
- 创建阿里云Logstash实例,要求与阿里云Elasticsearch实例处于同一专有网络下。
步骤一:转换索引类型
以下步骤介绍通过合并type方式,将单索引多type数据合并成一个单索引单type数据。
- 开启Elasticsearch实例的自动创建索引功能。
- 登录阿里云Elasticsearch控制台。
- 在左侧导航栏,单击Elasticsearch实例。
- 在顶部菜单栏处,选择资源组和地域。
- 在实例列表中,单击低版本的实例ID。
- 在左侧导航栏,单击ES集群配置。
- 单击YML文件配置右侧的修改配置。

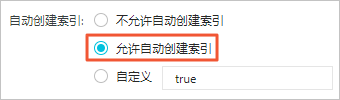

- 在YML文件配置页面,设置自动创建索引为允许自动创建索引。

警告 修改自动创建索引方式会触发实例重启,请确认后再操作。
- 勾选该操作会重启实例,请确认后操作,单击确定。
- 登录低版本Elasticsearch实例的Kibana控制台。
- 在左侧导航栏,单击Dev Tools(开发工具)。
- 在Console中,执行以下命令,将单索引多type数据合并成单索引单type数据。
POST _reindex
{
"source": {
"index": "twitter"
},
"dest": {
"index": "new1"
},
"script": {
"inline": """
ctx._id = ctx._type + "-" + ctx._id;
ctx._source.type = ctx._type;
ctx._type = "doc";
""",
"lang": "painless"
}
}
以上示例通过自定义type的方式,指定ctx._source.type在new1索引中添加type字段,将其设置为原始_type的值。并且new1索引的_id由_type-_id组成,防止存在不同类型的文档具有相同的ID而发生冲突的情况。
- 执行
GET new1/_mapping
命令,查看合并后的Mapping结构。
- 执行以下命令,查看合并后的索引数据。
GET new1/_search
{
"query":{
"match_all":{
}
}
}
以下步骤介绍通过拆分type方式,将单索引多type数据,按照不同的type,通过reindex拆分成多个单索引单type数据。
- 在Console中,执行以下命令,将单索引多type拆分单索引单type。
POST _reindex
{
"source": {
"index": "twitter",
"type": "tweet",
"size": 10000
},
"dest": {
"index": "twitter_tweet"
}
}
POST _reindex
{
"source": {
"index": "twitter",
"type": "user",
"size": 10000
},
"dest": {
"index": "twitter_user"
}
}
以上示例将twitter索引按照不同type,分别拆分成twitter_tweet和twitter_user索引。
- 执行以下命令,查看拆分后的索引数据。
GET twitter_tweet/_search
{
"query":{
"match_all":{
}
}
}
GET twitter_user/_search
{
"query":{
"match_all":{
}
}
}
步骤二:通过Logstash迁移数据
- 登录阿里云Elasticsearch控制台。
- 在左侧导航栏,单击Logstash实例。
- 在顶部菜单栏处,选择地域,然后在Logstash实例中单击目标实例ID。
- 在左侧导航栏,单击管道管理。
- 在管道管理页面,使用配置文件管理方式配置管道。
管道配置的具体操作,请参见
通过配置文件管理管道,Config配置示例如下。
input {
elasticsearch {
hosts => ["http://es-cn-0pp1f1y5g000h****.elasticsearch.aliyuncs.com:9200"]
user => "elastic"
index => "*"
password => "your_password"
docinfo => true
}
}
filter {
}
output {
elasticsearch {
hosts => ["http://es-cn-mp91cbxsm000c****.elasticsearch.aliyuncs.com:9200"]
user => "elastic"
password => "your_password"
index => "test"
}
}
- 保存并部署管道配置,开始迁移数据。
步骤三:查看数据迁移结果
- 登录高版本Elasticsearch实例的Kibana控制台。
- 在左侧导航栏,单击Dev Tools。
- 在Console中,执行以下命令,查看迁移成功的索引。
