    Siapkan lingkungan komputasi rahasia heterogen pada instans gn8v-tee dan verifikasi komputasi rahasia GPU dengan kode contoh.

    Latar Belakang

    Instans komputasi rahasia heterogen Alibaba Cloud (gn8v-tee) memperluas instans komputasi rahasia CPU TDX dengan mengintegrasikan GPU ke dalam Trusted Execution Environment (TEE), sehingga melindungi transfer data antara CPU dan GPU serta komputasi data di GPU. Untuk membangun lingkungan komputasi rahasia CPU TDX dan memverifikasi remote attestation, lihat Bangun lingkungan komputasi rahasia TDX. Untuk membangun lingkungan AI Agent rahasia pada instans komputasi rahasia heterogen, lihat Bangun agen AI rahasia OpenClaw pada instans komputasi rahasia heterogen.

    GPU pada instans komputasi rahasia heterogen dimulai dalam mode komputasi rahasia. Mekanisme berikut menjamin kerahasiaan:

    1. TDX mencegah Hypervisor/Host OS mengakses register sensitif atau data memori instans.

    2. Firewall PCIe mencegah CPU mengakses register kritis GPU dan memori video yang dilindungi. Hypervisor/Host OS hanya dapat melakukan operasi terbatas seperti mereset GPU, tetapi tidak dapat mengakses data sensitif.

    3. NVLink Firewall GPU memblokir GPU lain agar tidak langsung mengakses memori videonya.

    4. Saat inisialisasi, driver GPU dan fungsi pustaka dalam CPU TEE membuat saluran terenkripsi dengan GPU melalui protokol SPDM. Setelah negosiasi kunci, hanya ciphertext yang dikirimkan melalui PCIe antara CPU dan GPU.

    5. Kemampuan remote attestation GPU memastikan bahwa GPU berada dalam kondisi aman.

      Aplikasi dalam instans komputasi rahasia dapat menggunakan Attestation SDK untuk memanggil driver GPU dan mendapatkan laporan kriptografis mengenai status keamanan GPU. Laporan ini berisi informasi yang ditandatangani secara kriptografis tentang perangkat keras GPU, VBIOS, dan pengukuran status perangkat keras. Pihak yang bergantung dapat membandingkan pengukuran ini dengan pengukuran referensi dari vendor GPU untuk memverifikasi bahwa GPU berada dalam kondisi komputasi rahasia yang aman.

    Catatan Penggunaan

    Komputasi rahasia heterogen memerlukan image Alibaba Cloud Linux 3. Jika Anda menggunakan custom image berbasis Alibaba Cloud Linux 3, pastikan versi kernel adalah 5.10.134-18 atau lebih baru.

    Buat instans komputasi rahasia heterogen (gn8v-tee)

    Konsol

    Membuat instans komputasi rahasia heterogen mirip dengan membuat instans standar, tetapi memerlukan konfigurasi khusus. Untuk konfigurasi umum, lihat Buat instans menggunakan wizard.

    1. Buka ECS console - Instances.

    2. Di pojok kiri atas halaman, pilih wilayah dan resource group.

    3. Klik Create Instance dan konfigurasikan instans dengan pengaturan berikut.

      Item Konfigurasi

      Deskripsi

      Wilayah dan Zona

      China (Beijing) Zona L

      Instance Type

      ecs.gn8v-tee.4xlarge atau lebih tinggi.


      Pilih image Alibaba Cloud Linux 3.2104 LTS 64-bit.

      Alamat IP Publik

      Assign Public IPv4 Address. Diperlukan untuk mengunduh driver NVIDIA nanti.

      Penting

      Saat membuat atau me-restart instans rahasia dengan 8 GPU, jangan menyambungkan ENI sekunder tambahan atau disk data. Hal ini dapat menyebabkan kegagalan startup.

      Penyebab dan solusi

      Instans ECS dengan TDX diaktifkan menggunakan wilayah memori non-terenkripsi, yaitu Software Input Output Translation Lookaside Buffer (SWIOTLB), untuk komunikasi perangkat periferal. Secara default, ukuran SWIOTLB adalah 6% dari memori yang tersedia, dengan maksimum 1 GiB.

      Menyambungkan beberapa ENI atau disk data ke instans rahasia dengan 8 GPU dapat menghabiskan memori SWIOTLB, menyebabkan kegagalan alokasi memori sehingga instans tidak dapat dimulai.

      Jika instans gagal dimulai:

      • Solusi 1: Hentikan instans, lepas ikatan ENI sekunder tambahan, dan lepaskan semua disk data.

      • Solusi 2: Buat instans baru hanya dengan satu ENI primer, tanpa disk data, dan hanya dengan sistem disk.

      Untuk menambahkan beberapa ENI atau disk data ke instans rahasia dengan 8 GPU, pertama-tama selesaikan Langkah 1 untuk meningkatkan buffer SWIOTLB menjadi 8 GB. Kemudian sambungkan ENI ke instans dan sambungkan disk data.

    4. Selesaikan pembuatan instans dengan mengikuti instruksi di layar.

    API/CLI

    Panggil operasi RunInstances atau gunakan Alibaba Cloud CLI untuk membuat instans ECS dengan TDX diaktifkan. Parameter utama:

    Parameter

    Deskripsi

    Contoh

    RegionId

    China (Beijing)

    cn-beijing

    ZoneId

    Zona L

    cn-beijing-l

    InstanceType

    ecs.gn8v-tee.4xlarge atau lebih tinggi.

    ecs.gn8v-tee.4xlarge

    ImageId

    ID image yang mendukung komputasi rahasia. Hanya image Alibaba Cloud Linux 3.2104 LTS 64-bit dengan versi kernel 5.10.134-18.al8.x86_64 atau lebih baru.

    aliyun_3_x64_20G_alibase_20250117.vhd

    Contoh CLI:

    <SECURITY_GROUP_ID>: ID security group. <VSWITCH_ID>: ID vSwitch. <KEY_PAIR_NAME>: nama SSH key pair.
    aliyun ecs RunInstances \
  --RegionId cn-beijing \
  --ZoneId cn-beijing-l \
  --SystemDisk.Category cloud_essd \
  --ImageId 'aliyun_3_x64_20G_alibase_20250117.vhd' \
  --InstanceType 'ecs.gn8v-tee.4xlarge' \
  --SecurityGroupId '<SECURITY_GROUP_ID>' \
  --VSwitchId '<VSWITCH_ID>' \
  --KeyPairName <KEY_PAIR_NAME>

    Bangun lingkungan komputasi rahasia heterogen

    Langkah 1: Instal driver NVIDIA dan CUDA Toolkit

    Penting

    Instans komputasi rahasia heterogen memerlukan waktu lama untuk inisialisasi. Tunggu hingga status instans menjadi Running dan sistem operasi telah sepenuhnya dimulai.

    Langkah instalasi bervariasi tergantung tipe instans:

    • Instans rahasia single-GPU: ecs.gn8v-tee.4xlarge dan ecs.gn8v-tee.6xlarge

    • Instans rahasia 8-GPU: ecs.gn8v-tee-8x.16xlarge dan ecs.gn8v-tee-8x.48xlarge

    Instans rahasia single-GPU

    1. Sambungkan ke instans komputasi rahasia. Lihat Masuk ke instans Linux menggunakan Workbench.

    2. Atur buffer SWIOTLB menjadi 8 GB.

      sudo grubby --update-kernel=ALL --args="swiotlb=4194304,any"

    3. Restart instans. Lihat Restart instans.

    4. Unduh driver NVIDIA dan CUDA Toolkit.

      Instans rahasia single-GPU memerlukan versi driver 550.144.03 atau lebih baru. Contoh ini menggunakan 550.144.03.
      wget --referer=https://www.nvidia.cn/ https://cn.download.nvidia.cn/tesla/550.144.03/NVIDIA-Linux-x86_64-550.144.03.run
wget https://developer.download.nvidia.com/compute/cuda/12.4.1/local_installers/cuda_12.4.1_550.54.15_linux.run

    5. Instal dependensi dan nonaktifkan layanan CloudMonitor.

      sudo yum install -y openssl3
sudo systemctl disable cloudmonitor
sudo systemctl stop cloudmonitor

    6. Buat dan konfigurasikan nvidia-persistenced.service.

      cat > nvidia-persistenced.service << EOF
[Unit]
Description=NVIDIA Persistence Daemon
Wants=syslog.target
Before=cloudmonitor.service

[Service]
Type=forking
ExecStart=/usr/bin/nvidia-persistenced --user root
ExecStartPost=/usr/bin/nvidia-smi conf-compute -srs 1
ExecStopPost=/bin/rm -rf /var/run/nvidia-persistenced

[Install]
WantedBy=multi-user.target
EOF

sudo cp nvidia-persistenced.service /usr/lib/systemd/system/nvidia-persistenced.service

    7. Instal driver NVIDIA dan CUDA Toolkit.

      sudo bash NVIDIA-Linux-x86_64-550.144.03.run --ui=none --no-questions --accept-license --disable-nouveau --no-cc-version-check --install-libglvnd --kernel-module-build-directory=kernel-open --rebuild-initramfs
sudo bash cuda_12.4.1_550.54.15_linux.run --silent --toolkit

    8. Jalankan layanan nvidia-persistenced dan CloudMonitor.

      sudo systemctl start nvidia-persistenced.service
sudo systemctl enable nvidia-persistenced.service
sudo systemctl start cloudmonitor
sudo systemctl enable cloudmonitor

    Instans rahasia 8-GPU

    1. Sambungkan ke instans komputasi rahasia. Lihat Masuk ke instans Linux menggunakan Workbench.

      Penting

      Instans komputasi rahasia memerlukan waktu lama untuk inisialisasi. Tunggu hingga proses selesai sebelum melanjutkan.

    2. Atur buffer SWIOTLB menjadi 8 GB.

      sudo grubby --update-kernel=ALL --args="swiotlb=4194304,any"

    3. Konfigurasikan perilaku pemuatan driver NVIDIA dan buat ulang initramfs.

      sudo bash -c 'cat > /etc/modprobe.d/nvidia-lkca.conf << EOF
install nvidia /sbin/modprobe ecdsa_generic; /sbin/modprobe ecdh; /sbin/modprobe --ignore-install nvidia
options nvidia NVreg_RegistryDwords="RmEnableProtectedPcie=0x1"
EOF'

sudo dracut --regenerate-all -f

    4. Restart instans. Lihat Restart instans.

    5. Unduh driver NVIDIA dan CUDA Toolkit.

      Instans komputasi rahasia 8-GPU memerlukan versi driver 570.148.08 atau lebih baru dan Fabric Manager yang sesuai. Contoh ini menggunakan 570.148.08.
      wget --referer=https://www.nvidia.cn/ https://cn.download.nvidia.cn/tesla/570.148.08/NVIDIA-Linux-x86_64-570.148.08.run
wget https://developer.download.nvidia.com/compute/cuda/12.8.1/local_installers/cuda_12.8.1_570.124.06_linux.run
wget https://developer.download.nvidia.cn/compute/cuda/repos/rhel8/x86_64/nvidia-fabric-manager-570.148.08-1.x86_64.rpm

    6. Instal dependensi dan nonaktifkan layanan CloudMonitor.

      sudo yum install -y openssl3
sudo systemctl disable cloudmonitor
sudo systemctl stop cloudmonitor

    7. Buat dan konfigurasikan nvidia-persistenced.service.

      cat > nvidia-persistenced.service << EOF
[Unit]
Description=NVIDIA Persistence Daemon
Wants=syslog.target
Before=cloudmonitor.service
After=nvidia-fabricmanager.service

[Service]
Type=forking
ExecStart=/usr/bin/nvidia-persistenced --user root --uvm-persistence-mode --verbose
ExecStartPost=/usr/bin/nvidia-smi conf-compute -srs 1
ExecStopPost=/bin/rm -rf /var/run/nvidia-persistenced
TimeoutStartSec=900
TimeoutStopSec=60

[Install]
WantedBy=multi-user.target
EOF

sudo cp nvidia-persistenced.service /usr/lib/systemd/system/nvidia-persistenced.service

    8. Instal Fabric Manager, driver NVIDIA, dan CUDA Toolkit.

      sudo rpm -ivh nvidia-fabric-manager-570.148.08-1.x86_64.rpm
sudo bash NVIDIA-Linux-x86_64-570.148.08.run --ui=none --no-questions --accept-license --disable-nouveau --no-cc-version-check --install-libglvnd --kernel-module-build-directory=kernel-open --rebuild-initramfs
sudo bash cuda_12.8.1_570.124.06_linux.run --silent --toolkit

    9. Jalankan dan aktifkan layanan nvidia-fabricmanager, nvidia-persistenced, dan cloudmonitor.

      sudo systemctl start nvidia-fabricmanager.service
sudo systemctl enable nvidia-fabricmanager.service
sudo systemctl start nvidia-persistenced.service
sudo systemctl enable nvidia-persistenced.service
sudo systemctl start cloudmonitor
sudo systemctl enable cloudmonitor

    Langkah 2: Periksa status TDX

    Fitur ini bergantung pada TDX. Periksa status TDX untuk memverifikasi bahwa instans dilindungi.

    1. Periksa apakah TDX diaktifkan.

      lscpu |grep -i tdx_guest

      Jika output berisi tdx_guest, berarti TDX diaktifkan.

      [root@iZwzxxxxxxxx:~]# lscpu |grep -i tdx_guest
Flags:           fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge mca cmov pat pse36 clflush dts mmx fxsr sse sse2 ss ht syscall nx pdpe1gb rdtscp lm constant_tsc bts rep_good nopl xtopology tsc_known_freq pni pclmulqdq dtes64 ds_cpl ssse3 sdbg fma cx16 pdcm pcid sse4_1 sse4_2 x2apic movbe popcnt tsc_deadline_timer aes xsave avx f16c rdrand hypervisor lahf_lm abm 3dnowprefetch cpuid_fault invpcid_single sbd ibrs ibpb stibp ibrs_enhanced tdx_guest fsgsbase bmi1 hle avx2 smep bmi2 erms invpcid rtm avx512f avx512dq rdseed adx smap avx512ifma clflushopts clwb avx512cd sha_ni avx512bw avx512vl xsaveopt xsavec xgetbv1 xsaves avx_vnni avx512_bf16 wbnoinvd avx512vbmi umip pku ospke avx512_vbmi2 gfni vaes vpclmulqdq avx512_vnni avx512_bitalg avx512_vpopcntdq rdpid bus_lock_detect cldemote movdiri movdir64b _vp2intersect md_clear serialize tsxldtrk amx_bf16 avx512_fp16 amx_tile amx_int8 flush_l1d arch_capabilities

    2. Periksa instalasi driver terkait TDX.

      ls -l /dev/tdx_guest

      Output berikut menunjukkan driver terkait TDX telah terinstal.

      [ ~@iz2ze          ~]# ls -l /dev/tdx_guest
crw------- 1 root root 10, 125 Jan 30 16:51 /dev/tdx_guest

    Langkah 3: Periksa status fitur komputasi rahasia GPU

    Instans rahasia single-GPU

    Periksa status komputasi rahasia.

    nvidia-smi conf-compute -f

    CC status: ON menunjukkan komputasi rahasia diaktifkan. CC status: OFF menunjukkan fitur dinonaktifkan karena kesalahan instans. Jika hal ini terjadi, kirim tiket.

    Instans rahasia 8-GPU

    Periksa status komputasi rahasia.

    nvidia-smi conf-compute -mgm

    Multi-GPU Mode: Protected PCIe menunjukkan komputasi rahasia multi-GPU diaktifkan. Multi-GPU Mode: None menunjukkan fitur dinonaktifkan karena kesalahan instans. Jika hal ini terjadi, kirim tiket.

    Catatan

    Untuk instans rahasia 8-GPU, nvidia-smi conf-compute -f biasanya mengembalikan CC status: OFF.

    Langkah 4: Verifikasi kepercayaan GPU dan NVSwitch menggunakan local attestation

    Instans rahasia single-GPU

    1. Instal dependensi kepercayaan GPU.

      sudo yum install -y python3.11 python3.11-devel python3.11-pip
sudo alternatives --install /usr/bin/python3 python3 /usr/bin/python3.11 60
sudo alternatives --set python3 /usr/bin/python3.11
sudo python3 -m ensurepip --upgrade
sudo python3 -m pip install --upgrade pip

sudo python3 -m pip install nv_attestation_sdk==2.5.0.post6914366 nv_local_gpu_verifier==2.5.0.post6914366 nv_ppcie_verifier==1.5.0.post6914366 -f https://attest-public-cn-beijing.oss-cn-beijing.aliyuncs.com/repo/pip/attest.html

    2. Verifikasi status kepercayaan GPU.

      python3 -m verifier.cc_admin --user_mode

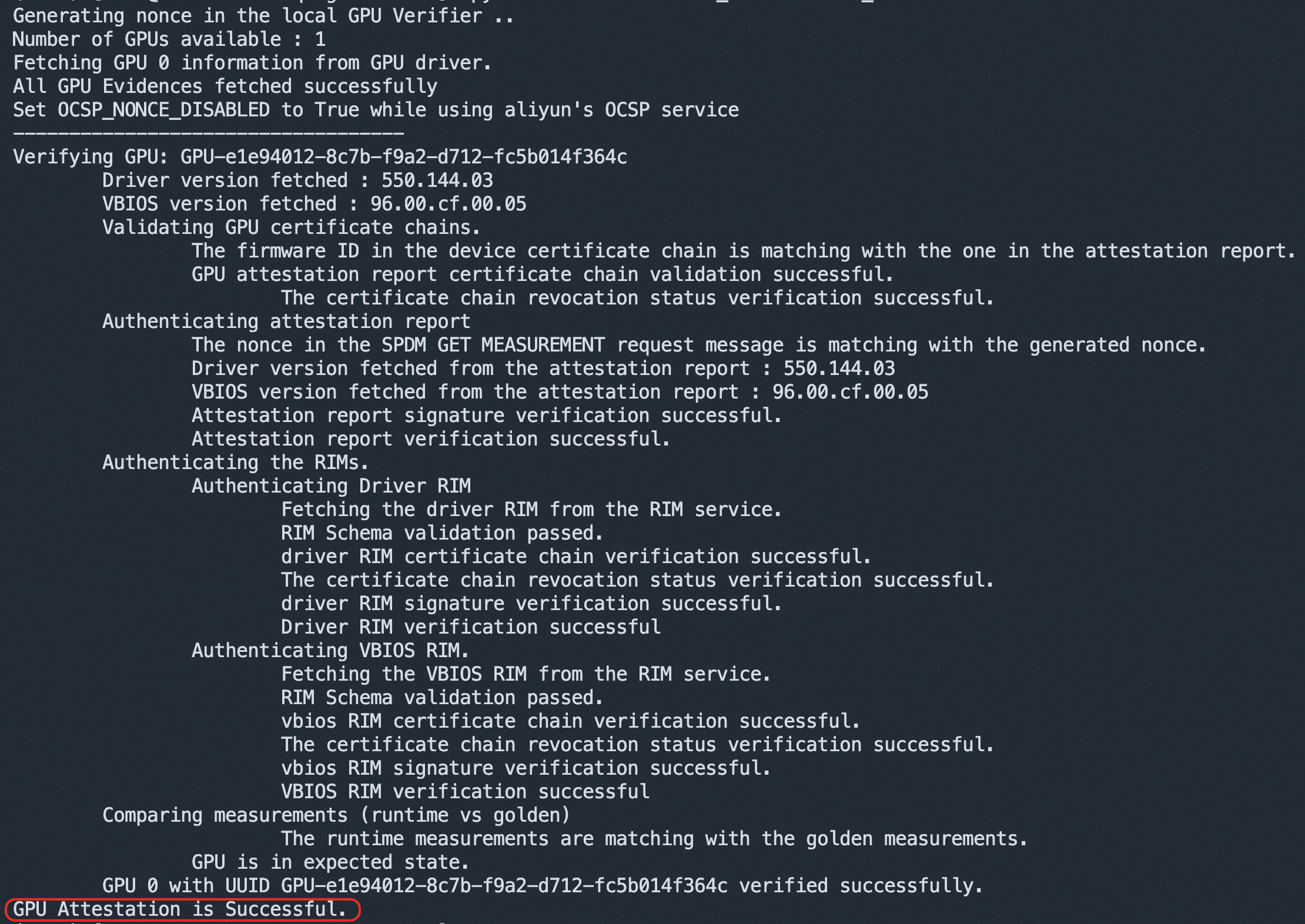

      Output menunjukkan GPU berada dalam mode komputasi rahasia dan pengukuran seperti driver dan VBIOS sesuai dengan nilai yang diharapkan:

      Contoh output lengkap

      Generating nonce in the local GPU Verifier ..
Number of GPUs available : 1
Fetching GPU 0 information from GPU driver.
All GPU Evidences fetched successfully
Set OCSP_NONCE_DISABLED to True while using aliyun's OCSP service
-----------------------------------
Verifying GPU: GPU-e1e94012-8c7b-f9a2-d712-fc5b014f364c
        Driver version fetched : 550.144.03
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 550.144.03
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 0 with UUID GPU-e1e94012-8c7b-f9a2-d712-fc5b014f364c verified successfully.
GPU Attestation is Successful.

    Instans rahasia 8-GPU

    1. Instal dependensi kepercayaan GPU.

      sudo yum install -y python3.11 python3.11-devel python3.11-pip
sudo alternatives --install /usr/bin/python3 python3 /usr/bin/python3.11 60
sudo alternatives --set python3 /usr/bin/python3.11
sudo python3 -m ensurepip --upgrade
sudo python3 -m pip install --upgrade pip

sudo python3 -m pip install nv_attestation_sdk==2.5.0.post6914366 nv_local_gpu_verifier==2.5.0.post6914366 nv_ppcie_verifier==1.5.0.post6914366 -f https://attest-public-cn-beijing.oss-cn-beijing.aliyuncs.com/repo/pip/attest.html

    2. Instal dependensi NVSwitch.

      wget https://developer.download.nvidia.cn/compute/cuda/repos/rhel8/x86_64/libnvidia-nscq-570-570.148.08-1.x86_64.rpm
sudo rpm -ivh libnvidia-nscq-570-570.148.08-1.x86_64.rpm

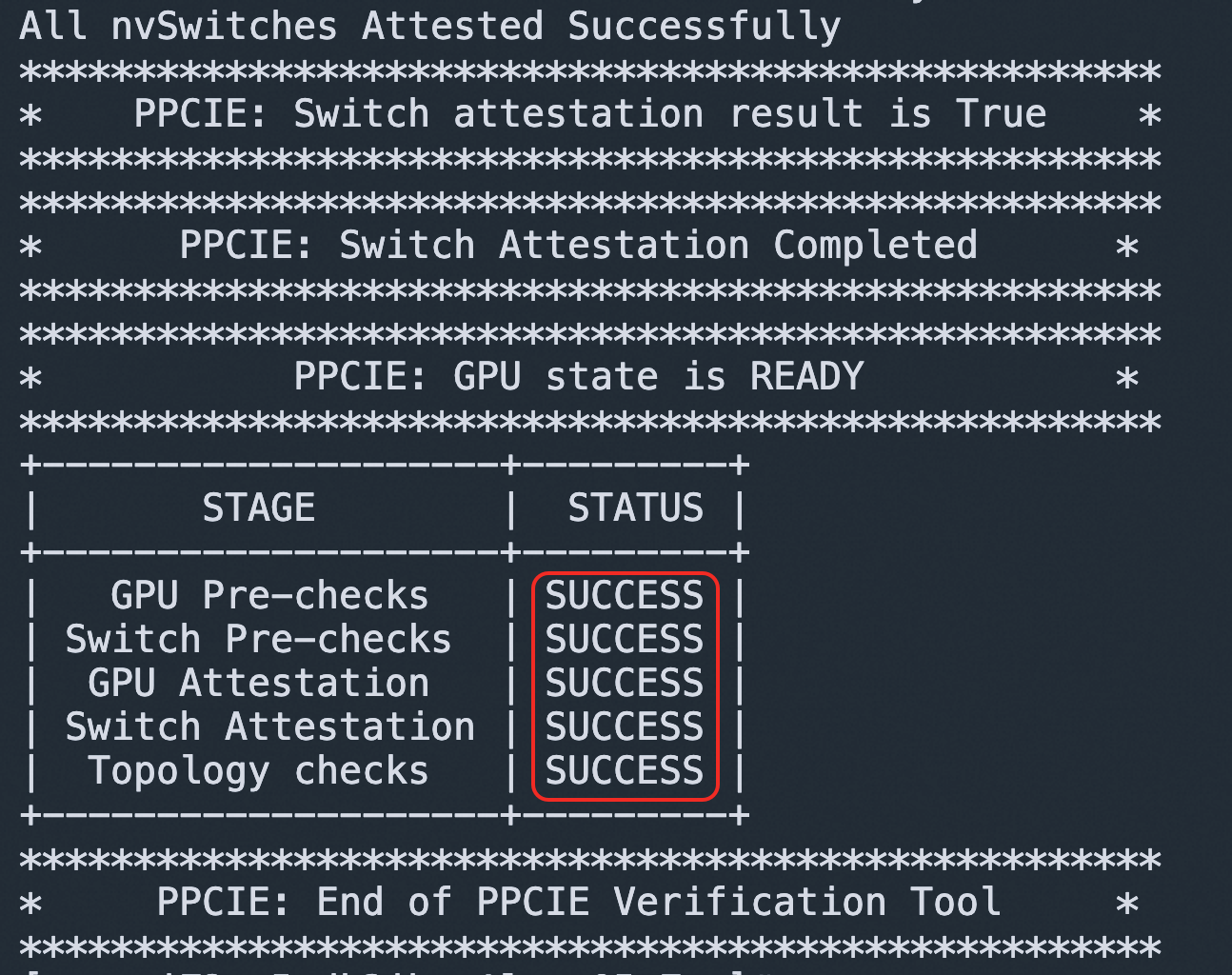

    3. Verifikasi status kepercayaan GPU/NVSwitch.

      python3 -m ppcie.verifier.verification --gpu-attestation-mode=LOCAL --switch-attestation-mode=LOCAL

      Kode contoh memverifikasi delapan GPU dan empat NVSwitch. SUCCESS menunjukkan verifikasi berhasil:

      All nvSwitches Attested Successfully
****************************************************
*    PPCIE: Switch attestation result is True      *
****************************************************
****************************************************
*    PPCIE: Switch Attestation Completed           *
****************************************************
****************************************************
*          PPCIE: GPU state is READY               *
****************************************************
+-------------------------+----------+
|        STAGE            |  STATUS  |
+-------------------------+----------+
|   GPU Pre-checks        | SUCCESS  |
|   Switch Pre-checks     | SUCCESS  |
|   GPU Attestation       | SUCCESS  |
|   Switch Attestation    | SUCCESS  |
|   Topology checks       | SUCCESS  |
+-------------------------+----------+
****************************************************
*    PPCIE: End of PPCIE Verification Tool         *
****************************************************

      Contoh output lengkap

      **************************************************
*    PPCIE: Starting PPCIE Verification Tool    *
**************************************************
**************************************************
*          PPCIE: Number of GPUs are: 8          *
**************************************************
**************************************************
*       PPCIE: Number of NVSwitches are: 4       *
**************************************************
Nonce generated: 006a638b032ae5eed158d6584dd13429de5743ce36498e60b7256703ce6a68ae
Number of GPUs available : 8
Fetching GPU 0 information from GPU driver.
Fetching GPU 1 information from GPU driver.
Fetching GPU 2 information from GPU driver.
Fetching GPU 3 information from GPU driver.
Fetching GPU 4 information from GPU driver.
Fetching GPU 5 information from GPU driver.
Fetching GPU 6 information from GPU driver.
Fetching GPU 7 information from GPU driver.
All GPU Evidences fetched successfully
**************************************************
*           PPCIE: Attesting the GPUs           *
**************************************************
Set OCSP_NONCE_DISABLED to True while using aliyun's OCSP service
-----------------------------------
Verifying GPU: GPU-db98b8e0-51c7-d188-99ec-6755455abcd9
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 0 with UUID GPU-db98b8e0-51c7-d188-99ec-6755455abcd9 verified successfully.
-----------------------------------
Verifying GPU: GPU-d5372674-da51-fe3c-29f7-034c6aad55bd
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 1 with UUID GPU-d5372674-da51-fe3c-29f7-034c6aad55bd verified successfully.
-----------------------------------
Verifying GPU: GPU-3865b295-1fd1-a21a-a4d3-07bc47ff31ca
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 2 with UUID GPU-3865b295-1fd1-a21a-a4d3-07bc47ff31ca verified successfully.
-----------------------------------
Verifying GPU: GPU-98377e04-ff60-ecac-beb5-28b3e8005c64
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 3 with UUID GPU-98377e04-ff60-ecac-beb5-28b3e8005c64 verified successfully.
-----------------------------------
Verifying GPU: GPU-ecab3a2a-0cb3-eebd-6a46-b941338b9e5f
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 4 with UUID GPU-ecab3a2a-0cb3-eebd-6a46-b941338b9e5f verified successfully.
-----------------------------------
Verifying GPU: GPU-91acee11-dd57-920c-c2f9-0b67fc4540d6
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 5 with UUID GPU-91acee11-dd57-920c-c2f9-0b67fc4540d6 verified successfully.
-----------------------------------
Verifying GPU: GPU-84370594-42f5-cbbe-a71c-b6d22ba45b65
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 6 with UUID GPU-84370594-42f5-cbbe-a71c-b6d22ba45b65 verified successfully.
-----------------------------------
Verifying GPU: GPU-4d8767db-a4ed-4ec1-d863-6c7635366dd1
        Driver version fetched : 570.148.08
        VBIOS version fetched : 96.00.cf.00.05
        Validating GPU certificate chains.
                The firmware ID in the device certificate chain is matching with the one in the attestation report.
                GPU attestation report certificate chain validation successful.
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                Driver version fetched from the attestation report : 570.148.08
                VBIOS version fetched from the attestation report : 96.00.cf.00.05
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating Driver RIM
                        Fetching the driver RIM from the RIM service.
                        RIM Schema validation passed.
                        driver RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        driver RIM signature verification successful.
                        Driver RIM verification successful
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                GPU is in expected state.
        GPU 7 with UUID GPU-4d8767db-a4ed-4ec1-d863-6c7635366dd1 verified successfully.
GPU Attestation is Successful.
**************************************************
*      PPCIE: GPU Attestation result: True      *
**************************************************
**************************************************
*        PPCIE: GPU Attestation Completed        *
**************************************************
Nonce generated: 2c345829a31f1650d6185413183b6878c578759c2ef9b4f1f0ed313d38f6c7c3
Getting evidence details for SWX-F6E1D86E-20D5-7BE5-85AD-E5EF52A80504
Getting evidence details for SWX-C9296F62-ECDB-F271-3C5A-D7F03F733A4C
Getting evidence details for SWX-15D9CFBE-E466-0EC5-364C-9EAA0671C686
Getting evidence details for SWX-4D9DEC0E-C8BC-5CC5-F664-96D874434D05
All nvSwitch Evidences fetched successfully
**************************************************
*         PPCIE: Attesting the switches         *
**************************************************
Set ocsp_nonce_disabled to True while using aliyun's OCSP service
-----------------------------------
Verifying Switch : 0
NVSwitch info fetched successfully.
        Validating Switch certificate chains.
                nvSwitch attestation report certificate chain validation successful.
send_ocsp_request called.
send_ocsp_request completed successfully
send_ocsp_request called.
send_ocsp_request completed successfully
send_ocsp_request called.
send_ocsp_request completed successfully
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                VBIOS version fetched from the attestation report : 96.10.6D.00.01
VBIOS version in attestation report is matching.
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
fetch_rim_file called.
fetch_rim_file completed successfully
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
send_ocsp_request called.
send_ocsp_request completed successfully
send_ocsp_request called.
send_ocsp_request completed successfully
send_ocsp_request called.
send_ocsp_request completed successfully
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                Switch is in expected state.
        nvSwitch 0 verified successfully.
-----------------------------------
Verifying Switch : 1
NVSwitch info fetched successfully.
        Validating Switch certificate chains.
                nvSwitch attestation report certificate chain validation successful.
send_ocsp_request called.
send_ocsp_request completed successfully
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                VBIOS version fetched from the attestation report : 96.10.6D.00.01
VBIOS version in attestation report is matching.
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
fetch_rim_file called.
fetch_rim_file completed successfully
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                Switch is in expected state.
        nvSwitch 1 verified successfully.
-----------------------------------
Verifying Switch : 2
NVSwitch info fetched successfully.
        Validating Switch certificate chains.
                nvSwitch attestation report certificate chain validation successful.
send_ocsp_request called.
send_ocsp_request completed successfully
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                VBIOS version fetched from the attestation report : 96.10.6D.00.01
VBIOS version in attestation report is matching.
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
fetch_rim_file called.
fetch_rim_file completed successfully
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                Switch is in expected state.
        nvSwitch 2 verified successfully.
-----------------------------------
Verifying Switch : 3
NVSwitch info fetched successfully.
        Validating Switch certificate chains.
                nvSwitch attestation report certificate chain validation successful.
send_ocsp_request called.
send_ocsp_request completed successfully
                        The certificate chain revocation status verification successful.
        Authenticating attestation report
                The nonce in the SPDM GET MEASUREMENT request message is matching with the generated nonce.
                VBIOS version fetched from the attestation report : 96.10.6D.00.01
VBIOS version in attestation report is matching.
                Attestation report signature verification successful.
                Attestation report verification successful.
        Authenticating the RIMs.
                Authenticating VBIOS RIM.
                        Fetching the VBIOS RIM from the RIM service.
fetch_rim_file called.
fetch_rim_file completed successfully
                        RIM Schema validation passed.
                        vbios RIM certificate chain verification successful.
                        The certificate chain revocation status verification successful.
                        vbios RIM signature verification successful.
                        VBIOS RIM verification successful
        Comparing measurements (runtime vs golden)
                        The runtime measurements are matching with the golden measurements.
                Switch is in expected state.
        nvSwitch 3 verified successfully.
All nvSwitches Attested Successfully
**************************************************
*    PPCIE: Switch attestation result is True    *
**************************************************
**************************************************
*      PPCIE: Switch Attestation Completed      *
**************************************************
**************************************************
*           PPCIE: GPU state is READY           *
**************************************************
+--------------------+---------+
|       STAGE        |  STATUS |
+--------------------+---------+
|   GPU Pre-checks   | SUCCESS |
| Switch Pre-checks  | SUCCESS |
|  GPU Attestation   | SUCCESS |
| Switch Attestation | SUCCESS |
|  Topology checks   | SUCCESS |
+--------------------+---------+
**************************************************
*     PPCIE: End of PPCIE Verification Tool     *
**************************************************

    Batasan

    • Fitur ini mewarisi batasan instans TDX.

    • Dengan komputasi rahasia GPU diaktifkan, transfer data CPU-GPU memerlukan enkripsi dan dekripsi, sehingga menghasilkan performa tugas GPU yang lebih rendah dibandingkan instans heterogen non-rahasia.

    Catatan Penggunaan

    1. Instans single-GPU menggunakan CUDA 12.4. Pustaka NVIDIA cuBLAS memiliki masalah yang diketahui yang dapat menyebabkan error saat menjalankan tugas CUDA atau LLM. Instal versi cuBLAS tertentu untuk mengatasi hal ini.

      pip3 install nvidia-cublas-cu12==12.4.5.8

    2. Dengan komputasi rahasia GPU diaktifkan, inisialisasi berjalan lambat, terutama untuk instans 8-GPU. Setelah guest OS dimulai, pastikan nvidia-persistenced telah selesai dimulai sebelum menggunakan GPU dengan nvidia-smi atau perintah lainnya. Periksa status layanan nvidia-persistenced:

      systemctl status nvidia-persistenced | grep "Active: "

      • activating (start) — layanan sedang dimulai.

        Active: activating (start) since Wed 2025-02-19 10:07:54 CST; 2min 20s ago

      • active (running) — layanan sedang berjalan.

        Active: active (running) since Wed 2025-02-19 10:10:28 CST; 22s ago

    3. Layanan auto-start yang bergantung pada GPU, seperti cloudmonitor.service, nvidia-cdi-refresh.service (dari nvidia-container-toolkit-base), atau ollama.service, harus dimulai setelah nvidia-persistenced.service.

      Contoh konfigurasi untuk /usr/lib/systemd/system/nvidia-persistenced.service:

      [Unit]
Description=NVIDIA Persistence Daemon
Wants=syslog.target
Before=cloudmonitor.service nvidia-cdi-refresh.service ollama.service
After=nvidia-fabricmanager.service

[Service]
Type=forking
ExecStart=/usr/bin/nvidia-persistenced --user root --uvm-persistence-mode --verbose
ExecStartPost=/usr/bin/nvidia-smi conf-compute -srs 1
ExecStopPost=/bin/rm -rf /var/run/nvidia-persistenced
TimeoutStartSec=900
TimeoutStopSec=60

[Install]
WantedBy=multi-user.target
