Cloud Shell:Gunakan Terraform untuk mengelola resource Alibaba Cloud

Mulai Cloud Shell

Kelola resource Alibaba Cloud

1. Buat templat Terraform di Cloud Shell.

   Gunakan Vim untuk membuat dan mengedit templat Terraform.

   Jalankan perintah berikut untuk membuat direktori proyek dan file templat:

   mkdir terraform-project
   cd terraform-project
   touch main.tf

   Templat Terraform contoh berikut membuat instance Elastic Compute Service (ECS). Salin kode tersebut ke file main.tf. Cloud Shell secara otomatis mendapatkan kredensial identitas akun yang sedang login, sehingga Anda tidak perlu mengonfigurasi variabel lingkungan.

   provider "alicloud" {
     region = "cn-beijing"
   }

   data "alicloud_zones" "default" {
     available_disk_category     = "cloud_efficiency"
     available_resource_creation = "VSwitch"
   }

   resource "alicloud_vpc" "vpc" {
     vpc_name   = "tf_test_foo"
     cidr_block = "172.16.0.0/12"
   }

   resource "alicloud_vswitch" "vsw" {
     vpc_id     = alicloud_vpc.vpc.id
     cidr_block = "172.16.0.0/21"
     zone_id    = data.alicloud_zones.default.zones.0.id
   }

   resource "alicloud_security_group" "default" {
     name   = "default"
     vpc_id = alicloud_vpc.vpc.id
   }

   resource "alicloud_instance" "instance" {
     # cn-beijing
     availability_zone = data.alicloud_zones.default.zones.0.id
     security_groups   = alicloud_security_group.default.*.id
     # series III
     instance_type              = "ecs.n4.large"
     system_disk_category       = "cloud_efficiency"
     image_id                   = "ubuntu_18_04_64_20G_alibase_20190624.vhd"
     instance_name              = "test_foo"
     vswitch_id                 = alicloud_vswitch.vsw.id
     internet_max_bandwidth_out = 10
   }

   resource "alicloud_security_group_rule" "allow_all_tcp" {
     type              = "ingress"
     ip_protocol       = "tcp"
     nic_type          = "intranet"
     policy            = "accept"
     port_range        = "1/65535"
     priority          = 1
     security_group_id = alicloud_security_group.default.id
     cidr_ip           = "0.0.0.0/0"
   }

2. Jalankan perintah init untuk menginisialisasi Terraform.

   terraform init

   Output yang diharapkan:

   Terraform has been successfully initialized!

   You may now begin working with Terraform. Try running "terraform plan" to see
   any changes that are required for your infrastructure. All Terraform commands
   should now work.

   If you ever set or change modules or backend configuration for Terraform,
   rerun this command to reinitialize your working directory. If you forget, other
   commands will detect it and remind you to do so if necessary.

3. Jalankan perintah plan untuk melihat pratinjau hasil eksekusi templat Terraform.

   terraform plan

4. Jalankan perintah apply untuk membuat instance ECS. Selama eksekusi, ketik yes saat diminta, lalu tekan Enter. Tunggu hingga perintah selesai. Jika output berikut ditampilkan, berarti instance ECS telah berhasil dibuat.

   terraform apply

   Output yang diharapkan:

   Apply complete! Resources: 5 added, 0 changed, 0 destroyed.

Verifikasi resource

Jalankan perintah berikut untuk menampilkan detail resource yang dibuat oleh Terraform:

terraform show

Output yang diharapkan:

# alicloud_instance.instance:
resource "alicloud_instance" "instance" {
    availability_zone               = "cn-shanghai-a"
    cpu                             = 2
    create_time                     = "2024-11-13T08:52Z"
    deletion_protection             = false
    dry_run                         = false
    enable_jumbo_frame              = false
    expired_time                    = "2099-12-31T15:59Z"
    host_name                       = "iZuxxx"
    http_put_response_hop_limit     = 0
    id                              = "i-ufxxx"
    image_id                        = "ubuntu_18_04_64_20G_alibase_xxx vhd"
    instance_charge_type            = "PostPaid"
    instance_name                   = "test_fofo"
    instance_type                   = "ecs.n4.large"
    internet_charge_type            = "PayByTraffic"
    internet_max_bandwidth_in       = 500
    internet_max_bandwidth_out      = 10
    ipv6_address_count              = 0
    ipv6_addresses                  = []
    maintenance_action              = "AutoRecover"
    maintenance_notify              = false
    memory                          = 4096
    network_interface_id            = "eni-uf6ixxx"
    network_interface_traffic_mode  = "Standard"
    os_name                         = "Ubuntu  18.04 64位"
    os_type                         = "linux"
    primary_ip_address              = "xxx"
    private_ip                      = "xxx"
    public_ip                       = "xxx"
    queue_pair_number               = 0

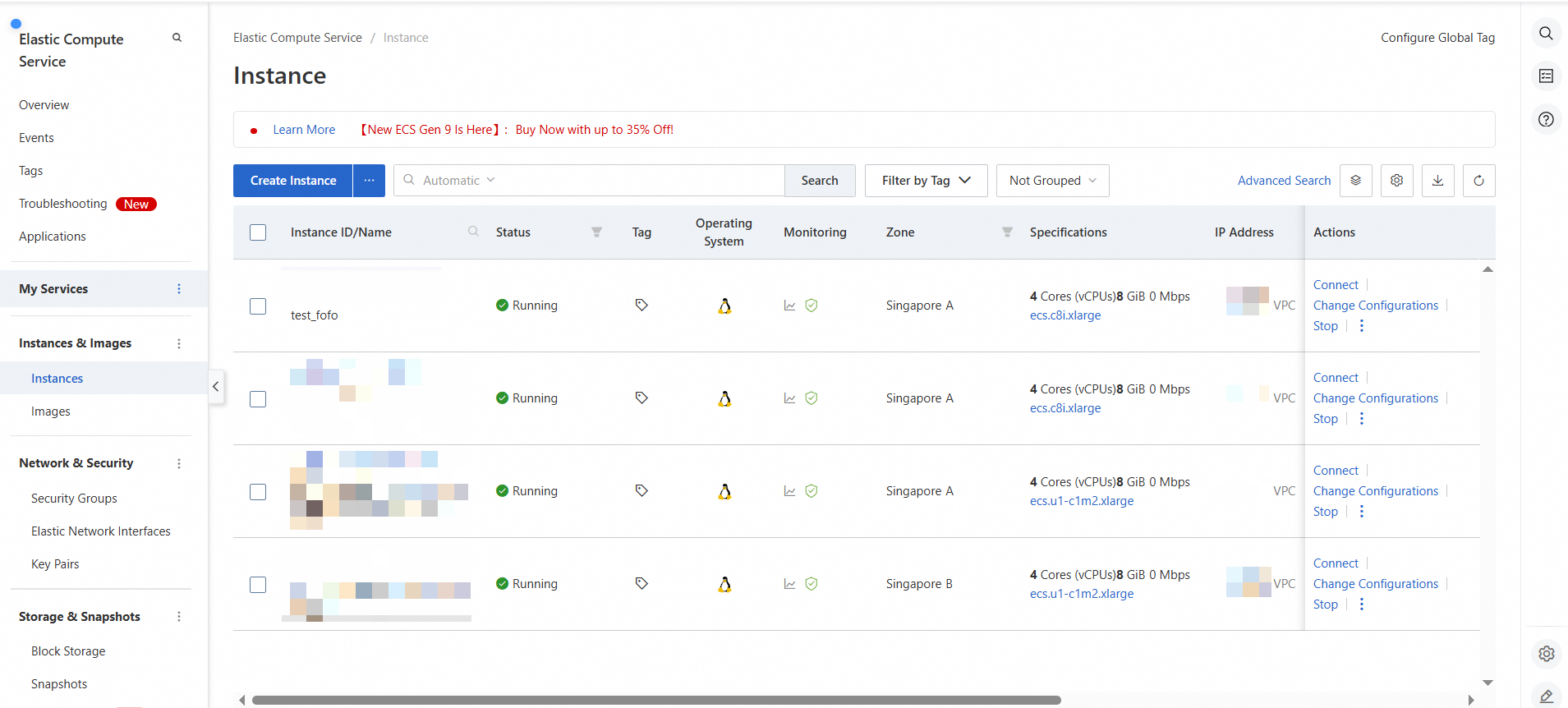

Login ke Konsol ECS dan verifikasi instance yang telah dibuat. Di panel navigasi kiri, klik Instances untuk membuka halaman Instances. Pastikan ID instans dan status Berjalan dari instance yang dituju.

Referensi

• Apa itu Alibaba Cloud Terraform?

• Alibaba Cloud Module Registry
