Time processing plugins parse, extract, and standardize the time field in logs.

Plugin effect example

The following table compares the data structure of a raw log after it is saved to Simple Log Service with and without the native time parsing plugin.

Raw Logs	Without using plugins	Using the time parsing plugin (native)
Second-level time: `{ "level":"INFO", "timestamp":"2025-09-29T09:56:01+0800", "cluster":"yilu-cluster-0728", "message":"User logged in successfully", "userId":"user-123" }`	Content: "{"level":"INFO","timestamp":"2025-09-29T09:56:01+0800","cluster":"yilu-cluster-0728","message":"User logged in successfully","userId":"user-123"}"

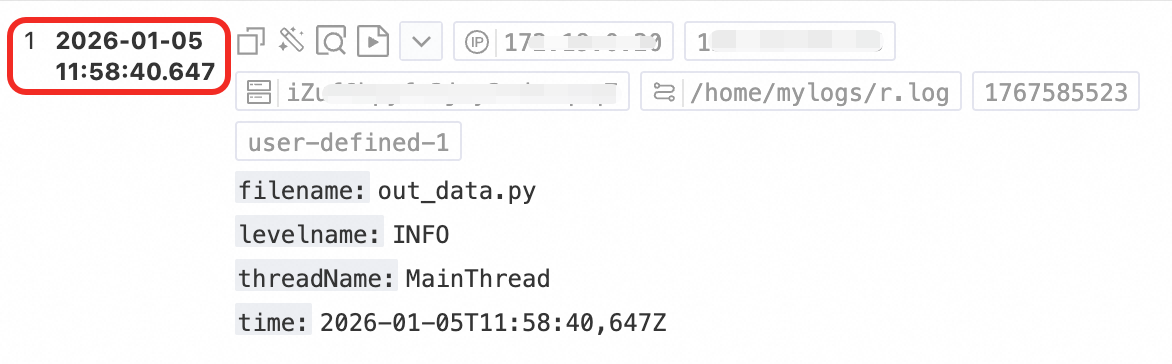

Millisecond time: `{ "time": "2026-01-05T11:58:40,647Z", "filename": "out_data.py", "levelname": "INFO", "threadName": "MainThread" }`	Content: "{"time":"2026-01-05T11:58:40,647Z", "filename":"out_data.py","levelname": "INFO", "threadName":"MainThread"}"

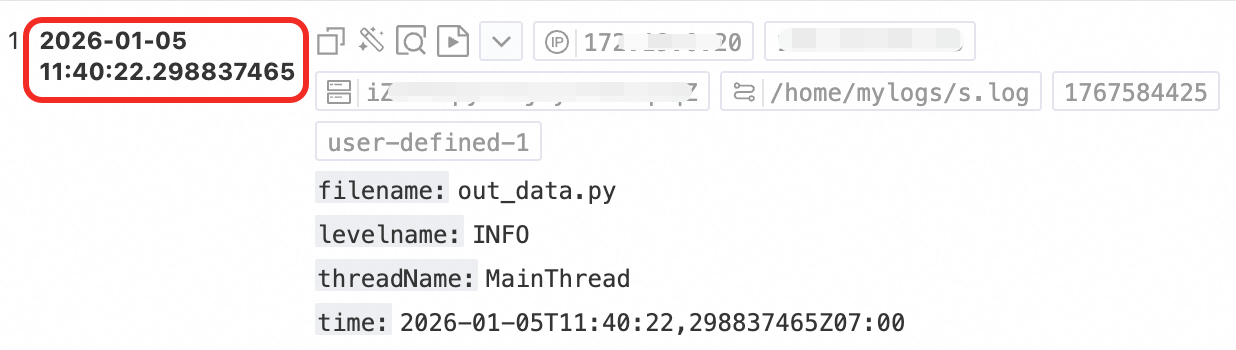

Nanosecond time: `{ "time": "2026-01-05T11:40:22,298837465Z07:00", "filename": "out_data.py", "levelname": "INFO", "threadName": "MainThread" }`	Content: "{"time": "2026-01-05T11:40:22,298837465Z07:00","filename":"out_data.py","levelname":"INFO","threadName": "MainThread"}"

Overview of time processing plugins

Simple Log Service provides the following types of time processing plugins. You can select a plugin based on your requirements.

Plugin name	Type	Description
Time parsing	Native	Parses and standardizes the time field in logs.
Extract log time	Extension	Parses the raw time field and can set it as the log timestamp.

Entry point

To use a Logtail plugin for log processing, add it when you create or modify a Logtail configuration. For more information, see Overview.

Differences between native and extension plugins

Native plugins are implemented in C++ and offer better performance.

Extension plugins are implemented in Go and offer a rich and flexible ecosystem. If your business logs are too complex to be processed by native plugins, you can use extension plugins.

Performance limits of extension plugins
- When you use an extension plugin for log processing, LoongCollector consumes more resources (primarily CPU). If necessary, you can adjust the LoongCollector parameter settings for configuration management.
- If the generation speed of raw data exceeds 5 MB/s, we recommend that you do not use overly complex plugin combinations to process logs. You can use extension plugins for simple processing and then use Data Transformation Overview for further processing.
Log collection limits
- Extension plugins process text logs in line mode. This means file-level metadata, such as __tag__:__path__ and __topic__, is stored in each log entry.
- Adding an extension plugin affects tag-related features:
  - The context query and LiveTail features become unavailable. To use these features, you must add an aggregators configuration.
  - The __topic__ field is renamed to __log_topic__. If the aggregators configuration is added, both the __topic__ and __log_topic__ fields exist in the log. If you do not need the __log_topic__ field, you can use the drop field plugin to delete it.
  - Fields such as __tag__:__path__ no longer have native field indexes. You must create an index for them.

Time parsing plugin (native)

The time parsing plugin parses the time field of a log and sets the result as the value of the log's __time__ field.

Configuration description

Parameter Name	Description
Source Field	The source field that stores the log content before parsing. The default value is content. Note When you use the regex parsing plugin, you can only set Source Field to time. Make sure that your regex parsing configuration includes time as an extracted field.
Time Format	Set the time format that corresponds to the time content in the log. For example, if the time in the log is 10/Sep/2023:12:36:49, the corresponding time format is %d/%b/%Y:%H:%M:%S.
Time Zone	Select the time zone of the log's time field. If you do not select a time zone, the machine's time zone is used by default. This is the time zone of the environment where the Logtail process runs.

By default, log timestamps in Simple Log Service are accurate to the second. You only need to configure the time format to the second and do not need to configure milliseconds, microseconds, or other smaller units. If the time field in a raw log has millisecond, microsecond, or nanosecond precision that you want to retain, enable nanosecond precision as shown in the following example. For more information, see Log collection that supports nanosecond timestamps.

Raw log

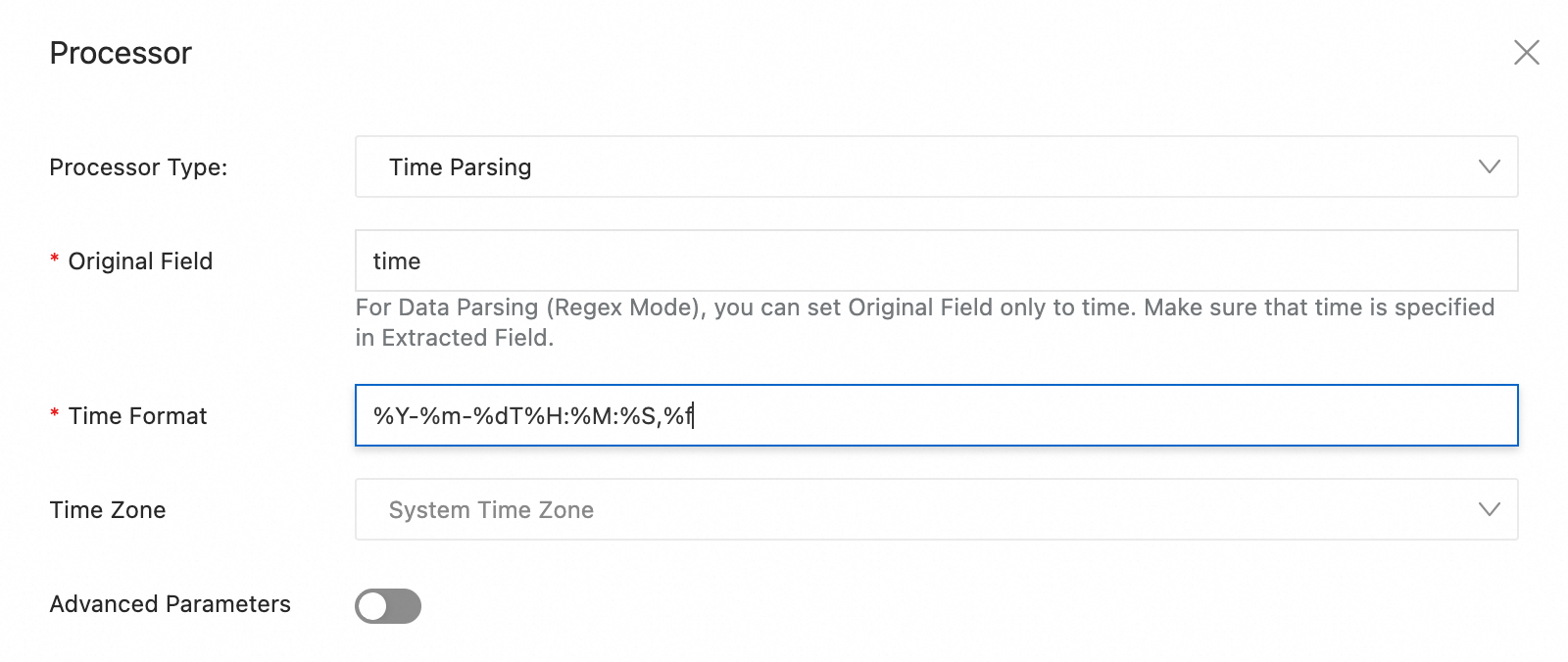

Time parsing plugin configuration

Time format

{
  "time": "2026-01-05T11:40:22,298837465Z07:00",
  "filename": "out_data.py",
  "levelname": "INFO",
  "threadName": "MainThread"
}

%Y-%m-%dT%H:%M:%S,%f

Enable nanosecond precision support:

Go to the Logtail configuration page. In the Global Configurations > Other Global Configurations section, turn on the Advanced Parameters switch and enter the following JSON content to enable nanosecond precision support:

{
  "EnableTimestampNanosecond": true
}

You must also enable the EnableTimestampNanosecond advanced parameter when you use extension plugins to parse nanoseconds or milliseconds.

Extract Log Time plugin (extension)

You can use the processor_gotime plugin or the processor_strptime plugin to parse the time field in raw logs. This section describes the parameters and provides configuration examples for both plugins.

Note

If the time field in the raw log has millisecond, microsecond, or nanosecond precision that you want to retain in Simple Log Service, see Log collection that supports nanosecond timestamps.

Go language time format (`processor_gotime`)

The processor_gotime plugin uses the Go language time format to parse the time field in raw logs. You can also set the parsing result as the log time in Simple Log Service.

Important

Logtail 0.16.28 and later support the processor_gotime plugin.
Form-based configuration is available when you collect text logs and container standard output.
JSON configuration is not available when you collect text logs.

Form-based configuration

Parameter description

Set Processing Plugin Type to Extract Log Time (Go Language Time Format).

The following table describes the related parameters.

Parameter	Description
Source Time Field	The name of the source field.
Source Time Format	The format of the source time.
Source Time Zone	The time zone of the source time. If you select Machine Time Zone, the time zone of the host or container where Logtail runs is used.
Result Time Field	The name of the destination field for the parsed result. This field cannot be set to `__time__`.
Result Time Format	The format of the parsed time.
Custom Result Time Zone	The time zone of the parsed result. If you select Machine Time Zone, the time zone of the host or container where Logtail is running is used.
Advanced Parameters>Set As Log Time	If you select this option, the system sets the parsed time as the log time.
Advanced Parameters>Keep Source Field	If you select this option, the source field is retained in the parsed log.
Advanced Parameters>Report Error if Source Field is Missing	If you select this option, the system reports an error if the specified source field does not exist in the raw log.
Advanced Parameters>Report Error on Extraction Failure	If you select this option, the system reports an error if it fails to extract the log time.

Example
The source time is in the s_key field and has the format 2006-01-02 15:04:05 (UTC+8). This example parses the source time into the 2006/01/02 15:04:05 (UTC+9) format, adds it to the d_key field, and sets the result as the log time in Simple Log Service.
- Raw log
```
"s_key":"2022-07-05 19:28:01"
```
- Logtail plugin processor configuration
- Processing result
```
"s_key":"2022-07-05 19:28:01"
"d_key":"2022/07/05 20:28:01"
```

JSON configuration

Parameter description

Set type to processor_gotime. The following table describes the parameters in detail.

Parameter	Type	Required	Description
SourceKey	String	Yes	The name of the source field.
SourceFormat	String	Yes	The format of the source time.
SourceLocation	Int	Yes	The time zone of the source time. If this parameter is empty, the time zone of the host or container where Logtail runs is used.
DestKey	String	Yes	The destination field for the parsed result. This field cannot be set to `__time__`.
DestFormat	String	Yes	The format of the parsed time.
DestLocation	Int	No	The time zone of the parsed result. If this parameter is empty, the native time zone is used.
SetTime	Boolean	No	Specifies whether to set the parsed time as the log time. true (default): Yes false: No
KeepSource	Boolean	No	Specifies whether to keep the source field in the parsed log. true (default): Keep false: Do not keep
NoKeyError	Boolean	No	Specifies whether the system reports an error if the specified source field does not exist in the raw log. true (default): Report an error false: Do not report an error
AlarmIfFail	Boolean	No	The system failed to fetch the log time. Was a system error reported? true (default): Report an error false: Do not report an error

Example

The source time is in the s_key field and has the format 2006-01-02 15:04:05 (UTC+8). This example parses the source time into the 2006/01/02 15:04:05 (UTC+9) format, adds it to the d_key field, and sets the result as the log time in Simple Log Service.

Raw log
```
"s_key":"2019-07-05 19:28:01"
```

Logtail plugin processing configuration

{
  "processors":[
    {
      "type":"processor_gotime",
      "detail": {
        "SourceKey": "s_key",
        "SourceFormat":"2006-01-02 15:04:05",
        "SourceLocation":8,
        "DestKey":"d_key",
        "DestFormat":"2006/01/02 15:04:05",
        "DestLocation":9,
        "SetTime": true,
        "KeepSource": true,
        "NoKeyError": true,
        "AlarmIfFail": true
      }
    }
  ]
}

Processing result

"s_key":"2019-07-05 19:28:01"
"d_key":"2019/07/05 20:28:01"

strptime time format (`processor_strptime`)

The processor_strptime plugin uses the Linux strptime time format to parse the time field in logs. You can also set the parsing result as the log time.

Important

Logtail 0.16.28 and later support the processor_strptime plugin.

Form-based configuration

Parameter description

Set Processing Plugin Type to Extract Log Time (strptime Time Format). The following table describes the related parameters.

Parameter	Description
Source Field	The name of the source field.
Original Time Format	The format of the source time.
Keep Source Field	If you select this option, the source field is kept in the parsed log.
Report Error On Extraction Failure	If you select this option, the system reports an error if it fails to extract the log time.
Adjust Time Offset	If you select this option, you can set the time offset in seconds.
Time Offset In Seconds	The time offset in seconds. For example, 28800 indicates UTC+8, and -3600 indicates UTC-1.

Configuration example
This example parses the source time, which is the value of the log_time field, from the %Y/%m/%d %H:%M:%S format into the corresponding log time. The machine's time zone is used. In this example, the time zone is assumed to be UTC+8.
- Raw log
```
"log_time":"2022/01/02 12:59:59"
```
- Logtail plugin processing configuration
- Processing result
```
"log_time":"2022/01/02 12:59:59"
Log.Time = 1451710799
```

Common time expressions

Note

The processor_strptime plugin supports the %f format for parsing the fractional part of a second with up to nanosecond precision.

Example	Time expression
2016/01/02 12:59:59	%Y/%m/%d %H:%M:%S
2016/01/02 12:59:59.1	%Y/%m/%d %H:%M:%S.%f
2016/01/02 12:59:59.987654321 +0700 (UTC)	%Y/%m/%d %H:%M:%S.%f %z (%Z)
2016/Jan/02 12:59:59,123456	%Y/%b/%d %H:%M:%S,%f
2019-07-15T04:16:47:123Z	%Y-%m-%dT%H:%M:%S:%f

JSON configuration

Parameter description

Set type to processor_strptime. The following table describes the parameters in detail.

Parameter	Type	Required	Description
SourceKey	String	Yes	The name of the source field.
Format	String	Yes	The format of the source time.
AdjustUTCOffset	Boolean	No	Specifies whether to adjust the time zone. true: Yes. false (default): No
UTCOffset	Int	No	The time zone offset in seconds for adjustment. For example, 28800 indicates UTC+8.
AlarmIfFail	Boolean	No	Specifies whether the system reports an error when it fails to extract the log. true (default): Report an error. false: Do not report an error.
KeepSource	Boolean	No	Specifies whether to keep the source field in the parsed log. true (default): Keep. false: Do not keep.

Examples

This example parses the source time, which is the value of the log_time field, from the %Y/%m/%d %H:%M:%S format into the corresponding log time. The machine's time zone is used.

Example 1: Assume the time zone is UTC+8.

Raw log
```
"log_time":"2016/01/02 12:59:59"
```

Logtail plugin processing configuration

{
  "processors":[
    {
      "type":"processor_strptime",
      "detail": {
        "SourceKey": "log_time",
        "Format": "%Y/%m/%d %H:%M:%S"
      }
    }
  ]
}

Processing result

"log_time":"2016/01/02 12:59:59"
Log.Time = 1451710799

Example 2: Assume the time zone is UTC+7.

Raw log
```
"log_time":"2016/01/02 12:59:59"
```

Logtail plugin processing configuration

{
  "processors":[
    {
      "type":"processor_strptime",
      "detail": {
        "SourceKey": "log_time",
        "Format": "%Y/%m/%d %H:%M:%S",
        "AdjustUTCOffset": true,
        "UTCOffset": 25200
      }
    }
  ]
}

Processing result

"log_time":"2016/01/02 12:59:59"
Log.Time = 1451714399

Example 3: Assume the time zone is UTC+7.

Raw log
```
"log_time":"2016/01/02 12:59:59.123"
```

Logtail plugin processing configuration

{
  "processors":[
    {
      "type":"processor_strptime",
      "detail": {
        "SourceKey": "log_time",
        "Format": "%Y/%m/%d %H:%M:%S.%f"
      }
    }
  ]
}

Processing result

"log_time":"2016/01/02 12:59:59.123"
Log.Time = 1451714399

Common time expressions

Note

The processor_strptime plugin supports parsing that uses the %f format specifier. This specifier represents the fractional part of a second with up to nanosecond precision.

Example	Time expression
2016/01/02 12:59:59	%Y/%m/%d %H:%M:%S
2016/01/02 12:59:59.1	%Y/%m/%d %H:%M:%S.%f
2016/01/02 12:59:59.987654321 +0700 (UTC)	%Y/%m/%d %H:%M:%S.%f %z (%Z)
2016/Jan/02 12:59:59,123456	%Y/%b/%d %H:%M:%S,%f
2019-07-15T04:16:47:123Z	%Y-%m-%dT%H:%M:%S:%f

Common log time formats

For common log time formats supported by the processor_gotime extension plugin, see https://pkg.go.dev/time#pkg-constants. The following table lists the common log time formats supported by the native time parsing plugin (processor_parse_timestamp_native) and the processor_strptime extension plugin.

Note

On a Linux server, Logtail supports all time formats provided by the strftime function. This means that Logtail can parse any log time string that can be formatted by the strftime function.

Time format	Description	Example
%a	Abbreviated weekday name.	Fri
%A	Full weekday name.	Friday
%b	Abbreviated month name.	Jan
%B	Full month name.	January
%d	Day of the month as a zero-padded decimal number. Range: 01 to 31.	07, 31
%f	Fractional seconds (milliseconds, microseconds, or nanoseconds).	123
%h	Abbreviated month name. Same as %b.	Jan
%H	The hour in 24-hour format.	22
%I	Hour (12-hour clock) as a zero-padded decimal number.	11
%m	Month as a zero-padded decimal number. Range: 01 to 12.	08
%M	Minute as a zero-padded decimal number. Range: 00 to 59.	59
%n	A line feed.	Line feed
%p	AM or PM.	AM, PM
%r	12-hour clock time. Same as %I:%M:%S %p.	11:59:59 AM
%R	Hour and minute. Same as %H:%M.	23:59
%S	Second as a zero-padded decimal number. Range: 00 to 59.	59
%t	A tab character.	None
%y	Year without century as a zero-padded decimal number. Range: 00 to 99.	04, 98
%Y	Year with century as a decimal number.	2004, 1998
%C	Century as a decimal number. Range: 00 to 99.	16
%e	Day of the month as a space-padded decimal number. Range: 1 to 31. A space is added before a single-digit number.	7, 31
%j	Day of the year as a zero-padded decimal number. Range: 001 to 366.	365
%u	Weekday as a decimal number, where Monday is 1. Range: 1 to 7.	2
%U	Week number of the year, with Sunday as the first day of the week. Range: 00 to 53.	23
%V	Week number of the year, with Monday as the first day of the week. Range: 01 to 53. If the week containing January 1 has four or more days in the new year, it is week 1. Otherwise, it is the next week.	24
%w	Weekday as a decimal number, where Sunday is 0. Range: 0 to 6.	5
%W	Week number of the year, with Monday as the first day of the week. Range: 00 to 53.	23
%c	Standard date and time.	Tue Nov 20 14:12:58 2020
%x	Standard date without time.	Tue Nov 20 2020
%X	Standard time without date.	11:59:59
%s	UNIX timestamp.	1476187251

Examples

The following table shows common time standards, examples, and their corresponding time expressions.

Example	Time expression	Time standard
2017-12-11 15:05:07	%Y-%m-%d %H:%M:%S	Custom
[2017-12-11 15:05:07.012]	[%Y-%m-%d %H:%M:%S.%f	Custom
2017-12-11 15:05:07.123	%Y-%m-%d %H:%M:%S.%f	Custom
02 Jan 06 15:04 MST	%d %b %y %H:%M	RFC822
02 Jan 06 15:04 -0700	%d %b %y %H:%M	RFC822Z
Monday, 02-Jan-06 15:04:05 MST	%A, %d-%b-%y %H:%M:%S	RFC850
Mon, 02 Jan 2006 15:04:05 MST	%A, %d %b %Y %H:%M:%S	RFC1123
2006-01-02T15:04:05Z07:00	%Y-%m-%dT%H:%M:%S	RFC3339
2006-01-02T15:04:05.999999999Z07:00	%Y-%m-%dT%H:%M:%S.%f	RFC3339Nano
1637843406	%s	Custom
1637843406123	%s	Custom (Simple Log Service processes it with second-level precision)

References

You can configure a Logtail pipeline by calling the following API operations:
Configuring processing plug-ins in the console:
- Collect text logs from hosts
- Collect container logs from a cluster using the console (standard output/file)
Collect container logs from a cluster using Kubernetes CRDs (standard output/file)

Plugin effect example

Overview of time processing plugins

Entry point

Differences between native and extension plugins

Time parsing plugin (native)

Configuration description

Extract Log Time plugin (extension)

Go language time format (processor_gotime)

Form-based configuration

JSON configuration

strptime time format (processor_strptime)

Form-based configuration

JSON configuration

Common log time formats

Examples

References

Go language time format (`processor_gotime`)

strptime time format (`processor_strptime`)
