Serverless App Engine:Deploy an application in a single batch

Prerequisites

The application is running.

Procedure

1. On the SAE Application List page, select a region and namespace at the top, and click the ID of the target application to open the application details page.

2. On the Basic Information page, click Deploy Application.

3. Configure deployment parameters.

   Note

   The deployment method of an application is based on the deployment method that you selected for the application for the first time. Configure the parameters based on the selected method.

   • Deployment with WAR Packages: Upload another WAR package or enter the path of a newly deployed WAR package, and configure the runtime environment and other settings.

   • Deployment with JAR Packages: Upload another JAR package or enter the path of a newly deployed JAR package, and configure the runtime environment and other settings.

   • Deployment with ZIP Packages: Upload another ZIP package or enter the path of a newly deployed ZIP package, and configure the runtime environment and other settings.

   • Image: In the Configure Image section, click Modify Image. In the Modify Image panel, select another image repository or image version.

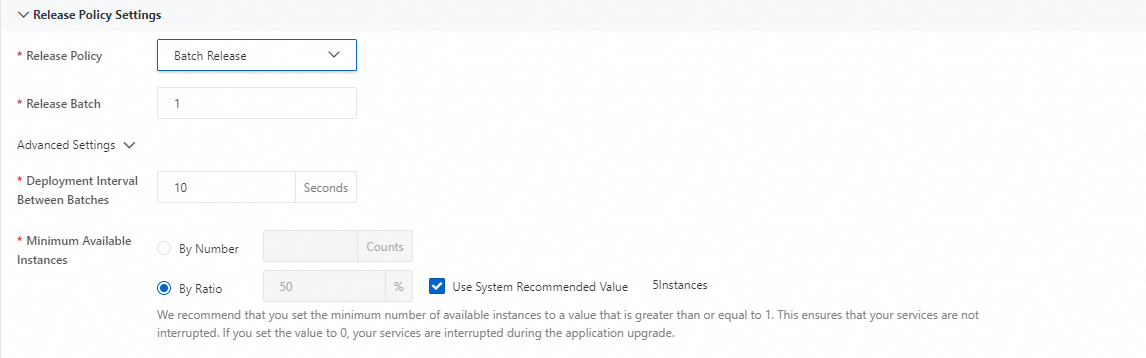

4. In the Release Policy Settings section, set Minimum Available Instances.

   • By Number: Enter the minimum number of available instances.

   • By Ratio: Enter a percentage. You can also select Use System Recommended Value.

   Note

   • Make sure that at least one instance is available during application deployment and rollback. This ensures business continuity. If you set the value to 0, business interruptions occur when the application is upgraded.

   • If you specify a percentage, the minimum number of available instances is rounded up to the nearest integer. For example, five instances are available and you specify 25%. In this case, the minimum number of available instances is 2.

5. Optional:Configure the following advanced settings as needed.

   Java

   Advanced settings	References
   Start Command Settings	Set a start command
   Java Tomcat Settings	Set Java Tomcat parameters Note You can configure Tomcat only when Application Deployment Method is set to WAR Package Deployment.
   Environment Variable Settings	Set environment variables
   Service Registration and Discovery	Implement service registration and discovery based on Nacos or other registration centers
   Hosts Binding Settings	Set hosts binding
   Application Health Check Settings	Set health checks
   Application Ingress/Egress Settings	Configure an Internet NAT gateway to enable SAE applications to access the Internet Configure Internet access for SAE instances based on EIPs
   Application Lifecycle Management Settings	Set application lifecycle management
   Log Collection Service	Set log collection to SLS Set log collection to Kafka
   Persistent Storage	Persistent storage
   Configuration Management	Inject configuration information
   Graceful Start and Shutdown for Microservices	Configure graceful start for microservices Configure graceful shutdown for microservices Note If you select WAR Package Deployment or JAR Package Deployment and set the Application Runtime Environment to EDAS-Container-XXX, configuring graceful microservice startup and shutdown is not supported.

   PHP

   Advanced settings	References
   php.ini Configuration File Modification	Set PHP application configuration files
   Start Command Settings	Set a start command
   Environment Variable Settings	Set environment variables
   Service Registration and Discovery	Implement service registration and discovery based on Nacos or other registration centers
   Hosts Binding Settings	Set hosts binding
   Application Health Check Settings	Set health checks
   Application Ingress/Egress Settings	Configure an Internet NAT gateway to enable SAE applications to access the Internet Configure Internet access for SAE instances based on EIPs
   Application Lifecycle Management Settings	Set application lifecycle management
   Log Collection Service	Set log collection to SLS Set log collection to Kafka
   Persistent Storage	Persistent storage
   Configuration Management	Inject configuration information

   Multi-language

   Advanced settings	References
   Start Command Settings	Set a start command
   Environment Variable Settings	Set environment variables
   Application Monitoring	Start or stop application monitoring
   Service Registration and Discovery	Implement service registration and discovery based on Nacos or other registration centers
   Hosts Binding Settings	Set hosts binding
   Application Health Check Settings	Set health checks
   Application Lifecycle Management Settings	Set application lifecycle management
   Application Ingress/Egress Settings	Configure an Internet NAT gateway to enable SAE applications to access the Internet Configure Internet access for SAE instances based on EIPs
   Log Collection Service	Set log collection to SLS Set log collection to Kafka
   Persistent Storage	Persistent storage
   Configuration Management	Inject configuration information

6. After you configure the settings, click Confirm.

7. You can verify that the configuration is effective as follows.

   • Method 1:

     In the navigation pane on the left of the Basic Information page, click Change History. On the Change History page, view the application change details. If the status is Execution Successful, the application is successfully deployed.

   • Method 2:

     On the Basic Information page, click the Instance Information tab to view the Running Status of the instances. If the Running Status is Running, the application is successfully deployed.

Stop a change

To stop a change that is in progress, click Stop Change on the Change Details page.
