Metrics

Go to the Curve Charts tab

1. Go to the Job Administration page in the Realtime Compute for Apache Flink console.
   1. Log on to the Realtime Compute development platform.
   2. In the top navigation bar, click Administration.
   3. On the Jobs page that appears, click the target job name under the Job Name field.
2. In the upper part of the Job Administration page, click the Curve Charts tab.

Overview

• Failover

  The failover curve chart displays the frequency of failovers that are caused by errors or exceptions for the current job. To calculate the failover rate, divide the total number of failovers that occurred within the minute that precedes the current failover time by 60. For example, if a failover occurred once within the last minute, the failover rate is 0.01667. The failover rate is calculated by using the following formula: 1/60 = 0.01667.

• Delay
  To help you obtain the full-link timeliness and job performance, Realtime Compute for Apache Flink provides the following latency metrics:

  • Processing Delay: Processing delay = Current system time - Event time at which the system processes the last data record. If no more data enters upstream storage systems, the processing delay gradually increases as the system time continues to move forward.
  • Data Pending Time: Data pending time = Time when data enters Realtime Compute for Apache Flink - Event time. Even if no more data enters upstream storage systems, the queued time does not increase. The queued time is used to assess whether the Realtime Compute for Apache Flink job has backpressure.
  • Data Arrival Interval: Data arrival interval = Processing delay - Data pending time. If the Realtime Compute for Apache Flink job has no backpressure, the queued time is short and stable. In this case, this metric reflects the degree of data sparsity between the data sources. If the Realtime Compute for Apache Flink job has backpressure, the queued time is long or unstable. In this case, this metric cannot be used for reference.

  Note

  • Realtime Compute for Apache Flink uses a distributed computing framework. The preceding three latency metrics obtain values of each shard or partition of the data source. Then, the metrics report the maximum values among all the shards or all the partitions to the development platform of Realtime Compute for Apache Flink. Therefore, the aggregated data arrival interval that is displayed on the development platform is different from the interval that is obtained by using the following formula: Data arrival interval = Processing delay - Data pending time.
  • If no more data enters a shard or a partition of the data source, the processing delay gradually increases.
• Input TPS of Each Source

  This chart displays statistics on all streaming data input of a Realtime Compute for Apache Flink job. The chart records the number of blocks that are read from the source table per second. This helps you obtain the transactions per second (TPS) of a data storage system. Different from TPS, the records per second (RPS) metric indicates the number of records read from the source table per second. These records are resolved from the blocks. For example, if Log Service reads five log groups per second, the value of TPS is 5. If eight log records are resolved from each log group, a total of 40 log records are resolved. In this case, the value of RPS is 40.

• Data Output of Each Sink

  This chart displays statistics on all output data of a Realtime Compute for Apache Flink job. This helps you obtain the RPS of a data storage system. In most cases, if no data output is detected during system operations and maintenance (O&M), you must check the input of the upstream storage system and the output of the downstream storage system.

• Input RPS of Each Source

  This chart displays statistics on all input streaming data of a Realtime Compute for Apache Flink job. This helps you obtain the RPS of a data storage system. If no data output is detected during system O&M, you must check the RPS to determine whether the input data from the upstream storage system is normal.

• Input BPS of Each Source

  This chart displays statistics on all input streaming data of a Realtime Compute for Apache Flink job. This chart records the traffic that is used to read the input source table per second. This helps you obtain the bytes per second (BPS) of the traffic.

• Dirty Data from Each Source

  This chart displays the number of dirty data records in the data source of a Realtime Compute for Apache Flink job in different time periods.

• Auto Scaling Successes and Failures
  This chart displays the number of auto scaling successes and the number of auto scaling failures.

  Notice This curve chart is suitable only for Realtime Compute for Apache Flink whose version is later than V3.0.0.
• CPUs Consumed By Auto Scaling
  This chart displays the number of CPUs consumed when auto scaling is performed.

  Notice This curve chart is suitable only for Realtime Compute for Apache Flink whose version is later than V3.0.0.
• Memory Consumed by Auto Scaling
  This chart displays the memory space consumed when auto scaling is performed.

  Notice This curve chart is suitable only for Realtime Compute for Apache Flink whose version is later than V3.0.0.

Advanced View

Alibaba Cloud Realtime Compute for Apache Flink provides a fault tolerance mechanism that allows you to restore data streams and ensures that the data streams are consistent with the application. The fault tolerance mechanism is used to create consistent snapshots of distributed data streams and the related states. These snapshots work as consistency checkpoints to which the system can fall back if a failure occurs.

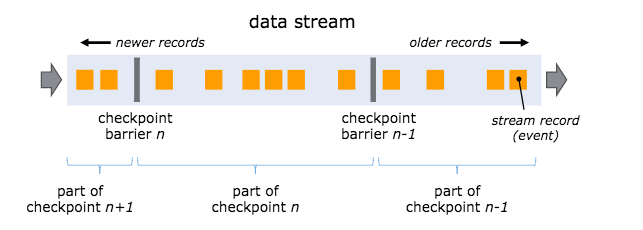

One of the core concepts for distributed snapshots is barriers. Barriers are inserted into data streams and flow together with the data streams to the downstream. Barriers do not overtake data records. The records flow strictly in line. A barrier divides a data stream into two parts. One part enters the current snapshot and the other part enters the next snapshot. Each barrier has a snapshot ID. If the data flows before a barrier is inserted in the data stream, the data is included in the specified snapshot. Barriers are lightweight. Barriers do not interfere with the processing of data streams. Multiple barriers from different snapshots can co-exist in the same data stream. This allows multiple snapshots to be concurrently created.

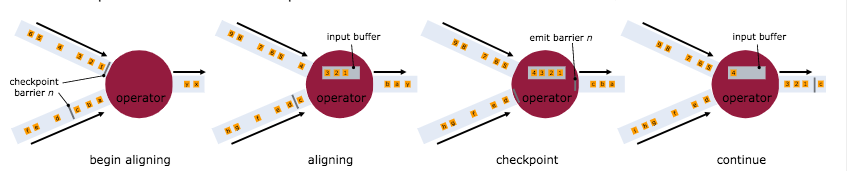

Barriers are inserted into data streams at the data source. If a barrier from Snapshot n is inserted, the system automatically records the checkpoint of Snapshot n in the data stream. This checkpoint is indicated by Sn. Then, the barrier continues to flow to the downstream. When an intermediate operator receives barriers for Snapshot n from all the input streams, the operator emits only one barrier for Snapshot n to all the output streams. When the sink operator that is the destination of the directed acyclic graph (DAG) stream receives Barrier n from each of its input streams, the operator acknowledges to the checkpoint coordinator that Snapshot n is created. After all the sink operators acknowledge that Snapshot n is created, this snapshot is considered completed. The following table describes the curve charts of checkpoint metrics.

Curve chart	Description
Checkpoint Duration	Displays the time that is consumed to create a checkpoint. Unit: milliseconds.
Checkpoint Size	Displays the memory size that is required to create a checkpoint.
Checkpoint Alignment Time	Displays the duration consumed by all the data streams to flow from the upstream nodes to the node on which you create a checkpoint. When the sink operator receives Barrier n from all the input streams, the operator acknowledges to the checkpoint coordinator that Snapshot n is created. The sink operator represents the destination of the DAG stream. After all the sink operators acknowledge that snapshot n is created, this snapshot is considered completed. This duration is known as the checkpoint alignment time.
Checkpoint Count	Displays the number of checkpoints within a specific period of time.
Get	Displays the longest duration for which a subtask performs a GET operation on the RocksDB within a specific period of time.
Put	Displays the longest duration for which a subtask performs a PUT operation on the RocksDB within a specific period of time.
Seek	Displays the longest duration for which a subtask performs a SEEK operation on the RocksDB within a specific period of time.
State Size	Displays the state size of the job within a specific period of time. If the size increases at a high rate, we recommend that you check for potential issues in the job.
GMS GC Time	Displays the duration for which the underlying container of the job performs garbage collection.
GMS GC Rate	Displays the frequency at which the underlying container of the job performs garbage collection.

Watermark

Delay

Throughput

Queue

Tracing

Process

JVM
