Quick Tracking:Tracking API

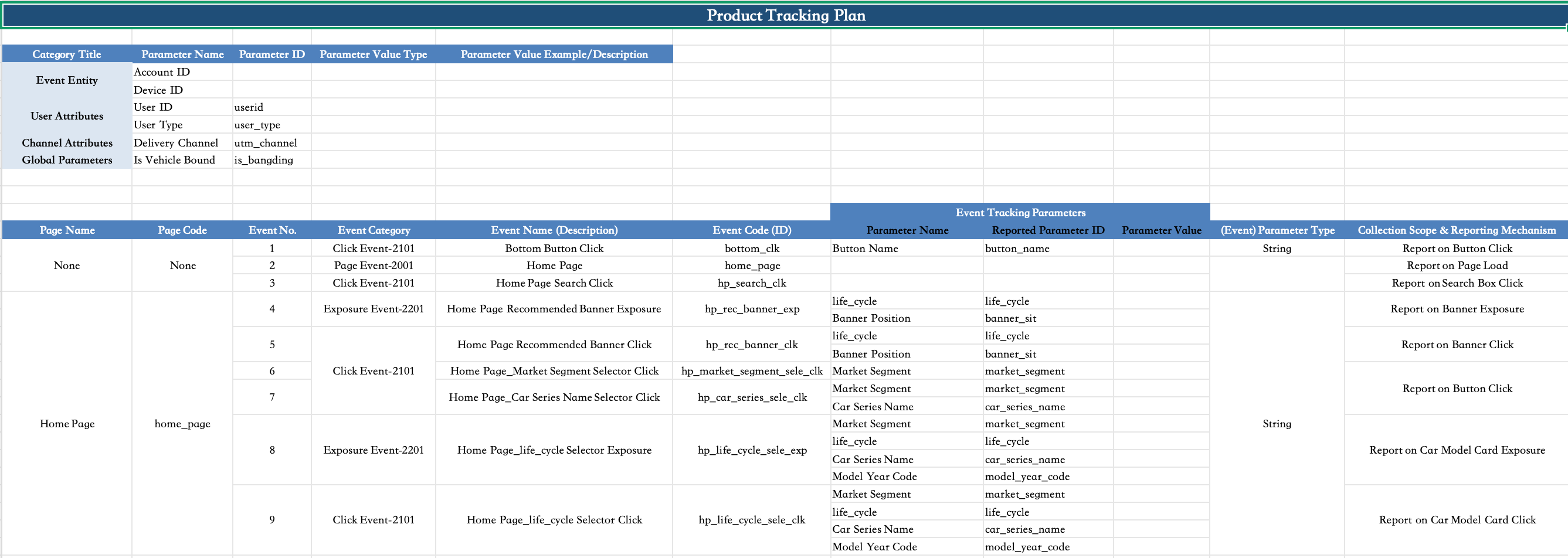

1. View a tracking plan

Before implementing event tracking, define what to track and where. Quick Tracking uses tracking plans with standardized templates to organize these requirements.

A tracking plan includes:

1. Event subject: Device ID and Account ID.

• Device ID: On Windows, the default device ID is an application-level unique identifier. It is auto-generated by the Quick Tracking SDK, or you can set a custom one via setCustomDeviceId.

• Account ID: the user's login account. The device ID changes across devices, but the account ID stays the same. For example, a user logging in from both a computer and a tablet shares one account ID.

2. User attributes: properties of an account. For example, for account "testdemo@111", "birthday" is "1999-02-13" and "membership level" is "platinum". Here, "birthday" and "membership level" are user attributes.

3. Global attributes: attributes attached to every event once set

4. Page view events: events reported on page load. In the tracking plan, events where the page code matches the event code are highlighted in blue.

5. Click, exposure, and custom events: events reported on user interaction.

2. Usage notes

• Input parameters must not contain special characters such as single quotation marks or unsupported data types. Invalid parameters may cause event ingestion failures and data loss.

• To use Chinese characters in parameters, ensure the source file uses UTF-8 (unsigned) encoding.

• Except for the log switch, all operations require initQTPC to be called first.

• On Windows 10.x, GetVersionEx may return inaccurate OS version info. To fix this, add a manifest file to your project folder and reference it in Project Properties > Manifest Tool > Input and Output > Additional Manifest Files. Sample manifest:

  <?xml version="1.0" encoding="UTF-8" standalone="yes"?>
  <assembly xmlns="urn:schemas-microsoft-com:asm.v1" manifestVersion="1.0" xmlns:asmv3="urn:schemas-microsoft-com:asm.v3">
      <asmv3:application>
        <asmv3:windowsSettings xmlns="http://schemas.microsoft.com/SMI/2005/WindowsSettings">
          <dpiAware>false</dpiAware>
        </asmv3:windowsSettings>
      </asmv3:application>
      <compatibility xmlns="urn:schemas-microsoft-com:compatibility.v1">
          <application>
              <!-- Windows 10 and Windows 11 -->
              <supportedOS Id="{8e0f7a12-bfb3-4fe8-b9a5-48fd50a15a9a}"/>
              <!-- Windows 8.1 -->
              <supportedOS Id="{1f676c76-80e1-4239-95bb-83d0f6d0da78}"/>
              <!-- Windows 8 -->
              <supportedOS Id="{4a2f28e3-53b9-4441-ba9c-d69d4a4a6e38}"/>
              <!-- Windows 7 -->
              <supportedOS Id="{35138b9a-5d96-4fbd-8e2d-a2440225f93a}"/>
              <!-- Windows Vista -->
              <supportedOS Id="{e2011457-1546-43c5-a5fe-008deee3d3f0}"/>
          </application>
      </compatibility>
      <trustInfo xmlns="urn:schemas-microsoft-com:asm.v3">
          <security>
              <requestedPrivileges>
                  <!--
                    UAC settings:
                    - app should run at same integrity level as calling process
                    - app does not need to manipulate windows belonging to
                      higher-integrity-level processes
                    -->
                  <requestedExecutionLevel
                      level="asInvoker"
                      uiAccess="false"
                  />
              </requestedPrivileges>
          </security>
      </trustInfo>
   </assembly>

• Input parameter size limits:

// If the keys and values of custom and global attributes exceed the upper limit, the settings cannot be completed.
const size_t kStringPropertyValueMaxLength=4096; // The upper limit of the custom property and global property value.
const size_t kStringPropertyKeyMaxLength=1024; // The maximum value of the custom property and global property key.
const size_t kStringArrayValueMaxSize=100; // The upper limit of the length of the custom attribute string array. If the upper limit is exceeded, the string array is truncated.
const size_t kStringMapValueMaxSize=50; // The upper limit of the global attribute set. If the upper limit is exceeded, no more data can be inserted.
const size_t kStringEventCodeMaxLength=500; // event code maximum length

3. Device ID, account ID, and user attributes

3.1 Device ID

The SDK supports custom device IDs. To use one, call setCustomDeviceId with a valid value.

Interface functions:

// Specify the custom device ID.
QTFORPC_API QT_VOID setCustomDeviceId(QT_CSTR deviceId);

Parameters:

Field	Type	Description	Required
deviceId	const char *	The ID of the custom device. The value must be a non-empty string.	Yes

string customDeviceId = "testId";
qtInterface->setCustomDeviceId(customDeviceId.c_str());

3.2 Account ID

3.2.1 User Login

By default, the Quick Tracking SDK identifies users by device. To track by user account instead, use the following methods.

Interface functions:

// Log on to the application.
QTFORPC_API QT_VOID onProfileSignIn(QT_CSTR userID, QT_CSTR nick);

Parameters:

Field	Type	Description	Required
userID	const char *	User account ID. Must not be an empty string.	Yes
nick	const char *	The nickname of the user.	No. If provided, must not be empty.

qtInterface->onProfileSignIn("userId", "userNick");

3.2.2 User Logout

To unbind a user account, call the SDK logout method. After logout, the SDK stops sending account-related data.

Interface functions:

// Log out.
QTFORPC_API QT_VOID onProfileSignOff();

qtInterface->onProfileSignOff();

3.3 Upload user attributes

Upload user attributes as a custom event with the event code $$_user_profile. The event attributes are stored in the user table as user attributes.

Note: Call uploadUserProfile after onPageStart and before onPageEnd to ensure data accuracy.

Interface functions:

// Upload user properties.
QTFORPC_API QT_VOID uploadUserProfile(QT_VSTR pageObj, QT_MAP customProperties);

Parameters:

Field	Type	Description	Required
pageObj	void *	WNDCLASS container object.	Yes
customProperties	const char *	The business parameter as a JSON literal string.	Yes

WNDCLASS *wndClass = new WNDCLASS();
qtInterface->onPageStart(wndClass, "PageName");
std::string cusp = R"({
    "age": 18,
    "level": "King",
    "name": "coolboy",
})";
qtInterface->uploadUserProfile(wndClass, cusp.c_str());
qtInterface->onPageEnd(wndClass);

4. Global attributes

4.1 Register Global Attributes

Interface functions:

// Set global properties.
QTFORPC_API QT_VOID registerGlobalProperty(QT_CSTR key, QT_CSTR value);

Parameters:

Field	Type	Description	Required
key	const char *	Set the global property key	Yes
value	const char *	Set the global property value	Yes

qtInterface->registerGlobalProperty("key", "value");

Note: If the key already exists, the value is updated. If the key does not exist, a new global attribute is added.

4.2 Delete a global attribute

API functions:

// Delete global attributes based on the key.
QTFORPC_API QT_VOID unregisterGlobalProperty(QT_CSTR key);

Parameters:

Field	Type	Description	Required
key	const char *	Global attribute key to delete	Yes

qtInterface->unregisterGlobalProperty("key");

4.3 Get a global attribute by key

API functions:

// Obtain global properties based on the key.
QTFORPC_API QT_VOID getGlobalProperty(QT_CSTR key, QT_STR value, QT_INT size);

Parameters:

Field	Type	Description	Required
key	const char *	The key of the global property to get	Yes
value	char *	The global property value to get	Yes
size	int	Global attribute value length	Yes

// The size is set as required.
char value[64] = { 0 };
qtInterface->getGlobalProperty("key", value, 64);
string myValue = value;

4.4 Get all global attributes

API functions:

// Obtain all global attributes.
QTFORPC_API QT_VOID getGlobalProperties(QT_STR properties, QT_INT size);

Parameters:

Field	Type	Description	Required
properties	char *	Buffer to store all global attributes as a serialized string.	Yes
size	int	Global attribute value length	Yes

// The size is set as required.
char properties[128] = { 0 };
qtInterface->getGlobalProperties(properties);
std::map<string, string> myProperties = QT::Helper::QT_DeserializePerson(properties, 128);

5. Page browsing events

5.1 Manual page tracking

Interface functions:

// The page starts to be displayed.
QTFORPC_API QT_VOID onPageStart(QT_VSTR pageObj, QT_CSTR pageName);
// The page starts to disappear.
QTFORPC_API QT_VOID onPageEnd(QT_VSTR pageObj);

Parameters:

Field	Type	Description	Required
pageObj	void *	WNDCLASS container object. Pass the same pageObj to onPageEnd as to onPageStart.	Yes
pageName	const char *	Event code of page events	Yes

WNDCLASS *wndClass = new WNDCLASS();
qtInterface->onPageStart(wndClass, "PageName");
qtInterface->onPageEnd(wndClass);

5.2 Set page event properties

API functions:

// Set the page event parameters.
QTFORPC_API QT_VOID updatePageProperties(QT_VSTR pageObj, QT_MAP pageProperties);

Parameters:

Field	Type	Description	Required
pageObj	void *	WNDCLASS container object. Pass the same pageObj as onPageStart.	Yes
pageProperties	const char *	Page event attributes as a JSON literal string.	Yes

WNDCLASS *wndClass = new WNDCLASS();
qtInterface->onPageStart(wndClass, "PageName");
std::string cusp = R"({
    "param_str": "hello c++",
    "param_num": 1900,
    "param_bool": true,
    "param_list": ["hello", "world", "c++"]
})";
qtInterface->updatePageProperties(wndClass, cusp.c_str());
qtInterface->onPageEnd(wndClass);

5.3 Container Skip

Skips the previous page (container page) as the referrer for the current child page.

API functions:

// Skip a container for multi-container nesting.
QTFORPC_API QT_VOID skipPage(QT_VSTR pageObj);

Field	Type	Description	Required
pageObj	void *	WNDCLASS container object. Pass the same pageObj as onPageStart.	Yes

WNDCLASS *wndClass = new WNDCLASS();
qtInterface->onPageStart(wndClass, "firstPage");
std::string cusp = R"({
    "param_str": "hello c++",
    "param_num": 1900,
    "param_bool": true,
    "param_list": ["hello", "world", "c++"]
})";
qtInterface->updatePageProperties(wndClass, cusp.c_str());
qtInterface->onPageEnd(wndClass);

WNDCLASS *wndClass1 = new WNDCLASS();
qtInterface->onPageStart(wndClass1, "secondPage");
qtInterface->onPageEnd(wndClass1);

WNDCLASS *wndClass2 = new WNDCLASS();
// Skips the previous page of thirdPage, that is, secondPage. In this case, the ref_page_name of thirdPage is firstPage. If skipPage is not called, the ref_page_name is secondPage.
qtInterface->skipPage(wndClass2);
qtInterface->onPageStart(wndClass2, "thirdPage");
qtInterface->onPageEnd(wndClass2);

6. Event tracking

Custom events track user behavior and capture event-specific details.

Interface functions:

// The tracking event.
QTFORPC_API QT_VOID trackEvent(QT_VSTR pageObj, QT_CSTR id, QT_MAP customProperties);
// The tracking event includes the page name.
QTFORPC_API QT_VOID trackEventWithPageName(QT_VSTR pageObj, QT_CSTR id, QT_MAP customProperties, QT_CSTR pageName);

Parameters:

Field	Type	Description	Required
pageObj	void *	WNDCLASS container object. Pass the same pageObj as onPageStart.	Yes
id	const char *	Event code. Must be a non-empty string and must not start with "$$_".	Yes
customProperties	const char *	The event attribute. You must specify a JSON literal string.	No
pageName	const char *	Page encoding	No

WNDCLASS *wndClass = new WNDCLASS();
qtInterface->onPageStart(wndClass, "PageName");
std::string cusp = R"({
    "param_str": "hello c++",
    "param_num": 1900,
    "param_bool": true,
    "param_list": ["hello", "world", "c++"]
})";
qtInterface->trackEventWithPageName(wndClass, "test_event", cusp.c_str(), "PageName");
qtInterface->onPageEnd(wndClass);

7. Manually track application startup and exit events

Interface functions:

// Enter the foreground.
QTFORPC_API QT_VOID enterForeground(QT_VSTR pageObj, QT_MAP customProperties);
// Enter the foreground with a PageName.
QTFORPC_API QT_VOID enterForegroundWithPageName(QT_VSTR pageObj, QT_MAP customProperties, QT_CSTR pageName);
// Enter the background.
QTFORPC_API QT_VOID enterBackground(QT_VSTR pageObj, QT_MAP customProperties);
// Enter the background with the PageName.
QTFORPC_API QT_VOID enterBackgroundWithPageName(QT_VSTR pageObj, QT_MAP customProperties, QT_CSTR pageName);

Parameters:

Field	Type	Description	Required
pageObj	void *	WNDCLASS container object. Pass the same pageObj as onPageStart.	Yes
customProperties	const char *	The business parameter as a JSON literal string.	No
pageName	const char *	Page encoding	No

WNDCLASS *wndClassForeground = new WNDCLASS();
qtInterface->onPageStart(wndClassForeground, "StartPageName");
std::string start_cusp = R"({
    "param_str": "hello c++",
    "param_num": 1900,
    "param_bool": true,
    "param_list": ["hello", "world", "c++"]
})";
qtInterface->enterForeground(wndClassForeground, start_cusp.c_str());
qtInterface->onPageEnd(wndClassForeground);

WNDCLASS *wndClassBackground = new WNDCLASS();
qtInterface->onPageStart(wndClassBackground, "EndPageName");
std::string end_cusp = R"({
    "param_str": "hello c++",
    "param_num": 1900,
    "param_bool": true,
    "param_list": ["hello", "world", "c++"]
})";
qtInterface->enterBackground(wndClassBackground, end_cusp.c_str());
qtInterface->onPageEnd(wndClassBackground);

8. Other

8.1 Stop local data persistence

Call finiQTPC to stop persisting data locally. Currently, only the stop method is supported.

API functions:

// deinitialize QT
QTFORPC_API QT_VOID finiQTPC(QT_CB cb);

Parameters:

Field	Type	Description	Required
cb	void	Lifecycle hooks	Yes

void callBackFunc()
{
	fprintf(stderr, "finiQTPC callback\n");
}

qtInterface->finiQTPC(callBackFunc);

8.2 Real-time debug mode

turnOnRealTimeDebug sets the data reporting interval to 30 seconds. Call turnOffRealTimeDebug to restore the default interval.

Note: Disable real-time debug mode before releasing your application.

API functions:

// Enable the real-time debugging mode.
QTFORPC_API QT_VOID turnOnRealTimeDebug(QT_MAP configs);
// Disable real-time debugging.
QTFORPC_API QT_VOID turnOffRealTimeDebug();

Parameters:

Field	Type	Description	Required
configs	const char *	Configuration map, serialized via QT::Helper::QT_Serializable.	Yes

map<string, string> configs;
configs["debug_key"] = "test";
std::string sconfig;
QT::Helper::QT_Serializable(sconfig, configs);
qtInterface->turnOnRealTimeDebug(sconfig.c_str());

qtInterface->turnOnRealTimeDebug();

8.3 Fast upload mode

setFastUploadMode changes the reporting interval to one upload per second (default: one per three seconds).

Note: Disable fast upload mode before releasing your application.

API functions:

// Enable the quick upload mode.
QTFORPC_API QT_VOID setFastUploadMode();

qtInterface->setFastUploadMode();
