Quick BI:Add a SQL Server Data Source

Procedure

1. Log on to the or the Quick BI console.

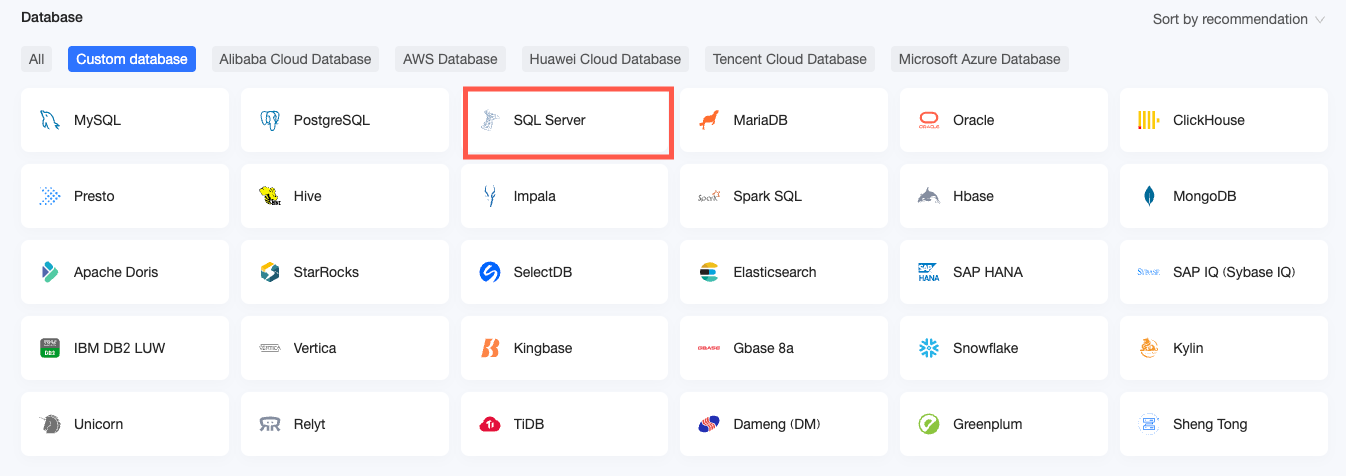

2. Navigate to the data source creation page as shown in the following figure:

   1. Access the data source creation page from the data source creation entry.

   2. On the User-created Data Source tab, select SQL Server data source.

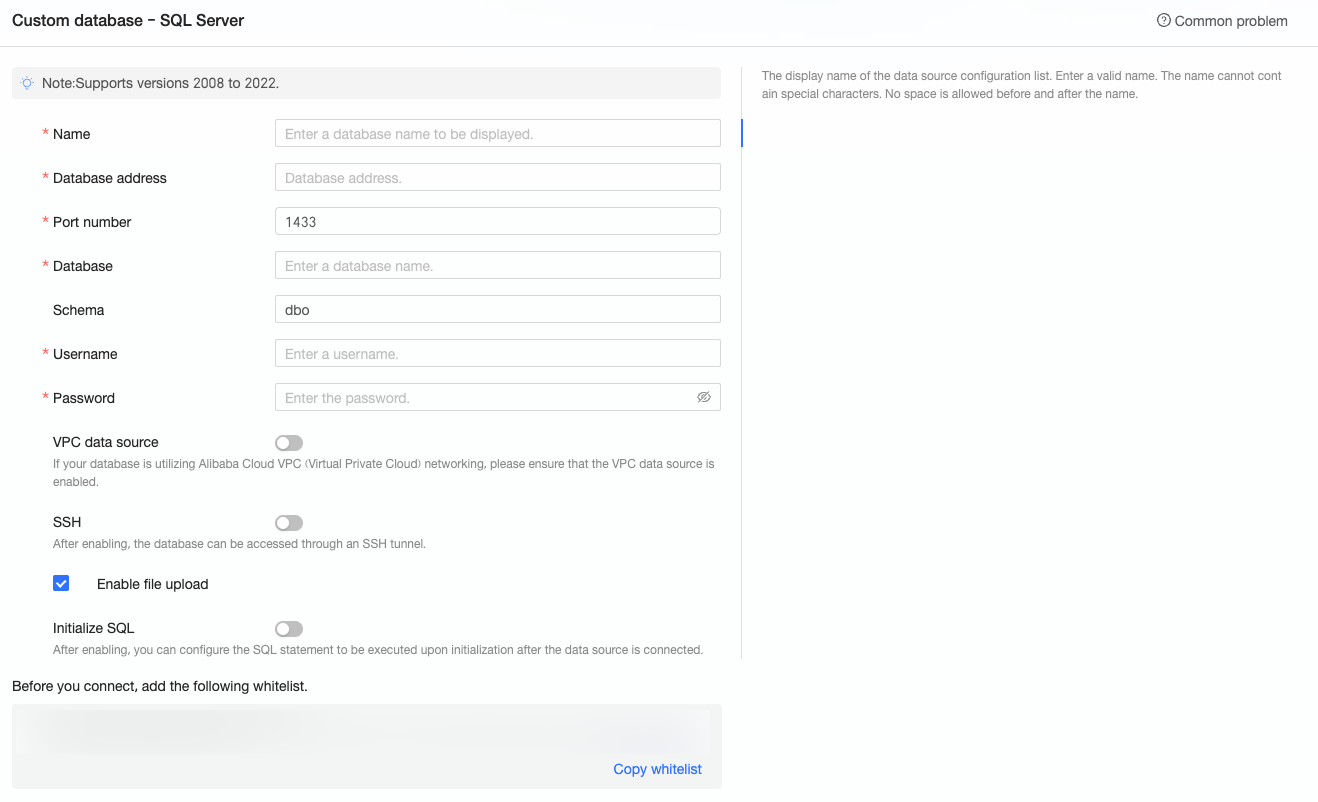

3. In the Configure Connection dialog box, complete the following configurations based on your business requirements.

   Name	Description
   Display Name	The display name in the data source configuration list. The name cannot contain special characters or start or end with spaces.
   Database Address	The address of the SQL Server database, including the IP address or domain name.
   Port	Enter the correct port number. Default port: 1433.
   Database	The name of the database that you want to access.
   Schema	The schema of the database that you want to access. Default value: dbo.
   Username	The username that is used to access the database.
   Password	The password that is used to access the database.
   VPC Data Source	Specify whether the data source is a VPC data source based on your business requirements. If you select VPC Data Source, you must configure the following parameters: Purchaser Accessid: The AccessKey ID of the purchaser of the instance. For more information, see Obtain an AccessKey. Note Ensure that the AccessKey ID has Read permissions on the destination instance. If Write permissions are granted, the system automatically adds the whitelist. Otherwise, you must manually add it. For more information, see Create a custom policy. Purchaser Accesskey: The AccessKey Secret of the purchaser of the instance. For more information, see Obtain an AccessKey. Instance ID: The ID of the ECS instance. Log on to the ECS console and obtain the instance ID on the Instances tab. For more information, see View instance information. Region: The region where the ECS instance resides. Log on to the ECS console and obtain the region in the upper-left corner of the page. For more information, see View instance information.
   SSH	Specify whether to access the data source over an SSH tunnel based on your business requirements. If you select SSH, you must configure the following parameters: SSH Host: The hostname or IP address. SSH Username: The SSH username of the database. SSH Password: The password of the SSH username. SSH Port: The port of the database. Default value: 22.
   Enable file upload entry	After this option is enabled, you can upload files.
   Initialize SQL	After this option is enabled, you can configure SQL statements that are executed to initialize the data source connection. Only SET statements are allowed. Separate multiple statements with semicolons.

4. Click Test Connection to verify the data source connectivity.



5. Once the test is successful, click OK to finalize the data source addition.
