Compared with the Temporary Bandwidth Upgrade feature in the Common O&M Tasks module, the Quick Setup feature streamlines the process of configuring periodic bandwidth upgrades for instances deployed across multiple regions. The Quick Setup feature allows you to configure and manage identical periodic bandwidth upgrades across all your regions without the need for individual regional configurations. This ensures configuration consistency across multiple regions and improves O&M efficiency by freeing you from repetitive operations. For more information, see Temporarily upgrade the bandwidth at a scheduled time.
Procedure
To create a periodic bandwidth upgrade task, perform the following steps in the CloudOps Orchestration Service (OOS) console:
Log on to the OOS console.
In the left-side navigation pane, click Quick Setup.
On the Configuration Library tab, find the Periodic Bandwidth Upgrade card and click Create.

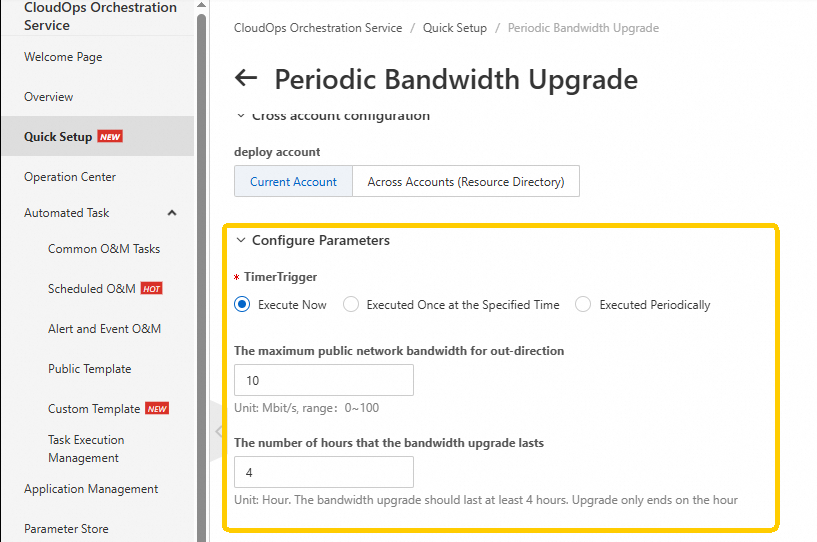

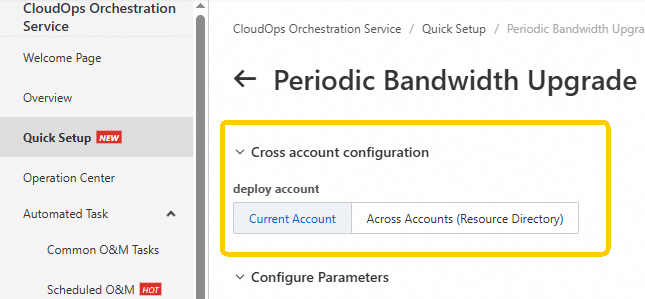

On the Periodic Bandwidth Upgrade page, enter a configuration description in the Configuration Description field. This parameter is optional. In the Configure Parameters section, specify an execution schedule.
You can set the TimerTrigger parameter to Execute Now, Executed Once at the Specified Time, or Executed Periodically. A value of Execute Now specifies that the task is executed immediately after it is created. A value of Executed Once at the Specified Time specifies that the task is executed only once at the specified time. A value of Executed Periodically specifies that the task is executed multiple times based on the specified schedule such as once an hour. Specify the maximum outbound public bandwidth and the duration for which the bandwidth upgrade lasts.

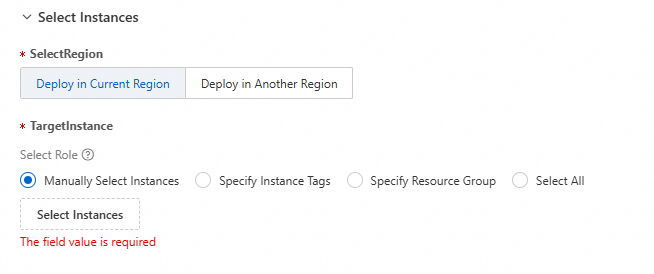

In the Select Instances section, specify the regions, resource type, and instances to which the periodic bandwidth upgrade task applies.
You can specify the current region or multiple regions.
Specify one or more regions by setting the SelectRegion parameter to one of the following values:
Deploy in Current Region: applies the task to the region selected in the top navigation bar of the OOS console.
Deploy in Another Region: applies the task to the one or more regions that you select.
Specify one or more instances by using one of the following methods:
If you set the SelectRegion parameter to Deploy in Current Region, you can set the Select Role parameter to Manually Select Instances, Specify Instance Tags, Specify Resource Group, or Select All and select one or more nodes.
If you set the SelectRegion parameter to Deploy in Another Region, you can set the Select Role parameter to Specify Instance Tags or Select All and select one or more nodes.
Click Create.
After the periodic bandwidth upgrade task is created, you can view the task details on the Quick Setup page.
