Implement an end-to-end canary release based on Spring Boot applications - Microservices Engine

Java agents support end-to-end canary release based on Kubernetes service discovery. Spring Boot applications are unable to connect to third-party registries. Due to this reason, Spring Boot applications deployed in Kubernetes clusters call other applications based on Kubernetes service discovery. This topic describes how to use Microservices Engine (MSE) to implement an end-to-end canary release for Spring Boot applications deployed in Kubernetes clusters.

Prerequisites

A Kubernetes cluster is created. For more information, see Create an ACK managed cluster and Create an ACK Serverless cluster.
MSE Microservices Governance Enterprise Edition is activated and a microservice namespace is created.
The MSE Microservices Governance component named ack-onepilot is installed. For more information, see Install and update the Microservices Governance component. We recommend that you install the ack-onepilot component of version 3.3.x or later.
Advanced governance capabilities are enabled for your Kubernetes cluster. For more information, see Enable advanced governance for Kubernetes clusters.
Note
If the version of your ack-onepilot component is 4.x or later, wait about 10 minutes for the advanced governance capabilities to take effect. You can also restart ack-onepilot and redeploy applications. The latency issue will be resolved soon.

Limits

Important

This feature is in public preview and is only available in the following regions: China (Beijing), China (Shanghai), China (Hangzhou), China (Shenzhen), China (Zhangjiakou), US (Silicon Valley), and Singapore. Other regions are not supported.

For the HTTP frameworks and their versions supported when Spring Boot applications call other applications, see Frameworks supported by Microservices Governance.
This feature is in public preview, and you must set the Java agent version to 4.2.5-proxyless. For more information about how to specify the agent version, see Specify the agent version.

Demo overview

In this demo, applications are deployed in the ACK console. The following figure shows the architecture of demo applications. Application call scenarios involve discovery of Spring Cloud applications based on Nacos instances and discovery of Spring Boot applications based on Kubernetes services.

Gateway: works as a Spring Cloud gateway. It is used as an ingress for backend traffic and calls Application A based on Nacos service discovery.
A: a Spring Cloud application. Its nodes are registered with a Nacos instance for service discovery. Application A calls Application B based on Kubernetes service discovery and calls Application D based on Nacos service discovery.
B: a Spring Boot application. It calls Application D based on Kubernetes service discovery.
D: a Spring Cloud application. Its nodes are registered with a Nacos instance for service discovery.

Procedure

Step 1: Deploy base and canary applications

Log on to the ACK console.
In the left-side navigation pane, click Clusters. Then, click the name of the cluster that you want to manage.
In the left-side navigation pane, choose Workloads > Deployments.
In the upper part of the page, select the namespace of the cluster, and click Create from YAML.

Use the following YAML code to deploy applications.

Show YAML code

apiVersion: apps/v1
kind: Deployment
metadata:
  name: nacos-server
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nacos-server
  template:
    metadata:
      labels:
        msePilotAutoEnable: "off"
        app: nacos-server
    spec:
      containers:
        - name: nacos-server
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/nacos-server:v2.1.2"
          env:
            - name: MODE
              value: standalone
            - name: JVM_XMS
              value: 512M
            - name: JVM_XMX
              value: 512M
            - name: JVM_XMN
              value: 256M
          imagePullPolicy: Always
          livenessProbe:
            failureThreshold: 3
            initialDelaySeconds: 15
            periodSeconds: 10
            successThreshold: 1
            tcpSocket:
              port: 8848
            timeoutSeconds: 3
          readinessProbe:
            failureThreshold: 5
            initialDelaySeconds: 15
            periodSeconds: 15
            successThreshold: 1
            tcpSocket:
              port: 8848
            timeoutSeconds: 3
          resources:
            requests:
              cpu: '1'
              memory: 2Gi
      dnsPolicy: ClusterFirst
      restartPolicy: Always

---
apiVersion: v1
kind: Service
metadata:
  name: nacos-server
spec:
  type: ClusterIP
  ports:
    - name: nacos-server-8848-8848
      port: 8848
      protocol: TCP
      targetPort: 8848
    - name: nacos-server-9848-9848
      port: 9848
      protocol: TCP
      targetPort: 9848
  selector:
    app: nacos-server
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-cloud-gateway
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-cloud-gateway
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-cloud-gateway"
        mseNamespace: "mse-springboot-demo"
        app: spring-cloud-gateway
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-cloud-gateway:3.1.0-heterogeneous"
          imagePullPolicy: Always
          env:
            - name: nacos.host
              value: "nacos-server"
            - name: nacos.namespace
              value: "public"
          name: "spring-cloud-gateway"
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20000
---
apiVersion: v1
kind: Service
metadata:
  annotations:
    service.beta.kubernetes.io/alibaba-cloud-loadbalancer-spec: slb.s1.small
    service.beta.kubernetes.io/alicloud-loadbalancer-address-type: internet
  name: spring-cloud-gateway-slb
spec:
  ports:
    - port: 80
      protocol: TCP
      targetPort: 20000
  selector:
    app: spring-cloud-gateway
  type: LoadBalancer
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-cloud-a
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-cloud-a
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-cloud-a"
        mseNamespace: "mse-springboot-demo"
        app: "spring-cloud-a"
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - name: spring-cloud-a
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-cloud-a:3.1.0-heterogeneous"
          imagePullPolicy: Always
          env:
            - name: nacos.host
              value: "nacos-server"
            - name: nacos.namespace
              value: "public"
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20001
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-cloud-a-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-cloud-a
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-cloud-a"
        mseNamespace: "mse-springboot-demo"
        alicloud.service.tag: gray
        app: "spring-cloud-a"
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - name: spring-cloud-a
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-cloud-a:3.1.0-heterogeneous"
          imagePullPolicy: Always
          env:
            - name: nacos.host
              value: "nacos-server"
            - name: nacos.namespace
              value: "public"
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20001
---
apiVersion: v1
kind: Service
metadata:
  name: spring-cloud-a
spec:
  ports:
    - port: 20001
      protocol: TCP
      targetPort: 20001
  selector:
    app: spring-cloud-a
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-boot-b
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-boot-b
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-boot-b"
        mseNamespace: "mse-springboot-demo"
        app: "spring-boot-b"
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - name: spring-boot-b
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-boot-b:3.1.0-heterogeneous"
          imagePullPolicy: Always
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20002
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-boot-b-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-boot-b
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-boot-b"
        mseNamespace: "mse-springboot-demo"
        alicloud.service.tag: gray
        app: "spring-boot-b"
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - name: spring-boot-b
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-boot-b:3.1.0-heterogeneous"
          imagePullPolicy: Always
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20002
---
apiVersion: v1
kind: Service
metadata:
  name: spring-boot-b
spec:
  ports:
    - port: 20002
      protocol: TCP
      targetPort: 20002
  selector:
    app: spring-boot-b
  type: ClusterIP
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-cloud-d
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-cloud-d
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-cloud-d"
        mseNamespace: "mse-springboot-demo"
        app: "spring-cloud-d"
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - name: spring-cloud-d
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-cloud-d:3.1.0-heterogeneous"
          imagePullPolicy: Always
          env:
            - name: nacos.host
              value: "nacos-server"
            - name: nacos.namespace
              value: "public"
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20004
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: spring-cloud-d-gray
spec:
  replicas: 1
  selector:
    matchLabels:
      app: spring-cloud-d
  strategy:
    rollingUpdate:
      maxSurge: 100%
      maxUnavailable: 25%
    type: RollingUpdate
  template:
    metadata:
      labels:
        msePilotAutoEnable: "on"
        msePilotCreateAppName: "spring-cloud-d"
        mseNamespace: "mse-springboot-demo"
        alicloud.service.tag: gray
        app: "spring-cloud-d"
        sidecar.istio.io/inject: 'false'
        aliyun.com/agent-version: "4.2.5-proxyless"
    spec:
      containers:
        - name: spring-cloud-d
          image: "registry.cn-hangzhou.aliyuncs.com/mse-governance-demo/spring-cloud-d:3.1.0-heterogeneous"
          imagePullPolicy: Always
          env:
            - name: nacos.host
              value: "nacos-server"
            - name: nacos.namespace
              value: "public"
          resources:
            requests:
              cpu: "1"
              memory: "2Gi"
            limits:
              cpu: "1"
              memory: "2Gi"
          ports:
            - name: http-port
              containerPort: 20004
---
apiVersion: v1
kind: Service
metadata:
  name: spring-cloud-d
spec:
  ports:
    - port: 20004
      protocol: TCP
      targetPort: 20004
  selector:
    app: spring-cloud-d
  type: ClusterIP

Step 2: Configure the end-to-end canary release feature

Log on to the MSE console, and select a region in the top navigation bar.
In the left-side navigation pane, choose Microservices Governance > Full link grayscale.
On the Full link grayscale page, select mse-springboot-demo from the microservice namespace drop-down list.
If no lane group has been created in the selected microservice namespace, click Create Lane Group and Lane. If a lane group has already been created in the selected microservice namespace, click + Create Lane Group.

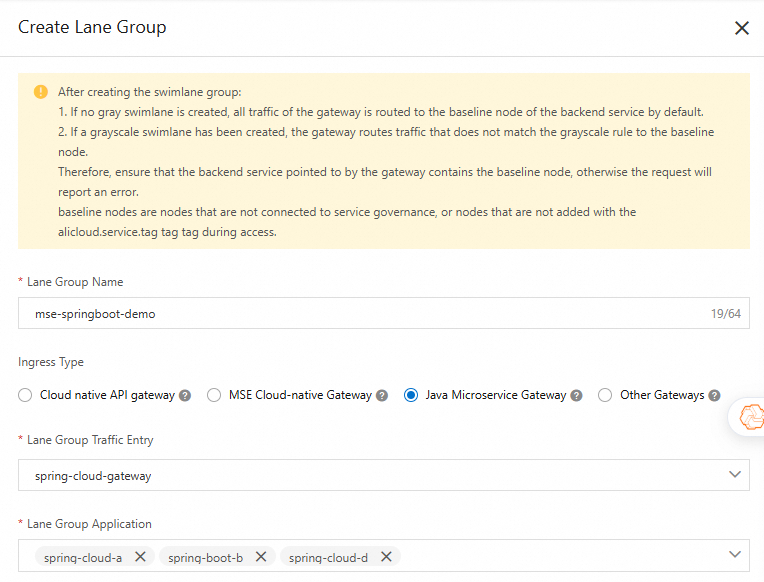

In the Create Lane Group panel, configure the parameters, and click OK.

Parameter	Example
Lane Group Name	Enter a custom name for the lane group, such as mse-springboot-demo.
Ingress Type	Select Java Microservice Gateway.
Lane Group Traffic Entry	Select spring-cloud-gateway.
Lane Group Application	Select spring-cloud-a, spring-boot-b, and spring-cloud-d.

If no lane has been created in the selected microservice namespace, click Create First Split Lane in the lower part of the Full link grayscale page. If a lane has already been created in the selected microservice namespace, click Create Lane.

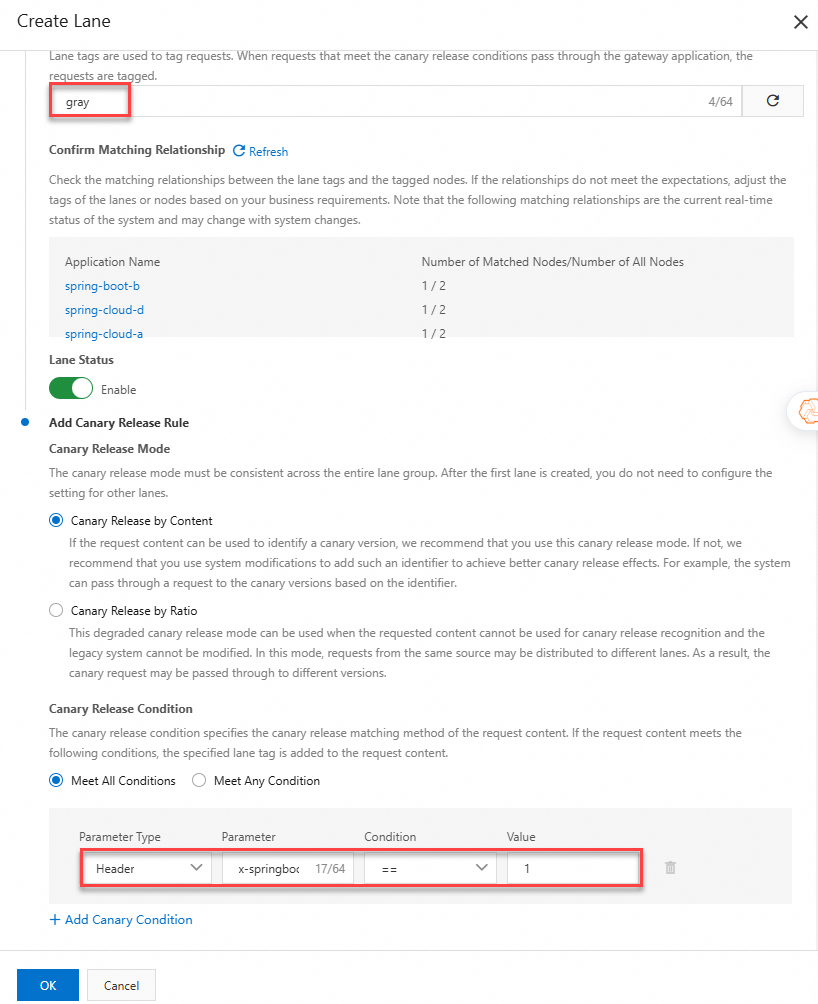

In the Create Lane panel, configure the parameters, and click OK.

Parameter	Description
Add Node Tag	Add a tag for canary application nodes to distinguish them from base application nodes.
Enter lane information	Lane Name: Enter an informative lane name. Lane Tag: Enter a tag name for matched traffic in this lane. In this example, this parameter is set to gray. Confirm Matching Relationship: Check whether the number of application nodes that have the specified tag meets your expectations. Lane Status: Turn on the switch.
Add Canary Release Rule	Specify the rule for routing requests to application nodes in the lane. Canary Release Mode: Select Canary Release by Content. Canary Release Condition: Select Meet All Conditions. Configuration details in this example: Parameter Type: Select `Header`. Parameter: Enter `x-springboot-demo`. Condition: Select `==`. Value: Enter `1`.

Step 3: Verify the result

Log on to the ACK console.
In the left-side navigation pane, click Clusters. Then, click the name of the cluster that you want to manage.
In the left-side navigation pane of the Cluster Information page, choose Network > Services. On the Services page, copy the external IP address of spring-cloud-gateway-slb, and perform the following verification operations.
Verify the result in the base environment
Send a request to the Spring Cloud gateway based on the route /A/A/a, and check that all traffic is routed to the base nodes. This indicates that the end-to-end canary release configuration is effective.
```
# Test command
curl http://xxx.xx.131.81/A/A/a

# Test result
A:192.168.0.17:base -(java)- B:192.168.100.231:base - D:192.168.0.19:base
```
Verify the result in the canary environment
Send a request to the Spring Cloud gateway based on the route /A/A/a and add x-springboot-demo=1 to Header. Check that all traffic is routed to the canary nodes. This indicates that the end-to-end canary release configuration is effective.
```
# Test command
curl -H "x-springboot-demo:1" http://xxx.xx.131.81/A/A/a

# Test result
A:192.168.100.234:gray -(java)- B:192.168.0.21:gray - D:192.168.0.14:gray
```
Tab 2 Body
