Microservices Engine:Configure canary release

Create a beta configuration

1. Log on to the MSE console, and select a region in the top navigation bar.

2. In the left-side navigation pane, choose Microservices Registry > Instances.

3. On the Instances page, click the name of the instance.

4. In the left-side navigation pane, choose Configuration Management > Configurations.

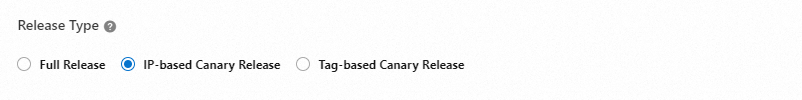

5. On the page that appears, find the desired configuration, and click Edit in the Actions column. In the Edit Configuration panel, select IP-based Canary Release for Release Type.



6. Select one or more IP addresses to which a new configuration is pushed from the Application Node IP Address drop-down list.

   You can also manually enter IP addresses. The autocomplete feature is supported when you manually enter IP addresses.

   Note

   IP addresses are the IP addresses of the nodes that subscribe to the configuration. Separate multiple IP addresses with commas (,).

7. Click Canary Release after you modify the configuration. In the Comparison of Configuration Content dialog box, confirm the information in Current Official Version Content and Current Release Content, and click Release.

View a beta configuration

1. Log on to the MSE console, and select a region in the top navigation bar.

2. In the left-side navigation pane, choose Microservices Registry > Instances.

3. On the Instances page, click the name of the instance.

4. In the left-side navigation pane, choose Configuration Management > Configurations.

5. On the page that appears, find the configuration for which a beta release is performed, and click Edit in the Actions column.

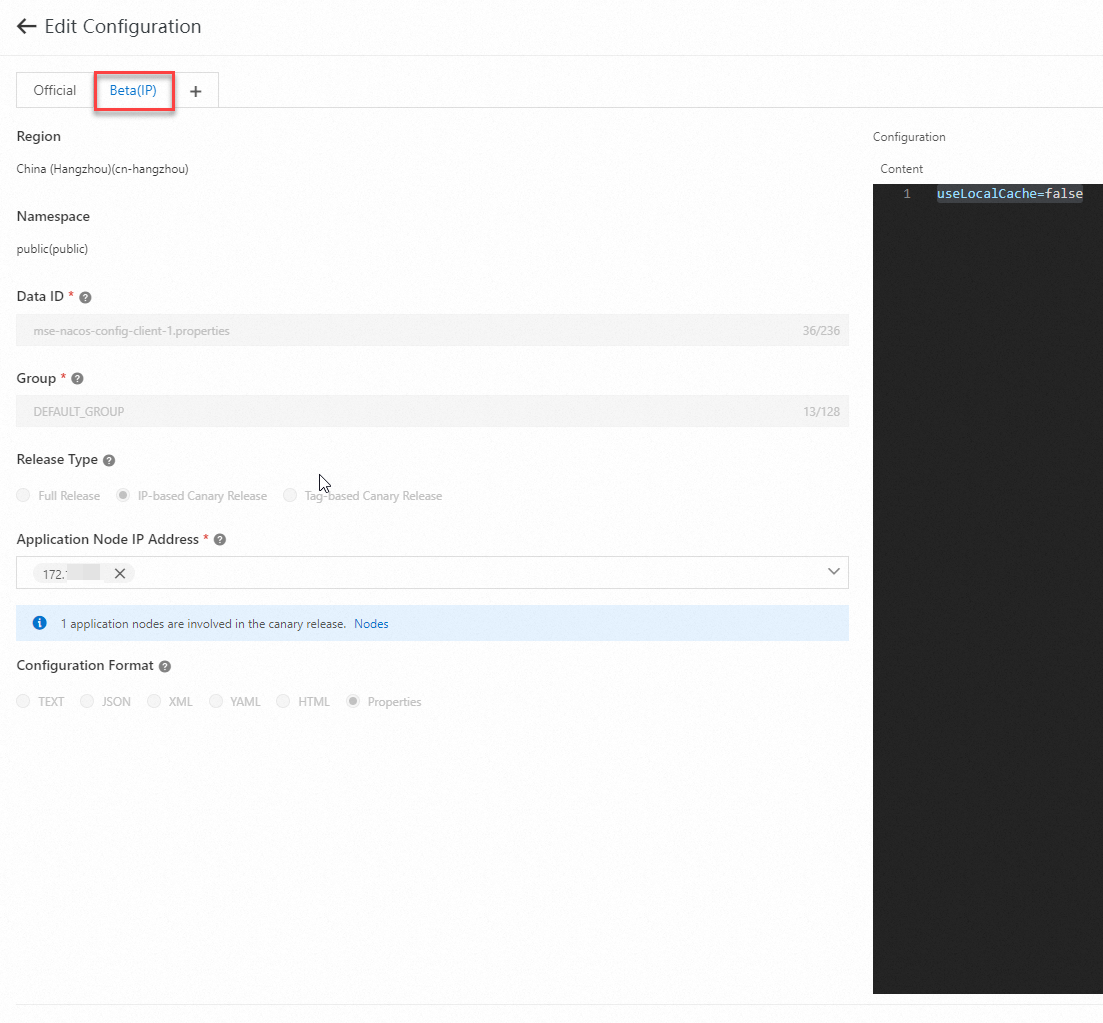

6. In the Edit Configuration panel, click the Beta(IP) tab to view the information about the beta release.



Related operations

• Cancel a beta release: On the Beta(IP) tab of the Edit Configuration panel, click Stop Canary Release to cancel the beta release.

• Perform an official release: On the Beta(IP) tab of the Edit Configuration panel, select Full Release for Release Type. In the Comparison of Configuration Content dialog box, confirm the configuration information, and click Full Release. An official release is performed on the configuration, and the current beta release is discontinued.

Configure tags for application nodes on the client

You can configure key-value pairs as tags for application nodes by using .properties files, Java virtual machine (JVM) parameters, or environment variables. If multiple tags have the same key, the tags are prioritized in the following order: Tags in .properties files > Tags specified by JVM parameters > Tags specified by environment variables. nacos.config.gray.label is the default built-in tag for canary release in Nacos.

//1. Pass tags in a .properties file.
Properties properties = new Properties();
properties.put(PropertyKeyConst.SERVER_ADDR, "your endpoint");
properties.put("project.name", "your app name");
properties.put("nacos.config.gray.label","yourgrayname");


// 2. Configure JVM parameters.
Configure the startup parameter -Dnacos.config.gray.label=yourgrayname.

// 3. Configure environment variables.
Configure the environment variable nacos_config_gray_label=yourgrayname.

 String dataId = "gray_test_dataid";
 String group = "test-group";

 configService.addListener(dataId, group, new Listener() {
        @Override
        public Executor getExecutor() {
            return null;
        }

        @Override
        public void receiveConfigInfo(String configInfo) {
            System.out.println("receiveConfig:" + configInfo);
        }
 });

Implement tag-based canary release on the server

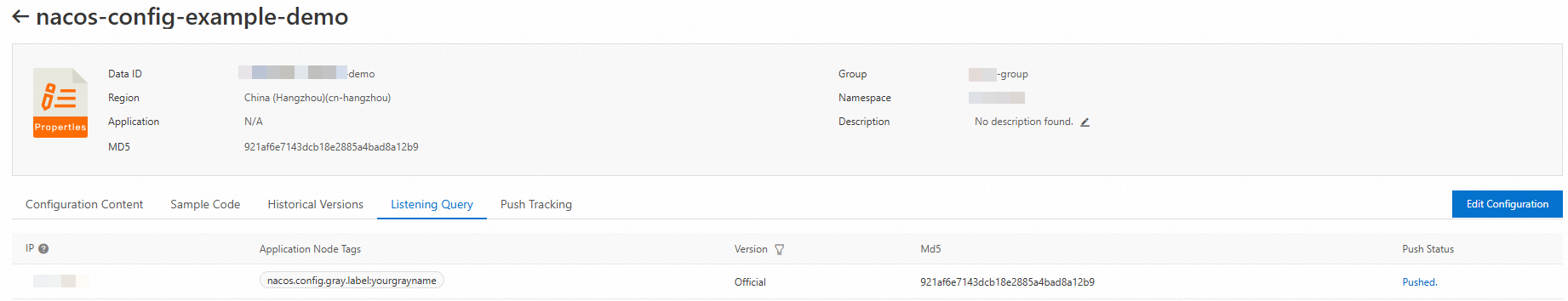

• View listener tags

  After tags are configured for an application on the client, you can view the listeners of a configuration on the server and the tags carried by each listener.

• Implement tag-based canary release

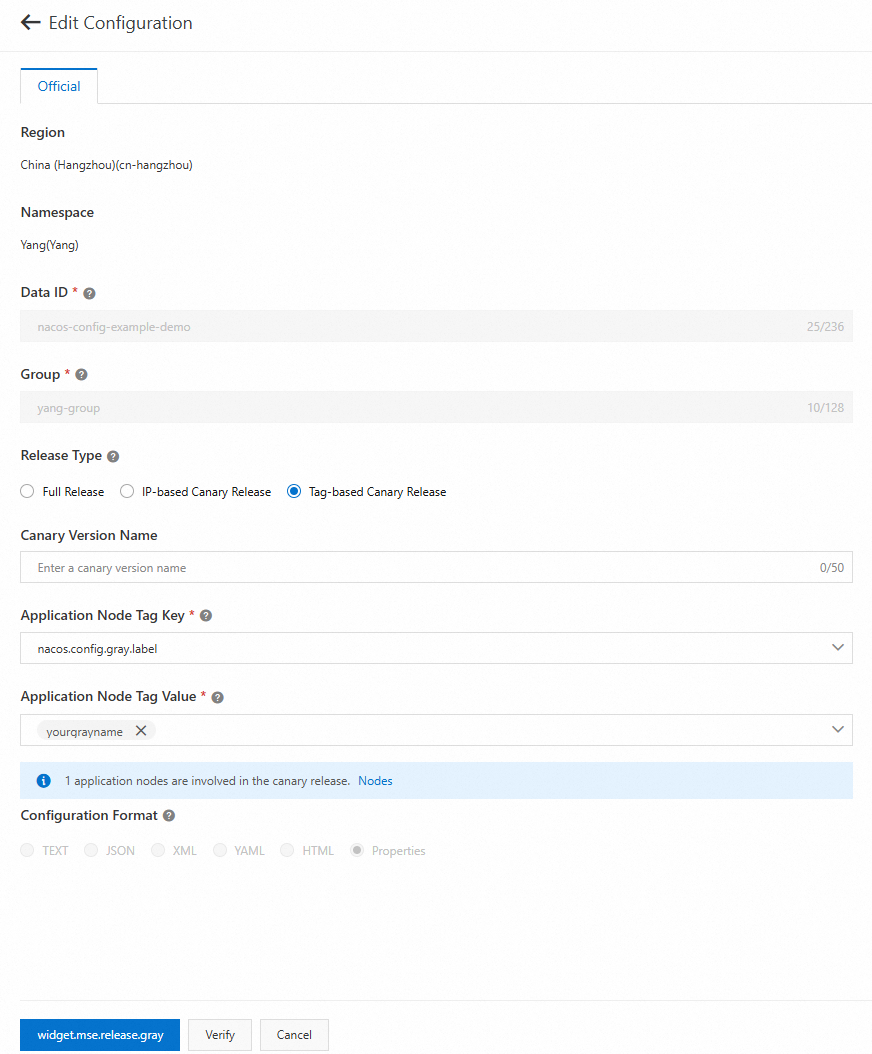

  On the details page of the configuration, click Edit Configuration. In the Edit Configuration panel, select Tag-based canary release for the Release Type parameter, and then select an existing key-value pair of application nodes as a tag. You can view the number of application nodes that match the selected key-value pair.

After a tag-based canary version is released, you can click the Listening Query tab on the details page of the configuration to view the configuration version of the current client. You can view the details of the current canary version on the details page of the configuration.

After a canary version is released and stabilizes, you can expand the value range of the tag to gradually expand the scope of the canary release until full release. After you click Full Release in the Edit Configuration panel, the canary versions that are released become invalid. If a business exception occurs during the canary release, you can click Stop Canary Release to cancel the canary release. The system automatically rolls back to the original configuration.

Advanced features of tags in an application

In addition to the nacos.config.gray.label tag, you can configure a tag with multiple key-value pairs. You can also configure custom tags by using a Service Provider Interface (SPI) named Collector. This way, you can specify tags in a flexible manner.

• Configure a tag with multiple key-value pairs

  Nacos allows you to inject multiple key-value pairs into an application tag. You can specify the nacos.app.conn.labels parameter in .properties files and JVM parameters or specify the nacos_app_conn_labels parameter in environment variables. Sample format of the nacos.app.conn.labels parameter: nacos.app.conn.labels="k1=v1,k2=v2,k3=v3".

  // 1. Pass tags in .properties files.
  Properties properties = new Properties();
  properties.put(PropertyKeyConst.SERVER_ADDR, "your endpoint");
  properties.put("project.name", "your app name");
  properties.put("nacos.app.conn.labels","app=demo,site=hangzhou-c,otherkey=othervaue");

  // 2. Configure JVM parameters.
  Configure the startup parameter -Dnacos.app.conn.labels="app=demo,site=hangzhou-c,otherkey=othervaue".

  // 3. Configure environment variables.
  Configure the environment variable nacos_app_conn_labels="app=demo,site=hangzhou-c,otherkey=othervaue".

  NacosConfigService configService = new NacosConfigService(properties);

  String dataId = "gray_test_dataid";
  String group = "test-group";

  configService.addListener(dataId, group, new Listener() {
          @Override
          public Executor getExecutor() {
              return null;
          }

          @Override
          public void receiveConfigInfo(String configInfo) {
              System.out.println("receiveConfig:" + configInfo);
          }
  });


• Implement the SPI of custom tags in an application

  The Nacos client defines the SPI of custom tags in an application. To implement the SPI of custom tags in an application, you must implement the com.alibaba.nacos.common.labels.LabelsCollector interface and publish the specific implementation class as a service.

  package your.demo.test;

  import com.alibaba.nacos.common.labels.LabelsCollector;

  import java.util.HashMap;
  import java.util.Map;
  import java.util.Properties;

  /**
   * TestLabelsCollector.
   *
   * @author yourname
   */
  public class TestLabelsCollector implements LabelsCollector {

      @Override
      public String getName() {
          return "testlables";
      }

      @Override
      public Map<String, String> collectLabels(Properties properties) {
          Map<String, String> labels = new HashMap<>();
          labels.put("test", "implements your lables logic");
          return labels;
      }


      @Override
      public int getOrder() {
          return 1;
      }
  }

Support for multiple canary versions

A configuration may have multiple versions, including the official version, IP-based canary version, and tag-based canary version. Multiple versions can be released during a tag-based canary release. For multiple versions of a configuration, the configuration queries and pushes of the Nacos server are matched based on the following order of precedence: IP-based canary version > Tag-based canary version> Official version.

When you process multiple tag-based canary versions, the system sorts the versions based on the value of the priority field. If a version has a larger field value than other versions, the version has a higher priority. If the field value is the same for the versions, the system sorts the versions based on the version name. We recommend that you specify priorities for different canary versions.

If a tag is configured for an application node, the system preferentially checks whether the node has an IP address-based canary version. If the IP address-based canary version exists, the IP address-based canary version of the current configuration is returned. If the IP address-based canary version does not exist, the system attempts to match a tag-based canary version based on priorities. If the match is successful, the tag-based canary version of the current configuration is returned. If no tag-based canary version is matched, the official version of the current configuration is returned. You can view the currently matched configuration version of each application node on the Listening Query page in the MSE console.

Tag planning in an application

We recommend that you plan the tags in an application based on the business impact scope. This way, canary release can be gradually performed and risks caused by configuration changes are reduced. Best practices for tag planning:

• Use application names as tags. In this case, perform canary release on several non-critical applications. After the canary version stabilizes and no exceptions are detected, gradually perform the canary release on critical applications.

• Isolate traffic on the upstream and downstream servers by managing inbound traffic on the business side. For example, you can assign a batch of servers to the internal users of your company, configure specific tags for the servers, and implement canary release on the servers. This way, the canary version can be used by the internal users of the company.

Format of tags in an application

The key-value pair of a tag can contain letters, digits, underscores (_), hyphens (-), and periods (.). Tags in other formats are ignored. If you specify multiple key-value pairs by using the nacos.app.conn.labels parameter, the key-value pairs must be in the "k1=v1,k2=v2,k3=v3" format. If a key-value pair in the "k1=v1,k2" format is used, the k2 parameter is ignored, and the key-value pair is parsed as k1=v1.
