You can use the SQL-92 syntax to analyze logs in Log Service. You can also visualize
all query results on multiple types of charts, such as table, line chart, column chart,
pie chart, flow chart, and map. This topic describes how to analyze website logs in
the Log Service console and visualize the query results on charts.
Background information
Website logs include important statistical information about website operation and
maintenance, such as page views (PVs), unique visitors (UVs), distribution of accessed
regions, and top 10 accessed websites. Log Service provides multiple log collection
methods and the log analysis feature. You can analyze logs in real time by using
the query statements and SQL-92 syntax. You can also visualize the query results on charts. Log Service also allows you
to visualize log analysis results on built-in dashboards or by using open-source visualization
tools such as DataV, Grafana, Tableau through Java Database Connectivity (JDBC), and
Quick BI.

Procedure
- Log on to the Log Service console.
- In the Projects section, click the destination project.
- On the tab, click the destination Logstore.
- In the upper-right corner of the page, click 15 Minutes (Relative) to specify a time range for the query.
You can select a relative time or time frame. You can also specify a custom time range.
Note The query results may contain logs that are generated 1 minute earlier or later than
the specified time range.
- Enter a query statement in the search box, and then click Search & Analyze.
Log Service provides multiple charts to display query results. For more information,
see
Charts.
- Table. You can enter the following query statement to display the access statistics
of the client IP addresses in the last day and sort the query results in descending
order. The remote_addr field indicates the IP address of a client that sends an access request.
* | SELECT remote_addr, count(*) as count GROUP BY remote_addr ORDER BY count DESC

- Line chart. You can enter the following query statement to display the statistics
of PVs, UVs, and average response time in the last 15 minutes:
* | select date_format(from_unixtime(__time__ - __time__% 60), '%H:%i:%S') as minutes, approx_distinct(remote_addr) as uv, count(1) as pv, avg(request_time) as avg group by minutes order by minutes asc limit 100000
Select
minutes for
X Axis, select
pv and
uv for
Left Y Axis, select
avg for
Right Y Axis, and select
uv for
Column Marker. The following figure shows the line chart and properties.

- Column chart. You can enter the following query statement to display the number of
the source URLs that are accessed in the last 15 minutes. The referer field indicates the HTTP referer header. This field includes the source URL information.
* | select referer, count(1) as count group by referer
Select referer for X Axis and select count for Y Axis. The following figure shows the column chart and properties.

- Bar chart. You can enter the following query statement to display the statistics of
the top 10 accessed websites in the last 15 minutes. The request_uri field indicates the URI of a request.
* | select request_uri, count(1) as count group by request_uri order by count desc limit 10
Select request_uri for X Axis and select count for Y Axis. The following figure shows the bar chart and properties.

- Pie chart. You can enter the following query statement to display the statistics of
the accessed websites in the last 15 minutes. The request_uri field indicates the URI of a request.
* | select request_uri as uri , count(1) as c group by uri limit 10
Select uri for Legend Filter and select c for Value Column. The following figure shows the pie chart and properties.

- Single value chart. You can enter the following query statement to display the number
of PVs in the last 15 minutes:
* | select count(1) as PV
Select PV for Value Column. The following figure shows the single value chart and properties.

- Area chart. You can enter the following query statement to display the access statistics
of an IP address in the last day:
remote_addr: 10.0.XX.XX | select date_format(date_trunc('hour', __time__), '%m-%d %H:%i') as time, count(1) as PV group by time order by time limit 1000
Select time for X Axis and select PV for Y Axis. The following figure shows the area chart and properties.

- Map. You can enter the following query statements to display the top 10 locations
to which the client IP addresses belong:
- Map of China
* | select ip_to_province(remote_addr) as address, count(1) as count group by address order by count desc limit 10

- World Map
* | select ip_to_country(remote_addr) as address, count(1) as count group by address order by count desc limit 10

- AMap
* | select ip_to_geo(remote_addr) as address, count(1) as count group by address order by count desc limit 10

- Flow chart. You can enter the following query statement to display the times trends
of the request methods that are used in the last 15 minutes. The request_method field indicates the method of an HTTP access request.
* | select date_format(from_unixtime(__time__ - __time__% 60), '%H:%i:%S') as minute, count(1) as c, request_method group by minute, request_method order by minute asc limit 100000

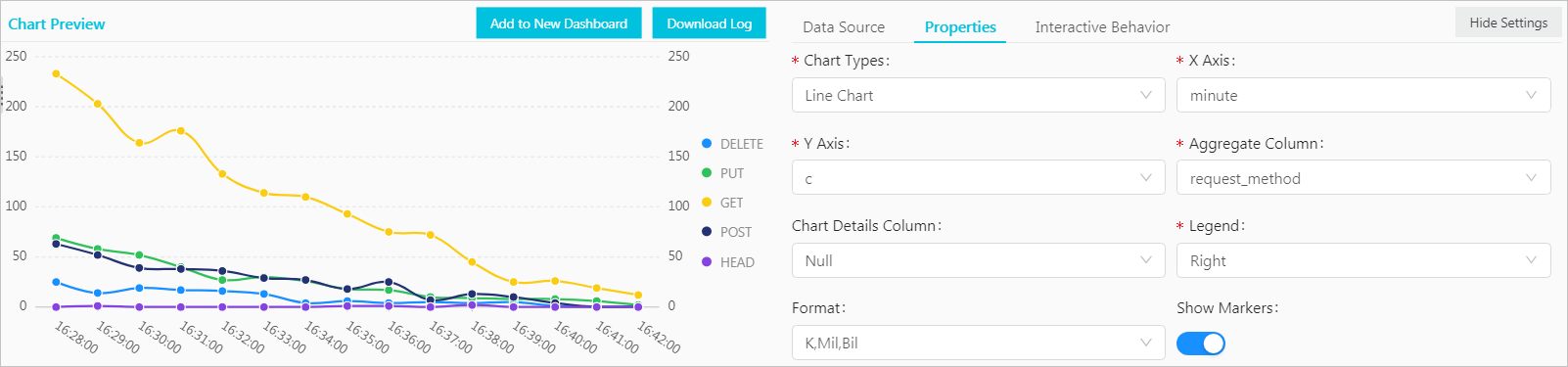

Select minute for X Axis, select c for Y Axis, and select request_method for Aggregate Column. The following figure shows the flow chart and properties.

- Word cloud. You can enter the following query statement to display the statistics
of the accessed websites in the last 15 minutes. The request_uri field indicates the URI of a request.
* | select request_uri as uri , count(1) as c group by uri limit 100
Select c for Word Column and select c for Value Column. The following figure shows the word cloud and properties.

- Add an analysis chart to a dashboard.
