:Integrate the SDK for Android

Environment requirements

SDK description

The audio and video terminal SDK V1.2.0 and later provide different SDK packages based on business scenarios. You can select an SDK package based on your business requirements. An SDK package is easy to use and smaller in size. The following table describes the SDK packages.

(Recommended) Integrate the SDK online

1. Add the URL of the Alibaba Cloud Maven repository to the build.gradle file of your project.

   maven { url "https://maven.aliyun.com/nexus/content/repositories/releases" }


2. Add dependencies to the dependencies block in the build.gradle file of your application.

   // Select one of the following SDK combinations based on your business requirements.

   // 1. Push SDK (RTS and RTC included), the short video SDK, and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_Standard:6.0.0'
   // 2. Push SDK (RTS and RTC included), the short Video SDK, Queen SDK, and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_Premium:6.0.0'
   // 3. Push SDK and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_BasicLive:6.0.0'
   // 4. Push SDK, ApsaraVideo Player SDK, and Queen SDK
   implementation 'com.aliyun.aio:AliVCSDK_StandardLive:6.0.0'
   // 5. Short video SDK and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_UGC:6.0.0'
   // 6. Short video SDK, Queen SDK, and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_UGCPro:6.0.0'
   // 7. Push SDK (RTS and RTC included) and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_InteractiveLive:6.0.0'
   // 8. Push SDK (RTS and RTC included), Queen SDK, and ApsaraVideo Player SDK
   implementation 'com.aliyun.aio:AliVCSDK_PremiumLive:6.0.0'

Integrate the SDK offline

To integrate the SDK offline, you must download an SDK package based on your business requirements.

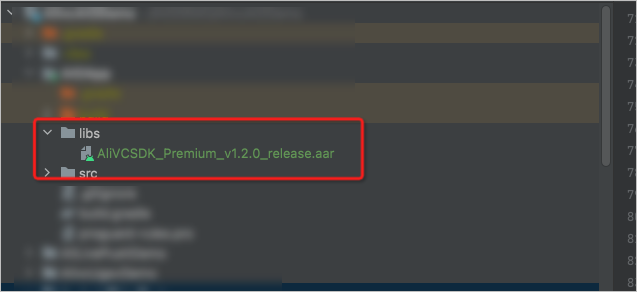

1. Copy the downloaded AAR package to the libs folder of your project.
   Note If no libs folder exists, manually create one. In this example, the audio and video terminal SDK V1.2.0 is used. You can select a version based on your business requirements.


2. In the build.gradle file of the project, add the flatDir setting to the repositories section of the allprojects block.

   flatDir {
      dirs 'libs'
   }

3. Add the reference to the AAR package to the dependencies block in the build.gradle file of your application.

   dependencies {
         implementation fileTree(dir: 'libs', include: ['*.aar'])
   }

Configure permissions

######################Permissions on short videos#########################
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.FLASHLIGHT" />
<uses-permission android:name="android.permission.RECORD_VIDEO" />
<uses-permission android:name="android.permission.RECORD_AUDIO" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />

######################Permissions on live streaming#########################
<uses-permission android:name="android.permission.FOREGROUND_SERVICE" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.REORDER_TASKS" />
<uses-permission android:name="android.permission.VIBRATE" />
// Configure the permissions to use the recording feature.
<uses-permission android:name="android.permission.RECORD_AUDIO" />
// Configure the permissions to use the camera.
<uses-permission android:name="android.permission.CAMERA" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION" />
<uses-permission android:name="android.permission.ACCESS_WIFI_STATE" />
<uses-permission android:name="android.permission.CHANGE_WIFI_STATE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.MODIFY_AUDIO_SETTINGS" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.RECEIVE_BOOT_COMPLETED" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.BLUETOOTH" />
<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />


Configure a license

If you access an SDK for the first time, you must apply for a license and obtain the corresponding license key and license file. For more information, see Usage notes on licenses.

Configure obfuscation rules

######################Obfuscation configurations for ApsaraVideo Player SDK#########################
-keep class com.alivc.**{*;}
-keep class com.aliyun.**{*;}
-keep class com.cicada.**{*;}
-dontwarn com.alivc.**
-dontwarn com.aliyun.**
-dontwarn com.cicada.**

######################Obfuscation configurations for the short video SDK#########################
-keep class com.aliyun.**{*;}
-keep class com.duanqu.**{*;}
-keep class com.qu.**{*;}
-keep class com.alibaba.**{*;}
-keep class component.alivc.**{*;}
-keep class com.alivc.**{*;}
-keep class org.webrtc.**{*;}
-keep class org.ugsv.**{*;}

######################Obfuscation configurations for Push SDK#########################
-keep class com.alivc.** { *;}
-keep class com.aliyun.rts.network.* { *;}
-keep class org.webrtc.ali.** {*;}
-keep class org.webrtc.utils.** {*;}

API references

For more information about methods of the audio and video terminal SDK, see Overview.

FAQ

For FAQ about SDK integration, see FAQ.
