This topic describes how to use Open Computing Language (OpenCL) on an f1 instance to create an image and download the image to a Field Programmable Gate Array (FPGA).
- An Alibaba Cloud account is created. To create an Alibaba Cloud account, go to the Create Your Alibaba Cloud Account page.
- An f1 instance is created and is able to access the Internet.
Note Only FPGA as a Service (FaaS) F1 basic images from Alibaba Cloud Marketplace can be used to create f1 instances. For more information, see Create an f1 instance.
- The rule for allowing traffic on SSH port 22 is configured for the security groups where the f1 instance resides.
- The ID of the f1 instance is obtained from the Instances page in the ECS console.
- An OSS bucket for FaaS is created.
The OSS bucket and the f1 instance must belong to the same account and reside in the same region. For more information, see Create buckets.
- To encrypt files, first activate Key Management Service (KMS).
For more information, see Activate KMS.
- You must complete the following operations before you can manage FPGA-accelerated
instances as a RAM user:
- Create a RAM user and grant permissions to the RAM user. For more information, see
Create a RAM user and Grant permissions to a RAM user.
The permissions you must grant to the RAM user include AliyunECSReadOnlyAccess, AliyunOSSFullAccess, and AliyunRAMFullAccess.
- Go to the Cloud Resource Access Authorization page to authorize FaaS to access your resources.
- Obtain the AccessKey ID and AccessKey secret of the RAM user.
- Create a RAM user and grant permissions to the RAM user. For more information, see Create a RAM user and Grant permissions to a RAM user.
Before you perform the operations, take note of the following items:
- All operations described in this topic must be performed by a single account within the same region.
- We strongly recommend that you manage FPGA-accelerated instances as a RAM user. To avoid accidental operations, you must authorize the RAM user to perform only required actions. You must create a role for the RAM user and grant temporary permissions to the role to access the specified OSS bucket. Then, you can download the original Design Checkpoint (DCP) project from the OSS bucket and manage the FPGA image. If you want to encrypt the IP address, you must authorize the RAM user to use KMS. If you want the RAM user to check permissions of Alibaba Cloud accounts, you must authorize the RAM user to view the resources of Alibaba Cloud accounts.
Step 1. Connect to an f1 instance
For more information, see Connect to a Linux instance by using a username and password.
Step 2: Install the basic environment
Step 3: Copy the OpenCL example
- Run the following commands in sequence to create and switch to the /opt/tmp directory:
mkdir -p /opt/tmp
cd /opt/tmpMake sure that you are in the /opt/tmp directory.
- Run the following command to copy the OpenCL example to the current directory:
cp /opt/dcp1_1/opencl/exm_opencl_vector_add_x64_linux.tgz ./
- Run the following commands in sequence to go to the vector_add directory for compilation:
aoc -v -g -report ./device/vector_add.clThe compilation process may take a few hours. You can start another session, and run the top command to monitor system resource usage and view the compilation status.
Step 4: Upload the configuration file
- Run the following commands in sequence to initialize the faascmd tool:
#Configure the environment variable. export PATH=$PATH:/opt/dcp1_1/script/
#Grant execute permissions to the faascmd tool. chmod +x /opt/dcp1_1/script/faascmd
#Replace <hereIsYourSecretId> in the command with your AccessKey ID. Replace <hereIsYourSecretKey> with your AccessKey secret. faascmd config --id=<hereIsYourSecretId> --key=<hereIsYourSecretKey>
#Replace <hereIsYourBucket> in the command with your bucket name. faascmd auth --bucket=<hereIsYourBucket>
- Run the following commands in sequence to access the vector_add/output_files directory and upload the configuration file:
Make sure that you are in the /opt/tmp/vector_add/vector_add/output_files directory.
faascmd upload_object --object=afu_fit.gbs --file=afu_fit.gbs
- Run the following command to use the GBS file to create an FPGA image:
#Replace <hereIsYourImageName> in the command with your image name. Replace <hereIsYourImageTag> with your image tag. faascmd create_image --object=dma_afu.gbs --fpgatype=intel --name=<hereIsYourImageName> --tags=<hereIsYourImageTag> --encrypted=false --shell=V1.1
- Run the following command to check whether the image is created:
faascmd list_imagesIf "State":"success" is displayed in the command output, the image is created. Record the FpgaImageUUID value in the command output for subsequent use.
Step 5: Download the image to the f1 instance
- Run the following command to obtain the ID of your FPGA instance:
#Replace <hereIsYourInstanceId> in the command with the ID of your FPGA instance. faascmd list_instances --instanceId=<hereIsYourInstanceId>The following figure shows the command output. Record the FpgaUUID value.
- Run the following command to download the image to the f1 instance.
#Replace <hereIsYourInstanceID> in the command with the instance ID that you recorded. Replace <hereIsFpgaUUID> with the value of FpgaUUID that you recorded. Replace <hereIsImageUUID> with the value of FpgaImageUUID that you recorded. faascmd download_image --instanceId=<hereIsYourInstanceID> --fpgauuid=<hereIsFpgaUUID> --fpgatype=intel --imageuuid=<hereIsImageUUID> --imagetype=afu --shell=V0.11

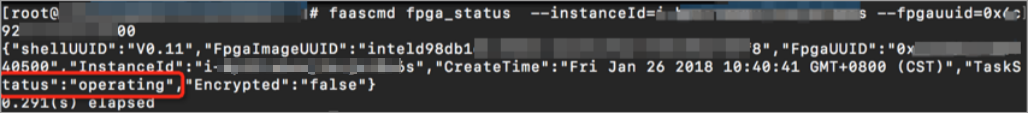

- Run the following command to check whether the image is downloaded:
# Replace <hereIsYourInstanceID> in the command with the instance ID that you recorded. Replace <hereIsFpgaUUID> with the value of FpgaUUID that you recorded. faascmd fpga_status --fpgauuid=<hereIsFpgaUUID> --instanceId=<hereIsYourInstanceID>If "TaskStatus":"operating" is displayed in the command output, the image is downloaded.
Step 6: Download the FPGA image to an FPGA
- Open the environment window in Step 2. If the window is closed, perform the operations in Step 2 again.
- Run the following command to configure the runtime environment for OpenCL:
- Run the following command to go back to the parent directory:
Make sure that you are in the /opt/tmp/vector_add directory.
- Run the following commands for compilation:
make # Show the environment configuration. export CL_CONTEXT_COMPILER_MODE_ALTERA=3 cp vector_add.aocx ./bin/vector_add.aocx cd bin host vector_add.aocxIf the following output is displayed, the environment is configured. Note that the last line must be
[root@iZbpXXXXXZ bin]# ./host vector_add.aocx Matrix sizes: A: 2048 x 1024 B: 1024 x 1024 C: 2048 x 1024 Initializing OpenCL Platform: Intel(R) FPGA SDK for OpenCL(TM) Using 1 device(s) skx_fpga_dcp_ddr : SKX DCP FPGA OpenCL BSP (acl0) Using AOCX: vector_add.aocx Generating input matrices Launching for device 0 (global size: 1024, 2048) Time: 40.415 ms Kernel time (device 0): 40.355 ms Throughput: 106.27 GFLOPS Computing reference output Verifying Verification: PASS
