Custom UI configurations for the Android SDK - ID Verification

The ID Verification Android SDK provides the setCustomUIConfig interface for customizing user interface (UI) colors and icons. You can create custom UI configurations as a file or in JSON data format and pass them to the setCustomUIConfig interface to apply custom UI effects. This topic describes the UI customization interface and provides code examples.

Note

Some custom configurations may require an SDK upgrade. Upgrade the SDK to the latest version before you use these configurations. If custom user interface settings conflict with the extension parameters of the verification interface, the user interface settings take precedence. This ensures a consistent and intuitive user experience.

Interface description

Interface definition

The Android SDK provides the setCustomUIConfig interface for customizing UI colors and icons. Call this method and pass the required parameters to apply custom UI effects.

    /**
     * Sets custom UI colors and icons.
     *
     * @return The exception information detected in the configuration file.
     * @description This interface is used to set a custom UI.
     * @paramType paramType The parameter type {@link IDTFacade}. Valid values:
     * {@link IDTFacade.EXT_PARAMS_CONFIG_JSON} | {@link IDTFacade.EXT_PARAMS_CONFIG_ASSETS_NAME}).
     *
     * @params {@link String} params The parameter value, which corresponds to paramType.
     */
    public String setCustomUIConfig(@IDTFacade int paramType, String param) {
     // ...
    }

Input parameters

Name

Type

Description

paramType

int

The type of the custom input parameter. Valid values:

IDTFacade.EXT_PARAMS_CONFIG_ASSETS_NAME: The app assets file type. Set param to the assets file name.
IDTFacade.EXT_PARAMS_CONFIG_JSON: A JSON string. Set param to data in JSON format.

param

String

The data to be passed in based on the value of paramType.

Return value

This method returns a string. If an error or exception occurs when the SDK parses the content of the param parameter, it returns an error message. If the configuration parameters are invalid, review the returned message for more information.

Sample code

// Pass the assets file name.
String fileName = "DTFCustomUIConfig.json";
int paramType = IDTFacade.EXT_PARAMS_CONFIG_ASSETS_NAME;
String customUIErrMsg =  IdentityPlatform.getInstance().setCustomUIConfig(paramType, fileName);

// Pass a JSON string.
String jsonConfig = "<Custom UI configuration in JSON format>";
int paramType = IDTFacade.EXT_PARAMS_CONFIG_JSON;
String customUIErrMsg =  IdentityPlatform.getInstance().setCustomUIConfig(paramType, jsonConfig);

Custom UI configuration

You can customize font colors and certain icons on the authentication page.

Complete configuration example

{
  "faceConfig": {
    "faceBGColor": "#A8D8B4",
    "exitIconBase64": "exit_icon_base64",
    "faceTitleColor": "#3E5E7E",
    "faceTipColor": "#F0E68C",
    "interruptedAlertTitleColor": "#FF6347",
    "interruptedAlertMessageColor": "#4682B4",
    "interruptedAlertConfirmColor": "#DDA0DD",
    "permissionFailedAlertTitleColor": "#6A5ACD",
    "permissionFailedAlertMessageColor": "#8A2BE2",
    "permissionFailedAlertConfirmColor": "#5F9EA0",
    "tooManyRetriesAlertTitleColor": "#DC143C",
    "tooManyRetriesAlertMessageColor": "#00FFFF",
    "tooManyRetriesAlertConfirmColor": "#B8860B",
    "faceProgressStartColor": "#006400",
    "faceProgressEndColor": "#BDB76B",
    "exitAlertTitleColor": "#8B008B",
    "exitAlertMessageColor": "#556B2F",
    "exitAlertCancelColor": "#FF8C00",
    "exitAlertConfirmationColor": "#9932CC",
    "timeoutAlertTitleColor": "#E9967A",
    "timeoutAlertMessageColor": "#8FBC8F",
    "timeoutAlertConfirmationColor": "#483D8B",
    "verifyLoadingColor": "#2F4F4F",
    "verifyNetworkErrorAlertTitleColor": "#00CED1",
    "verifyNetworkErrorAlertMessageColor": "#9400D3",
    "verifyNetworkErrorAlertCancelColor": "#FF1493",
    "verifyNetworkErrorAlertConfirmColor": "#00BFFF"
  },
  "ocrConfig": {
    "exitIconBase64": "exit_icon_base64",
    "ocrTitleColor": "#696969",
    "ocrBorderColor": "#1E90FF",
    "albumBase64": "album_base64",
    "takePhotoBase64": "take_photo_base64",
    "submitBase64": "submit_base64",
    "ocrSubmitTitleColor": "#B22222",
    "ocrLoadingColor": "#FFFAF0",
    "failedAlertTitleColor": "#228B22",
    "failedAlertMessageColor": "#FF00FF",
    "failedAlertCancelColor": "#DCDCDC",
    "failedAlertConfirmationColor": "#F8F8FF",
    "ocrNetworkErrorAlertTitleColor": "#FFD700",
    "ocrNetworkErrorAlertMessageColor": "#DAA520",
    "ocrNetworkErrorAlertCancelColor": "#808080",
    "ocrNetworkErrorAlertConfirmColor": "#008000",
    "permissionFailedAlertTitleColor": "#ADFF2F",
    "permissionFailedAlertMessageColor": "#F0FFF0",
    "permissionFailedAlertConfirmColor": "#FF69B4",
    "docErrorAlertTitleColor": "#CD5C5C",
    "docErrorAlertMessageColor": "#4B0082",
    "docErrorAlertCancelColor": "#FFFFF0",
    "docErrorAlertConfirmColor": "#F0E68C",
    "restrictionsAlertTitleColor": "#E6E6FA",
    "restrictionsAlertMessageColor": "#FFF0F5",
    "restrictionsAlertConfirmationColor": "#7CFC00",
    "timeoutAlertTitleColor": "#FFFACD",
    "timeoutAlertMessageColor": "#ADD8E6",
    "timeoutAlertConfirmationColor": "#F08080",
    "exitAlertTitleColor": "#E0FFFF",
    "exitAlertCancelColor": "#FAFAD2",
    "exitAlertConfirmationColor": "#D3D3D3",
    "ocrMessageFailAlertTitleColor": "#90EE90",
    "ocrMessageFailAlertCancelColor": "#FFB6C1",
    "ocrMessageFailAlertConfirmColor": "#FFA07A",
    "ocrResultExitIconBase64": "ocr_result_exit_icon_base64",
    "ocrResultTitleColor": "#20B2AA",
    "ocrResultTipBGColor": "#87CEFA",
    "ocrResultTipColor": "#778899",
    "ocrResultInfoTitleColor": "#B0C4DE",
    "ocrResultInfoContentColor": "#FFFFE0",
    "ocrResultConfirmBtnEnabledBGColor": "#00FF00",
    "ocrResultConfirmBtnEnabledTitleColor": "#32CD32",
    "ocrResultTipTitleColor": "#FAF0E6",
    "ocrResultTipIconBase64": "ocr_result_tip_icon_base64",
    "ocrResultErrorTipBGColor": "#FF00FF",
    "ocrResultInfoBorderColor": "#800000",
    "ocrResultConfirmBtnDisabledBGColor": "#66CDAA",
    "ocrResultConfirmBtnDisabledTitleColor": "#0000CD",
    "ocrResultExitAlertTitleColor": "#BA55D3",
    "ocrResultExitAlertCancelColor": "#9370DB",
    "ocrResultExitAlertConfirmationColor": "#3CB371",
    "ocrResultInfoEmptyAlertTitleColor": "#7B68EE",
    "ocrResultInfoEmptyAlertConfirmColor": "#00FA9A",
    "ocrResultNetworkErrorAlertTitleColor": "#48D1CC",
    "ocrResultNetworkErrorAlertMessageColor": "#C71585",
    "ocrResultNetworkErrorAlertConfirmColor": "#191970",
    "ocrResultNetworkErrorAlertCancelColor": "#F5FFFA",
    "ocrResultInfoErrorAlertMessageColor": "#FFE4E1",
    "ocrResultInfoErrorAlertConfirmColor": "#FFE4B5",
    "unFloodLightBase64": "un_flood_light_base64",
    "floodLightBase64": "flood_light_base64",
    "autoScanBase64": "auto_scan_base64",
    "takeShootBase64": "take_shoot_base64",
    "ocrTakePhotoLabelColor": "#FFDEAD",
    "ocrAlbumLabelColor": "#000080",
    "ocrGuideExitIconBase64": "ocr_guide_exit_icon_base64",
    "ocrGuideTitleColor": "#FDF5E6",
    "ocrGuideContentColor": "#808000",
    "ocrGuideStartBtnBGColor": "#6B8E23",
    "ocrGuideStartBtnTextColor": "#FFA500",
    "ocrGuideIndicatorSelectedColor": "#FF4500",
    "ocrGuideIndicatorUnSelectedColor": "#DA70D6",
    "nfcInputExitIconBase64": "nfc_input_exit_icon_base64",
    "nfcInputTitleColor": "#EEE8AA",
    "nfcInputPassportLabelColor": "#98FB98",
    "nfcInputBirthdayLabelColor": "#AFEEEE",
    "nfcInputValidityLabelColor": "#DB7093",
    "nfcInputPassportEditColor": "#FFEFD5",
    "nfcInputBirthdayEditColor": "#FFDAB9",
    "nfcInputValidityEditColor": "#CD853F",
    "nfcInputPassportEditHintColor": "#FFC0CB",
    "nfcInputBirthdayEditHintColor": "#DDA0DD",
    "nfcInputValidityEditHintColor": "#B0E0E6",
    "nfcInputNextBtnBGSelectColor": "#800080",
    "nfcInputNextBtnTextSelectColor": "#663399",
    "nfcInputNextBtnBGUnSelectColor": "#FF0000",
    "nfcInputNextBtnTextUnSelectColor": "#BC8F8F",
    "nfcInputBackAlertTitleColor": "#4169E1",
    "nfcInputBackAlertCancelColor": "#8B4513",
    "nfcInputBackAlertConfirmColor": "#FA8072",
    "nfcInputCheckAlertTitleColor": "#F4A460",
    "nfcInputCheckAlertMessageColor": "#2E8B57",
    "nfcInputCheckAlertConfirmColor": "#A0522D",
    "nfcExitIconBase64": "nfc_exit_icon_base64",
    "nfcTitleColor": "#C0C0C0",
    "nfcContentColor": "#87CEEB",
    "nfcConfirmBtnBGColor": "#6A5ACD",
    "nfcConfirmBtnTextColor": "#708090",
    "nfcReadBackAlertTitleColor": "#00FF7F",
    "nfcReadBackAlertConfirmColor": "#4682B4",
    "nfcReadBackAlertCancelColor": "#D2B48C",
    "nfcSettingAlertTitleColor": "#D2691E",

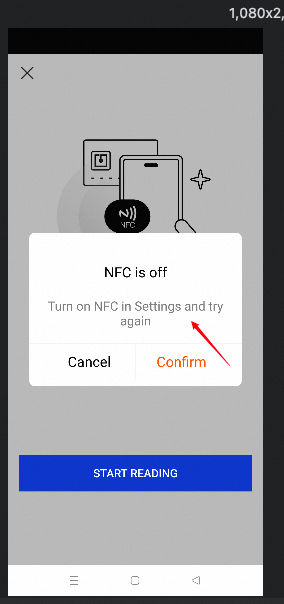

    "nfcSettingAlertMessageColor": "#9ACD32",
    "nfcSettingAlertConfirmColor": "#FF7F50",
    "nfcSettingAlertCancelColor": "#6495ED",

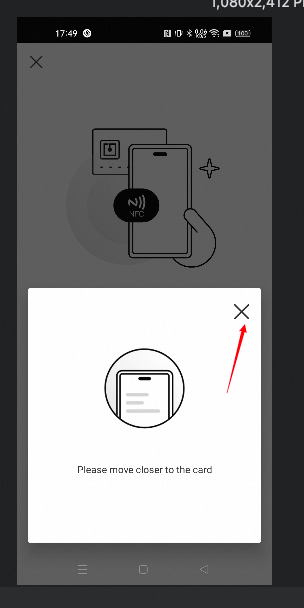

    "nfcReadStatusExitBase64": "nfc_read_status_exit_base64",
    "nfcReadStatusTextColor": "#DC143C",

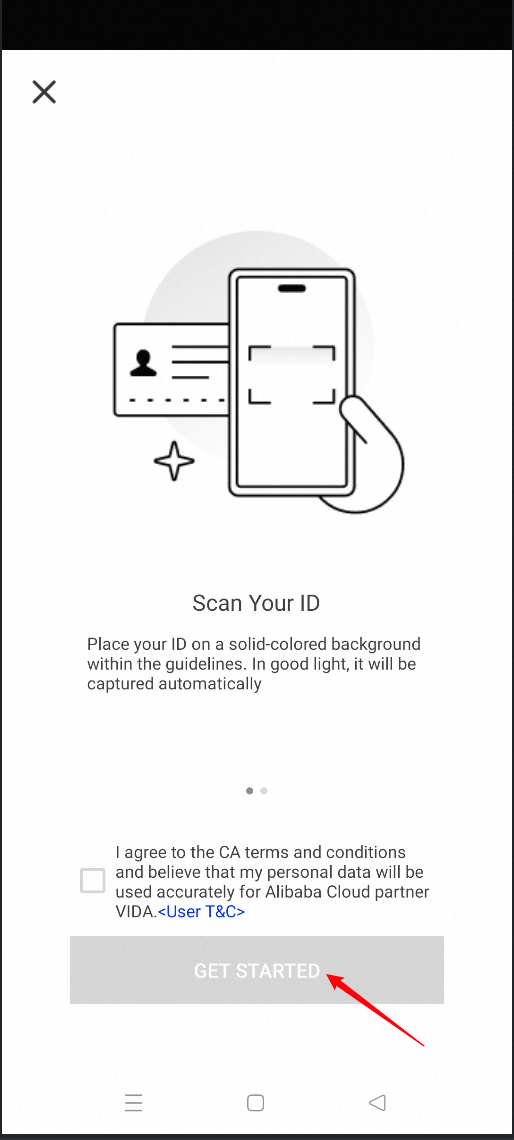

    "ocrGuideStartBtnDisableBGColor":"#d5d5d5",
    "ocrGuideStartBtnDisableTextColor":"#F9F9FA"
  }
}

Field configuration effects

faceModule

faceBGColor

exitIconBase64

faceTitleColor

faceTipColor

interruptedAlertTitleColor

interruptedAlert Message Color

interruptedAlert Confirm Color

permissionFailedAlertTitleColor

permissionFailedAlert Message Color

permissionFailedAlert Confirm Color

tooManyRetriesAlertTitleColor

tooManyRetriesAlertMessageColor

tooManyRetriesAlertConfirmColor

faceProgressStartColor

faceProgressEndColor

exitAlertTitleColor

exitAlertMessageColor

exitAlertCancelColor

exitAlertConfirmationColor

timeoutAlertTitleColor

timeoutAlertMessageColor

timeoutAlertConfirmationColor

verifyLoadingColor

verify NetworkErrorAlertTitleColor

verifyNetworkErrorAlert Message Color

verifyNetworkErrorAlertCancelColor

verifyNetworkErrorAlert Confirm Color

ocrModule

exitIconBase64

ocrTitleColor

OCR Border Color

albumBase64

takePhotoBase64

submitBase64

ocrSubmitTitleColor

ocrLoadingColor

failedAlertTitleColor

failedAlertMessageColor

failedAlertCancelColor

failedAlertConfirmationColor

ocrNetworkErrorAlertTitleColor

ocrNetworkErrorAlertMessage Color

ocrNetworkErrorAlertCancelColor

ocrNetworkErrorAlertConfirm Color

permissionFailedAlertTitleColor

permissionFailedAlert Message Color

permissionFailedAlert Confirm Color

docErrorAlertTitleColor

docErrorAlert Message Color

docErrorAlertCancelColor

docErrorAlert Confirm Color

restrictionsAlertTitleColor

restrictionsAlertMessageColor

restrictionsAlertConfirmationColor

timeoutAlertTitleColor

timeoutAlertMessageColor

timeoutAlertConfirmationColor

exitAlertTitleColor

exitAlertCancelColor

exitAlertConfirmationColor

ocrMessageFailAlertTitleColor

ocrMessageFailAlertCancelColor

ocrMessageFailAlertConfirmColor

ocrResult ExitIconBase64

ocrResultTitleColor

ocrResultTipBGColor

ocr ResultTipColor

ocrResultInfoTitleColor

ocrResultInfoContentColor

ocrResultConfirmBtnEnabledBGColor

ocrResultConfirmBtnEnabledTitleColor

ocrResultTipTitleColor

ocrResultTipIconBase64

ocrResultErrorTipBGColor

ocrResultInfoborderColor

ocrResultConfirmBtnDisabledBGColor

ocrResultConfirmBtnDisabledTitleColor

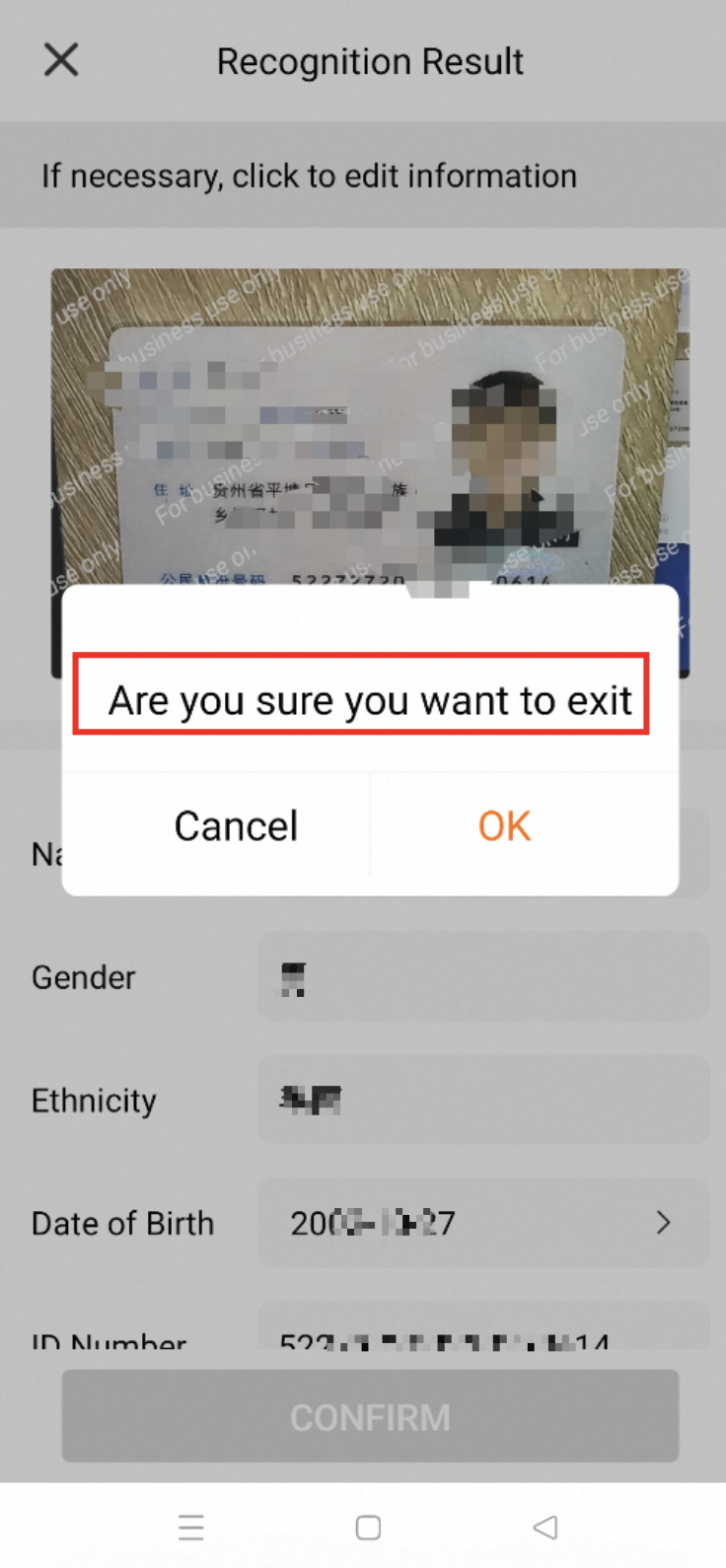

ocrResultExitAlertTitleColor

ocrResultExitAlertCancelColor

ocrResultExitAlertConfirmationColor

ocrResultInfoEmptyAlertTitleColor

ocrResultInfoEmptyAlert Confirm Color

ocrResultNetworkErrorAlertTitleColor

ocrResultNetworkErrorAlert Message Color

ocrResultNetworkErrorAlert Confirm Color

ocrResultNetworkErrorAlert Cancel Color

ocrResultInfoErrorAlert Message Color

ocrResultInfoErrorAlert Confirm Color

unFloodLightBase64

floodLightBase64

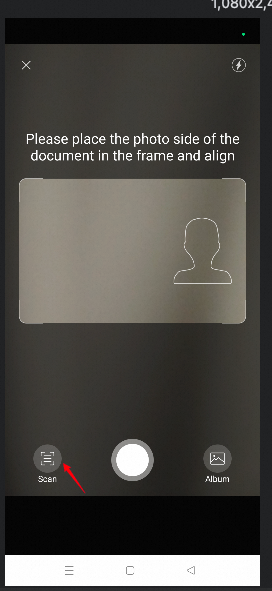

autoScanBase64

takeShootBase64

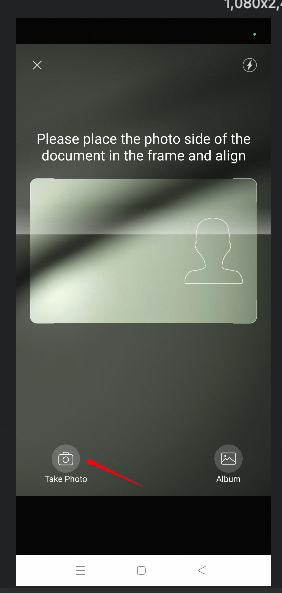

ocrTakePhotoLabelColor

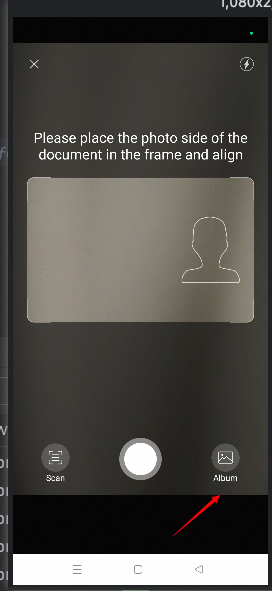

ocrAlbumLabelColor

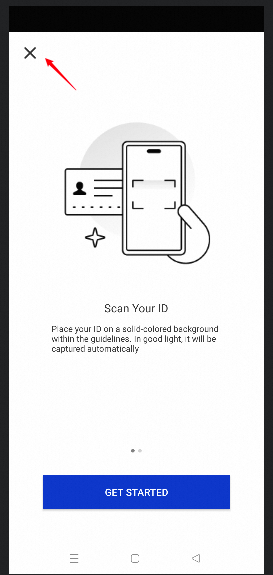

ocrGuideExitIconBase64

ocrGuideTitleColor

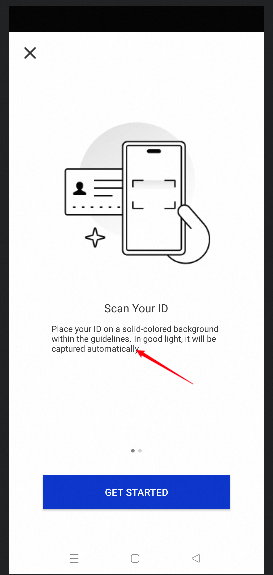

ocrGuideContentColor

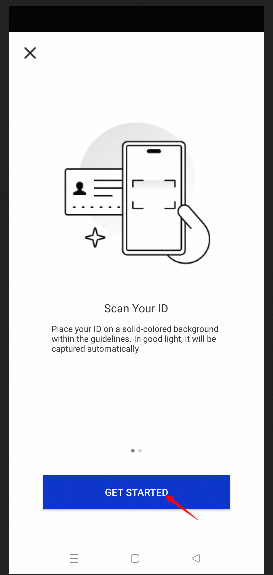

ocrGuideStartBtnBGColor

ocrGuideStartBtnTextColor

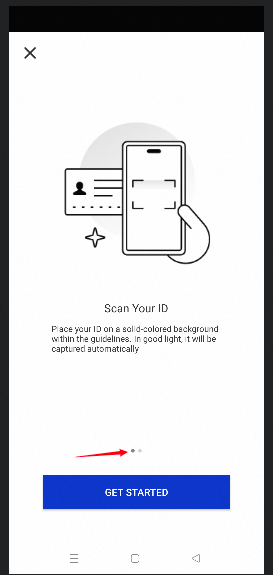

ocrGuideIndicatorSelectedColor

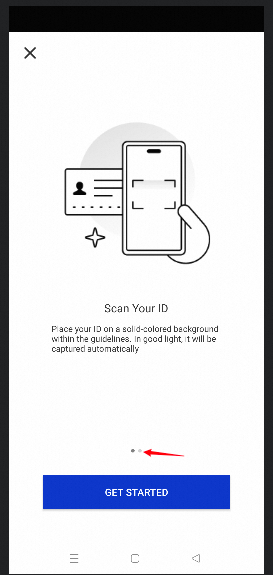

ocrGuideIndicatorUnSelectedColor

nfcInputExitIconBase64

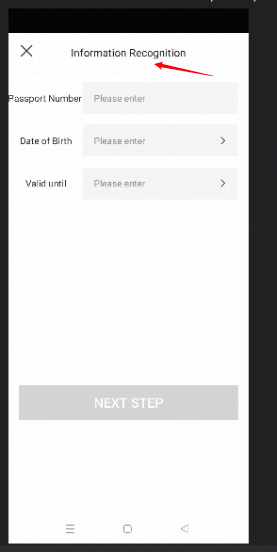

nfcInputTitleColor

nfcInputPassportLabelColor

nfcInputBirthdayLabelColor

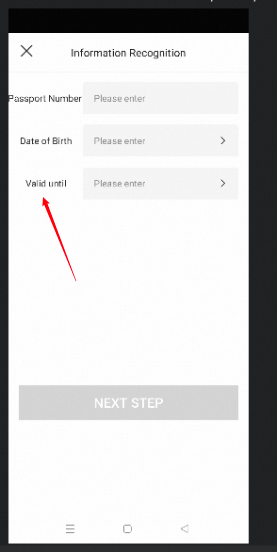

nfcInputValidityLabelColor

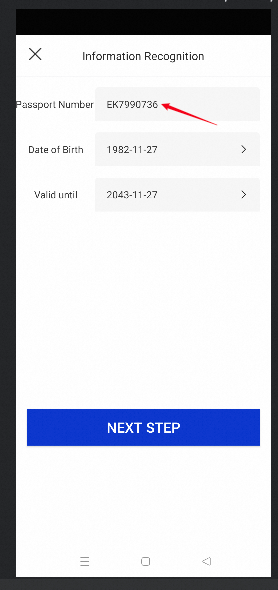

nfcInputPassportEditColor

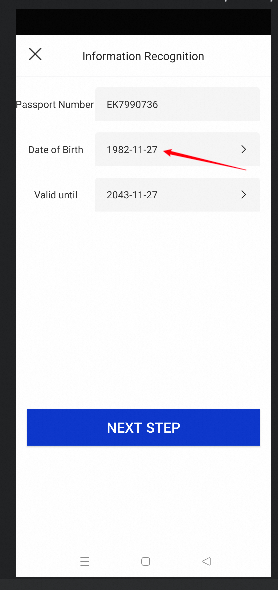

nfcInputBirthdayEditColor

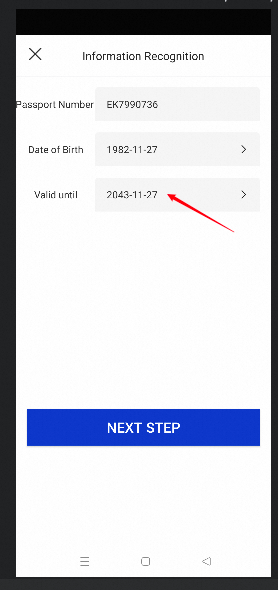

nfcInputValidityEditColor

nfcInputPassportEditHintColor

nfcInputBirthdayEditHintColor

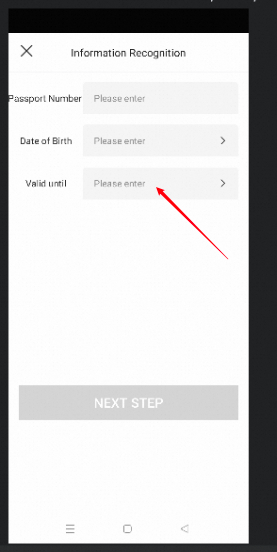

nfcInputValidityEditHintColor

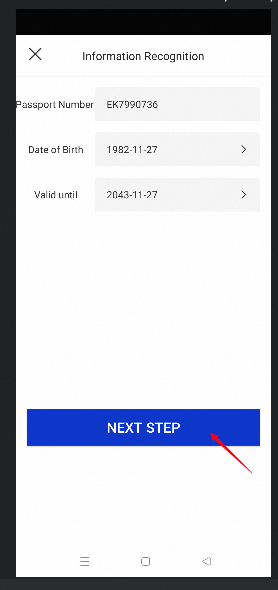

nfcInputNextBtnBGSelectColor

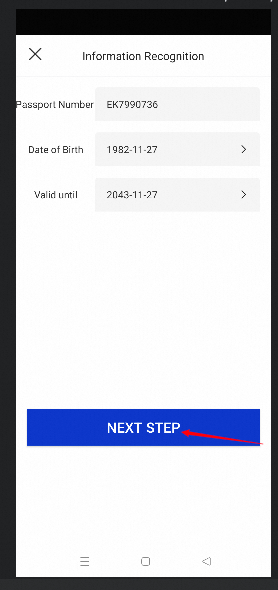

nfcInputNextBtnTextSelectColor

nfcInputNextBtnBGUnSelectColor

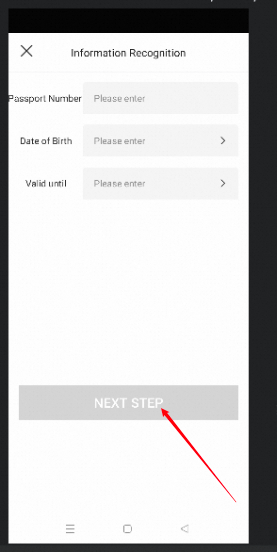

nfcInputNextBtnTextUnSelectColor

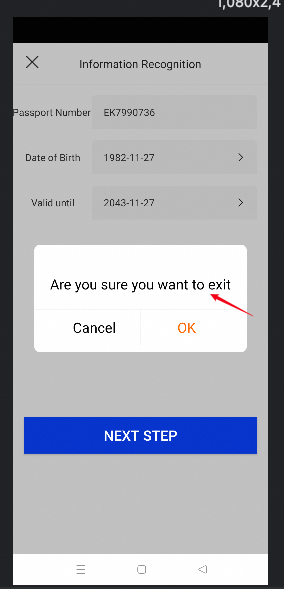

nfcInputBackAlertTitleColor

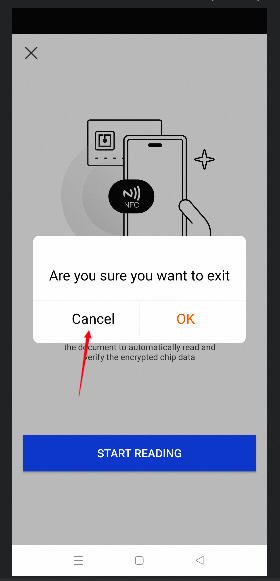

nfcInputBackAlertCancelColor

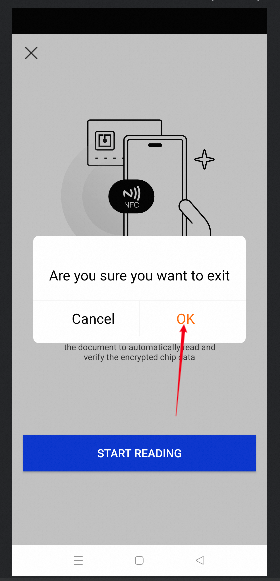

nfcInputBackAlertConfirmColor

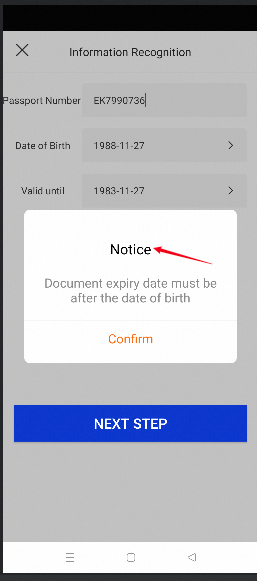

nfcInputCheckAlertTitleColor

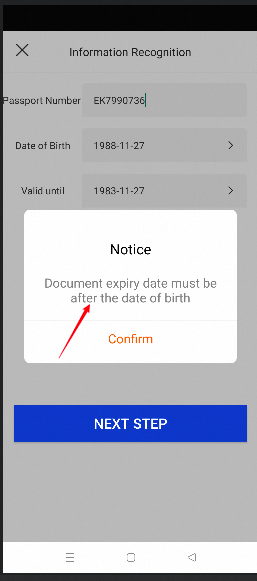

nfcInputCheckAlertMessageColor

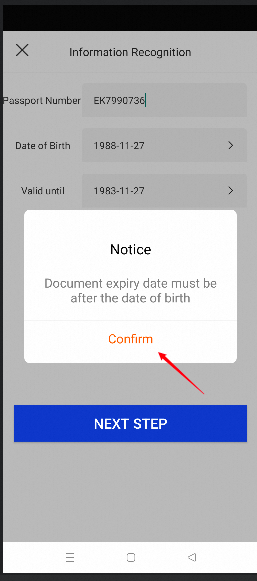

nfcInputCheckAlertConfirmColor

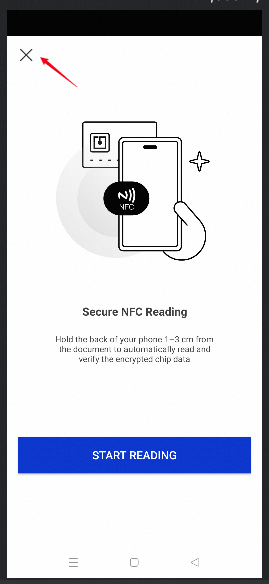

nfcExitIconBase64

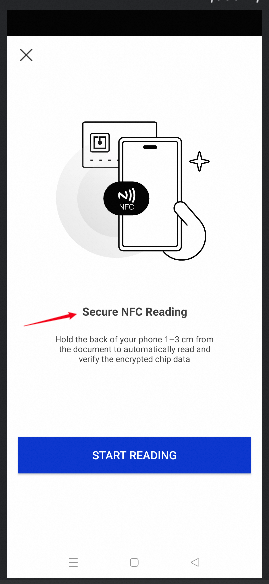

nfcTitleColor

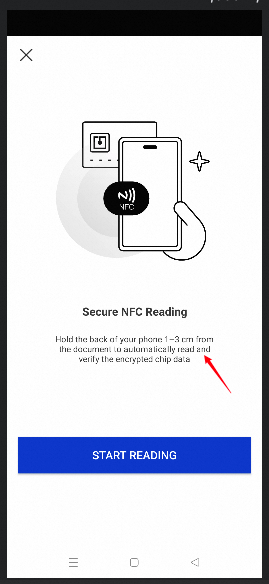

nfcContentColor

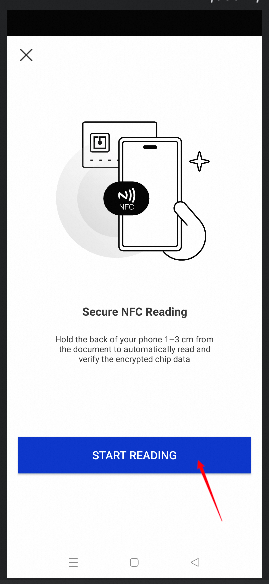

nfcConfirmBtnBGColor

nfcConfirmBtnTextColor

nfcReadBackAlertTitleColor

nfcReadBackAlertConfirmColor

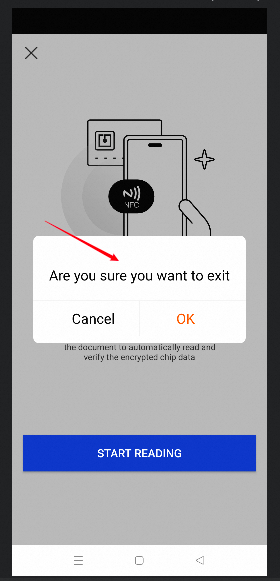

nfcReadBackAlertCancelColor

nfcSettingAlertTitleColor

nfcSettingAlertMessageColor

nfcSettingAlertConfirmColor

nfcSettingAlertCancelColor

nfcReadStatusExitBase64

nfcReadStatusTextColor

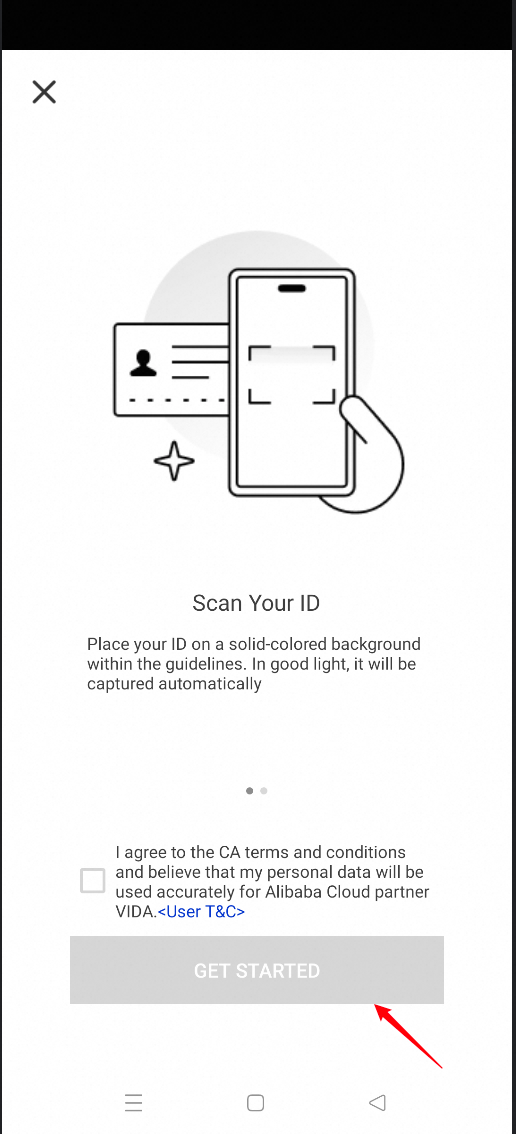

ocrGuideStartBtnDisableTextColor

ocrGuideStartBtnDisableBGColor
