Use ossutil in Shell nodes to access OSS - DataWorks - Alibaba Cloud Documentation Center

DataWorks Shell nodes, including common Shell and EMR Shell nodes, have the ossutil tool pre-installed. This lets you perform tasks such as file uploads, downloads, batch operations, and bucket management. This topic describes how to use the ossutil command-line tool in Shell and EMR Shell nodes to access OSS.

Function overview

DataWorks Shell nodes, including common Shell and EMR Shell nodes, have the Alibaba Cloud OSS command-line tool ossutil pre-installed. This lets you perform tasks such as file uploads, downloads, batch operations, and bucket management. You can use ossutil to access OSS by configuring access credentials in a configuration file or using command-line parameters. For more information about how to configure ossutil, see Configure ossutil.

Note

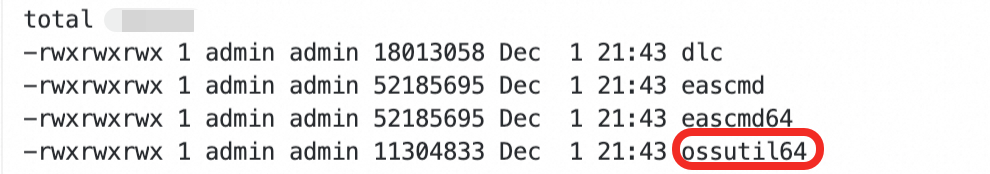

ossutil is pre-installed in the DataWorks environment, so you do not need to install it. The default path is /home/admin/usertools/tools/ossutil64. You can run the ls -l /home/admin/usertools/tools/ command to view the list of tools in this directory and confirm that ossutil64 exists. The following figure shows a sample output.

The following sections use a Shell node as an example to describe the two configuration methods.

Access OSS using command-line parameters

In the Shell node, edit the node content. The following sample code uses ossutil to connect to a specified OSS Endpoint and lists all buckets that the current account has permission to access.
```
/home/admin/usertools/tools/ossutil64 -e <OSSEndPoint> -i <AccessKeyID> -k <AccessKeySecret> ls -s
if [[ $? == 0 ]];then
    echo "access oss success"
else
    echo "failed"
    exit 1
fi
echo "finished"
```
Note
Replace OSSEndPoint, AccessKeyID, and AccessKeySecret in the code with your actual values. For more information about the parameters, see Configure ossutil.
Important
Passing an AccessKey pair through command-line parameters poses a security risk of key exposure. We recommend that you use this method with caution.
Verify the result.
Click the icon and select a serverless resource group to run the Shell node task. The following figure shows a sample result.

Access OSS using a configuration file

Create an ossutil configuration file and upload it to OSS.
1. Create a configuration file.
  On your local machine, create a file named myconfig.txt. The following code provides an example of the file content.
```
[Credentials]
language = EN
endpoint = <Endpoint> #For example, oss-cn-shanghai.aliyuncs.com
accessKeyID = <AccessKeyID>
accessKeySecret = <AccessKeySecret>
```
  Note
  Replace Endpoint, AccessKeyID, and AccessKeySecret with your Alibaba Cloud OSS Endpoint and the AccessKey pair of a RAM user that has the required permissions. Do not enclose the parameter values in quotation marks. For more information about the parameters, see Configure ossutil.
2. Upload the configuration file.
  Upload the myconfig.txt file to OSS. For more information, see Simple upload.
3. View the download link.

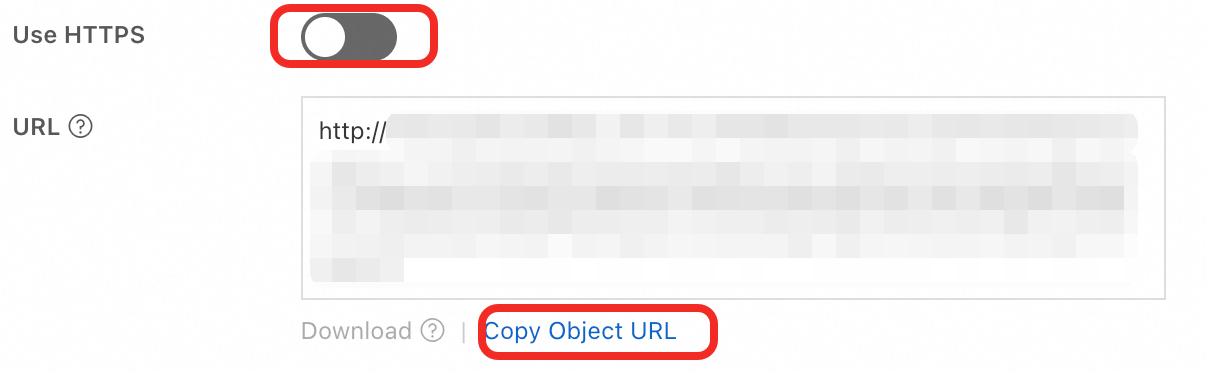

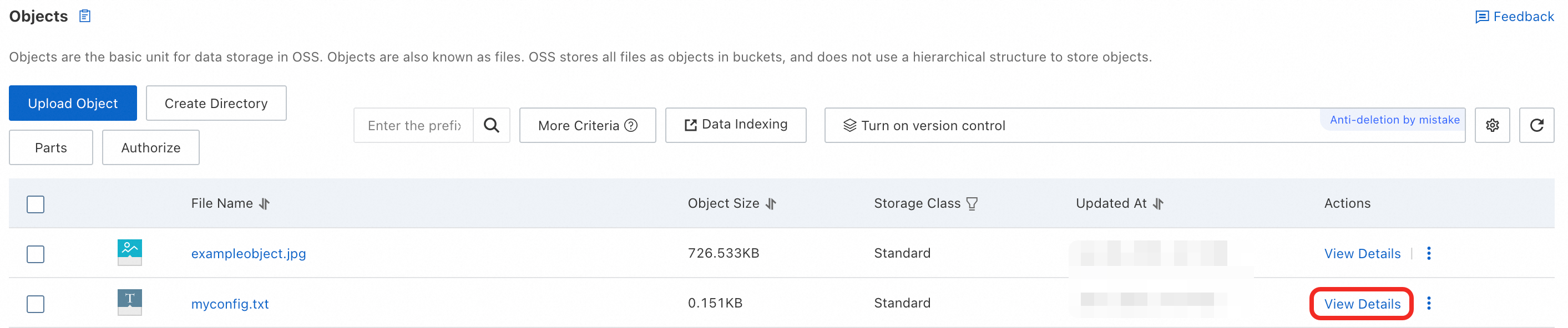

  In the Actions column for the uploaded file in OSS, click Details. Disable Use HTTPS and click Copy File URL.

Download the configuration file to a serverless resource group.

On the DataWorks Image Management page, create a custom image and download the configuration file to the Serverless resource group.

Create an image.

Log on to the DataWorks console and switch to the destination region. In the navigation pane on the left, click Image Management. On the Image Management page, go to the Custom Images tab and click Create Image. In the Create Image panel, set the following parameters to create the image.

Parameter	Example Value
Image Name	You can customize the command name.
Image Description	Description of the custom command.
Reference Type	DataWorks Official Image (default).
Image Namespace	DataWorks Default (default).
Image Repository	DataWorks Default (default).
Image Name/ID	Select `dataworks_shell_task_pod:xxx`. This is the official DataWorks image for Shell nodes.
Visible Scope	Select a scope as needed. Visible Only to Creator. Visible to All.
Using sub-products	Data Studio (default).
Supported Task Type	Shell (default).
Installation Package	From the Installation Package drop-down list, select `Script`. In the command box, enter the following command. `# Download wget 'http://<yourConfigURL>' -O /home/admin/usertools/tools/<configName>` Note Replace `http://<yourConfigURL>` with the file URL that you copied from the OSS console. You can set the `<configName>` parameter to `myconfig.txt`, which is the name of the file to download from OSS.

Click Confirm to create the image.

Test publishing.
In the Actions column for the image you created, click Publish. On the Publish Image page, select a Test Resource Group and click Test next to Test Result. After the Test Succeeded message appears, click Publish.

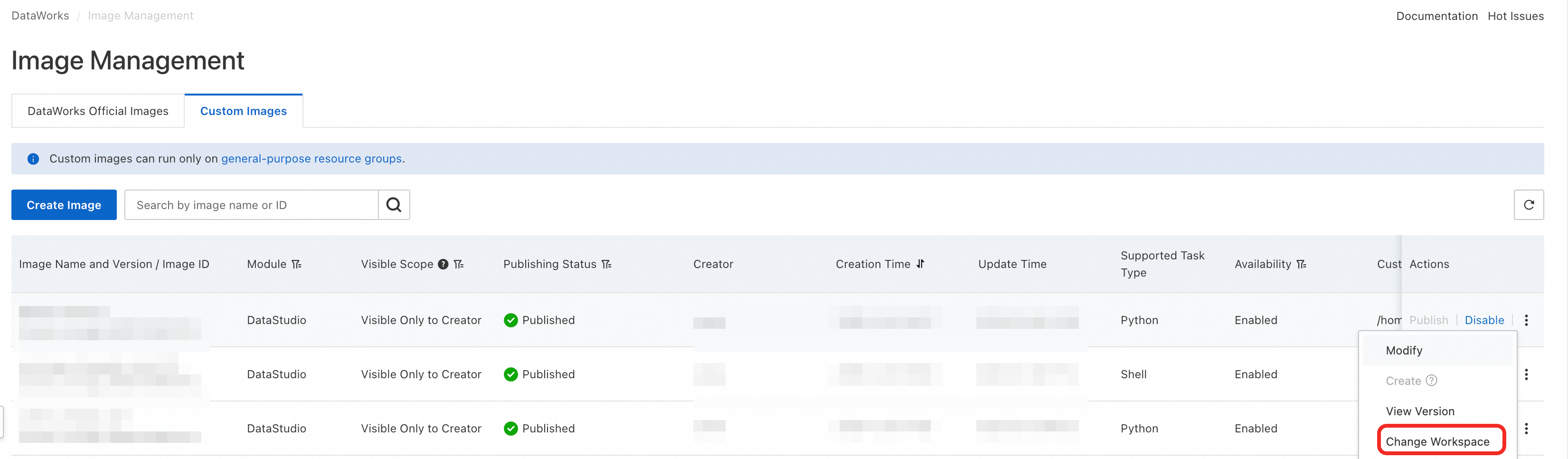

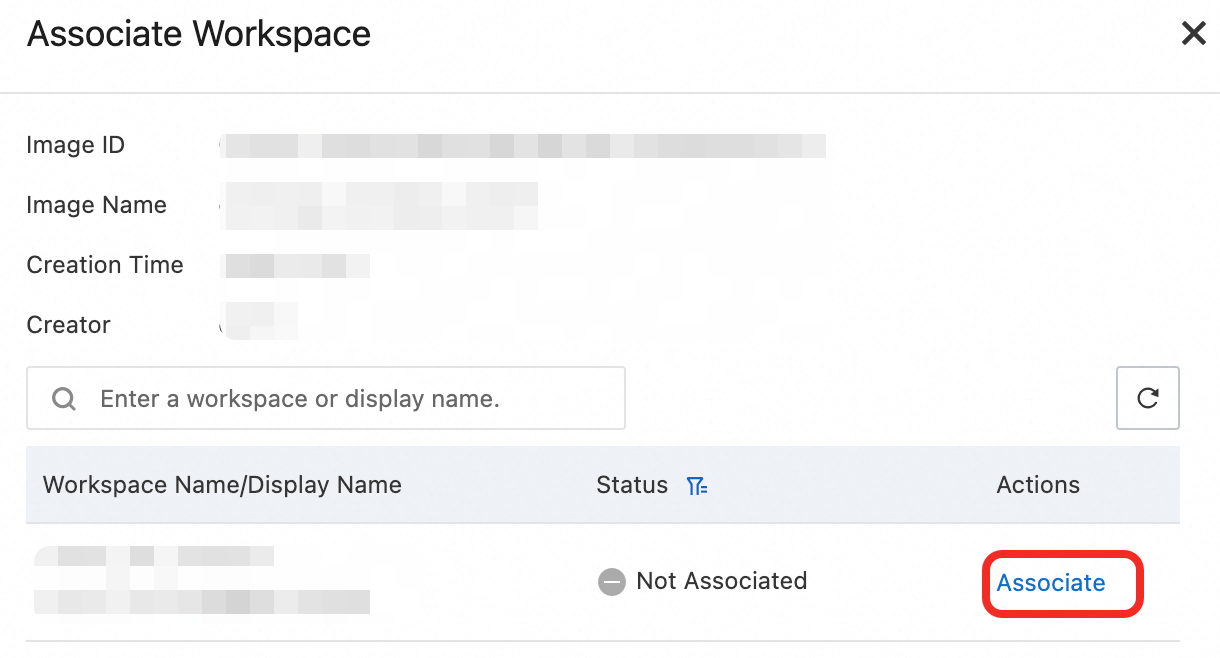

For the custom image that you published, click the icon in the Actions column and select Modify Workspace. Bind the image to the target workspace.

Use the ossutil command-line tool with the configuration file.
1. Create a common Shell node.
  1. Go to the Data Studio page.
    Log on to the DataWorks console and switch to the destination region. In the navigation pane on the left, choose Data Development and O&M > Data Studio. Select the target workspace from the drop-down list and click Go to Data Studio.
  2. Create a common Shell node.
    In Data Studio, right-click the target business flow, choose Create Node, and then select Shell in the General folder.
2. In the Shell node, edit the node content. The following sample code uses ossutil to connect to the OSS Endpoint specified in myconfig.txt and lists all buckets that the account specified in myconfig.txt has permission to access.
```
/home/admin/usertools/tools/ossutil64 -c /home/admin/usertools/tools/myconfig.txt ls -s
```

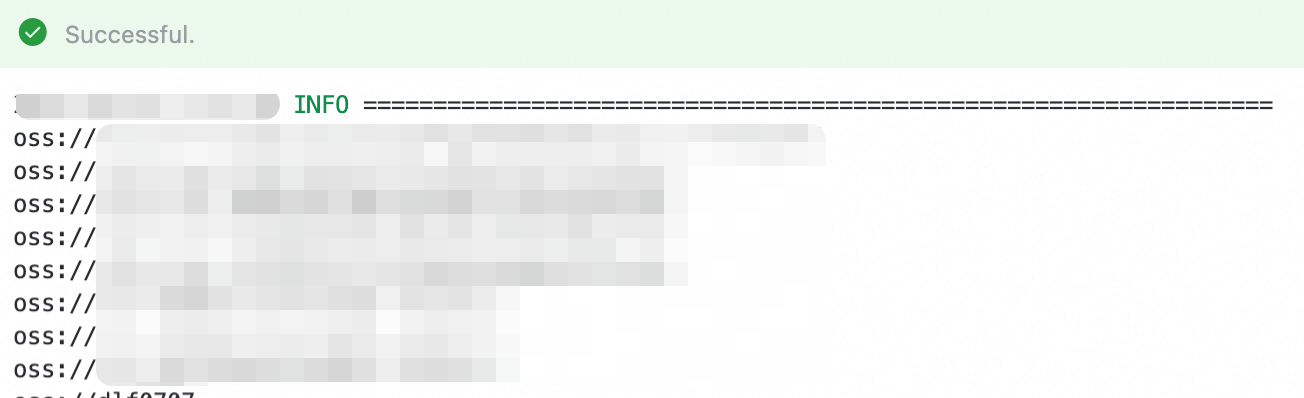

3. Click the icon. Select the serverless resource group that you used for testing when you published the image, and specify the custom image that you created and published. Then, run the Shell node task. Upon successful execution, the following figure shows a sample result.
4. On the Scheduling Configuration tab for the node, in the Resource Property section, select the target resource group and specify the custom image that you created and published. Save the scheduling configuration. Then, commit the Shell node to the development environment and publish it to the production environment.

References

In the latest version of Data Studio, you can attach a RAM role to a Shell node. This allows the node to use Security Token Service (STS) to dynamically obtain temporary security credentials and securely call ossutil to access OSS. For more information, see Configure a node to use a specific RAM role.
