In DataWorks Data Modeling, you can define data standards before you model or derive them from your business data during the modeling process. By enforcing standards for Lookup Tables, Measurement Units, Field Standards, and Naming Dictionaries, you ensure data consistency throughout modeling and application. This approach standardizes data production at the source, reducing costs for downstream data processing and applications.
Supported data standards
DataWorks supports the following data standards: Field Standard, Lookup Table, Measurement Unit, and Naming Dictionary.
Field Standard
A Field Standard standardizes the definition of a field, including its name, Data Type, and value range. By applying a single standard to fields that share the same meaning, you can prevent confusion caused by inconsistent names or types. For example, you can create a Field Standard named member_id and associate it with the corresponding fields in your tables to ensure all member ID fields are consistent.
Table name | Original field | Issue | Standardized field |
Registration Table | user_id | Inconsistent naming | member_id |
Login Table | userid | Lack of an underscore causes ambiguity |
Lookup Table
A Lookup Table defines the range of acceptable values for a field. For example, the gender field can be restricted to "Male", "Female", and "Unknown".
Measurement Unit
A Measurement Unit defines business-specific units, such as currency, quantity, or time. For example, the measurement unit for item quantity can be piece.
Naming Dictionary
A Naming Dictionary provides standardized definitions for the roots and morphemes of business terms, Physical Tables, and fields. It serves as an enterprise-level library for naming conventions. For example, the standard term for a company's annual income could be total annual revenue.
Data standard relationship
To Associate is to link a Data Standard with a specific field in a Logical Model. The field then adheres to the rules defined in the standard.
Access data standards
Log on to the DataWorks console. In the top navigation bar, select the desired region. In the left-side navigation pane, choose . On the page that appears, select the desired workspace from the drop-down list and click Go to Data Modeling.
On the Data Modeling page, click Data Standard in the top menu bar to open the Data Standard page.
Data Standard: Field Standard
A Field Standard provides a standard definition for a field, including its naming, Data Type, and value range. It allows you to associate fields that have the same meaning but different names across multiple tables. If the Field Standard changes, you can quickly locate and update all associated tables.
Hierarchical structure
When creating a Field Standard, you must place it under the root directory, a directory, or a standard set. The hierarchy is as follows:
Root directory: The top-level directory. All directories, standard sets, and standards must be placed under the root directory.
Directory: A directory stores standards and standard sets, similar to a folder in an operating system.
Standard Set: A Standard Set is similar to a directory but can only contain standards.
Field Standards can have inheritance relationships. For example, a buyer ID standard and a seller ID standard can both inherit from a member ID standard.
Define a Field Standard
If you need to enter a large number of Field Standards, you can use the Batch Import feature for efficiency.
On the Data Standard page, click Field Standard in the left-side navigation pane to go to the Field Standard page.
In the directory tree on the left, right-click the target directory or standard set and select Create Standard.
You can create directories or standard sets as needed to organize your Field Standards.
In the Create Standard dialog box, configure the following parameters.
Parameter
Description
Abbreviation
When associated with a field in a Logical Model, this value becomes the field's name.
Display Name
When associated with a field in a Logical Model, this value becomes the field's display name.
Length
This parameter depends on the selected Data Type.
For example, if you select the DECIMAL type, the length corresponds to 20 in DECIMAL(20, 4).
Precision
This parameter depends on the selected Data Type.
For example, if you select the DECIMAL type, the precision corresponds to 4 in DECIMAL(20, 4).
Not Null
Specifies whether the field that references this standard can be null. By default, null values are allowed.
Default Value
The default value for a referencing field when no value is provided. The maximum length is 2,048 characters.
Parent Standard
You can select an existing standard as the parent standard to create an inheritance relationship, which helps you better identify field associations.
For example, since both a buyer ID and a seller ID are types of a member ID, their respective standards can inherit from the member ID standard.
Referenced Lookup Table
You can select a predefined Lookup Table to constrain the value range of the field.
ImportantBefore you can delete a Field Standard, you must remove all references to it.
Use a Field Standard

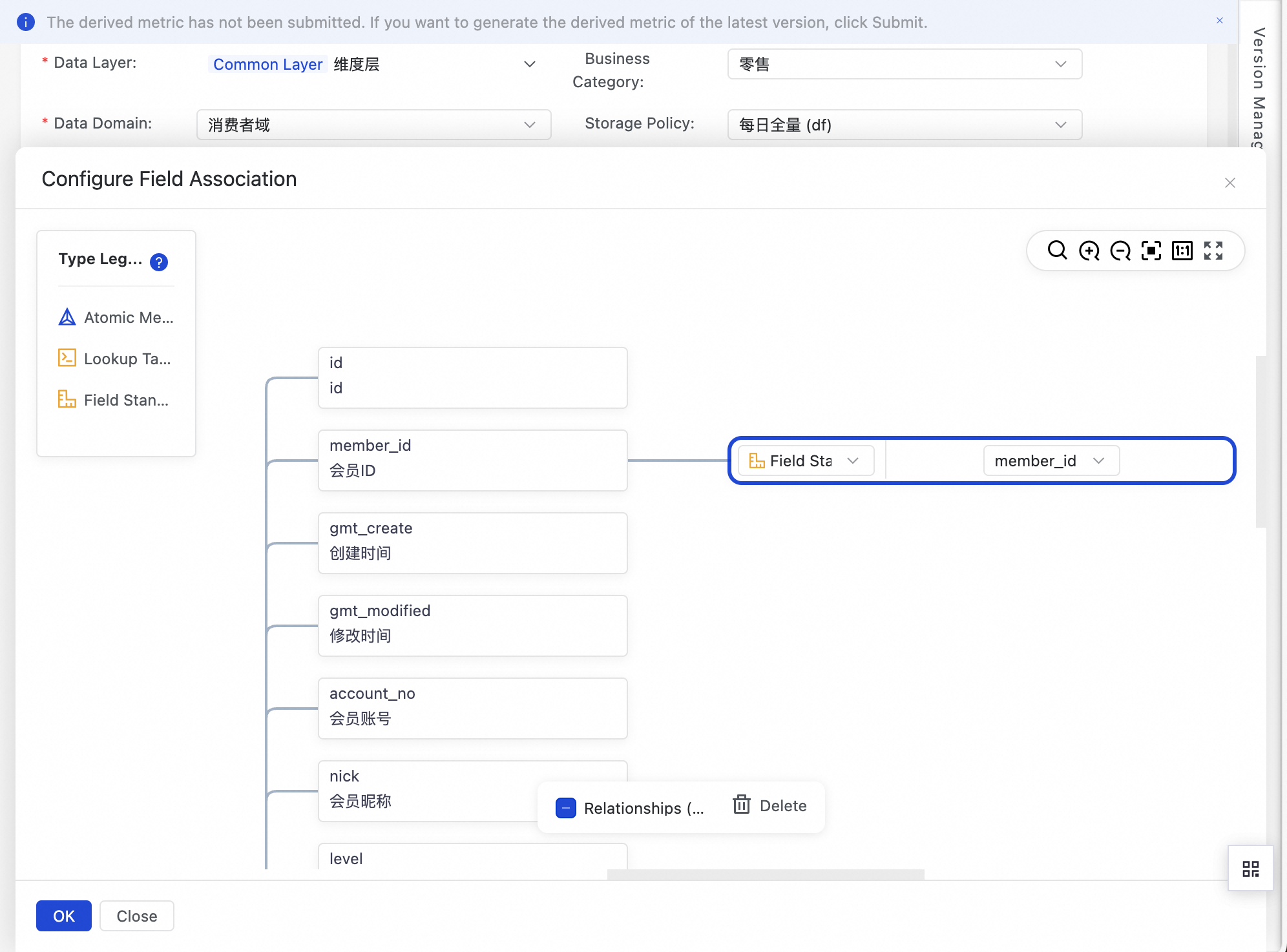

You can use a Field Standard to define specific fields in a Logical Model. This is supported for Source Tables, Dimension Tables, Fact Tables, Aggregate Tables, and Application Tables. For example, you can associate the member ID field in the member information dimension table dim_ec_con_member_df with the Field Standard member_id. In this case, the field name is inherited from the Abbreviation of the Field Standard, the display name is inherited from its Display Name, and the Type and Not Null properties are also inherited directly. For detailed steps, see Configure fields for a dimension table.
Data Standard: Lookup Table
A Lookup Table defines the range of acceptable values for a field.
Define a Lookup Table
If you need to enter a large number of Lookup Tables, you can use the Batch Import feature for efficiency.
On the Data Standard page, click Lookup Table in the left-side navigation pane to go to the Lookup Table page.
Right-click a directory name and click Create Lookup Table.
You can create directories as needed to organize your Lookup Tables.
In the Create Lookup Table dialog box, configure the parameters and add enumerated values.
For example, set ID to gender, Display Name to Gender, and Name to gender. The enumerated values are as follows.
Code ID
Code name
Name
Description
0
Unknown
unknown
Unknown gender
1
Male
male
Male
2
Female
female
Female
ImportantBefore you can delete a Lookup Table, you must remove all references to it.
Publish a Lookup Table
Click Publish in the upper-right corner of the Lookup Table details page to materialize the lookup table as a Physical Table or Materialized View.
Use a Lookup Table

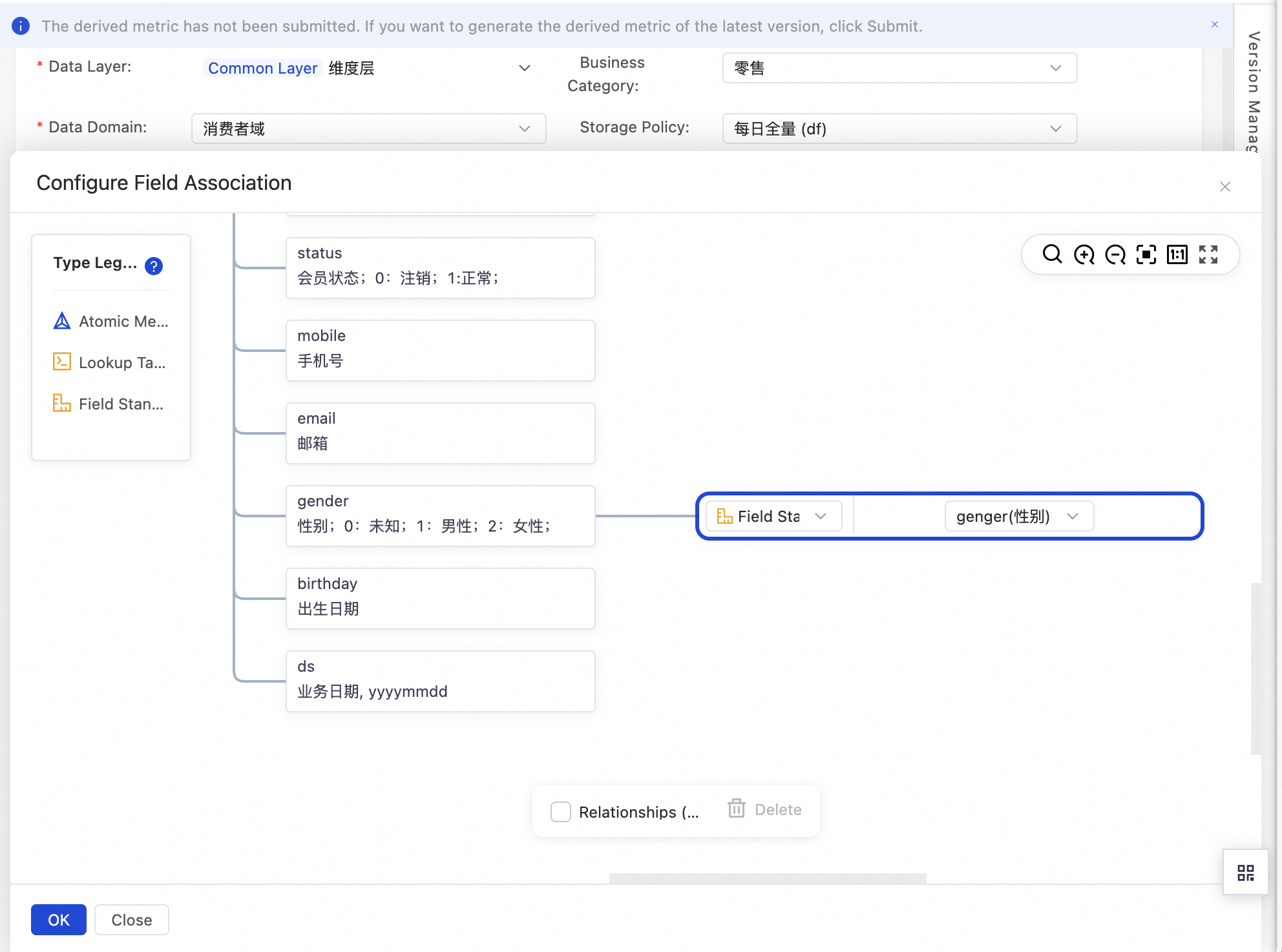

You can use a Lookup Table to define specific fields in a Logical Model. This is supported for Source Tables, Dimension Tables, and Fact Tables. For example, you can associate the gender field in the member information dimension table dim_ec_con_member_df with the Lookup Table gender. In this case, the field name is inherited from the ID of the Lookup Table, and the display name is inherited from its Display Name. For detailed steps, see Configure fields for a dimension table.
If a field has different names across multiple tables, you can associate all instances with a single Lookup Table to standardize the naming.
Table name | Original field | Original enumerated values | Standardized field | Standardized enumerated values |
Member Information Table | sex | 1, 2 | gender | 0, 1, 2 |
Member Login Table | gender | 0, 1, 2 |
Implement standards with lookup tables
When a Fact Table or Dimension Table from a Logical Model is published as a Physical Table, the system generates a Quality Rule for any field that is associated with a Lookup Table. You can then create a quality monitoring rule based on this Quality Rule to monitor and enforce the standard for the Physical Table. For more information, see Implement data standards.
Data Standard: Measurement Unit
A Measurement Unit defines business-specific units, such as currency, quantity, and time.
Define a Measurement Unit
If you need to enter a large number of Measurement Units, you can use the Batch Import feature for efficiency.
On the Data Standard page, click Measurement Unit in the left-side navigation pane to go to the Measurement Unit page.
On the Measurement Unit page, right-click the target measurement category and select Create Measurement Unit.
In the Create Measurement Unit dialog box, configure the parameters and click OK.
For example, set Abbreviation to m, Name to meter, and Display Name to Meter.
Use a Measurement Unit
Associate with a Logical Model

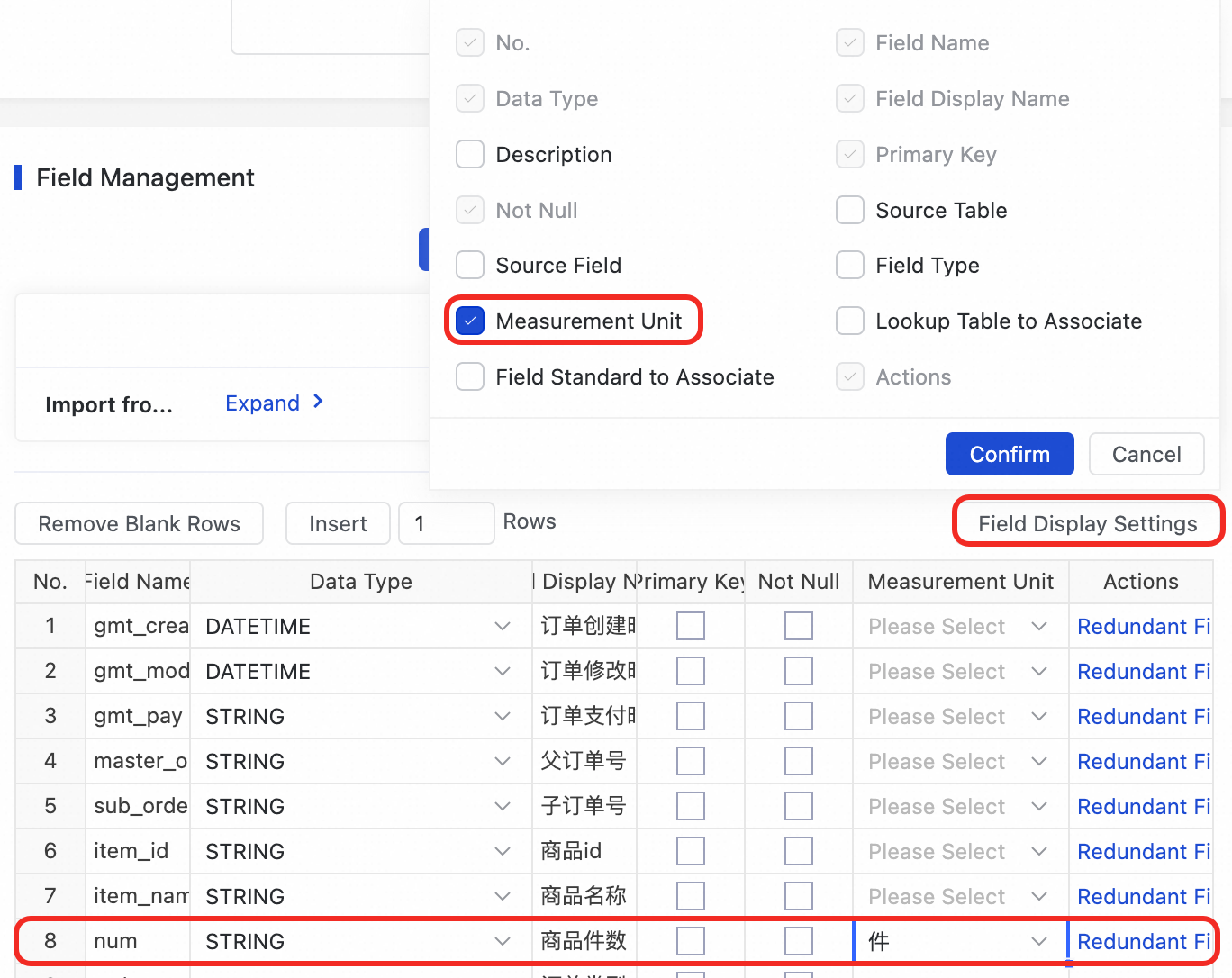

You can use a Measurement Unit to define the unit for a specific field in a Logical Model. This is supported for Fact Tables, Aggregate Tables, and Application Tables. For example, you can associate the item quantity field in the order creation fact table dwd_trade_order with the Measurement Unit piece. For detailed steps, see Configure fields for a fact table.
Associate with an Atomic Metric
When you define an Atomic Metric, you can select an appropriate Measurement Unit based on the statistical data type of the Atomic Metric.
Data Standard: Naming Dictionary
A Naming Dictionary provides standardized definitions for the roots and morphemes of business terms, Physical Tables, and fields. It serves as an enterprise-level library for naming conventions.
Define a Naming Dictionary
If you need to enter a large number of Naming Dictionaries, you can use the Batch Import feature for efficiency.
On the Data Standard page, click Naming Dictionary in the left-side navigation pane to go to the Naming Dictionary page.
Click Create. In the Create Naming Dictionary dialog box, configure the parameters and click OK.
For example, set Display Name to Engine, Name to engine, and Abbreviation to eng.
Use a Naming Dictionary

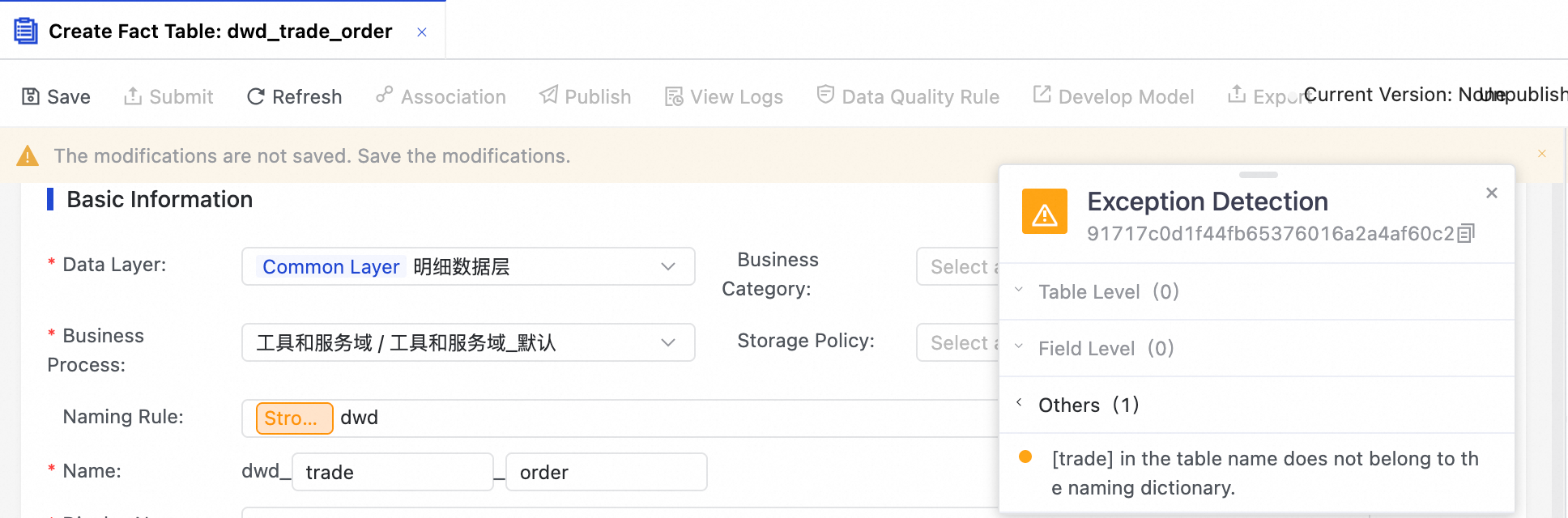

You can use a Naming Dictionary to check the naming conventions of tables in your data warehouse layers. This is supported for Source Tables, Dimension Tables, Fact Tables, Aggregate Tables, and Application Tables. For example, if no Naming Dictionary entry with the abbreviation trade exists, the table name dwd_trade_order would violate the naming convention for the DWD layer.
To use this feature, configure it in the data warehouse layer checker. For more information, see Configure data warehouse layer checkers and Use checkers.
More operations
Batch import standards
If you need to create a large number of data standards, you can use the Batch Import feature. DataWorks provides an import template that you can fill out and upload.
On the Data Standard page, click Naming Dictionary in the left-side navigation pane to go to the Naming Dictionary page.
The Field Standard and Lookup Table details pages also have import and export buttons.
Click Import to go to the Import page and select the Import Type.
In the Template Preview section, click Download Template and fill in the required fields.
Click Next Step. On the Data Import tab, upload and preview the data file.
NoteImport Mode: If an object with the same name as one in the import file already exists in DataWorks, you can choose to skip that object or overwrite it with the content from the file.
Batch Import supports only files in
.xlsxformat. You can import up to 30,000 records per operation, and the file size cannot exceed10 MB.
On the OK tab, you can view the import results. Click View More Details next to an entry to go to the edit page for more operations. If the import fails, you must resolve the errors based on the details provided and try importing again.
Batch export standards
When you need to reuse data standards across different workspaces, you can use the Batch Export function. You can find the Export button on the details pages for Field Standards, Lookup Tables, or Naming Dictionaries.
