This topic describes how to use the resource O&M feature of DataWorks to monitor the usage of resource groups that are used to run a node.

Background information

You can customize metrics and rules for automated O&M for a node that runs on a resource group based on your business requirements. You can view the usage of resource groups and status of node execution on the Resource page. The resource O&M feature supports intelligent monitoring and automated O&M of resource groups and nodes. This reduces the number of complex manual operations and improves O&M management efficiency.

Limits

  • The resource O&M feature of DataWorks is unavailable in the China (Shanghai) and China (Hangzhou) regions.
  • The resource O&M feature of DataWorks can be used only for exclusive resource groups for scheduling and exclusive resource groups for Data Integration.

Go to the Resource page

  1. Log on to the DataWorks console.
  2. In the left-side navigation pane, click Workspaces.
  3. After you select the region in which the workspace that you want to manage resides, find the workspace and click Data Analytics in the Actions column.
  4. On the DataStudio page, click the Cycle Task icon in the upper-left corner and choose All Products > Operation Center.
  5. In the left-side navigation pane, click Resource. A list of exclusive resource groups that are used by DataWorks nodes appears.

View the list of resource groups

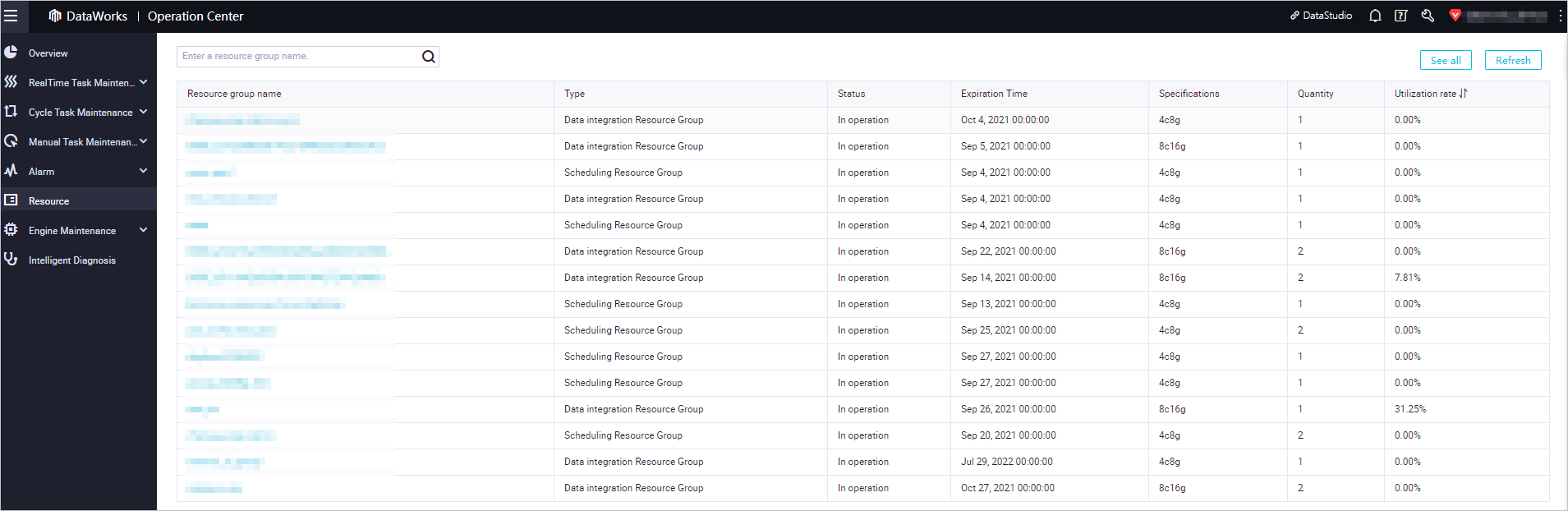

The Resource page displays the resource groups that are used by DataWorks nodes. The status of the resource groups is Running. The resource O&M feature supports only exclusive resource groups for scheduling and exclusive resource groups for Data Integration. You can perform the following operations based on your business requirements.List of resource groups
  • Search for the resource group whose usage you want to view.

    Enter the name of the resource group whose usage you want to view in the search box in the upper-right corner and click the Icon icon to search for the resource group in fuzzy match mode.

  • View other resource groups.

    In the upper-right corner of the Resource page, click See all. The Resource Groups page appears.

Parameter Description
Resource group name The name of the resource group that you created. After you click the resource group name, the details page of the resource group appears. For more information, see View the details about a resource group.
Type The resource group type that you selected when you created the resource group. The resource O&M feature supports only exclusive resource groups for Data Integration and exclusive resource groups for scheduling.
Note The resource O&M feature supports only exclusive resource groups.
Status The status of the resource group. Valid values:
  • Running
  • Expired
  • Released
  • Starting
  • Failed to perform the create operation
  • Updating
  • Failed to perform the update operation
  • Released
  • Timed Out
Expiration Time The time when the resource group expires.
Specifications The specifications of the resource group that you defined when you created the resource group.
Quantity The number of resources that you configured when you created the resource group.
Utilization rate The usage of the resource group. Click the Icon icon to the right of Utilization rate to sort all the resource groups in the list in ascending or descending order of the resource usage.

View the details about a resource group

On the details page of a resource group, you can view the basic information, usage curve, and nodes of the resource group. You can customize monitoring rules for intelligent monitoring and automated O&M of resources. Resource group details
No. Parameter Description
1 Basic information about the resource group If you want to perform other operations on the resource group, such as scaling, click More operations. The Resource Groups page appears.
2 Usage of the resource group. You can view the current usage of the resource group, the number of nodes that are in the Running state and are using the resource group, and the number of nodes that are in the In state in the queue and are waiting for resources. If you want to view the monitoring rules that are configured for the resource group, click Monitoring. The Rule Management page appears. You can also choose Operation Center > Alarm > Rule Management to go to the Rule Management page.
3 All nodes that run on the current resource group. The nodes are classified into the following types based on the status of the nodes and the synchronization mode:
  • Running offline synchronization instance
  • Offline synchronization instances in the queue
  • Running real-time synchronization instance
 Click Automatic operation and maintenance. The Automatic page appears. You can also choose Operation Center > Alarm > Automatic to go to the Automatic page.
4 Usage curve of the resource group To view the usage of the resource group in a specified time period, you can use the date and time picker to select the start time and end time.

You can also move the pointer over a point in the curve to view the usage of the resource group at a specific point in time.
