DataWorks:Amazon S3 data source

Supported Amazon S3 versions

Amazon S3 Reader uses Amazon S3 SDK for Java provided by Amazon to read data from an Amazon S3 data source.

Limits

• Amazon S3 data sources in the regions in the Chinese mainland and in the China (Hong Kong) region are not supported.

• Amazon S3 stores unstructured data. The following table describes the features that are supported and not supported by Amazon S3 Reader in Data Integration.

  Supported

  Unsupported

  Reads data from TXT objects. The data in the TXT objects must be logical two-dimensional tables. Reads data from CSV-like objects with custom delimiters. Reads data of various data types, and supports constants and column pruning. Supports recursive data read and object name-based filtering. Supports object compression. The following compression formats are supported: GZIP, BZIP2, and ZIP. Uses parallel threads to read data from multiple objects at the same time.

  Uses parallel threads to read data from a single object. Uses parallel threads to read data from a compressed object. Reads data from an object that exceeds 100 GB in size.

Data type mappings

Develop a data synchronization task

For information about the entry point for and the procedure of configuring a data synchronization task, see the following sections. For information about the parameter settings, view the infotip of each parameter on the configuration tab of the task.

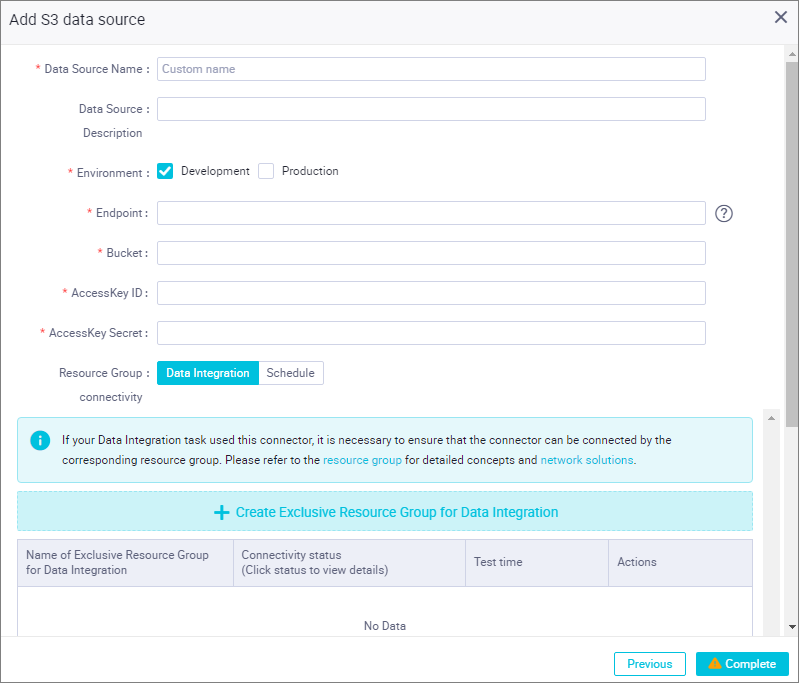

Add a data source

Before you configure a data synchronization task to synchronize data from or to a specific data source, you must add the data source to DataWorks. For more information, see Add and manage data sources.

Configure a batch synchronization task to synchronize data of a single table

• For more information about the configuration procedure, see Configure a batch synchronization task by using the codeless UI and Configure a batch synchronization task by using the code editor.

• For information about all parameters that are configured and the code that is run when you use the code editor to configure a batch synchronization task, see Appendix: Code and parameters.

Appendix: Code and parameters

Appendix: Configure a batch synchronization task by using the code editor

If you use the code editor to configure a batch synchronization task, you must configure parameters for the reader of the related data source based on the format requirements in the code editor. For more information about the format requirements, see Configure a batch synchronization task by using the code editor. The following information describes the configuration details of parameters for the reader in the code editor.

Code for Amazon S3 Reader

{
    "type":"job",
    "version":"2.0",// The version number.
    "steps":[
        {
            "stepType":"s3",// The plug-in name.
            "parameter":{
                "nullFormat":"",// The string that represents a null pointer.
                "compress":"",// The format in which objects are compressed.
                "datasource":"",// The name of the data source.
                "column":[// The names of the columns.
                    {
                        "index":0,// The ID of a column in the source object.
                        "type":"string"// The data type of the column.
                    },
                    {
                        "index":1,
                        "type":"long"
                    },
                    {
                        "index":2,
                        "type":"double"
                    },
                    {
                        "index":3,
                        "type":"boolean"
                    },
                    {
                        "format":"yyyy-MM-dd HH:mm:ss", // The time format.
                        "index":4,
                        "type":"date"
                    }
                ],
                "skipHeader":"",// Specifies whether to skip the headers in a CSV-like object when the headers are used as titles. If the headers in a CSV-like object are used as titles, skip the headers.
                "encoding":"",// The encoding format.
                "fieldDelimiter":",",// The column delimiter.
                "fileFormat": "",// The format of the object.
                "object":[]// The prefix of the object from which you want to read data.
            },
            "name":"Reader",
            "category":"reader"
        },
        {
            "stepType":"stream",
            "parameter":{},
            "name":"Writer",
            "category":"writer"
        }
    ],
    "setting":{
        "errorLimit":{
            "record":""// The maximum number of dirty data records allowed.
        },
        "speed":{
            "throttle":true,// Specifies whether to enable throttling. The value false indicates that throttling is disabled, and the value true indicates that throttling is enabled. The mbps parameter takes effect only when the throttle parameter is set to true.
            "concurrent":1 // The maximum number of parallel threads.
            "mbps":"12",// The maximum transmission rate. Unit: MB/s.
        }
    },
    "order":{
        "hops":[
            {
                "from":"Reader",
                "to":"Writer"
            }
        ]
    }
}

Parameters in code for Amazon S3 Reader

column": ["*"]

"column":
{
"type": "long",
"index": 0 // The first INT-type column in the object from which you want to read data.
},
{
"type": "string",
"value": "alibaba" // The value of the current column. In this code, the value is the constant alibaba.
}
