DataV:Sphere layer

Chart style

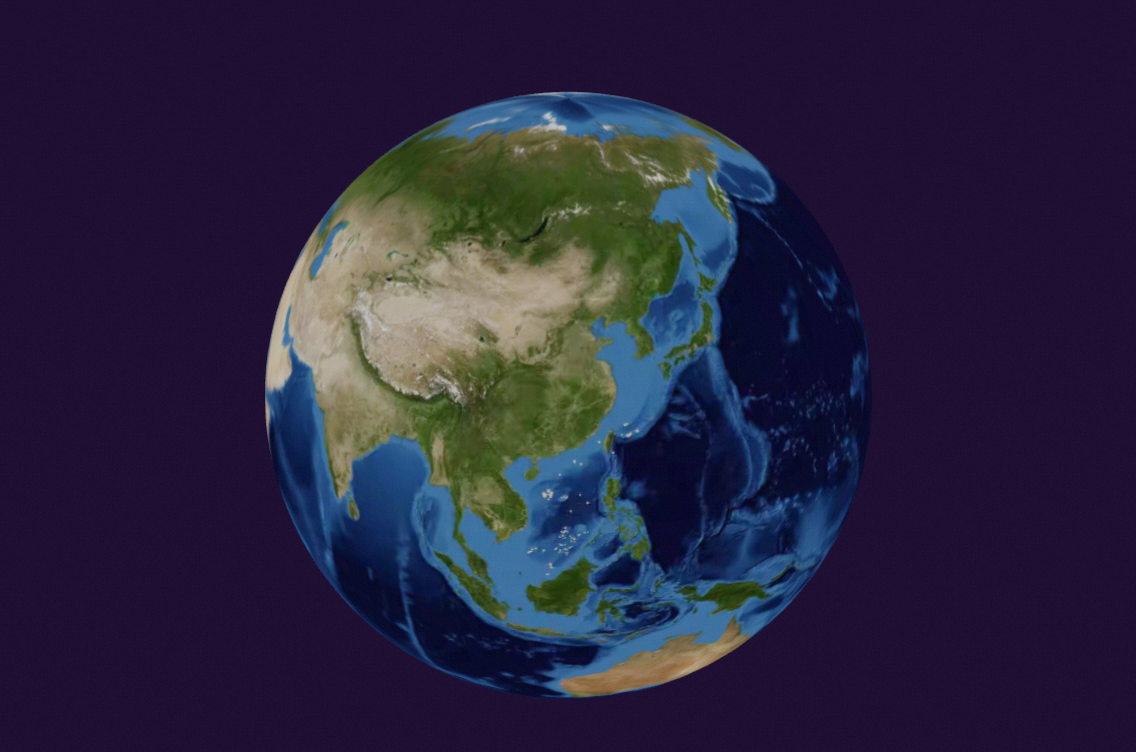

The sphere layer, a component of the 3D Earth model, allows for independent style adjustments such as sphere size, texture type, and lighting intensity. It serves as the foundational sphere component upon which other elements are based.

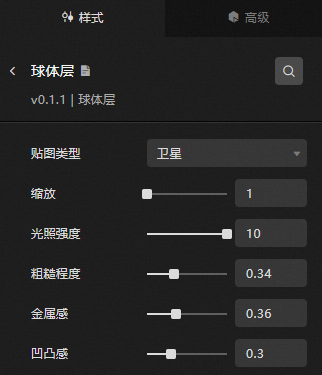

Style panel

• Search Configuration: Click the Style icon in the upper right corner of the panel to enter the name of the configuration item you wish to locate in the search field. The system supports fuzzy matching. For more information, see Search configuration item.

• Texture Type: Select from texture options such as Terrain, Satellite, Particle, Administrative Region, and Custom.

  Note

  For the Custom texture, you can upload an image by dragging it into the dashed box or by pasting the image URL into the link box.

• Scaling: Adjust the sphere's scale within a range of 1 to 1.2.

• Lighting Intensity: Control the sphere's brightness with lighting intensity values from 0 to 10.

• Roughness: Set the roughness level of PBR materials between 0 and 1.

• Metallic: Define the metallic aspect of PBR materials with values ranging from 0 to 1.

• Bumpiness: Adjust the bumpiness of PBR materials, with a value range of 0 to 1.

Data source panel

No data configuration is required for this component.

Advanced panel

There are no interaction occurrences for this component.

Blueprint interaction

1. To access the Blueprint page, click the icon in the upper left corner.

2. In the Layer Node tab, incorporate the current component into the main canvas.

3. Review the blueprint's configuration parameters.

   • Event: None.

   • Action

     Action	Description
     Toggle Visibility	Switch the component's visibility on or off without needing parameters.
     Show	Display the component. Refer to the example in the reference data. { "animationType": "",//Animation type. Optional value: fade. No animation if not filled. "animationDuration": 1000,//Animation latency in ms. "animationEasing": ""//Animation curve }
     Hide	Conceal the component. Refer to the example in the reference data. { "animationType": "",//Animation type. Optional value: fade. No animation if not filled. "animationDuration": 1000,//Animation latency in ms. "animationEasing": ""//Animation curve }
     Update Component Configuration	Update the component's style settings dynamically. Begin by selecting Copy Configuration To Clipboard from the component's Style panel to acquire its configuration data. Then, modify the required style field values in the data processing node on the blueprint editor configuration page as needed.
