Push records log messages sent by the system via the alert center. This topic outlines the steps to view push records.
View push records
On the Dataphin home page, click the
icon in the upper right corner.In the left-side navigation pane, click Alert Center, then select Alert Delivery Record.

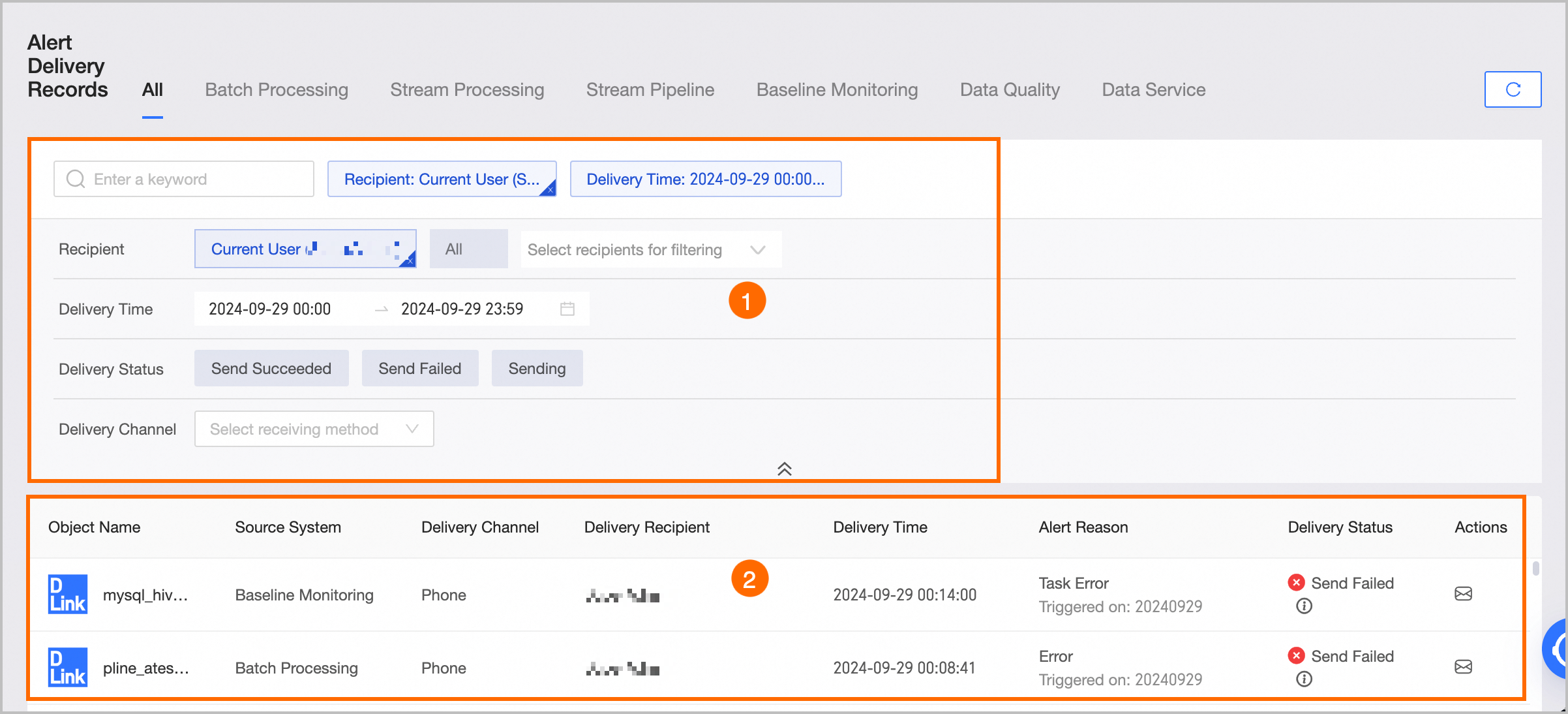

On the Alert Delivery Record page, click on the tabs for Offline Computing, Real-time Computing, Stream Pipeline, Baseline Monitoring, Data Quality, or Data Service to view the respective push records. The interface for different functional modules is consistent. Below is an example using the Offline Computing tab.
Area
Description
① Filter and search area
Search by push record object name keyword, or filter by recipient, push time, status, alert reason, and channel (configure channel settings via this link to toggle message channels).
② List area
Displays push record details including object name, source system, channel, recipient, time, alert reason, and status. Details can also be viewed.
Alert reason: Categorized by the system into different Alert Reasons based on the source module.
Offline Computing encompasses aspects such as High Business Latency, TPS Out Of Range, Failure Rate Exceeds Configuration, Data Retention Exceeds Configuration, Error, Completed, Timeout, and Incomplete.
Data Quality encompasses Table Rule Abnormal, Field Rule Abnormal, and Custom Rule Abnormal.
Data Service features include Average Response Time Abnormal, Call Frequency Abnormal, Error Rate Abnormal, and Offline Percentage Abnormal monitoring.
Real-time computing encompasses scenarios such as excessive business latency, TPS deviations, surpassing configured failure rates, exceeding data retention limits, and prolonged backpressure beyond the set thresholds.
Various compute engines support distinct types of alerts.
For projects within a tenant using only the Blink engine, backpressure duration exceeds configuration is not supported.
For projects within a tenant using only the open-source Flink engine, high business latency and data retention exceeds configuration are not supported.
For projects within a tenant using both Blink and open-source Flink engines, all alert types are supported.
Stream Pipeline includes High Business Latency and Failure Frequency Exceeds Configuration.
View Message Content: Enables viewing the content of alert messages.
