Data Management:Task orchestration

Step 1: Create a task flow

1. Log on to the DMS console V5.0.

2. In the top navigation bar, choose DTS > Data Development > Task Orchestration.

   Note

   If you are using the DMS console of the simple mode, click the icon in the upper-left corner and choose All Functions > DTS > Data Development > Task Orchestration.

3. On the page that appears, click Create Task Flow.

4. In the Create Task Flow dialog box, specify the Task Flow Name and Description parameters. Then, click OK.

Step 2: Configure the variables of the task flow

The variables of the task flow are time variables. You can use the variables in all nodes in the format of ${Variable name}. This example describes how to configure the time variables as filter conditions in SQL statements to periodically migrate the historical data that was generated six months ago in the test table.

For information about the rules and usage of variables, see Variables.

Step 3: Create and configure nodes in the task flow

• Create a node to migrate data

  1. From the left-side node type list of the Task Type section on the Task Orchestration page, drag the Single Instance SQL node to the blank area on the canvas.

  2. Right-click the node. In the shortcut menu that appears, click Rename to rename the node to Migrate Data.

  3. Double-click the node to go to the page to write SQL statements.

  4. Search for the desired database in the database search box and enter the following SQL statements in the SQL editor:

     CREATE TABLE IF NOT EXISTS `test_${yearmonth6_name}` LIKE test;
     INSERT INTO `test_${yearmonth6_name}`
     SELECT * FROM `test`
     WHERE gmt_create < '${yearmonth6_date}';

     The preceding statements are used to create a table named test_${yearmonth6_name} for archiving historical data in the current database and migrating historical data that meets the date requirements from the test table to the test_${yearmonth6_name} table.

  5. Click Preview to check the validity of the SQL statements.

• Create a node to clear historical data

  1. From the left-side node type list of the Task Type section on the Task Orchestration page, drag the Single Instance SQL node to the blank area on the canvas.

  2. Right-click the node. In the shortcut menu that appears, click Rename to rename the node to Clear Historical Data.

  3. Double-click the node to go to the page to write SQL statements.

  4. Search for the desired database in the database search box and enter the following SQL statement in the SQL editor:

     Warning

     To delete a large amount of data, we recommend that you use the Single Instance SQL node to execute the DELETE statement during off-peak hours. This helps prevent business interruptions caused by long-term table locks.

     DELETE FROM `test` WHERE gmt_create < '${yearmonth6_date}';

     The preceding statement is used to delete the migrated data from the test table.

  5. Click Preview to check the validity of the SQL statement.

Step 4: Connect the nodes and configure scheduling information

1. On the canvas, move the pointer over the Migrate Data node, click the hollow circle on the right side, and then drag the connection line to the Clear Historical Data node.

   Note

   You can specify the execution order of the nodes by dragging a connection line. In this example, the Migrate data node is run before the Clear Historical Data node.

2. In the lower part of the page, click the Task Flow Information tab. In the Scheduling Settings section, configure the following parameters.

   Parameter	Example
   Enable Scheduling	Specifies whether to enable the scheduling feature. Turn on Enable Scheduling.
   Scheduling Type	The scheduling type. Select Timed Scheduling/Cyclic scheduling.
   Effective Time	The period during which the scheduling properties take effect. The default value is 1970-01-01 - 9999-01-01, which indicates that the scheduling properties permanently take effect.
   Scheduling Cycle	The scheduling cycle. Select Month.
   Specified Time	The time at which the scheduling properties take effect. Select 1st of each month.
   Specific Point in Time	The specific point in time at which the scheduling properties take effect. Set this parameter to 01:00.
   Cron Expression	The CRON expression, which is automatically generated based on the specified scheduling cycle and time settings.

   Note

   In this example, the task flow is scheduled to run at 01:00 on the first day of each month. You can schedule the task flow to run as needed. For more information, see Overview.

Step 5: Run the task flow and verify the results

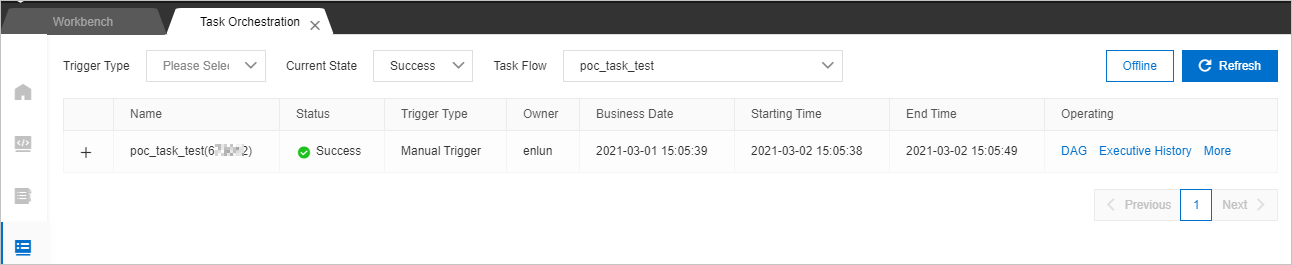

1. Click Try Run in the upper-left corner of the canvas.

   • If status SUCCEEDED appears in the last line of the logs, the test run is successful.

   • If status FAILED appears in the last line of the logs, the test run fails.

     Note

     If the test run fails, view the node on which the failure occurs and the reason for the failure in the logs. Then, modify the configurations of the node and try again.

2. Go to the SQLConsole tab to check whether historical data in the test table is migrated to the destination table and whether the migrated data is deleted from the test table. For more information, see the "Query data" section of the Manage a database on the SQLConsole tab topic.
