    Database Autonomy Service:Column encryption

    Last Updated:Aug 29, 2025

    Database Autonomy Service (DAS) provides column-level encryption to protect sensitive data in your databases, such as ApsaraDB RDS for MySQL, ApsaraDB RDS for PostgreSQL, PolarDB for MySQL, and PolarDB for PostgreSQL. This feature enables you to encrypt specific data columns. Authorized users can then decrypt and access the plaintext data through a dedicated client driver.

    Supported regions and databases

    Database

    Region

    • RDS for MySQL

    • PolarDB for MySQL

    • RDS for PostgreSQL

    • PolarDB-X 2.0

    • PolarDB for PostgreSQL

    China (Hangzhou), China (Shanghai), China (Qingdao), China (Beijing), China (Zhangjiakou), China (Hohhot), China (Shenzhen), China (Chengdu), and China (Hong Kong)

    PolarDB for PostgreSQL (Compatible with Oracle)

    China (Hangzhou) and Malaysia (Kuala Lumpur)

    Prerequisites

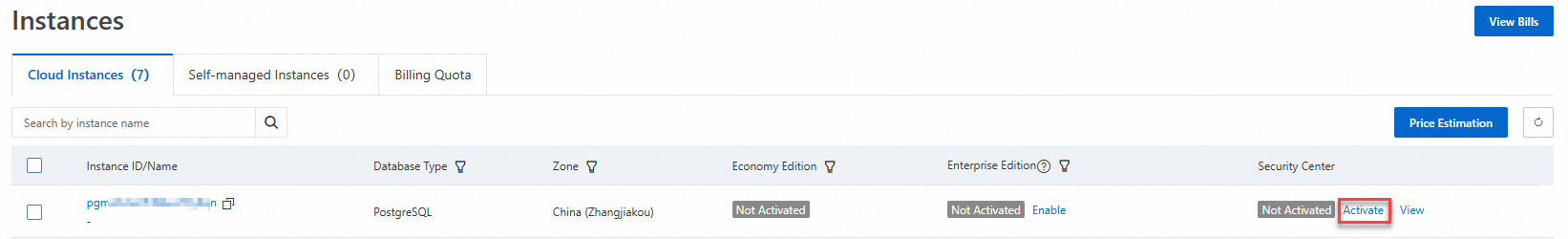

    • Authorize the instance for sensitive data detection and column encryption on the Instances page.


    • Purchase DAS Security Center and ensure that you have a sufficient quota for column encryption.

    • Ensure that the region of your instance supports the column encryption feature. For more information, see Product series and supported features.

    • Complete a sensitive data detection task. For more information, see Manage sensitive data detection.

    Billing information

    • DAS provides a free quota to encrypt one column. To encrypt more columns, enable the Column Encryption service and purchase a sufficient Column Encryption Quota. This service is billed on a subscription basis. For more information, see Billing.

    • If you set Encryption Method to KMS Key in the column encryption configuration, Key Management Service (KMS) charges a fee for the managed key. For more information, see Product Billing.

    Encryption limitations

    Supported database type

    Supported version

    Supported encryption algorithm

    Supported encryption method

    Supported permission

    ApsaraDB RDS for MySQL

    The major engine version is MySQL 5.7 or MySQL 8.0. The minor engine version is greater than or equal to 20240731.

    • AES-128-GCM

    • AES-256-GCM: supported only when the minor engine version is greater than or equal to 20241231.

    • Local keys.

    • KMS keys: supported only when the minor engine version is greater than or equal to 20241231, and the RDS instance uses cloud disks.

    • Ciphertext permission (no decryption permission): supported only when local keys are used. This is the default permission.

    • Ciphertext permission (JDBC decryption): This is the default permission when KMS keys are used.

    • Plaintext permission.

    ApsaraDB RDS for PostgreSQL

    The major engine version is PostgreSQL 16. The minor engine version must be greater than or equal to 20241230.

    AES-256-GCM.

    Local keys.

    • Ciphertext permission (JDBC decryption): This is the default permission.

    • Plaintext permission.

    PolarDB for MySQL

    The major engine version is MySQL 5.7 or MySQL 8.0. The database proxy version must be greater than or equal to 2.8.36.

    Important

    If you configure column encryption policies for a PolarDB for MySQL cluster, you must use a cluster endpoint to connect to the cluster in read/write mode. If you use a primary endpoint, column encryption policies do not take effect. For more information, see Configure database proxy and Manage endpoints.

    AES-128-GCM.

    Local keys.

    PolarDB for PostgreSQL

    The major engine version is PostgreSQL 14. The minor engine version must be greater than or equal to 2.0.14.15.31.0.

    AES-256-GCM

    Local keys.

    Procedure

    1. Log on to the DAS console.

    2. In the navigation pane on the left, click Security Center > Column Encryption.

    3. Click One-click Encryption in the Actions column of the target instance and configure the encryption policy.

      Note

      For an instance that already has an encryption policy, click Edit in the Actions column to modify the policy.

    4. In the Encryption Configuration panel, select the Asset Type, Instance Name, Encryption Algorithm, Encryption Method, and Plaintext Permission Accounts. Then, select the target Database, Table, and Column, and click OK.

    5. In the instance list, click the image icon to the left of the target instance to expand the database, table, and column information.

    6. In the Actions column of the expanded list, click Disable Encryption or Enable Encryption, and then click OK in the dialog box that appears.

    References

    • Integrate with EncJDBC: Use the EncJDBC driver to access the plaintext of encrypted columns from a Java application.

    • Integrate with the Go driver: Use the alibabacloud-encdb-mysql-go-client driver to access the plaintext of encrypted columns from a Go application.
