Use MSE Ingresses in Knative to distribute traffic and implement auto scaling based on requests - Container Compute Service

We recommend that you MSE Ingresses in Knative to distribute and route traffic in scenarios where a microservices architecture is used. MSE Ingresses are O&M-free, fully-managed Ingresses. You can use MSE Ingresses to implement auto scaling based on requests. You can precisely control the number of concurrent requests processed by a single pod, which helps you meet the traffic governance demands of large-scale cloud-native distributed applications.

Prerequisites

Knative is deployed in the ACS cluster. For more information, see Deploy Knative.
The MSE Ingress controller is installed and permissions are granted to the MSE Ingress controller. For more information, see Grant permissions to the MSE Ingress controller.

How it works

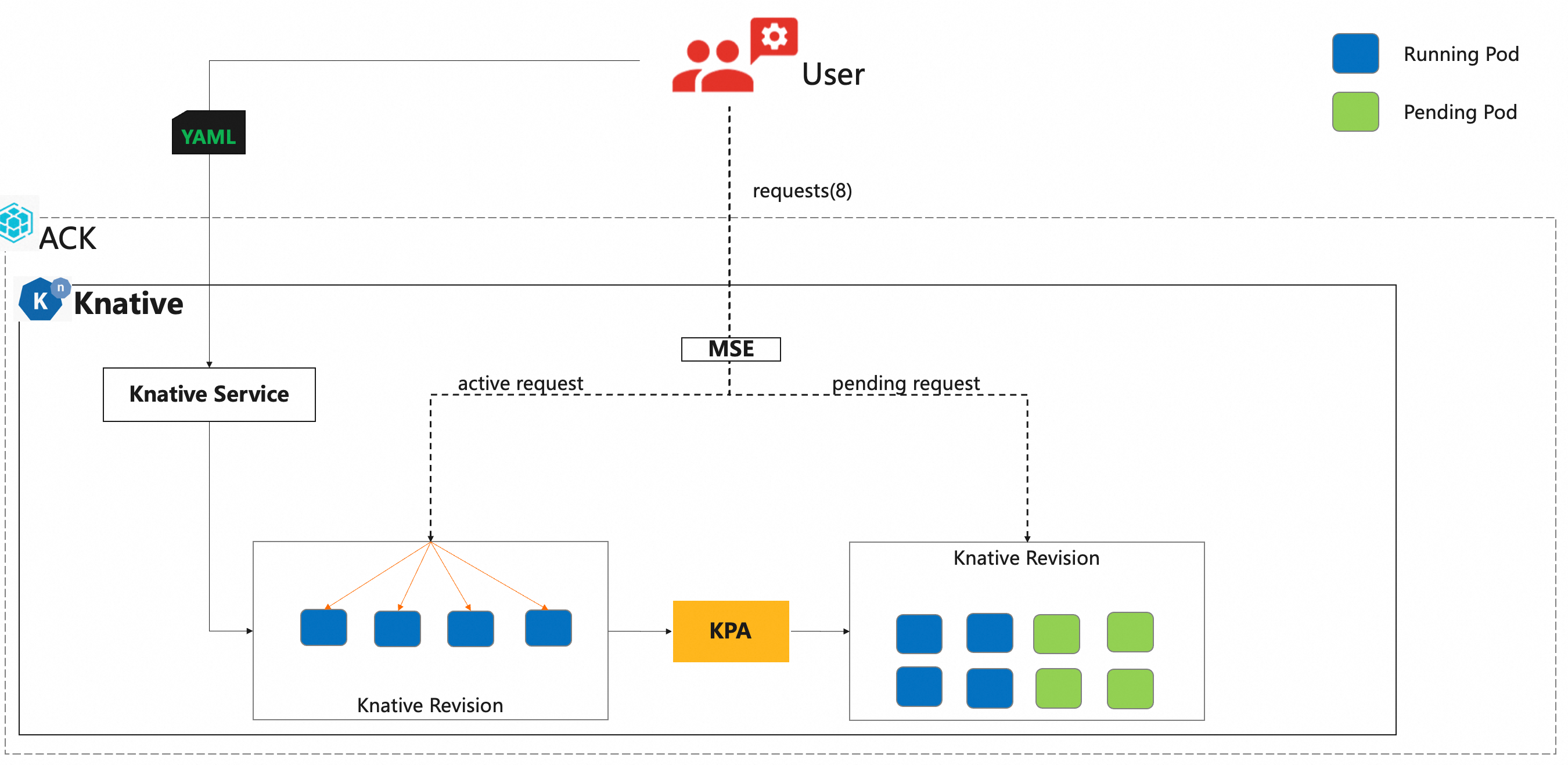

In the following figure, the Knative Pod Autoscaling (KPA) obtains the total number of concurrent requests from the MSE Ingress, calculates the number of pods required for processing the requests, and then scales pods. This implements load-aware auto scaling. The MSE Ingress can route requests to different services or versions based on routing rules and conditions.

Step 1: Deploy an MSE Ingress

Log on to the ACS console. In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click its ID. In the left-side navigation pane of the cluster details page, choose Applications > Knative.
On the Components tab, click Deploy Knative, select MSE for the Gateway parameter, and finish the deployment as prompted.

Step 2: Use the MSE Ingress to access Services

Log on to the ACS console. In the left-side navigation pane, click Clusters.
On the Clusters page, find the cluster that you want to manage and click its ID. In the left-side navigation pane of the cluster details page, choose Applications > Knative.

On the Services tab of the Knative page, set Namespace to default, click Create from Template, copy the following YAML content to the template editor, and then click Create.

The template creates a Service named helloworld-go.

Important

Replace {REGION-ID} with the region where your cluster resides so that the Knative Service can pull images as expected.

apiVersion: serving.knative.dev/v1
kind: Service
metadata:
  name: helloworld-go
spec:
  template:
    metadata:
      annotations:
        autoscaling.knative.dev/class: kpa.autoscaling.knative.dev # Scale pods based on MSE metrics. Pods can be scaled to zero.
        autoscaling.knative.dev/max-scale: '20' # Set the maximum number of pods allowed to 20.
    spec:
      containerConcurrency: 5 # Set the maximum number of concurrent requests that each pod can process to 5.
      containers:
      - image: registry-vpc.{REGION-ID}.aliyuncs.com/knative-sample/helloworld-go:73fbdd56 # {REGION-ID} is the region where your cluster resides, such as cn-hangzhou.
        env:
        - name: TARGET
          value: "Knative"

If the Status column of the Service displays Created, the Service is deployed.

On the Services page, record the domain name and gateway IP address of the helloworld-go Service in the Default Domain and Gateway columns, respectively.

Run the following command to access the helloworld-go Service:

curl -H "Host: helloworld-go.default.example.com" http://8.141.XX.XX # Replace the gateway IP and domain name with your actual data.

Expected output:

Hello Knative!

Step 3: Perform auto scaling based on the number of concurrent requests

Install the load testing tool hey.
For more information about hey, see Hey.

Run the following command to perform a stress test on the Service:

# Send 100,000 requests, and set the concurrency to 50 and request timeout period to 180 seconds.
hey -n 100000 -c 50 -t 180 -host "helloworld-go.default.example.com" "http://8.141.XX.XX"

Expected output:

Summary:
  Total:        86.0126 secs
  Slowest:      0.1672 secs
  Fastest:      0.0276 secs
  Average:      0.0337 secs
  Requests/sec: 1162.6199

  Total data:   1500000 bytes
  Size/request: 15 bytes

Response time histogram:
  0.028 [1]     |
  0.042 [95291] |■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■■
  0.056 [4573]  |■■
  0.069 [64]    |
  0.083 [19]    |
  0.097 [2]     |
  0.111 [0]     |
  0.125 [0]     |
  0.139 [18]    |
  0.153 [23]    |
  0.167 [9]     |


Latency distribution:
  10% in 0.0294 secs
  25% in 0.0305 secs
  50% in 0.0327 secs
  75% in 0.0367 secs
  90% in 0.0386 secs
  95% in 0.0405 secs
  99% in 0.0433 secs

Details (average, fastest, slowest):
  DNS+dialup:   0.0000 secs, 0.0276 secs, 0.1672 secs
  DNS-lookup:   0.0000 secs, 0.0000 secs, 0.0000 secs
  req write:    0.0000 secs, 0.0000 secs, 0.0009 secs
  resp wait:    0.0336 secs, 0.0276 secs, 0.1671 secs
  resp read:    0.0000 secs, 0.0000 secs, 0.0009 secs

Status code distribution:
  [200] 100000 responses

The output indicates that 100,000 are sent. All requests are processed.

Run the following command to query the scaling of pods.
Note
The command runs permanently until you manually terminate it. You can press Ctrl + C to terminate the command.
```
kubectl get pods --watch
```

(Optional) Step 3: View the Knative monitoring dashboard

Knative provides out-of-the-box monitoring features. On the Knative page, click the Monitoring Dashboards tab to view the monitoring data of the specified Service. For more information about the Knative dashboard, see View the Knative dashboard.

References

You can specify custom domain names for Knative Services. For more information, see Configure a custom domain name.
You can configure a certificate to access Knative Services over HTTPS. For more information, see Configure a certificate to access Services over HTTPS.
You can deploy a gRPC Service in Knative to improve network efficiency. For more information, see Deploy a gRPC Service in Knative.
You can configure probes to monitor the health status and availability of Knative Services. For more information, see Configure port probing in Knative.
