Pods are the smallest deployable units in Kubernetes. A pod runs an instance of an independent application in Kubernetes. Each pod contains one or more containers that are tightly coupled. This topic describes how to view and modify pod configurations, and scale pods in the Container Service for Kubernetes (ACK) console.

View pods

View pod details

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Workloads > Pods.
  5. Find the pod that you want to view and click View Details in the Actions column.
    You can view details of pods by using one of the following methods:
    • Method 1: In the left-side navigation pane of the cluster details page, choose Workloads > Deployments. Find the application that you want to manage and click the name of the application. On the Pods tab, click the name of the pod to view details.
    • Method 2: In the left-side navigation pane of the details page, choose Network > Services. Click the name of the Service that you want to manage. On the details page, find and click the name of the application that you want to manage. On the Pods tab, click the name of the pod to view details.
    Note On the Pods page, you can modify and delete pods. For pods that are created by using a Deployment, we recommend that you use the Deployment to manage the pods.
    The following table describes the status of pods.
    Status Description
    Initialized All init containers are started.
    Ready The pod is able to serve requests and added to the load balancing pools of all matching Services.
    ContainersReady All containers in the pod are ready.
    PodScheduled The pod has been scheduled to a node.
    For more information, see Pod lifecycle.

View pod log

You can view the log of a pod by using one of the following methods:

Navigate to the Pods tab, find the pod that you want to manage, and then click Logs on the right side of the page to view the log data.

Filter pods

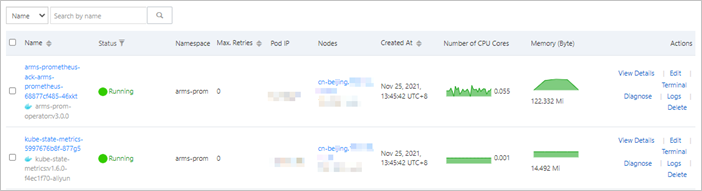

On the Pods page, you can filter pods by name, node, host IP, pod IP, and label. Pod

Pod diagnostics

On the Pods page, find the pod that you want to diagnose and click Diagnose in the Actions column. For more information, see Use the cluster diagnostics feature to troubleshoot cluster issues.

Modify the upper limit and lower limit of CPU and memory resources for pods

After you create an application, you can modify the upper limit and lower limit of CPU and memory resources for the application pods. In this example, a Deployment is used.

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Workloads > Deployments.
  5. On the Deployments page, select a Namespace. Find the application that you want to manage and click Edit in the Actions column.
  6. On the Edit page, modify the upper limit and lower limit of CPU and memory resources based on your requirements. Then, click Update.
    资源设置

Modify pod configurations

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Workloads > Pods.
  5. On the Pods page, find the pod that you want to manage and click Edit on the right side of the page.
  6. In the Edit YAML dialog box, modify the configurations and click Update.

Manually scale pods for an application

After an application is created, you can scale the pods that are provisioned for the application based on your business requirements.

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Workloads > Deployments.
  5. Select the namespace where the Deployment is deployed, find the Deployment, and then click Scale in the Actions column.
  6. In the Scale dialog box, set Desired Number of Pods to 4 and click OK.
    Note By default, Deployments are updated based on the rollingUpdate strategy. This ensures that a minimum number of pods are available during the update. You can change this number in the YAML file.
