How to configure the HTTP Request component - Chat App Message Service

This topic describes how to configure the HTTP Request component, which sends HTTP requests to a specified URL.

Component information

Icon	Name
	HTTP Request

Prerequisites

To configure this component, access the flow canvas by using an existing flow or creating a new one.

Go to the canvas of an existing flow
In the Chat Flow > Flow Management > Flow Name
Create a new flow to open its canvas. For more information, see Create a flow.

Procedure

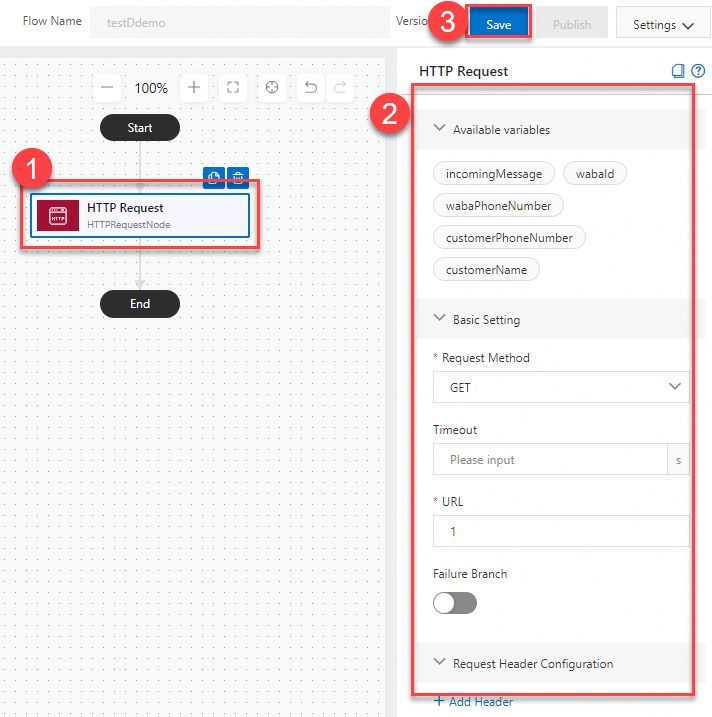

Click the HTTP Request component icon on the canvas to view its configuration panel on the right.
The configuration panel on the right contains an available variables section with variables such as incomingMessage, wabaId, and wabaPhoneNumber, and a basic settings section. In the basic settings section, you can configure Request Method (GET by default), Timeout (in seconds), URL (required), and the Failure Branch switch. You can also click Add Request Header and Add Path Parameter to add more options. When finished, click Save in the upper-right corner.
Configure the component's parameters as required. For detailed descriptions, see Parameters.
After you finish the configuration, click Save. In the dialog box that appears, click Save.

Parameters

Parameter	Description	Example
Request Method	The HTTP method for the request. The following methods are supported: POST GET	The basic settings also include the following parameters: Timeout (in seconds), URL (required), and Failure Branch (a switch that is disabled by default).
Timeout	The amount of time in seconds to wait for a response before the request times out.
URL	The endpoint URL that receives the request.

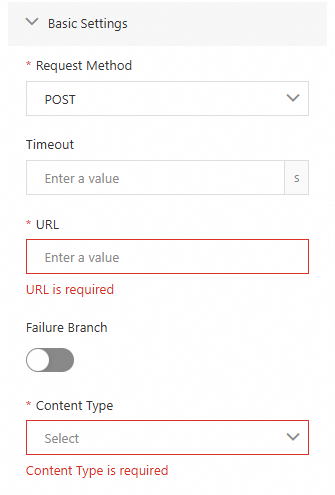

Content Type	If you set Content Type to POST, you must specify the Content Type. The following types are supported: application/json application/x-www-form-urlencoded
Failure Branch	Toggle this switch to enable a separate branch in the flow to handle failed requests.
Request Header Configuration	Configure the following parameters for the request header: Key Value	In Key, enter `accesstoken`, and in Value, enter the corresponding token value. To reference an existing variable, click Insert Variable. To add more request headers, click Add Request Header.

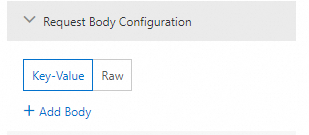

Request Body Configuration	If Request Method is POST, you can configure the request body in one of the following formats: key-value: key value raw: Manually enter the content for the request body. For details, see Request body configuration.	When configuring request body parameters, select the key-value mode and set the Key and Value, or select the raw mode and manually enter the content. You can click Insert Variable to add variable values or click Add Body to add more parameters.
Request Path Configuration	If Request Method is GET, you can configure request path parameters: Key Value	When you configure the URL parameters for a GET request, set Key to `phone` and Value to `{{$.PhoneNumber}}`. You can click + Insert Variable to add a variable value or click + Add Parameter to add more parameters.

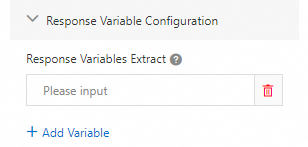

Response Variable Configuration	Ensure the variable name matches a key in the JSON response object.	In the Response Variable Configuration section, enter a variable name. Click + Add Variable to add more variables, or click the delete icon to remove an existing variable.

Request body configuration

You can configure the request body in two modes: Key Value and Original Value.

Key Value: This mode is recommended for simple request body structures. For example:
Set the first key-value pair's Key to MyName and Value to haiwei.dhw. For the second pair, set its Key to customerName and Value to the variable {{customerName}}.
If the Content Type is application/json, the data format is: {"myName": "haiwei.dhw", "customerName": "{{customerName}}"}. If the Content Type is application/x-www-form-urlencoded, the data format is: "myName=haiwei.dhw&customerName={{customerName}}".
Original Value: This mode is recommended for complex request structures. It allows you to freely edit the entire request body. The content you enter must match the selected Original Value, either application/json or application/x-www-form-urlencoded.
application/json

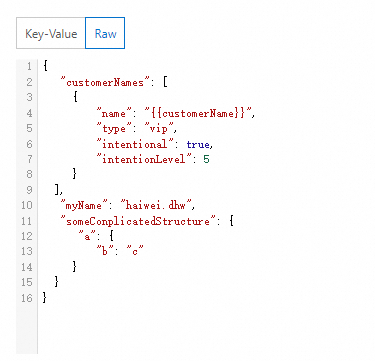

If the Content Type is application/json, the raw request body can be structured as follows:
```
{
  "customerNames": [
    {
      "name": "{{customerName}}",
      "type": "vip",
      "intentional": true,
      "intentionLevel": 5
    }
  ],
  "myName": "haiwei.dhw",
  "someConplicatedStructure": {
    "a": {
      "b": "c"
    }
  }
}
```
application/x-www-form-urlencoded

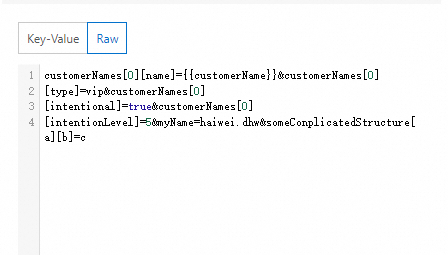

If the Content Type is application/x-www-form-urlencoded, the raw request body can be structured as follows:
```
customerNames[0][name]={{customerName}}&customerNames[0]
[type]=vip&customerNames[0]
[intentional]=true&customerNames[0]
[intentionLevel]=5&myName=haiwei.dhw&someConplicatedStructure[a][b]=c
```
