This topic provides answers to some frequently asked questions about Bastionhost.

Bastionhost provides more features and constantly improves user experience by rolling out scheduled version updates. Features vary among different versions of bastion hosts. For more information, see Versions and documents. FAQ is divided into the following sections based on different versions of bastion hosts:

Can I use a key pair for authentication when I log on to a bastion host in SSH mode?

Yes, you can use a key pair or a password for authentication when you log on to a bastion host in SSH mode over port 60022.

For more information about how to use a key pair to log on to a bastion host, see Manage users.

For more information about how to log on to a bastion host in SSH mode, see one of the following links based on your operating system:

Can I directly connect to the IP address of an ECS instance after I purchase a bastion host?

By default, no control policies on IP addresses of Elastic Compute Service (ECS) instances are configured on bastion hosts. If an access control policy on the ECS instance is not configured, you can connect to the IP address of the ECS instance.
Note To ensure the compliance and integrity of server O&M, we recommend that you configure access control policies to allow only bastion host-based O&M operations on the ECS instance. For more information about how to configure access control policies, see Create a control policy.

What are the configurations to allow O&M personnel to access an ECS instance only from a bastion host?

You can configure a security group for the ECS instance to allow access only from the IP address of the bastion host. You can also save logon credentials only in the bastion host instead of disclosing the credentials to the O&M personnel. This way, the O&M personnel can access the ECS instance only from the bastion host. For more information about how to configure a security group, see Add a security group rule.

What do I do if an access failure message appears after I log on to a bastion host and attempt to access an ECS instance from the bastion host?

Check the firewall settings and the security group of the ECS instance. Make sure that no access control rules are configured to prohibit access to the ECS instance over the O&M port from a bastion host.

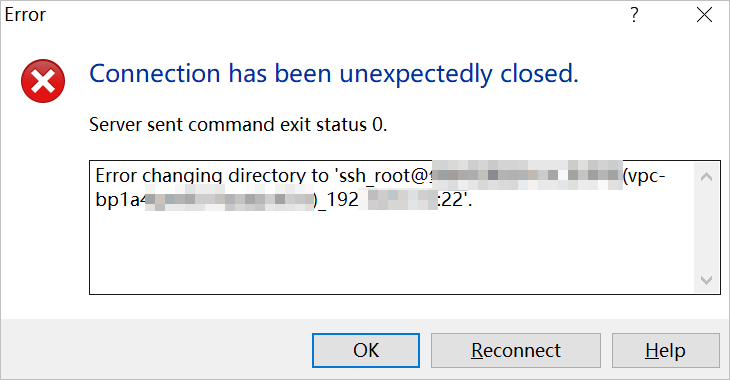

What do I do if the error message shown in the following figure appears when I use WinSCP to log on to an SFTP server?

Issue

When I use WinSCP to log on to an SFTP server, the error message appears, as shown in the following figure.Error message

Cause

The error message appears because of the caches on WinSCP.

Solution

If the error message appears because of the caches on WinSCP, you must perform the following steps on WinSCP:
  1. Open WinSCP.
  2. In the left-side navigation pane, choose Environment > Directories.
  3. In the Directory reading options section, clear all options. Logon dialog box of WinSCP
  4. Click Save.
  5. In the server list, click the SFTP server to log on to the server again.

I am prompted to enter a password when I use a private key to access an ECS instance. What do I do?

You can perform the following operations to troubleshoot this issue:

1. Check the type of your private key. You can access an ECS instance from your bastion host only by using a Rivest-Shamir-Adleman (RSA) private key that is generated by the ssh-keygen tool. The private key does not contain a password.

2. You can use a private key to access an ECS instance and check whether valid credentials are added to the required authorized groups. For more information about how to configure a private key for a bastion host that runs V3.2, see Configure SSH private key-based authentication.

What do I do if I cannot access an ECS instance from my bastion host?

You can perform the following operations to troubleshoot this issue:
  • Check the connection that is established between your bastion host and the ECS instance. Make sure that your bastion host can be connected to the ECS instance. For more information about how to check the connection that is established between a bastion host and an ECS instance, see Diagnose network issues.
  • Check whether the security group rules of the ECS instance are properly configured. Make sure that you can access O&M ports of the ECS instance from your bastion host.
  • Check whether access control limits, such as iptables, exist on the firewall of the ECS instance or other intermediate devices.
  • Check the port information that is used to access the ECS instance in Bastionhost. Make sure that the added credentials, such as the username, the key pair, or the password of the ECS instance, are valid.

If I am an O&M engineer, how do I change the password to log on to a bastion host?

You can use one of the following methods to change the password to log on to a bastion host:
  • Contact the administrator of the bastion host.
  • Log on to the bastion host and change the password.

What ports are enabled for a bastion host? Can I change these ports?

The following ports are enabled for a bastion host by default:
  • HTTPS port 443 in a web console
  • SSH-compliant O&M port 60022
  • RDP-compliant O&M port 63389
  • Audit port 9443
Note You cannot change these ports in Bastionhost V2 and V3.1. You can change these ports in Bastionhost V3.2. Ports 1 to 1024 are reserved for Bastionhost. Do not change the ports that are enabled for a bastion host by default to reserved ports.

Which versions of bastion hosts support calling API operations to manage hosts, host groups, host accounts, users, and user groups, and grant permissions on hosts?

How do I store the O&M logs of Bastionhost in Log Service?

You can store the O&M logs of Bastionhost in a specific Logstore in Log Service. The O&M logs of Bastionhost record O&M operations that O&M engineers perform by using bastion hosts. After the O&M logs of Bastionhost are configured to be stored in Log Service, Bastionhost delivers and stores the O&M logs in the specific Logstore in Log Service. You can perform the following steps to store the O&M logs of Bastionhost in Log Service:

  1. If Log Service is not activated, log on to the Log Service console and activate Log Service as prompted.
  2. In the Log Application section, click Log Audit Service.
  3. On the Global Configurations tab, complete the settings for collecting O&M logs.
    1. In the Region of the Central Project drop-down list, select a region for centralized storage of logs.
    2. Find Bastion Host in the Cloud Products column, turn on Operations Log, and then specify a retention period for O&M logs in the Storage Type column.
  4. Optional:View the O&M logs of Bastionhost.
    1. On the left-side navigation submenu, click the Audit Query icon.
    2. In the left-side navigation pane, click Bastion Host under Central.
    3. On the bastion_log tab, view the O&M logs.

How do I allow the egress IP addresses of a bastion host in a security group of an ECS instance?

Before you use a bastion host to perform O&M operations on an ECS instance, you must create a security group rule for the ECS instance to allow the egress IP addresses of the bastion host. After you create a security group rule for the ECS instance to allow the egress IP addresses of the bastion host, the bastion host can communicate with the ECS instance. Then, you can use the bastion host to perform O&M operations on the ECS instance. You can perform the following steps to create the security group rule:
  1. Log on to the Bastionhost console.
  2. Find the bastion host that you want to use to perform O&M operations and move the pointer over the Egress IP.
  3. Copy and save the public and private IP addresses of the bastion host.
  4. Create a security group rule for the ECS instance to allow the public and private IP addresses.

    For more information about how to create a security group rule, see Add a security group rule.

How do I access an ECS instance from my bastion host by using an internal IP address?

You can use one of the following methods:
  • Import an ECS instance. By default, you can access the ECS instance by using an internal IP address. For more information, see Import ECS instances.
  • In the left-side navigation pane of the console of your bastion host, choose Assets > Hosts. On the Hosts page, select the host whose O&M IP address you want to change and choose Batch > Modify O&M IP Address. In the Modify O&M IP Address dialog box, set Host IP Address Type to Private IP Address and click OK.

How do I configure my bastion host if I want to access an ECS instance by using a port other than the SSH- or RDP-compliant standard port?

Bastion hosts support custom O&M ports. You can perform the following steps to specify a port in Bastionhost: In the left-side navigation pane of the console of your bastion host, choose Assets > Hosts. On the Hosts page, select the host whose O&M ports you want to change and choose Batch > Modify O&M Port. In the Modify O&M Port dialog box, specify the Protocol and Port parameters and click OK.

How long can audit videos in a bastion host be stored?

Audit videos for a bastion host that runs V3.2 can be stored for more than half a year in Object Storage Service (OSS). When the storage space for Bastionhost is about to reach the upper limit, the earliest audit logs and videos are automatically cleared.

If I use an RDP-based client, how do I switch to another host to perform O&M operations?

If you use an RDP-based client, perform the following steps to switch to another host to perform O&M operations:
  1. Click the Start icon in the lower-left corner of your desktop.
  2. In the Start menu, click the Power icon.
  3. In the menu that appears, click Disconnect.
  4. In the host list, select the host on which you want to perform O&M operations and log on to the host.

How do I configure a server as an HTTP or SOCKS5 proxy server?

In this example, an ECS instance that runs CentOS 8.3 is used to describe how to configure a server as an HTTP or SOCKS5 proxy server.

Note
  • Before you configure a proxy server, make sure that the network between your bastion host and the proxy server is connected.
  • You can use Linux servers as SSH proxy servers without the need to install components or make configurations on the Linux servers.
  1. Log on to the proxy server.
  2. Run the yum install 3proxy command to install 3proxy.
  3. Run the vim /etc/3proxy.cfg command to modify the configuration file.
    • Configure the username and password of the proxy server. Configure the username and password
    • Configure access control parameters. Access control parameters
    • Enable HTTP and SOCKS5 proxies and specify the listening port and the source IP address that is used to access the proxy server.
  4. Run the bin/systemctl start 3proxy.service command to enable the proxies.
  5. Run the iptables -F command to disable the firewall of the server to ensure that the server can be accessed.
  6. Create a security group rule for the server. For more information, see Add a security group rule.
    Note When you create a security group rule, set Port Range to the listening port that is specified in Step 3 and Authorization Object to the egress IP addresses of your bastion host. To obtain the egress IP addresses, find your bastion host on the Instances page of the Bastionhost console and click Egress IP.

    After you create the security group rule for the server, the proxy server is configured.
