ApsaraDB for OceanBase:Perform PL compilation and debugging

Background information

PL stands for Procedural Language and is an extension to SQL. PL incorporates characteristics of programming languages based on SQL statements, organizes data operations and query statements in PL code, and implements complex features by using logic judgment and loops.

You can use PL to program a variety of programs with advanced features and encapsulate business logic in a database. This ensures better abstraction and higher security, reduces network interactions, and accelerates calls, thereby improving performance.

PL program development is important daily work for database service developers. Like the support module for SQL statements, the PL debugging module is also of great significance. Therefore, developers require a PL development area and a debugging feature during programming.

You can use PL statements to write database objects such as functions, stored procedures, packages, and triggers.

In OceanBase Developer Center (ODC) V2.2.0 and later, you can create, compile, run, and debug PL objects and anonymous blocks. You can compile PL statements in the editing section of the anonymous block window. You can also edit and debug created PL objects. We recommend that you use ODC of the latest version for better experience.

Prerequisites

• The following table lists the PL support information of ODC.

  Feature	Supported object	Supported data source	Supported version
  Compilation	Functions, stored procedures, and packages	OceanBase Oracle and OB Cloud Oracle	V2.2.7x and V3.0.0 and later
  Debugging	Functions, stored procedures, and anonymous blocks	OceanBase Oracle	V3.2.3 and later
  Running	Functions and stored procedures	OceanBase Oracle, OB Cloud Oracle, OceanBase MySQL, OB Cloud MySQL	V2.0.x and later
  	Functions and stored procedures	MySQL	V5.7
  Running	Packages and anonymous blocks	OceanBase Oracle and OB Cloud Oracle	V2.0.x and later

  Pay attention to the following rules:

  • If the data source is an OceanBase cluster instance, you must connect to it by using OceanBase Database Proxy (ODP). This instance does not support debugging.

  • The anonymous block window is displayed only for OceanBase Oracle and OB Cloud Oracle data sources.

  • ODC of a version earlier than V3.2.3 does not support debugging in the advanced RISC machine (ARM) architecture.

PL compilation

Assume that you want to create a stored procedure namedPROC_VARCHAR2in the GSH database.

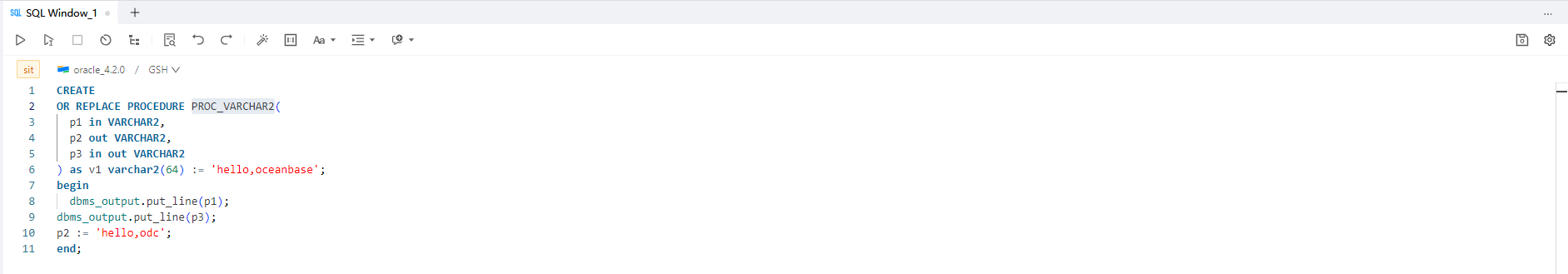

1. Create a stored procedure in the SQL window.



   CREATE OR REPLACE PROCEDURE PROC_VARCHAR2(p1 in VARCHAR2, p2 out VARCHAR2, p3 in out VARCHAR2)
   as
   v1 varchar2(64) := 'hello,oceanbase';
   begin
   dbms_output.put_line(p1);
   dbms_output.put_line(p3);
    p2 := 'hello,odc';
   end;

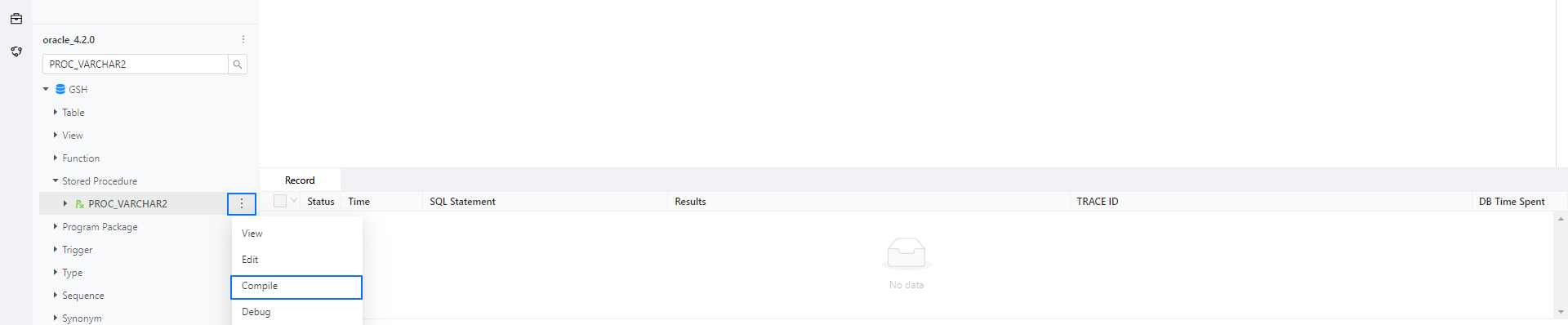

2. In the left-side navigation pane of the SQL development window, click the More icon next to the stored procedurePROC_VARCHAR2in the list of store procedures, and then select Compile in the drop-down list.

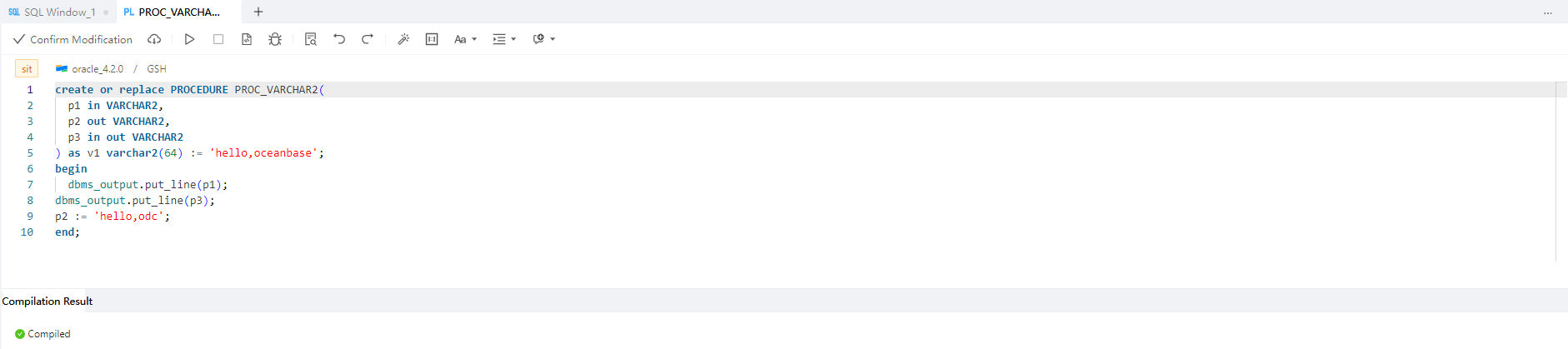

3. Compile the PL statement and view the compilation result.



PL debugging

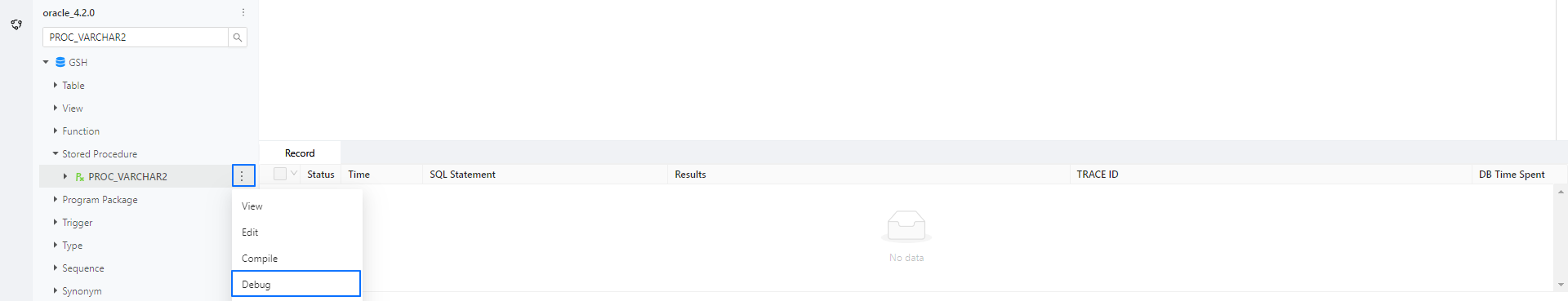

1. In the left-side navigation pane of the SQL development window, click the More icon next to the stored procedurePROC_VARCHAR2in the list of store procedures, and then select Debug in the drop-down list.

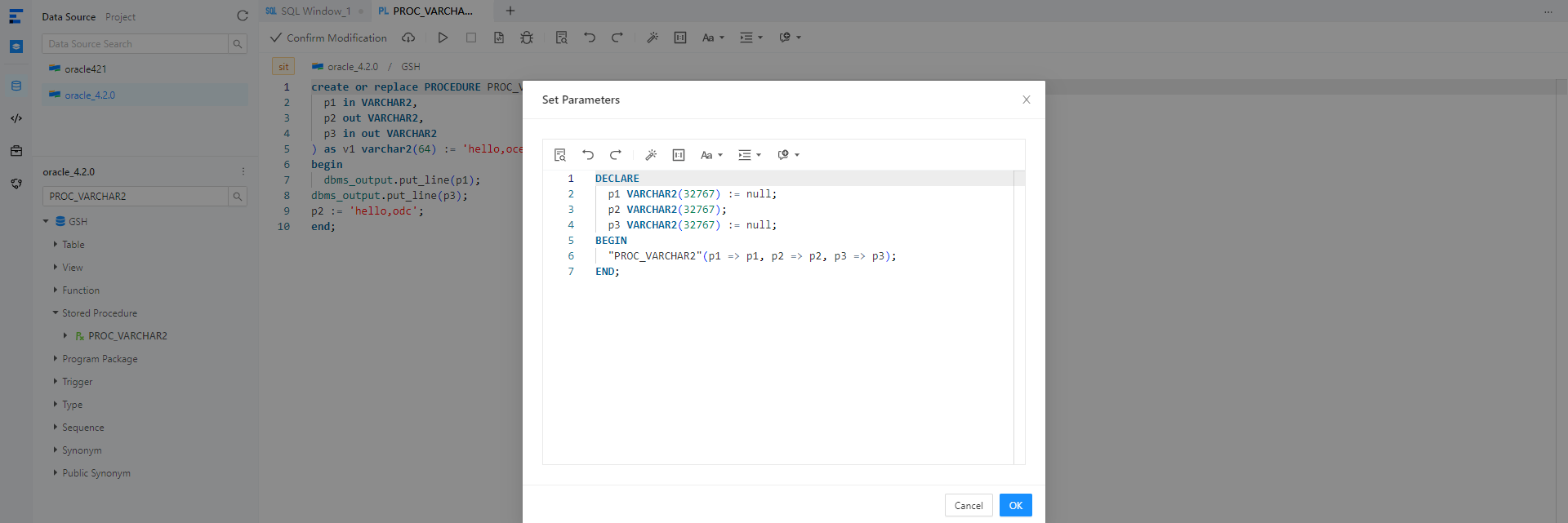

2. Set the parameters and click OK.

   Important

   For OceanBase Database V4.0.0 and later, you must obtain the debugging permission before debugging. Here is the syntax:GRANT DEBUG CONNECT SESSION TO GSH; GRANT DEBUG ANY PROCEDURE TO GSH;

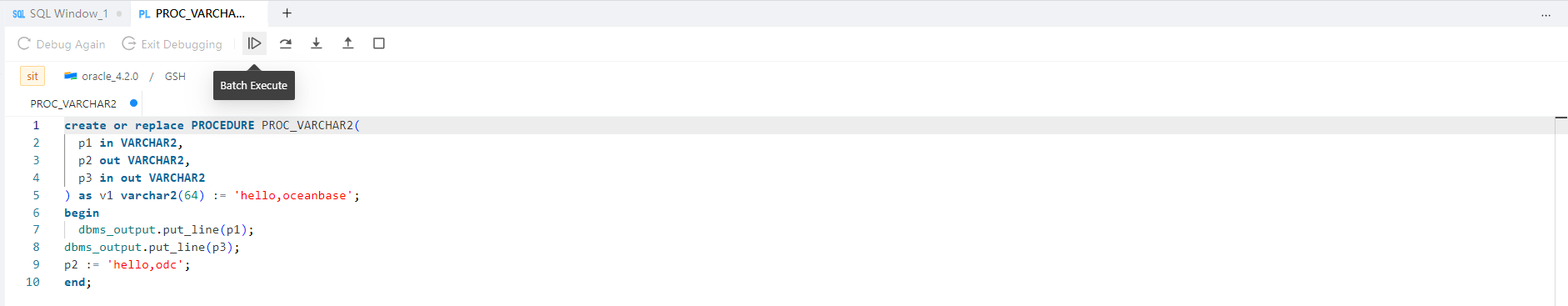

3. Go to the debugging page and click Batch Execute to execute the PL statements.
