Alibaba Cloud CDN supports the remote authentication feature. You can use the feature to redirect requests to a specified server for authentication. If a request passes the authentication, the request is redirected to CDN points of presence (POPs). If a request fails the authentication, the request is rejected or requests from the client are throttled. This way, the resources on CDN POPs are protected from unauthorized access.

This topic consists of the following sections:

Feature overview

Remote authentication is similar to URL authentication. Both are used to protect resources from unauthorized access. Only authorized requests can retrieve resources from CDN POPs. Differences between URL authentication and remote authentication:
  • URL authentication: After you apply authentication rules that are created for a domain name to CDN POPs, the CDN POPs complete the authentication process.
  • Remote authentication: You can specify a self-managed authentication server. After CDN POPs receive client requests, the requests are redirected to the specified authentication server.

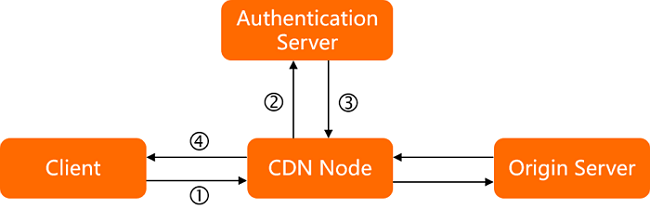

The following figure shows how remote authentication works.How remote authentication works
No. Description
(1) A client sends a request to a CDN POP. The request carries parameters that are used for authentication.
(2) The CDN POP receives the request and then redirects the request to the authentication server. You can specify whether the request is processed by the CDN POP before the request is redirected to the authentication server.
(3) The authentication server checks the parameters in the request and then returns the authentication result to the CDN POP.
(4) The CDN POP performs the specified action based on the authentication result and then returns data to the client.
Examples:
  • Example 1: The request passes the authentication. The CDN POP returns the requested resources to the client.
  • Example 2: The request fails the authentication. The CDN POP returns the HTTP 404 status code to the client.
  • Example 3: The request fails the authentication. The CDN POP throttles the requests that are sent from the client.
  • Example 4: The authentication process times out. The CDN POP performs the specified action, such as the allow action and the reject action.

Procedure

  1. Log on to the Alibaba Cloud CDN console.
  2. In the left-side navigation pane, click Domain Names.
  3. On the Domain Names page, find the domain name that you want to manage and click Manage in the Actions column.
  4. In the left-side navigation pane of the domain name, click Access Control.
  5. Click the Remote Authentication tab.
  6. Turn on Remote Authentication and configure the parameters as prompted.
    Note After you enable remote authentication, all user requests are redirected to the authentication server. If a large number of requests are sent to CDN POPs, make sure that the authentication server can handle traffic spikes without compromising performance.
    Parameter Description
    Authentication Server Address The address of the authentication server. This address must allow the authentication server to access the Internet. Alibaba Cloud CDN checks the specified server address and the address format.
    • Supported formats
      The HTTP and HTTPS addresses are supported.
      • http://example.com/auth
      • https://example.com/auth
      • http://192.0.2.1/auth
      • https://192.0.2.1/auth
    • Address requirements

      The server address cannot contain the 127.0.0.1 string or localhost. Otherwise, the server address is considered invalid.

    Request Method The request method that is supported by the authentication server. Valid values: GET, HEAD, and POST. Default value: GET.
    File Types
    • All: The authentication server checks all file types.
    • Specified: The authentication server checks only the file types that you specify.
      • You can specify one or more file types. Separate multiple file types with vertical bars (|). Example: mp4|flv.
      • File types are case-sensitive. For example, .jpg and JPG are considered different file types.
    Parameters to Retain The URL parameters that you want the authentication server to check. Valid values: Retain All Parameters, Retain Specified Parameters, and Delete All URL Parameters.
    • If you specify multiple parameters that you want to retain, separate the parameters with vertical bars (|). Example: user|token.
    • Parameters are case-sensitive. For example, key and KEY are considered different parameters.
    Custom Parameters The parameters that you want to add to the URLs of requests before the requests are redirected to the authentication server. You can specify key-value pairs or select the variables that are provided by Alibaba Cloud CDN.
    • When you specify key-value pairs, take note of the following rules:
      • Separate values with vertical bars (|). Example: token=$arg_token|vendor=ali_cdn.
      • Values are case-sensitive. For example, key and KEY are considered different values.
    • If you select the variables that are provided by Alibaba Cloud CDN, the values of the selected variables are added to client requests before the requests are redirected to the authentication server.

      For example, if you select the $http_host variable, host=$http_host is added to the URLs of requests before the requests are redirected to the authentication server. In this example, host indicates the value of the Host request header. For more information about the variables, see Variables.

    Request Headers to Retain The request headers that you want the authentication server to check. Valid values: Retain All Request Headers, Retain Specified Request Headers, and Delete All Request Headers.
    • If you specify multiple request headers that you want to retain, separate the request headers with vertical bars (|). Example: user_agent|reffer|cookies.
    • Request headers are not case-sensitive. For example, http_remote_addr and HTTP_Remote_Addr are considered the same request header.
    Note If you select Retain All Request Headers, CDN POPs delete the Host header from requests. If you want to retain the Host header in requests, you can select Retain Specified Request Header or configure the Custom Parameters parameter. The Host header in requests that are redirected to the authentication server specifies the accelerated domain name. Therefore, CDN POPs automatically delete the Host header from requests. Otherwise, the authentication server may fail to identify these requests and return errors such as the HTTP 404 status code, which indicates authentication failures.
    Custom Parameters The parameters that you want to add to request headers before the requests are redirected to the authentication server. You can specify key-value pairs or select the variables that are provided by Alibaba Cloud CDN.
    • When you specify key-value pairs, take note of the following rules:
      • Separate request headers with vertical bars (|). Example: User-Agent=$http_user_agent|vendor=ali_cdn.
      • Request headers are not case-sensitive. For example, http_remote_addr and HTTP_Remote_Addr are considered the same request header.
    • If you select the variables that are provided by Alibaba Cloud CDN, the values of the selected variables are added to client requests before the requests are redirected to the authentication server.

      For example, if you select the $http_host variable, host=$http_host is added to the URLs of requests before the requests are redirected to the authentication server. In this example, host is the value of the Host request header. For more information about the variables, see Variables.

    Passes Authentication The HTTP status code that is returned by the authentication server if a request passes the authentication.

    If you set the HTTP status code to 200, the authentication server returns the HTTP 200 status code to CDN POPs for client requests that pass the authentication.

    If the HTTP status code that is returned by the authentication server does not indicate whether a request passes or fails the authentication, the request passes the authentication. For example, if the HTTP status code that is specified for requests that pass the authentication is 200 but the authentication server returns the HTTP 201 status code for a request, the request passes the authentication. This ensures that no request is blocked due to exceptions.

    Fails Authentication The HTTP status code that is returned by the authentication server if a request fails the authentication.

    If you set the HTTP status code to 403, the authentication server returns the HTTP 403 status code to CDN POPs for client requests that fail the authentication.

    If the HTTP status code that is returned by the authentication server does not indicate whether a request passes or fails the authentication, the request passes the authentication. For example, if the HTTP status code that is specified for requests that fail the authentication is 403 but the authentication server returns the HTTP 404 status code for a request, the request passes the authentication. This ensures that no request is blocked due to exceptions.

    Custom HTTP Status Code The HTTP status code that is returned from CDN POPs to clients after the POPs receive an HTTP status code indicating that the request fails the authentication from the authentication server.

    If you set the HTTP status code to 403, the CDN POPs return the HTTP 403 status code to clients for requests that fail the authentication.

    Timeout The timeout period starts when a CDN POP redirects a request to the authentication server and ends when the CDN POP receives the authentication result from the authentication server. The timeout period is measured in milliseconds. You can set the timeout period to up to 3,000 milliseconds.
    Action After Timeout The action that you want the CDN POPs to perform on a request when the authentication on the request times out. Valid values: Allow and Reject.
    • Allow: When the authentication on a request times out, the CDN POP returns the requested resources to the client.
    • Reject: When the authentication on a request times out, the CDN POP rejects the request and then returns the HTTP status code that is specified in the Custom HTTP Status Code field to the client.
  7. Click OK.

    After you enable remote authentication, you can modify the settings of remote authentication or disable remote authentication on the Remote Authentication tab.

Variables

When you add custom parameters, you can select the variables that are provided by Alibaba Cloud CDN. The following table describes the variables.
Variable Description
$http_host The value of the Host header.
$http_user_agent The value of the User-Agent header.
$http_referer The value of the Referer header.
$http_content_type The value of the Content-Type header.
$http_x_forward_for The value of the X-Forward-For header.
$remote_addr The client IP address.
$scheme The protocol of the request.
$server_protocol The protocol version of the request.
$uri The original URI of the request.
$args The query string of the request URL. The query string does not include the question mark (?).
$request_method The request method.
$request_uri The content of uri+'?'+args.

API references

BatchSetCdnDomainConfig
