Container Service for Kubernetes:Build a CI/CD pipeline using ACK One GitOps and ACR

Prerequisites

• This tutorial applies only to applications created with the ACK One GitOps system.

• This tutorial applies only to Kustomize or Helm applications hosted in a Git repository.

• You have enabled the fleet management feature.

• Obtain the KubeConfig for the Fleet instance from the ACK One console, and connect to the Fleet instance using kubectl.

• The GitOps feature is enabled for your ACK One Fleet instance. For more information, see Log on to the GitOps system.

• You have deployed the Kruise Rollout component in the Staging and Production clusters and installed the kubectl-kruise component.

How it works

This tutorial uses ACK One GitOps and ACR to build a CI/CD pipeline for Dev, Staging, and Production clusters. After you commit code changes to a Git repository, the pipeline automatically updates your application with the latest image and deploys it to each environment in the following ways:

• Dev cluster: The application automatically syncs and deploys the latest image.

• Staging and Production clusters: The application is synced manually, and the latest image is deployed through a canary release by using a Rollout controller.

1. Prepare a business code repository and an application deployment repository.

2. After enabling and logging in to ACK One GitOps, the operations team configures the CI build process and rules, and associates an ACR Enterprise Edition instance.

3. The development team pushes code to the code repository. This triggers the ACR Enterprise Edition instance to build an image and push the new version to the ACR image repository.

4. ArgoCD Image Updater detects the changes in the image repository and writes the new image tag back to the application deployment code repository.

5. ACK One GitOps detects the change in the image tag in the application deployment repository and triggers the application to deploy the latest image to the continuous integration development (Dev) cluster.

   • For an application configured with automated sync, ACK One GitOps automatically changes the application's image version.

   • ArgoCD Image Updater monitors the image repository for updates to images that match the configured rules.

   • ArgoCD monitors the application deployment repository for changes to YAML files.

6. After the continuous deployment is complete, the development team verifies that the application in the Dev environment works as expected.

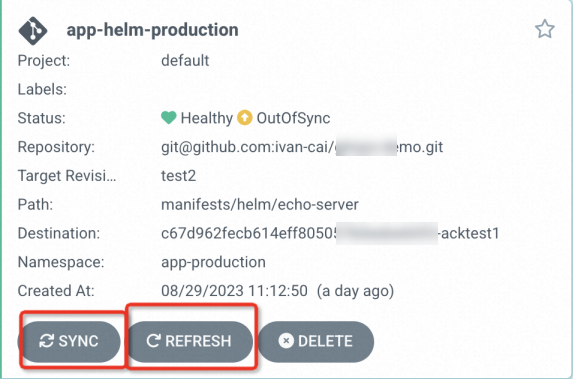

7. After successful verification in the Dev environment, the operations team manually triggers application synchronization for the Staging and Production environments. They then use Argo Rollouts or Kruise Rollout to perform a canary release to update the application images in the Staging and Production environments. For more information, see Use Argo Rollouts with ACK One Gitops for canary releases and Use Kruise Rollout with ACK One Gitops for canary releases.

   Important

   Staging and Production clusters typically require an additional release process for rolling updates across multiple clusters and regions. Code changes should not directly affect the Staging and Production environments.

Example

This tutorial uses the echo-server sample application. The business code involves two repositories, forked from the echo-server project and the echo-web-server project. The application deployment code repository is a fork of the gitops-demo project. Because application changes need to be written back to the deployment repository, you must first fork this repository to your own account. You can then modify the configuration as needed, such as the image.repository and image.tag in the environment-specific values.yaml file. For the final changes made in this tutorial, see the echo-server example.

image:
  repository: registry.cn-hangzhou.aliyuncs.com/haoshuwei24/echo-server
  pullPolicy: IfNotPresent
  # Overrides the image tag whose default is the chart appVersion.
  tag: "v1.0"

Step 1: Build a CI pipeline with ACR

Create an ACR image repository, bind it to your forked echo-server project, and set up build rules. For more information, see Build an image by using an Enterprise Edition instance. To pull images without credentials, either enable Pull from Anonymous Users on the overview page of the Enterprise Edition instance or see Use a credential helper to pull container images without a password.

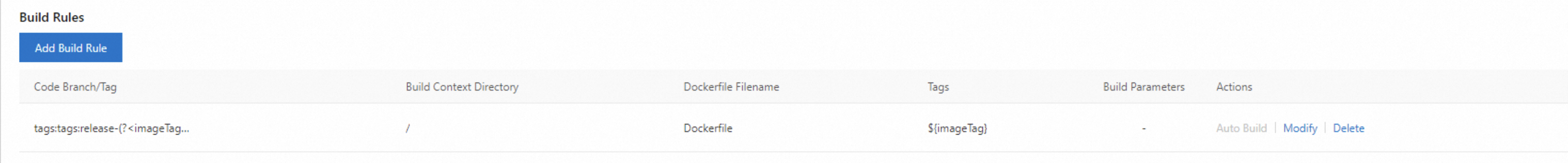

In this tutorial, the ACR build rule is configured as follows: When a new tag starting with release- is detected, ACR automatically builds a Docker image and pushes it to the corresponding image repository. You can customize the regular expression in the rule as needed.

Step 2: Configure credentials for ACR and Git repositories

ACK One GitOps automatically monitors the ACR image repository for changes, detects the latest image tag, and writes the latest tag information back to the Git repository to update the application. Configuring access credentials for GitOps enables it to interact with ACR and your Git repositories.

1. Install the latest version of the ArgoCD CLI.

2. Connect to the GitOps system. For more information, see Log on to the GitOps system.

3. Add a Git source repository. For more information, see Add a repository.

4. Create a GitOps application. For more information, see Application management.

5. Configure access credentials for the ACR image repository to allow GitOps to monitor image changes.

   ACR Enterprise Edition

   1. Save the following example as acr.yaml and then run kubectl apply -f acr.yaml to create a Secret that contains the access credentials.

      apiVersion: v1
      kind: Secret
      metadata:
        name: acr
        namespace: argocd
      type: Opaque
      stringData:
        acr: USERNAME:PASSWORD  # Replace USERNAME:PASSWORD with the credentials for your image repository.

   2. Log on to the Container Registry console to view and record the domain name of your ACR instance.

   3. Run kubectl edit ConfigMap -n argocd argocd-image-updater-config and add the ACR instance domain name to the data field. Do not include the image repository path.

      apiVersion: v1
      data:
        registries.conf: |
          registries:
          - name: AlibabaCloud Container Registry
            api_url: https://registry.****.cr.aliyuncs.com # ACR instance domain name
            prefix: registry.****.cr.aliyuncs.com # ACR instance domain name
            insecure: no
            credentials: secret:argocd/acr#acr
      kind: ConfigMap
      metadata: ...

   ACR Personal Edition

   Save the following example as acr.yaml and then run kubectl apply -f acr.yaml to create a Secret that contains the access credentials.

   apiVersion: v1
   kind: Secret
   metadata:
     name: acr
     namespace: argocd
   type: Opaque
   stringData:
     acr: USERNAME:PASSWORD  # Replace USERNAME:PASSWORD with the credentials for your image repository.

6. Configure access credentials for the Git repository to allow GitOps to write back application image changes.

By default, applications can write back container image changes if you provided credentials (a username and password or a private key) when adding the Git repository.

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  annotations:
    argocd-image-updater.argoproj.io/write-back-method: git

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  annotations:
    argocd-image-updater.argoproj.io/write-back-method: git:secret:argocd/git-creds

kubectl -n argocd create secret generic git-creds \
--from-literal=username=USERNAME \
--from-literal=password=PASSWORD

Step 3: Configure automatic updates and deployment

You can configure automatic application updates by adding the following annotations to the application resource. For more configuration details, see Next steps.

metadata:
  annotations:
    argocd-image-updater.argoproj.io/image-list: echoserver=demo-test-registry.cn-hangzhou.cr.aliyuncs.com/cidemo/echo-server,webserver=demo-test-registry.cn-hangzhou.cr.aliyuncs.com/cidemo/echo-web-server
    argocd-image-updater.argoproj.io/echoserver.helm.image-name: image.echoServer.repository
    argocd-image-updater.argoproj.io/echoserver.helm.image-tag: image.echoServer.tag
    argocd-image-updater.argoproj.io/echoserver.update-strategy: latest
    argocd-image-updater.argoproj.io/webserver.helm.image-name: image.echoWebServer.repository
    argocd-image-updater.argoproj.io/webserver.helm.image-tag: image.echoWebServer.tag
    argocd-image-updater.argoproj.io/webserver.update-strategy: latest
    argocd-image-updater.argoproj.io/write-back-method: git:secret:argocd/git-creds

• In the value of the argocd-image-updater.argoproj.io/image-list annotation, echoserver is an alias for the image repository address. You can configure multiple addresses by separating them with a comma (,). Modify this value to match your actual setup.

• This configuration is for an application orchestrated with Helm. For Kustomize applications, see Parameter settings for applications orchestrated by using Kustomize.

Step 4: Roll back the application

If an application deployment fails, you must roll it back. You can roll back an application in one of two ways.

# Revert the last commit.
git revert HEAD
# 'git revert HEAD~3..HEAD' reverts the last three commits from the current HEAD.
# 'git revert <commit-id-1> <commit-id-2> ... <commit-id-n>' can be used to revert multiple non-consecutive commits.

# After reverting, push to the original branch to trigger the CI/CD pipeline.
git push origin HEAD:${branch}

Step 5: Test the CI/CD pipeline

1. Based on the build rules you configured for the ACR CI pipeline, push a branch or tag that matches the rules to your source code repository. This triggers ACR to automatically build and push an image. You can run the following commands to push a new tag. Set the tag name as needed.

   git clone https://github.com/{xxx}/echo-web-server.git
   cd echo-web-server
   git tag release-v3
   git push origin release-v3

2. Verify that the new image has been built.

   1. Log on to the Container Registry console.

   2. In the top navigation bar, select a region.

   3. In the left-side navigation pane, select Instances.

   4. On the Instances page, click the Enterprise Edition instance that you want to manage.

   5. In the left-side navigation pane of the instance details page, choose Repository > Repositories.

   6. On the image repositories page, click the target image repository. In the left-side navigation pane, select Build. In the Build Logs area, verify that the new image has been successfully built.

3. After the new image is built, run the following command to view the logs of argocd-image-updater.

   kubectl -nargocd logs argocd-server-<xxxxx> -c argocd-image-updater -f

   Expected output:

   time="2023-07-19T07:35:41Z" level=info msg="Successfully updated image 'demo-test-registry.cn-hangzhou.cr.aliyuncs.com/cidemo/echo-web-server:v1.0' to 'demo-test-registry.cn-hangzhou.cr.aliyuncs.com/cidemo/echo-web-server:v3-5a7147', but pending spec update (dry run=false)" alias=echowebserver application=echo-web-server
   time="2023-07-19T07:35:41Z" level=info msg="Committing 1 parameter update(s) for application echo-web-server" application=echo-web-server

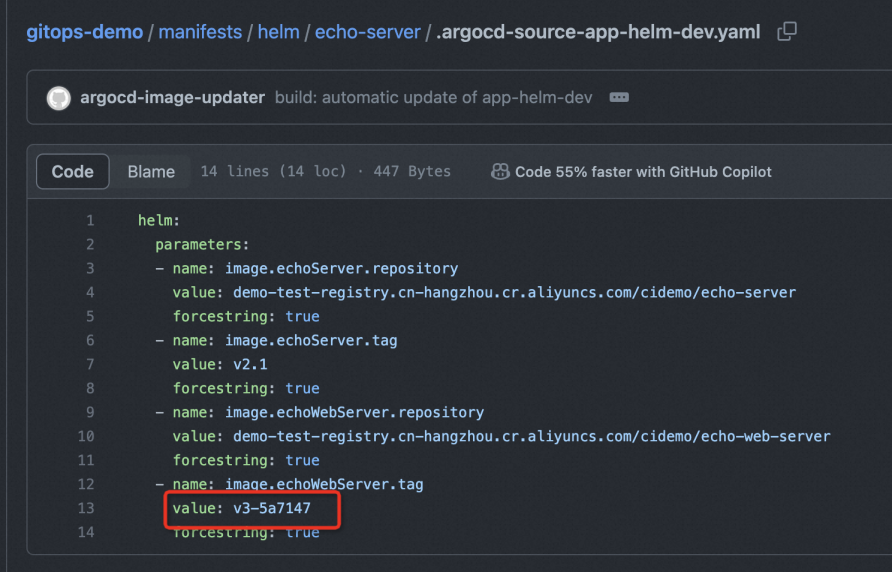

4. On GitHub, check the application deployment code repository to see if a manifests/helm/echo-server/.argocd-source-${appname}.yaml file has been automatically generated. If the file is present, the write-back was successful. In this tutorial, three such files are generated, one for each application in the Dev, Staging, and Production environments. The following figure shows an example of the file content for the Dev environment.



5. Verify that the image of the Deployment in the Dev environment has been updated to version v3-5a7147. For the Staging and Production environments, you must manually trigger a sync and a canary release before the images in the corresponding deployments are updated to version v3-5a7147.

Next steps

argocd-image-updater.argoproj.io/image-list: <image_spec_list>

<alias_name>=<image_path>:<version_constraint>

argocd-image-updater.argoproj.io/image-list: echoserver=demo-test-registry.cn-hangzhou.cr.aliyuncs.com/cidemo/echo-server:v1.0

argocd-image-updater.argoproj.io/<image_name>.allow-tags: <match_func>

argocd-image-updater.argoproj.io/echoserver.allow-tags: regexp:^v[1-9].*

argocd-image-updater.argoproj.io/<image_name>.update-strategy: <strategy>

argocd-image-updater.argoproj.io/echoserver.update-strategy: latest

annotations:
  argocd-image-updater.argoproj.io/image-list: echoserver=demo-test-registry.cn-hangzhou.cr.aliyuncs.com/cidemo/echo-server:v1.0
  argocd-image-updater.argoproj.io/echoserver.helm.image-name: image.echoServer.repository
  argocd-image-updater.argoproj.io/echoserver.helm.image-tag: image.echoServer.tag
  argocd-image-updater.argoproj.io/echoserver.update-strategy: latest
  argocd-image-updater.argoproj.io/write-back-method: git

annotations:
  argocd-image-updater.argoproj.io/image-list: <image_alias>=<image_name>:<image_tag>
  argocd-image-updater.argoproj.io/<image_alias>.kustomize.image-name: <original_image_name>
