The application monitoring function of Application Real-Time Monitoring Service provides the 3D topology, which shows the health condition of applications, services, and hosts, in addition to the upstream and downstream dependencies of the applications. With the 3D topology, you can quickly identify the services that caused failures, applications influenced by the failures, and associated hosts. This enables you to thoroughly investigate the root cause of the failures, and then fix the issues quickly.

Quick start

For more information about the functions of 3D topology in application monitoring, see the following interactive documents. To get the best experience, open in a new window.

Portal

Follow these steps to access the 3D topology function in ARMS application monitoring.

  1. In the left-side navigation pane, choose Application Monitoring > Applications.

  2. On the Applications page, take the following actions as needed.

    • To view the 3D topology of all applications, click View 3D Topology of All Applications (Beta) at the top.

    • To view the 3D topology of a specific application, find the application and click 3D Topology in the Actions column.

      Note
      Applications are displayed in a list on the Applications page by default. If the page is in the card view, click the 3D Topology icon in the upper-right corner of the application card.

Overview

On the Overview page that appears by default, you can see all the content of the service layer, application layer, and host layer. In the upper-right corner of the page, you can find the number of hosts, applications, and services.

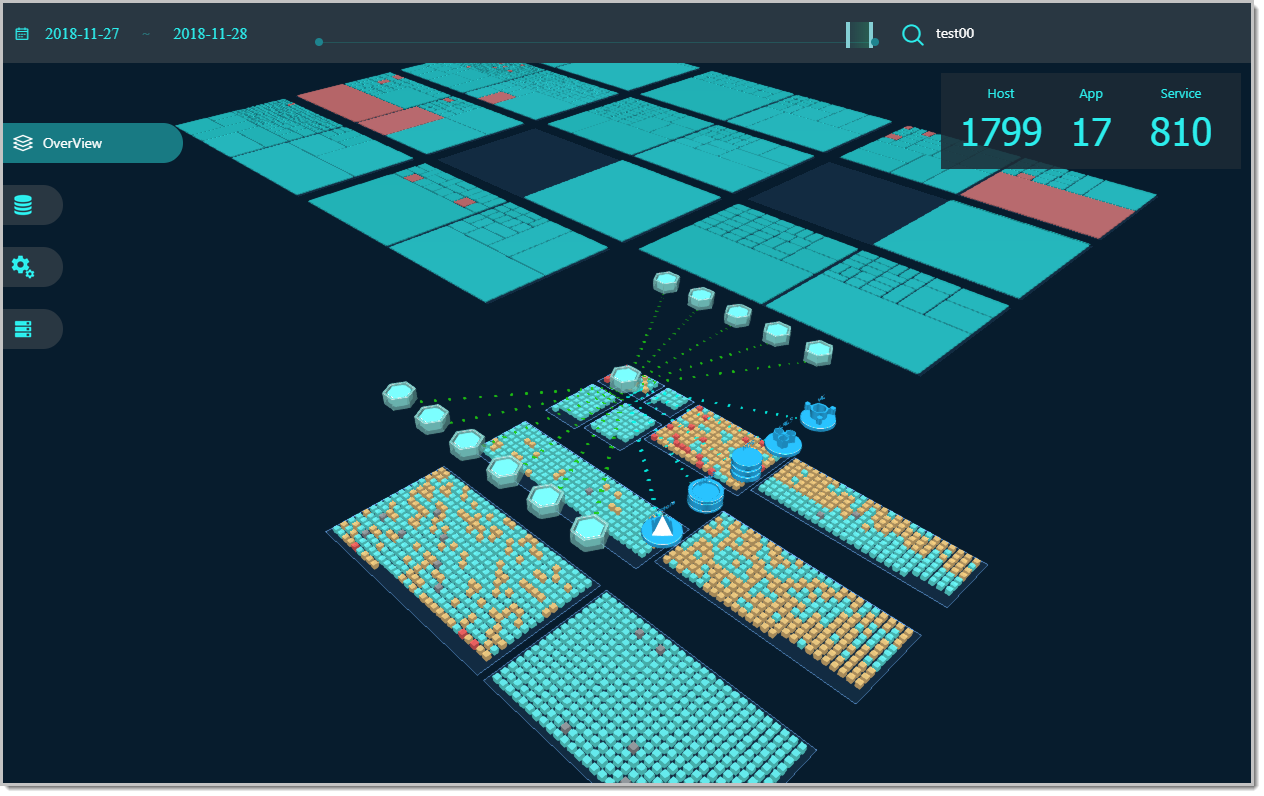

Figure 1. Overview layer of ARMS 3D Topology

On the overview layer, you can perform the following operations:

  • In the upper-left corner, click the time range section, and select the specific start time and end time in the time picker that appears.
  • In the timeline at the top of the page, drag the slider to change the time range of the current view.
  • In the search box in the upper-right corner of the page, enter your keywords and press Enter to search.
  • Drag with your mouse to view the data on all three layers from different dimensions.
  • Click any object in the view to check metrics related to that object on the right-side panel.

Service

The service layer shows the services that your applications depend on.

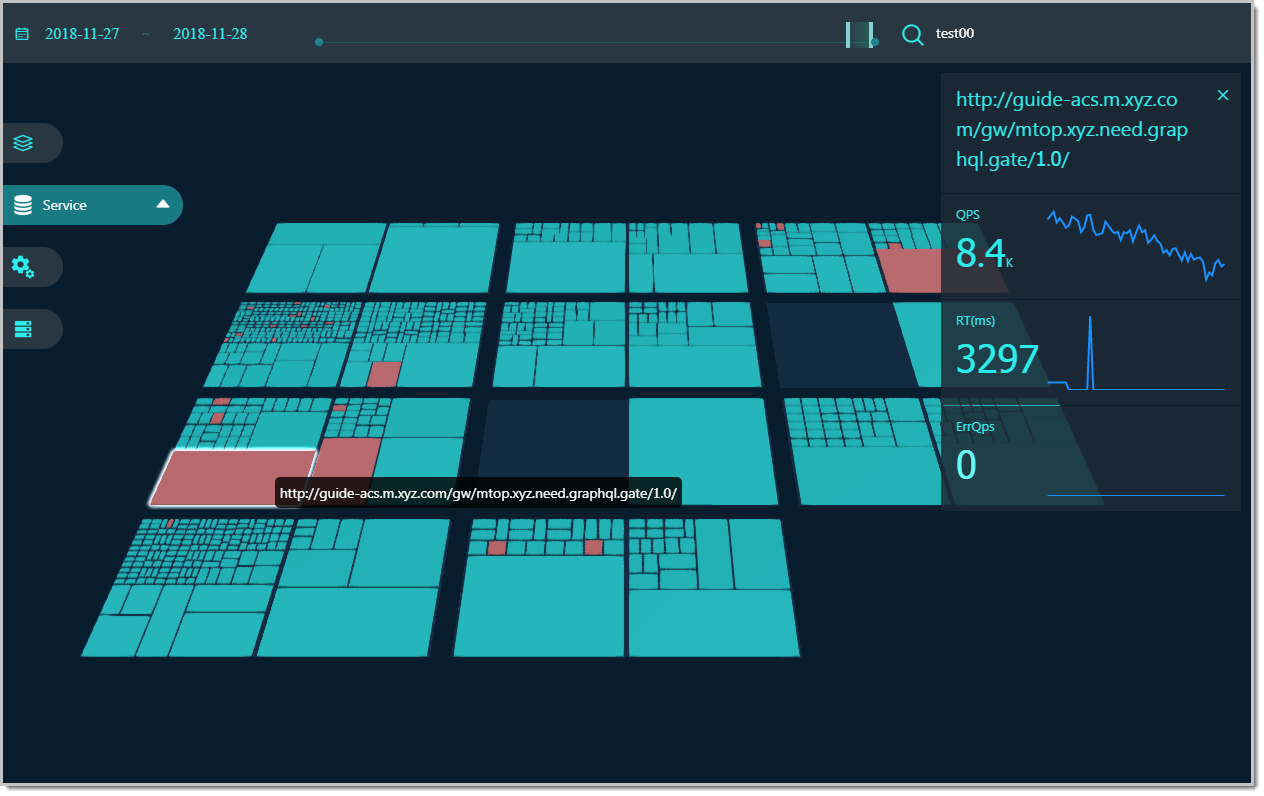

Figure 2. Service layer of ARMS 3D Topology

Services under each application are grouped into a block. The more the services are called, the bigger their block is. Different states of the services are indicated in different colors.

  • : Service calls are normal.
  • : The error rate of the service is relatively high.
  • : No data is returned from the service.
Note The response time threshold of services is configurable. In the left-side navigation pane, click the triangle icon next to Service to open the Threshold Settings box. Drag the slider in the Threshold Settings box to set the threshold.

After you click a service, the right-side panel shows the following information:

  • The name of the service
  • QPS: the queries per second
  • RT(ms): the response time in milliseconds
  • ErrQps: the error queries per second
Note In the QPS, RT, and ErrQps sections, the left-side numbers are the average value within the selected time range, and the corresponding line chart is on the right side.

Application

The application layer shows the applications and their upstream and downstream dependencies, including the middleware they depend on. By checking the direction of the connecting lines, you can determine the calling and called objects.

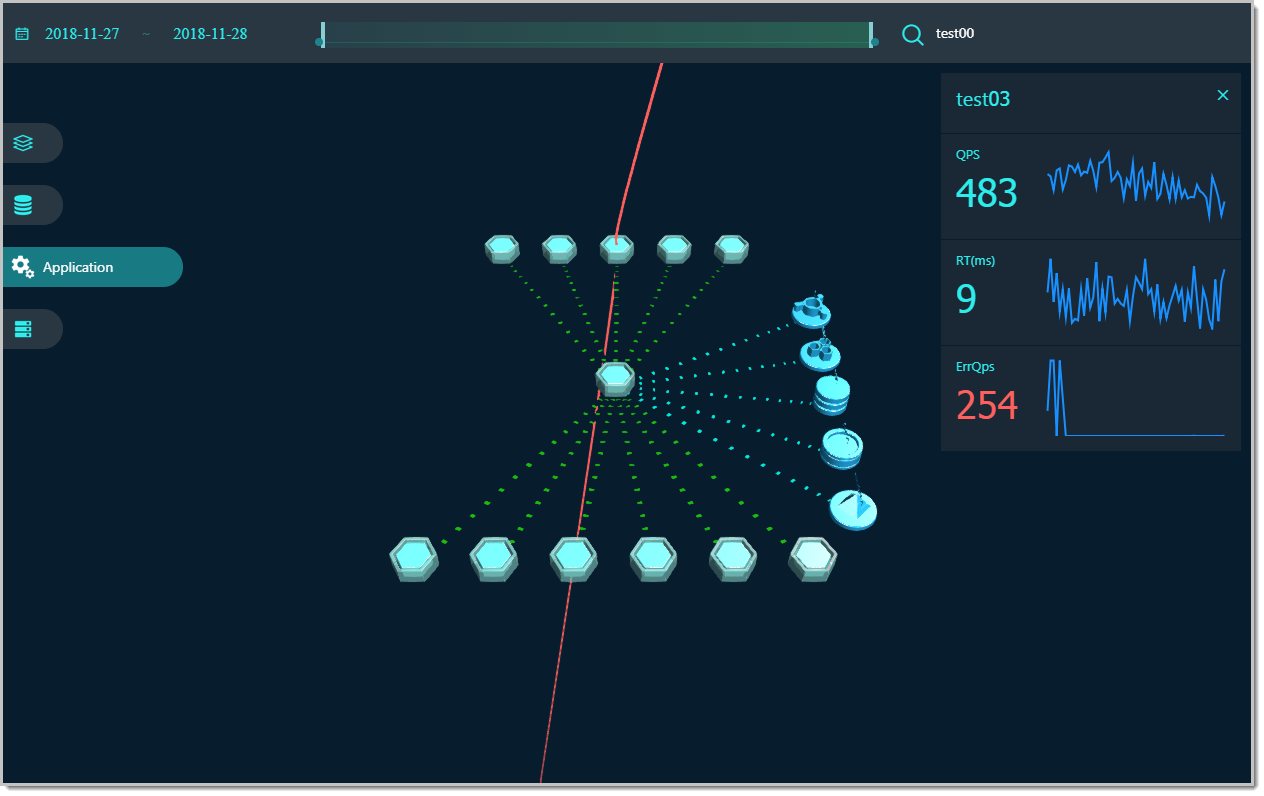

Figure 3. Application layer of ARMS 3D Topology

After you click an application, the right-side panel shows the following information of that application:

  • Application Name
  • QPS: the queries per second
  • RT(ms): the response time in milliseconds
  • ErrQps: the error queries per second
Note In the QPS, RT, and ErrQps sections, the left-side numbers are the average value within the selected time range, and the corresponding line chart is on the right side.

Docker/ECS

The Docker/ECS layer shows the host information of your applications.

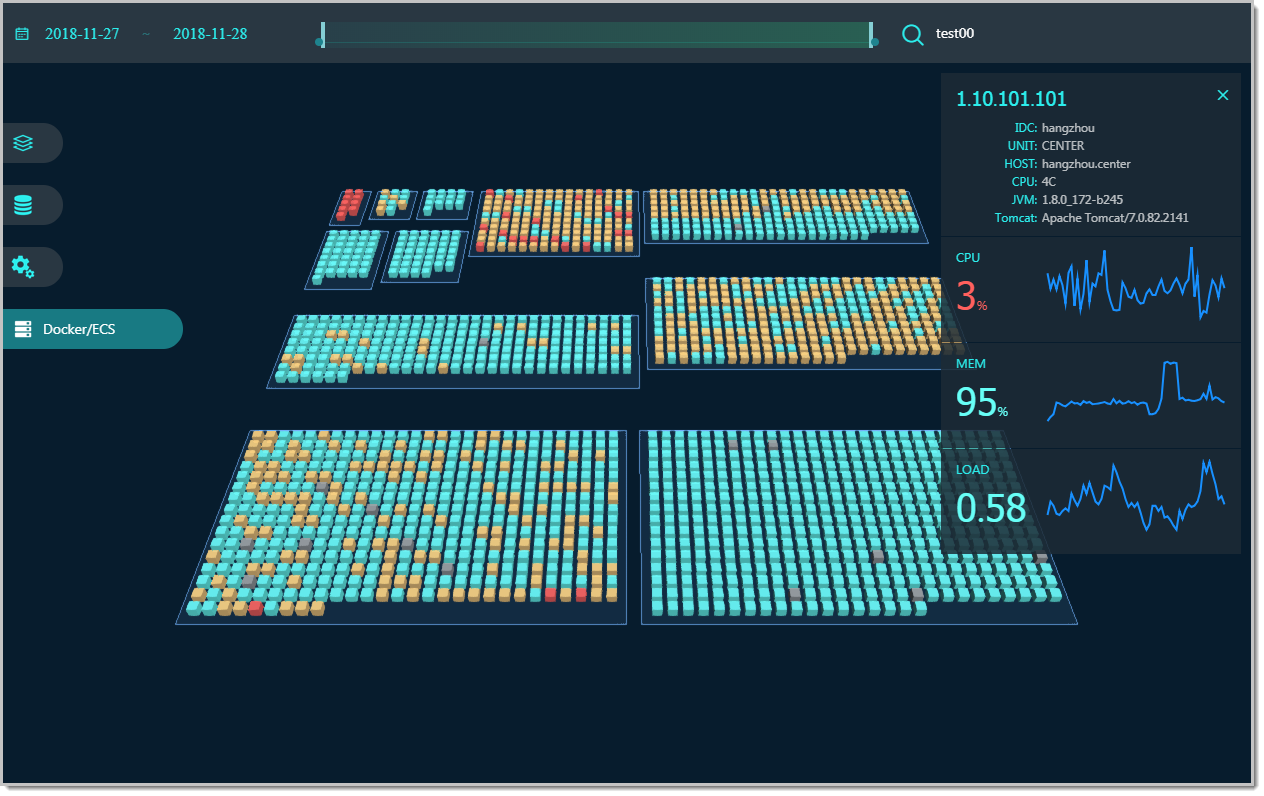

Figure 4. Host layer of ARMS 3D Topology

Each cube is a host. All hosts are grouped by applications. Different states of the hosts are indicated in different colors.

  • : Normal
  • : Slow
  • : Alerting
  • : Abnormal
  • : Offline

After you click a host, the right-side panel shows the following information of that host:

  • IP address and basic information of the host:
    • IDC
    • Unit
    • Host
    • CPU: Number of CPU cores
    • JVM: JVM version
    • Tomcat: Tomcat version
  • CPU: CPU usage
  • MEM: Memory usage
  • LOAD: Load
Note In the CPU, MEM, and LOAD sections, the left-side numbers are the average value within the selected time range, and the corresponding line chart is on the right side.
