A live video activity requires an ingest URL. Alibaba Cloud ApsaraVideo Live supports creating activity of a triggered type. You can create multiple live activities on the basis of the activity creation rules without using APIs.

Note Terms in the console have been updated, and we will update the documentation as soon as possible. We are sorry for any inconvenience caused.

Descriptions

Ingest URL can be created in batches according to the rules, and live activities can be performed simultaneously. When performing multiple live activities, note that each domain can process a limited number of concurrent streams. A maximum of 20 concurrent streams and 10 encoding streams are allowed for each domain name. Therefore, before performing live activities in batches, you must check whether the current stream limitation meets your requirements. If it does not meet your requirements, You can contact us by Opening a ticket.

Create multiple ingest URLs

A live video service URL consists of three levels of live video management units, namely the domain name (Domain), application (APPName) and live stream (StreamName). You can create multiple applications (APPName) under each domain name (Domain), and multiple live streams (StreamName) under each application.
Note For more information about the generation rules of the ingest URL, see Ingest URL and streaming URL.
AppName and StreamName can be customized. Different values generate different ingest URL and streaming URLs.
  • You can create multiple live streams under one app.

    Examples

    For example, an application is named "live", you can create multiple live streams under "live". The ingest URL is:

    rtmp://Ingest Domain Name/{live}/{1}? authentication string

    rtmp//Ingest Domain Name/{live}/{2}? authentication string

    rtmp://Ingest Domain Name/{live}/{3}? authentication string

    Note The authorization string is an encrypted string obtained based on the authentication algorithm.
  • You can also create multiple live streams for the application.
    Note ApsaraVideo Live determines whether the live stream is unique based on stream name (StreamName) instead of application name (AppName). If you set a different application name, you must also make sure that the stream name is different to ensure that the final live stream is different.

    Examples

    rtmp://Ingest Domain Name/{live1}/{Stream1}? authentication string

    rtmp://Ingest Domain Name/{live2}/{Stream2}? authentication string

    rtmp://Ingest Domain Name/{live3}/{Stream3}? authentication string

Create multiple streaming URLs

The rules of streaming URLs and the rules of ingest URLs are the same, and the application name (AppName) and stream name (StreamName) of the streaming URLs correspond to the application name (AppName) and stream name (StreamName) of the ingest URLs.
Note For more information about the generation rules of a single streaming URL, see Ingest URL and streaming URL.

Examples

The ingest URL is:

rtmp://Ingest Domain Name/{live}/{3}? authentication string

The corresponding streaming URL is:

http://Streaming Domain Name/{live}/{3}?authentication string

http://Streaming Domain Name/{live}/{3}.flv?authentication string

http://Streaming Domain Name/{live}/{3}.m3u8?authentication string

How do I get a URL after I enable encoding?

Default encoding

The streaming URL is spliced by using different parameters. The encoding streaming URL consists of the original URL and template IDs.

URL format is Streaming Domain Name+AppName+StreamName+_+Template name.

Template name LD SD HD UHD
Narrowband HDTM template ID ld sd hd ud

Examples

If the template name of the standard template is sd, you can create streaming URLs in batches as follows:

RTMP format: rtmp://Streaming Domain Name/{AppName}/{StreamName} _sd? authentication string

FLV format: http://Streaming Domain Name/{AppName}/{StreamName} _sd.flv? authentication string

HLS format: http://Streaming Domain Name/{AppName}/{StreamName} _sd.m3u8? authentication string

Custom encoding

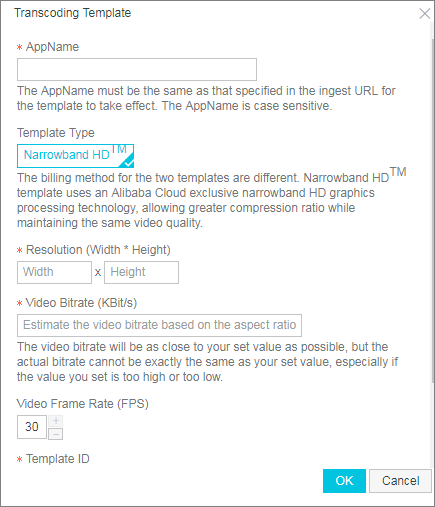

You can also customize encoding as needed. You must configure the template name of custom encoding Template ID in the console.

The splicing rules of multiple streaming URLs are as follows:

RTMP format: rtmp://Streaming Domain Name/{AppName}/{StreamName} _templateID? authentication string

FLV format: http://Streaming Domain Name/{AppName}/{StreamName} _templateID.flv? authentication string

HLS format: http://Streaming Domain Name/{AppName}/{StreamName} _template ID.m3u8? authentication string
