ApsaraDB RDS:Switch workloads over between primary and secondary ApsaraDB RDS for PostgreSQL instances

Last Updated:Oct 27, 2023

ApsaraDB RDS for PostgreSQL supports the primary/secondary switchover feature. If the primary RDS instance of your database system fails, ApsaraDB RDS automatically switches your workloads over from the primary RDS instance to the secondary RDS instance to ensure service availability. After the primary/secondary switchover is complete, the secondary RDS instance becomes the new primary RDS instance. The endpoint that is used to connect to your database system remains unchanged. Your application can automatically connect to the new primary RDS instance by using the endpoint. You can also manually switch your workloads over between the primary and secondary RDS instances.

Prerequisites

Your RDS instance runs RDS High-availability Edition.

Note
  • In RDS Basic Edition, no secondary RDS instances are provisioned. Therefore, RDS Basic Edition does not support the primary/secondary switchover feature.

  • You can disable the automatic primary/secondary switchover feature for a short period of time only for RDS instances that run RDS High-availability Edition with cloud disks.

Background information

  • Automatic primary/secondary switchover: By default, the automatic primary/secondary switchover feature is enabled. If the primary RDS instance fails, ApsaraDB RDS automatically switches your workloads over to the secondary RDS instance. For more information about the causes of primary/secondary switchovers, see Reasons for primary/secondary switchovers.

  • Manual primary/secondary switchover: You can manually switch your workloads over between the primary RDS instance and the secondary RDS instance even if the automatic primary/secondary switchover feature is enabled. You can perform manual primary/secondary switchovers for disaster recovery drills. You can also perform manual primary/secondary switchovers if you use the multi-zone deployment method and want to connect your application to the RDS instance in the zone that is closest to your application.

Note
  • Data is synchronized between the primary RDS instance and the secondary RDS instance in real time. You can access only the primary RDS instance. The secondary RDS instance runs only as a standby.
  • Read-only RDS instances in RDS High-availability Edition also support the primary/secondary switchover feature and allow you to view primary/secondary switchover logs.

Impacts

  • Transient connections may occur during a primary/secondary switchover. Make sure that your application is configured to automatically reconnect to your database system.
  • After a primary/secondary switchover, the read-only RDS instances that are attached to the primary RDS instance must re-establish the connections that are used to replicate data to and synchronize incremental data from the primary RDS instance. As a result, the data on the read-only RDS instances shows latencies of a few minutes.
  • A primary/secondary switchover does not cause changes to the endpoints that are used to connect to your database system.However, the IP addresses that are associated with the endpoints may change. If your application uses endpoints to connect to your database system, your application can continue to run as expected after a primary/secondary switchover.

Perform a manual primary/secondary switchover

  1. Go to the Instances page. In the top navigation bar, select the region in which the RDS instance resides. Then, find the RDS instance and click the ID of the instance.
  2. In the left-side navigation pane, click Service Availability.
  3. In the Availability Information section of the page that appears, click Switch Primary/Secondary Instance.
  4. Specify the Switching Time parameter and click OK.

    Note

    During a primary/secondary switchover, you cannot perform a number of operations. For example, you cannot manage databases and accounts or change the network type. We recommend that you select Switch Within Maintenance Window.

Disable the automatic primary/secondary switchover feature for a short period of time

By default, the automatic primary/secondary switchover feature is enabled. If the primary RDS instance fails, ApsaraDB RDS automatically switches your workloads over from the primary RDS instance to the secondary RDS instance. You can disable the automatic primary/secondary switchover feature in the following situations:

  • A large-scale sales promotion during which you do not want a primary/secondary switchover to affect system availability
  • An important application upgrade during which you do not want a primary/secondary switchover to cause unexpected issues
  • A major event during which you do not want a primary/secondary switchover to affect system stability
  1. Go to the Instances page. In the top navigation bar, select the region in which the RDS instance resides. Then, find the RDS instance and click the ID of the instance.
  2. In the left-side navigation pane, click Service Availability.
  3. In the Availability Information section, click Configure Primary/Secondary Switchover.

    Note

    If Configure Primary/Secondary Switchover is not displayed, check whether the RDS instance runs RDS High-availability Edition.

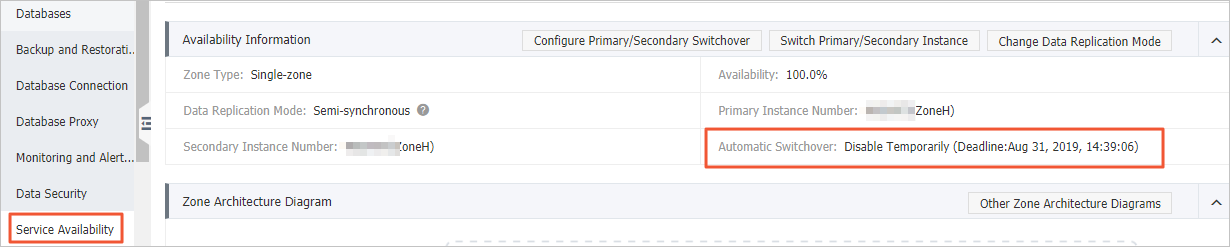

  4. Select Disable Temporarily, specify the Deadline parameter, and then click OK.

    Note
    • When the point in time that is specified by the Deadline parameter arrives, the automatic primary/secondary switchover feature is enabled.

    • If you do not specify the Deadline parameter, the automatic primary/secondary switchover feature is disabled for one day by default. You can set the Deadline parameter to 23:59:59 seven days later at most.

    After you disable the automatic primary/secondary switchover feature, you can go to the Service Availability page to check the deadline after which the automatic primary/secondary switchover feature can be automatically enabled.

View primary/secondary switchover logs

  1. Go to the Instances page. In the top navigation bar, select the region in which the RDS instance resides. Then, find the RDS instance and click the ID of the instance.
  2. In the left-side navigation pane, click Service Availability.
  3. In the Primary/Secondary Switching Logs section of the page that appears, select a time range and view the primary/secondary switchover logs that are generated over the selected time range.
    Primary/Secondary Switching Logs

FAQ

  • Do I need to manually switch my workloads over from the secondary RDS instance to the primary RDS instance after a primary/secondary switchover?

    No, you do not need to manually switch your workloads over from the secondary RDS instance to the primary RDS instance after a primary/secondary switchover. The data in the primary RDS instance is the same as the data in the secondary RDS instance. After a primary/secondary switchover, the secondary RDS instance serves as the new primary RDS instance. No additional operations are required.

  • Each time a primary/secondary switchover is performed, my RDS instance does not run as expected 10 minutes after the primary/secondary switchover is complete. What are the possible causes? How do I handle the issue?

    If an exception on your RDS instance triggers a primary/secondary switchover to ensure high availability, your application may fail to identify and respond to the changes to the connections. If no timeout periods are specified for socket connections, your application waits for the database to return the results. In most cases, your application is disconnected after hundreds of seconds. During this period, some connections to the database cannot work as expected, and a large number of SQL statements fail to be executed. To avoid invalid connections, we recommend that you configure the connectTimeout and socketTimeout parameters to prevent your application from waiting for a long period of time due to network errors. This reduces the time required to recover from failures.

    You must configure these parameters based on your workloads and usage modes. For online transactions, we recommend that you set connectTimeout to 1 to 2 seconds and socketTimeout to 60 to 90 seconds. This configuration is for reference only.

Related operations

OperationDescription
Switch services between a primary ApsaraDB for RDS instance and its secondary instanceSwitches workloads over between primary and secondary instances.
Enable or disable automatic primary/secondary switchoverEnables or disables the automatic primary/secondary switchover feature for an instance.
Query settings of automatic primary/secondary switchoverQueries the settings of the automatic primary/secondary switchover feature for an instance.
