ApsaraDB RDS:Configure a data replication latency for a read-only ApsaraDB RDS for MySQL instance

Last Updated:Oct 19, 2023

This topic describes how to configure the latency at which a read-only ApsaraDB RDS for MySQL instance synchronizes data from its primary RDS instance.

Prerequisites

The primary RDS instance of the read-only RDS instance runs RDS High-availability Edition.

Usage notes

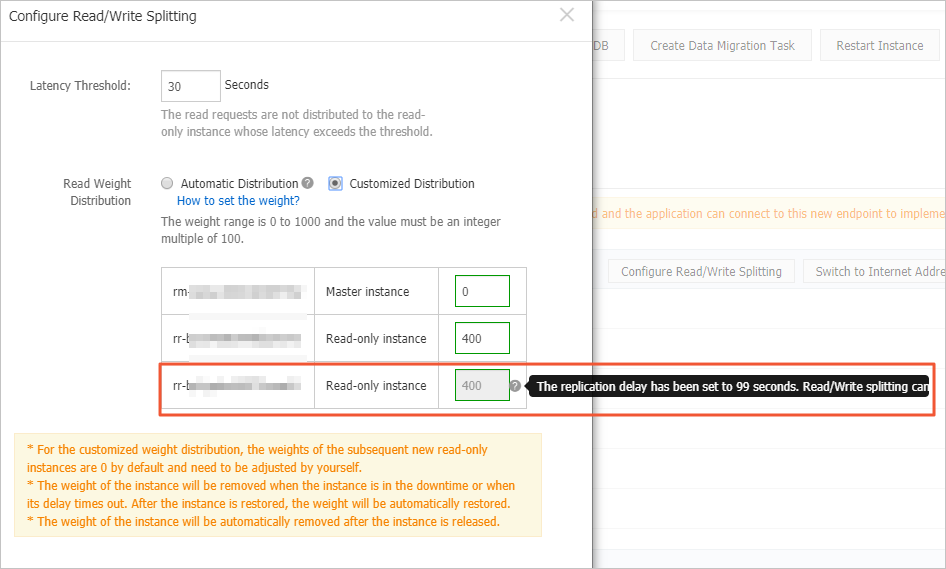

After you configure the data replication latency for a read-only RDS instance, you cannot add the instance to the read/write splitting link. Before you can add the instance to the read/write splitting link, you must set the data replication latency of the instance to 0. For more information, see Enable the read/write splitting feature for an ApsaraDB RDS for MySQL instance (shared proxy).

Procedure

  1. Go to the Basic Information page of the read-only RDS instance.

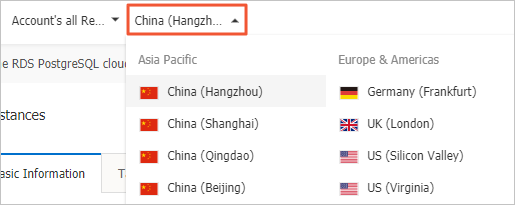

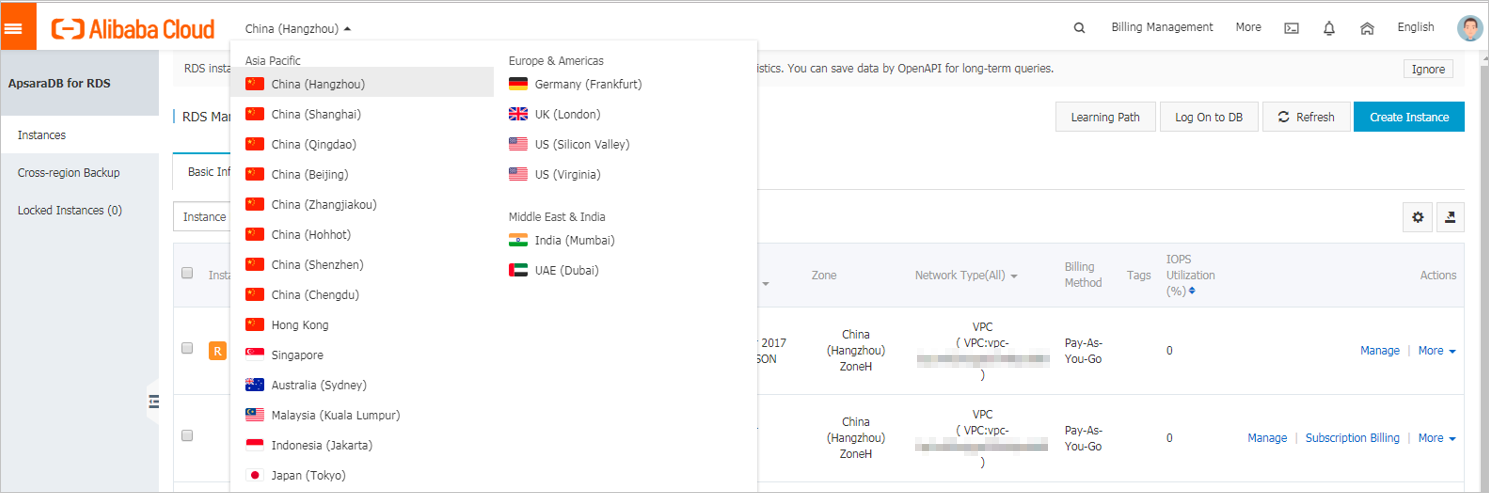

    1. Log on to the ApsaraDB RDS console. In the left-side navigation pane, click Instances. In the top navigation bar, select the region in which your RDS instance resides.
    2. Find the read-only RDS instance and click its ID.

  2. In the left-side navigation pane, click Service Availability.

  3. Click Set Delayed Replication.

  4. In the dialog box that appears, configure the data replication latency and click OK.

    Note

    The data replication latency is measured in seconds. The default value is 0. If you set the data replication latency to 0 seconds, the primary RDS instance sends operation logs to the read-only RDS instance after the logged operations are complete. After the read-only RDS instance receives the operation logs, it immediately performs the logged operations.
