Resource Access Management:Use RAM to create and authorize resource groups

Last Updated:Dec 08, 2023

This topic describes how to use Resource Access Management (RAM) to create and authorize resource groups in Alibaba Cloud. After you create and authorize resource groups, you can manage your own members, permissions, and resources by group.

Background information

A gaming enterprise is developing three gaming projects. Each project requires various cloud resources. The enterprise has an Alibaba Cloud account and more than 100 Elastic Compute Service (ECS) instances that belong to the Alibaba Cloud account.

The enterprise has the following requirements:

  • Independent project management: Project managers can manage their own project members and the permissions that the project members require to access cloud resources.

  • Separate bills: The financial department of the enterprise requires that each project receives separate bills.

  • Shared bottom-layer network: The enterprise requires a shared bottom-layer network for its cloud resources.

The enterprise has the following optional solutions:

  • Multi-account solution

    • This solution supports independent project management. The enterprise creates three Alibaba Cloud accounts (one account for each project) and assigns one project manager for each account. Then, project managers can manage their own project members and access permissions of each member.

    • This solution supports separate bills. By default, each Alibaba Cloud account receives separate bills. The enterprise can use the consolidated billing feature provided by Alibaba Cloud to consolidate the bills and invoices of the multiple Alibaba Cloud accounts.

    • This solution does not support a shared bottom-layer network. The resources of different accounts are isolated between different networks. Virtual private clouds (VPCs) of the accounts can be connected by using peering connections. However, this leads to higher management costs.

  • Single-account solution (with tagged resources)

    • This solution does not support independent project management. The enterprise can tag its cloud resources by group, but project managers cannot manage their own members and access permissions of each member.

    • This solution supports separate bills. The enterprise can tag its cloud resources by project. Then, each project can receive separate bills.

    • This solution supports a shared bottom-layer network. The enterprise can use tag-based RAM policies to authorize RAM users to access a group of resources. These resources belong to the same Alibaba Cloud account, and the enterprise does not need to pay for peering connections.

  • Resource group-based management solution

    • This solution supports independent project management. Each resource group has an administrator. Administrators can manage their own group members and access permissions of each member.

    • This solution supports separate bills. Alibaba Cloud provides the consolidated billing feature that allows resource groups to receive separate bills.

    • This solution supports a shared bottom-layer network. Resource groups belong to the same Alibaba Cloud account and can share a VPC. The enterprise does not need to pay for peering connections. This helps reduce management costs.

Solution

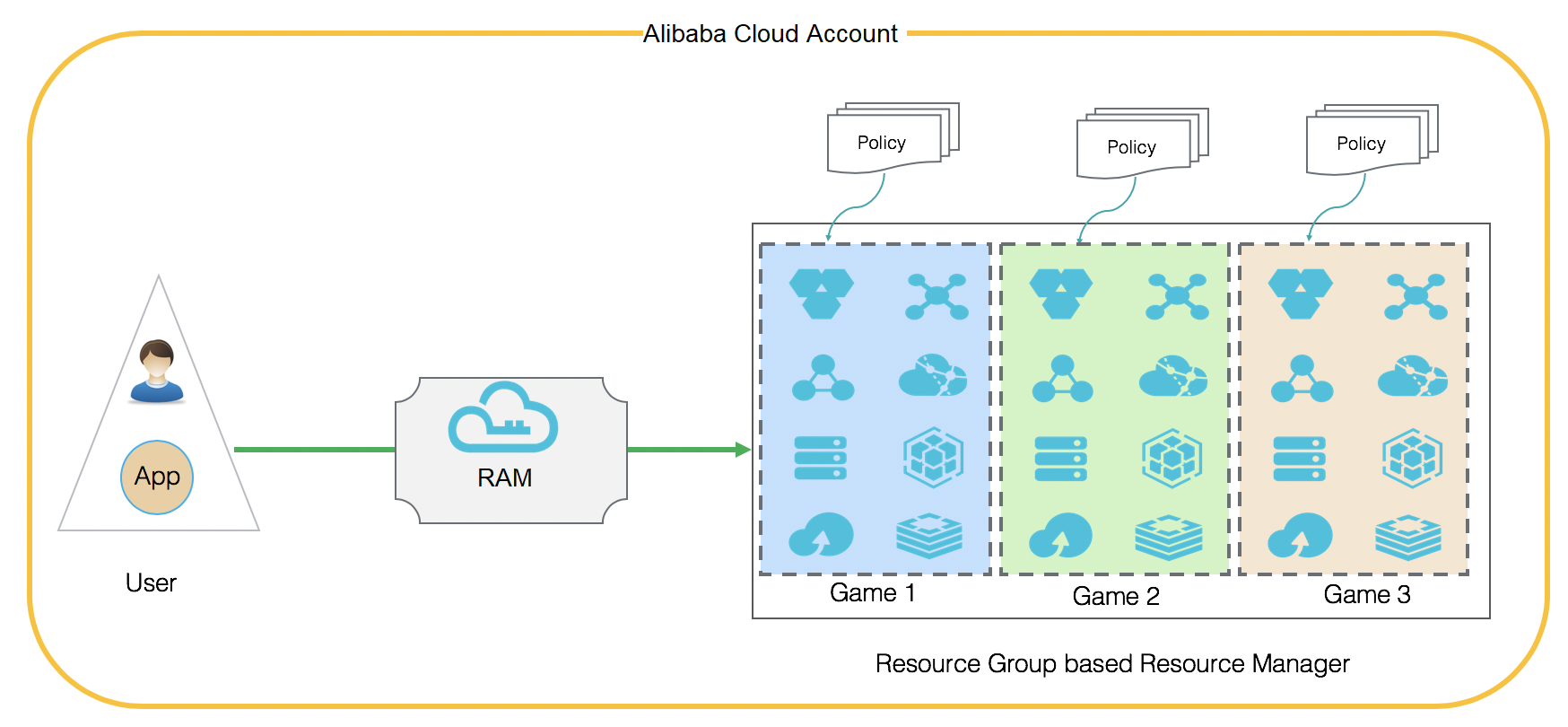

The resource group-based management solution can meet all requirements of the enterprise. This solution allows the enterprise to create three resource groups that correspond to the three projects by using one Alibaba Cloud account.

资源组解决方案

  1. Create three RAM users: Alice@secloud.onaliyun.com, Bob@secloud.onaliyun.com, and Charlie@secloud.onaliyun.com.

    For more information, see Create a RAM user.

    Note

    The following steps show how to specify a RAM user as a resource group administrator. The RAM user Alice is used as an example.

  2. Log on to the Resource Management console.

  3. On the Resource Group page, click Create Resource Group.

  4. On the Create Resource Group page, specify Resource Group Identifier and Resource Group Name. Then, click Confirm.

    Note

    Create three resource groups: Game1, Game2, and Game3.

  5. Find a resource group that you created and click Manage Permission in the Actions column.

  6. On the Permissions tab, click Grant Permission.

  7. In the Principal field of the Grant Permission panel, enter Alice@secloud.onaliyun.com.

  8. In the Authorization Policy Name column of the Select Policy section, click AdministratorAccess.

  9. Click OK.

  10. Click Complete.

    Note

    Repeat the preceding steps to specify Bob and Charlie as resource group administrators.

Result

Alice, Bob, and Charlie are the resource group administrators of Game1, Game2, and Game3. The administrators have the following permissions:

  • After an administrator logs on to the ECS console, the administrator can view the resource group on which the administrator has permissions. The administrator can also create and manage ECS instances in the resource group.

    Important

    To view the ECS instances in a resource group, you must select the resource group in the upper-left corner of the ECS console.

  • After an administrator logs on to the Resource Management console, the administrator can manage the RAM users, RAM user groups, and RAM roles in a resource group on which the administrator has permissions.
