This tutorial uses a Beijing branch as an example to describe how to connect local branches to VPCs in Hangzhou and US (Silicon Valley) through a Smart Access Gateway (SAG). After you connect local branches to VPCs, clients of the local branches can directly access the VPCs through the SAG.

Scenario

For access of local branches in Mainland China, you only need to attach the CCN associated with the SAG device to the CEN in the same area and configure the region connection between the Hangzhou VPC and the US (Silicon Valley) VPC.


Networking solution
To do so, complete the following steps:
  1. Purchase an SAG device.
  2. Connect the SAG device.
  3. Activate the SAG device.
  4. Configure the network connection.
  5. Associate the CCN instance with a CEN instance.
  6. Configure the CEN.
  7. Configure a security group.
  8. Perform an access test.

Prerequisites

  • A CEN instance is created.
  • A VPC in the Hangzhou region and a VPC in the US (Silicon Valley) region are created and are attached to the same CEN instance.
    1. Log on to the Smart Access Gateway console.
    2. Choose Quick Links > VPC.
    3. Select the China (Hangzhou) region and click the ID of the target VPC instance in Hangzhou.
    4. On the VPC Details page, click Attach to CEN, and then select the target CEN instance.
    5. Repeat the preceding steps to add the VPC in US (Silicon Valley) to the same CEN instance.
  • A CCN instance is created. For more information, see Create a CCN instance.

Step 1: Purchase an SAG device

After you purchase an SAG device on the console, Alibaba Cloud delivers the device to you and creates an SAG instance for you.

To purchase an SAG device, follow these steps:
  1. Log on to the Smart Access Gateway console.
  2. Click Create SmartAG.
  3. Configure the SAG device and click Buy Now.
    For more information, see Buy a Smart Access Gateway.
    Note In this tutorial, the SAG-100WM specification and the Stand-alone usage method are selected.
  4. Confirm the order information, and then click Buy Now.
  5. On the displayed Address dialog box, enter the shipping address of the gateway device and click Order Now.

    You can check whether the order is successfully placed on the SAG page. The system will deliver the device within 48 hours after the order is placed. If you do not receive the device within 48 hours, you can open a ticket to check the delivery status.



Step 2: Connect the SAG device

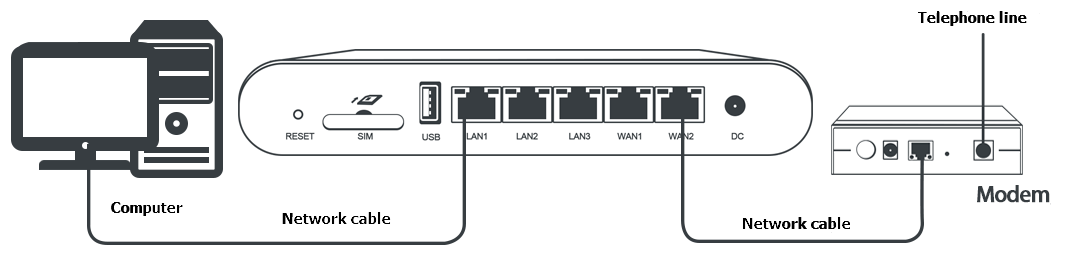

After you receive the SAG device, check whether all accessories are provided according to SAG-100WM overview. After you start the SAG device, connect the WAN port to the network cable and connect the LAN ports to local clients.

In this tutorial, the clients in the Hangzhou and US (Silicon Valley) branches can be directly connected to Alibaba Cloud through SAG devices, so you can use the default gateway configurations. If you need to configure the WAN port and LAN ports, see Step 3: Configure the WAN ports.


Connect the SAG device

Step 3: Activate the SAG device

Before you can use the SAG device, you must activate it.

To activate the SAG device, follow these steps:
  1. Log on to the Smart Access Gateway console.
  2. On the SmartAG page, find the target gateway instance.
  3. Click Activate in the Actions column.

Step 4: Configure the network connection

After you activate and connect the SAG device, you also need to add the SAG device to a CCN.

To configure the network, follow these steps:
  1. Log on to the Smart Access Gateway console.
  2. In the left-side navigation pane, click Smart Access Gateway, and then click the target instance ID or click Configure Network in the Actions column.
  3. Configure the synchronization method for on-premises routes.
    1. Click Method to Synchronize with On-premises Routes.
    2. Select Static Routing, and then click Add Static Routing.

      In this example, enter 172.16.0.0/12.

    3. Click OK.
  4. Associate the SAG instance with a CCN
    1. Click Network Instance Details.
    2. Click Add Network Instance, and then select the target CCN. The SAG instances in the CCN can communicate with each other.

      In this example, the default CCN is used. For more information, see Cloud Connect Network.

    3. Click OK.

Step 5: Associate the CCN instance with a CEN instance

To associate the CCN instance with a CEN instance, follow these steps:
  1. Log on to the Smart Access Gateway console.
  2. In the left-side navigation pane, click CCN.
  3. Find the target CCN instance, and then click Bind CEN Instance in the Actions column.
  4. On the Bind CEN instance page, select the target CEN instance. After the CCN instance is associated with the CEN instance, the SAG devices in the CCN instance can communicate with the network instances (VPCs and VBRs) attached to the CEN instance.
    Associate a CCN instance with a CEN instance

Step 6: Configure the CEN

To connect networks in different regions, you must purchase a bandwidth package and set the cross-region interconnection bandwidth.

  1. Log on to the Smart Access Gateway console.
  2. In the left-side navigation pane, choose Quick Links > CEN.
  3. On the CEN page, click the Networks tab page to check whether the Hangzhou VPC, the US (Silicon Valley) VPC, and the CCN are attached to the CEN.

    Networks
  4. Click the Bandwidth Packages tab page and click Buy Bandwidth Package (Pay-As-You-Go) to purchase a Pay-As-You-Go Bandwidth package.
  5. On the CEN (Pay-As-You-Go page, configure the bandwidth package.
    • Cloud Enterprise Network: Select the CEN associated with the VPCs and the CCN.
    • Area A and Area B: Select the areas of the VPCs that need to communicate with each other.

      In this example, Mainland China and North America are selected.

    • Bandwidth: Select the bandwidth of the region connection as needed.
    • Bandwidth Package Name: Enter the name of the bandwidth package.
  6. Click Buy Now to purchase a bandwidth package.
  7. Click the Region Connections tab page and then click Set Region Connection.
  8. Set the region connection. The sum of all region connections under a bandwidth package cannot be greater than the bandwidth of the bandwidth package.
    • Bandwidth Packages: Select the bandwidth package that is used by the CEN instance. In this example, select Mainland China ⇋ North American.
    • Connected Regions: Select the regions to be connected. In this example, select China (Hangzhou) and US (Silicon Valley), and also select Mainland China and US (Silicon Valley).
    • Bandwidth: Enter the bandwidth as needed.
      Note The sum of all region connections under a bandwidth package cannot be greater than the bandwidth of the bandwidth package.
    Figure 1. Region connection 1

    Region connection 1
    Figure 2. Region connection 2

    Region connection 2

Step 7: Configure a security group

To allow local branches to access the VPC, you must configure a security group.

To configure a security group, follow these steps:
  1. Log on to the ECS Console.
  2. In the left-side navigation pane, click Instances.
  3. Find the target ECS instance in the target VPC, and then choose More > Network and Security Group > Configure Security Group.

    Configure a security group
  4. Click Add Rules and click Add Security Group Rule.
  5. Configure a security group rule that allows access from local branches.

    The following figure shows the security group configurations in this tutorial. You must enter the private CIDR blocks of the local branches as the authorization objects.


    Security group rule

Step 8: Perform an access test

After you complete the preceding configurations, you can access cloud resources deployed in the connected VPCs from local clients to check whether the new configurations take effect.
