In a production studio, you can use the audio mixer to manage the audio of the produced live streams in program mode. For example, you can adjust the volume and gain of the audio on the audience side and adjust the volume in the current production studio. This topic describes how to use the audio mixer.

Enable AFV

  • You can only preview a layout without sound in the PVW area. If you select Audio Follows Video and click Switch to PGM, a live stream is produced from the layout and ingested to the audience side with sound. Video sources not in the layout are muted by default, but you can play the audio of these video sources as needed.
  • If you click Switch to PGM without selecting Audio Follows Video, a live stream is produced and ingested to the audience side without sound.
    Note In this case, the image is switched to that of the layout but the audio remains unchanged on the audience side. For example, you can display the image of different cameras with the main audio in an event.
    Audio

Adjust the volume on the production studio side

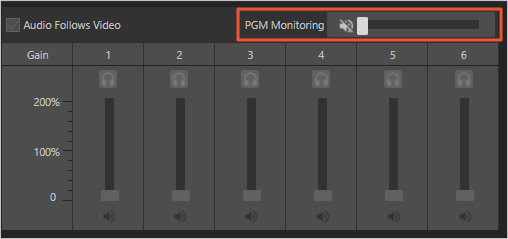

In a production studio, you can adjust the PGM Monitoring slider to adjust the volume in the production studio. Note that this operation does not change the volume on the audience side. PGM Monitoring

Adjust the volume on the audience side

  • Scenario

    You switch a layout from the preview mode to the program mode

    Usage notes

    When you switch a layout from the preview mode to the program mode, the videos in the layout are played with their original volumes. You can adjust the playback volume of the videos in the audio mixer area. The playback volume ranges from 0 to 2 times the original volumes.

    Procedure
    Adjust the sliders in the audio mixer area.Sliders
  • Scenario

    In program mode, you play videos in a layout with the audio of multiple video sources in the production studio.

    Usage notes

    For example, six video sources are added to a production studio. When you play Video source 1 and Video source 2 in a layout in program mode, you can use the audio of one or more of the six video sources as needed by adjusting the sliders in the audio mixer area.

    Procedure
    Adjust the sliders in the audio mixer area.
    Note You cannot enable audio follows video (AFV) and adjust the volume and gain of the audio for a layout in preview mode.
