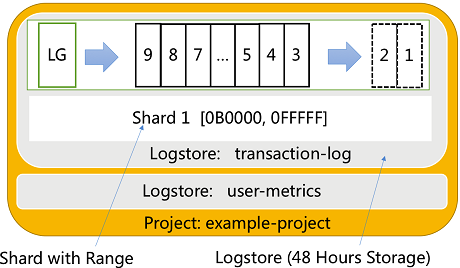

The GetCursor API is used to get the cursor based on the time. The following figure shows the relationship among the project, Logstore, shard, and cursor.

  • A project has multiple Logstores.
  • Each Logstore has multiple shards.
  • You can get the location of a specified log by using the cursor.

Request syntax

GET /logstores/ay42/shards/2? type=cursor&from=1402341900 HTTP/1.1
Authorization: <AuthorizationString>
Date: <GMT Date>
Host: <Project Endpoint>
x-log-apiversion: 0.6.0

Request parameter

Parameter Name Type Required  Description
shard string Yes The Shard.
type string Yes  The cursor.
from string Yes The time point (in UNIX format and measured in seconds). The from_time, begin_time, or end_time.
Logstore lifecycle

The lifecycle of a Logstore is specified by the lifeCycle field in the attribute.  For example, the current time is 2015-11-11 09:00:00  and lifeCycle=24.  Then, the data time period that can be consumed in each shard is [2015-11-10 09:00:00,2015-11-11  09:00:00) and the time here is the server time.

By using the parameter from, you can locate the logs within the lifecycle in the shard. Assume that the Logstore lifecycle is [begin_time,end_time) and the parameter from is set to from_time, then: [begin_time,end_time), from=from_time.

  from_time <= begin_time or from_time == "begin" : Returns the cursor location corresponding to begin_time.
 from_time >= end_time or from_time == "end" : Returns the cursor location for writing the next entry at the current time point (no data at this cursor location currently).
  from_time > begin_time and from_time < end_time : Returns the cursor location for the first data packet whose receipt time at the server is >= from_time.
Request header

The GetCursor API does not have a special request header.  For more information about  the public request headers of Log Service APIs, see  Public request header.

Response header

The GetCursor API does not have a special response header.  For more information about the public response headers of Log Service APIs, see Public response header.

Response element
    "cursor": "MTQ0NzI5OTYwNjg5NjYzMjM1Ng=="
Error code

Besides  the  common error codes of Log Service APIs, the GetCursor API may return the following special error codes.

HTTP status code ErrorCode ErrorMessage
404 LogStoreNotExist Logstore {Name} does not exist
400 ParameterInvalid Parameter From is not valid
400 ShardNotExist Shard {ShardID} does not exist
500 InternalServerError Specified Server Error Message
400 LogStoreWithoutShard the logstore has no shard


Request example:
GET /logstores/sls-test-logstore/shards/0? type=cursor&from=begin
    "Content-Length": 0,
    "x-log-signaturemethod": "hmac-sha1",
    "x-log-bodyrawsize": 0,
    "User-Agent": "log-python-sdk-v-0.6.0",
    "Host": "",
    "Date": "Thu, 12 Nov 2015 03:56:57 GMT",
    "x-log-apiversion": "0.6.0",
    "Content-Type": "application/json",
    "Authorization": "LOG <yourAccessKeyId>:<yourSignature>"
Response example:
    "content-length": "41",
    "server": "nginx/1.6.1",
    "connection": "close",
    "date": "Thu, 12 Nov 2015 03:56:57 GMT",
    "content-type": "application/json",
    "x-log-requestid": "56440E0999248C070600C6AA"
    "cursor": "MTQ0NzI5OTYwNjg5NjYzMjM1Ng=="
