You can add one or more carousel images to a project to display the image or images in rotation.

Style

  • Basic Attributes
    • Size: Set the size of the widget by adjusting its width and height.
    • Position: Set the position of the widget by adjusting its abscissa and ordinate.
    • Others: Set the rotation angle and opacity of the widget.
  • Global Settings
    • Font Family: Font of the displayed text. Only a font that is installed in your system can be displayed accurately. If the selected font is not installed in your system, the default font is displayed.
    • Font Size: To change the font size of the displayed text, enter a value or drag the slider. The value range is from 10 to 100.


  • Animation
    • Interval: To change the time interval between the display of two images, enter a value, or click + or . The unit is milliseconds.
    • Speed: To change the transition speed of displaying images, enter a value, or click + or . The unit is milliseconds.
    • Special Effects: animation effect.
      • Scroll horizontally
      • Scroll vertically
      • Fade in and fade out
      • Mosaic


  • Image
    • Default Image: You can enter an image URL or drag an existing image to the dashed line box. You can click the Delete icon to delete an image.
    • Fill Type: To set the fill type, click the drop-down arrow and select the target type.
      • Stretch to fill the container
      • Fill container
      • Center


  • Description: To display the image description, click the Eye icon.
    • Background Color
      • Fill Style: To set the fill color type, click the drop-down arrow and select the target type.
        • Solid
        • Gradient
      • Start Color: To change the start color of the gradient colors, see Color picker.
      • End Color: To change the end color of the gradient colors, see Color picker.
      • Angle: You can change the gradient angle as needed. The setting takes effect only when Fill Style is set to Gradient. The gradient angle cannot be set when Fill Style is set to Solid.
    • Color: To set the font color of the displayed text, see Color picker.
    • Font Weight: To change the font weight of the displayed text, click the drop-down arrow and select the target font.
    • Width: To change the width of the description bar, enter a value, or click + or . The unit is %.
    • Height: To change the height of the description bar, enter a value, or click + or . The unit is %.
    • Top: To adjust the spacing between the description bar and the top border, enter a value, or click + or .
    • Bottom: To adjust the spacing between the description bar and the top border, enter a value, or click + or .
    • Align: To change the position of the description text in the description bar, click the drop-down arrow and select the target position.
      • Left
      • Center
      • Right


  • Pagination Bullets: To display the pagination bullets, click the Eye icon.
    • Inactive color: To change the color of the pagination bullets corresponding to the images that are not displayed, see Color picker.
    • Active color: To change the color of the pagination bullet corresponding to the displayed image, see Color picker.


Data

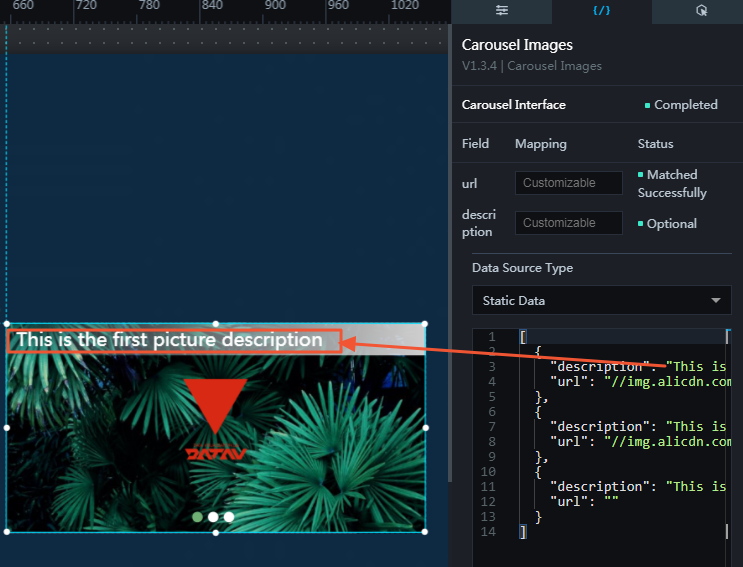

  • url: image URL, which corresponds to the URL of the Default Image in the configuration pane. If you have set the URL both in the configuration and data panes, the value of url takes effect.
    Note Cross-domain settings are required for this image. If you do not specify the HTTP, for example, //img.alicdn.com/tps/TB1PH6EPXXXXXXbaFXXXXXXXXXX-4001-2251.png, the system will send a request to the image according to the access HTTP of the project.
  • description: (optional) image description. You can add a pair of HTML a tags to the value of this field.


Interaction

This widget is not connected to any events yet.
