DataV:Icon Chart-Double 11

Last Updated:May 12, 2023

This topic describes the meaning of each configuration items in the icon percentage chart of Double 11.

Chart Style

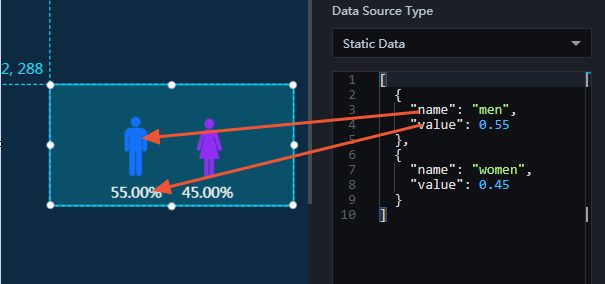

The icon proportion chart of Double 11 is a type of other basic charts. It supports custom category icons and content, and can use icons to visually display the proportion of two categories. It is suitable for displaying category proportions in visual applications of Double 11. For example, it shows the proportion of men and women who purchase a product. image..png

Settings Panel image..png

  • Search for Configurations: In the right-side panel of Canvas Editor, click the Settings tab, and click Search for Configurations in the upper-right corner. Enter the required configuration item in the search box, and click the search icon to quickly locate the configuration item. Fuzzy match is supported. For more information, see Search for asset configurations.
  • Size: indicates the size of a widget, including its pixel width and height. You can click the Proportional resizing icon to proportionally adjust the width and height of a widget. After you click this icon again, you can adjust the width and height as needed.
  • Position: the position of a widget, which is indicated by pixel X and Y coordinates. X-coordinate indicates the pixel distance between the upper-left corner of the widget and the left border of the canvas. Y-coordinate indicates the pixel distance between the upper-left corner of the widget and the upper border of the canvas.
  • Rotation Angle: the angle of a rotation that uses the center point of a widget as the rotation point. The unit is degrees (°). You can use one of the following methods to control the rotation angle of a widget:
    • Directly enter the degrees in the Rotation Angle spin box or click the plus sign (+) or minus sign (-) to increase or decrease the value in the Rotation Angle spin box.
    • Drag the black dot in the Rotation control icon icon.
    • Click the Horizontal flip icon to horizontally flip a widget.
    • Click the Vertical flip icon to vertically flip a widget.
  • Opacity: the opacity of a widget. Valid values: 0 and 1. If this parameter is set to 0, the widget is hidden. If this parameter is set to 1, the widget is completely displayed. Default value: 1.
  • Icon

    • Icon 1: the icon of Category A. Click the image box to delete the current image and click Upload Local Image again. You can also enter the URL of the image in the input box to use the image on the remote server.

    • Icon 2: the icon of Category B. Click the image box to delete the current image and click Upload Local Image again. You can also enter the URL of the image in the input box to use the image on the remote server.

    • Arrange: the arrangement style of each category tag. Valid values:

      • Vertical: hides the label bar when the label arrangement is vertical.

      • Horizontal: The tag bar is displayed when the tag is horizontal. You can modify the tag value and customize the tag category.

  • Section

    Parameter

    Description

    Icon Width

    The width of the icon for each category. Unit: pixels. Valid values: 0 to 1000.

    Icon Height

    The height of each type of icon. Unit: pixels. Valid values: 0 to 1000.

    Text Font Size

    The font size of the category label text. Valid values: 0 to 100.

    Font

    The font family of the category label text. Default value: Microsoft Black.

    The color of the font.

    The font color of the category label text. For more information, see color picker instructions.

    Icon Offset Value

    The lateral offset of each icon relative to the center of the widget. Unit: pixels. Valid values: 0 to 1000.

  • Icon Text Spacing: indicates the distance between the text and the lower border of the widget when the value is Vertical. indicates the horizontal distance between the icon and the label text when the value is Horizontal. Valid values: 0 to 1000. Unit: px.

  • Text Spacing: indicates the distance between the label text and the left and right borders of the widget. If the arrangement method is horizontal, indicates the vertical distance between the label text and the numeric text. Unit: px. Valid values: 0 to 20.

  • Decimal Places: the number of decimal places that are displayed in the label value text.

Data Panel


Configuration field description

Parameter

Description

name

The description of the category value.

value

Percentage value for each category.

Table 1. Parameters
ParameterDescription
Controlled ModeIf you turn on the switch, data is not requested when a widget is initialized. Data requests are triggered only based on callback IDs or the method configured in Blueprint Editor. If you turn off the switch, data requests are automatically triggered. By default, the switch is turned off.
Auto Data RequestAfter you select the Auto Data Request check box, you can enable dynamic polling, and manually specify the polling interval. If you do not select this check box, data is not automatically requested. You must manually refresh the page to request data or use Blueprint Editor or callback ID events to trigger data requests.
Data SourceIn the right-side panel of Canvas Editor, click the Data tab. Click Set next to Static Data. In the Configure Datasource panel, select a data source from the Data Source Type drop-down list. Enter code for data query in the code editor, click Preview Data Response to preview the response of the data source, and then view the response. For more information, see Configure asset data.
Data FilterIf you select the Data Filter check box, you can convert the data structure, filter data, and perform simple calculations. If you click the plus sign (+) next to Add Filter, you can configure the script for the data filter in the editor that appears. For more information, see Use the data filter.
Data Response ResultThe response to a data request. If the data source changes, you can click the Refresh icon icon next to Data Response Result to view the data response in real time.

Interaction Panel

This widget does not support interaction events.

Configure interactions in Blueprint Editor

  1. In Canvas Editor, right-click a widget in the Layer panel and select Add to Blueprint Editor.
  2. Click the Blueprint Editor icon icon in the upper-left corner of the page.
  3. In Blueprint Editor, click the Icon Chart-Double 11 widget in the Added Nodes pane. The following figure shows the parameters in the canvas. image..png

    • Event

      Event

      Description

      When the data interface request is completed

      The event is triggered with the processed JSON data after a data interface request is responded and processed by a filter. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

      When a data interface request fails

      The event that is returned when a data interface request fails (the request may be due to network problems or interface errors) and is processed by the filter. The event also throws the processed JSON data. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

    • Policy Action

      Policy Action

      Description

      Request Data Interface

      This action is performed to request the server data again. The data sent by an upstream data processing node or layer node is used as a parameter. For example, if you set the API data source to https://api.test and the data passed to the request data interface to { id: '1'}, the final request interface is https://api.test?id=1.

      Import data

      After data of a widget is processed in accordance with its drawing format, the widget is imported for redrawing. You do not need to request server data again. For more information about specific data examples, see the Data Response Result section of the Data tab in the right-side configuration panel of the canvas editor.

      Update component configurations

      Style configurations of widgets are dynamically updated. Before this action is executed, you must click the widget in Canvas Editor, click the Settings tab in the right-side panel, and click Copy Configurations to... to obtain widget configurations. After that, change the style field for the data processing node in Blueprint Editor.

      Display

      Displays the widget. The following example shows the reference data.

      return {
        "animationType": "",
        "animationDuration": 1000,
        "animationEasing": "linear"
      };

      Hide

      The following example shows how to hide a widget.

      return {
        "animationType": "",
        "animationDuration": 1000,
        "animationEasing": "linear"
      };

      Switch to the implicit state

      Specifies whether to show or hide a widget. The following example shows the reference data.

      return {
        "animationIn": {
          "animationType": "",
          "animationDuration": 1000,
          "animationEasing": "linear"
        },
        "animationOut": {
          "animationType": "",
          "animationDuration": 1000,
          "animationEasing": "linear"
        }
      };

      Move

      Move a widget to a specified location. The following example shows the reference data.

      return {
        // The positioning type. to indicates absolute positioning, whereas by indicates relative positioning. The default value is to.
        "positionType": "to",
        // The location, which is indicated by the x and y coordinates.
        "attr": {
          "x": 0,
          "y": 0
        },
        // The animation type.
        "animation": {
          "enable": false,
          // The duration in which animation is displayed.
          "animationDuration": 1000,
          // The animation curve, which can be set to linear|easeInOutQuad|easeInOutExpo.
          "animationEasing": "linear"
        }
      };
