This topic describes the configuration items of the Basic Bar Chart widget and how to use this widget. You can customize x-axis values as needed, and set data series to display differences between data categories.

Settings

  • Basic Attributes
    • Size: The width and height of the widget. The unit is pixels.
    • Position: The position of the widget. You can set the widget position by adjusting its x-axis and y-axis. The unit is pixels.
    • Others: The rotation angle and opacity of the widget.
  • Global Settings
    • Font Family: The font of the displayed text. The default font is Microsoft YaHei.
    • Bar
      • Inner Padding: The spacing between the bars. The value range is from 0 to 1.
      • Outer Padding: The spacing between the bottom bar and the bottom border, and the spacing between the top bar and the top border of the chart. The value range is from 0 to 1.
      • Color: The background color of the bars.
    • Margin
      • Top: The spacing between the bars and the top border of the chart.
      • Bottom: The spacing between the bars and the bottom border of the chart.
      • Left: The spacing between the bars and the left border of the chart.
      • Right: The spacing between the bars and the right border of the chart.
    • Label: The labels on the bars. To display the labels, click the Eye icon.
      • Text Style
        • Font Size: The font size of the label text.
        • Font Color: The font color of the label text.
        • Font Weight: The font weight of the label text.
      • Position: The position of the labels. The available options are Left, Middle, Right, and Right Outside.
        Note The labels will be displayed outside the bar segments if you select Right Outside.
      • Empty Data: If you select this check box, 0 is displayed when the y-axis has no data.
  • X Axis: The style of the x-axis. To display the x-axis, click the Eye icon.
    • Text Style
      • Font Size: The font size of the text along the x-axis.
      • Font Color: The font color of the text along the x-axis.
      • Font Weight: The font weight of the text along the x-axis.
    • Axis Label: To display the axis labels, click the Eye icon.
      • Max: The format of the maximum value along the x-axis. You can customize the display format or select a format as needed. The available options are:
        • Maximum Data Value: If you select this option, the maximum value is used.
        • Automatic Rounding: If you select this option, the system calculates the value according to the maximum value, minimum value, and number of axis labels.
      • Quantity: The number of axis labels.
      • Display Format: The display format of the axis labels. You can customize the display format or select a format as needed. If you select Auto, the default format is displayed.
    • Unit: The unit of the label text along the x-axis. To display the unit option, click the Eye icon.
    • Axis Line: To display the axis line, click the Eye icon.
      • Color: The color of the axis line.
    • Grid Lines: To display the grid lines, click the Eye icon.
      • Color: The color of the grid lines.
  • Y Axis: The style of the x-axis. To display the y-axis, click the Eye icon.
    • Text Style
      • Font Size: The font size of the text along the y-axis.
      • Font Color: The font color of the text along the y-axis.
      • Font Weight: The font weight of the text along the y-axis.
    • Axis Label: To display the axis labels, click the Eye icon.
      • Angle: The angle of the axis labels. The available options are Horizontal, Slant, and Vertical.
    • Axis Line: To display the axis line, click the Eye icon.
      • Color: The color of the axis line.
    • Grid Lines: To display the grid lines, click the Eye icon.
      • Color: The color of the grid lines.
  • Legend: To display the legend items, click the Eye icon.
    • Text Style
      • Font Size: The font size of the legend text.
      • Font Color: The font color of the legend text.
      • Font Weight: The font weight of the legend text.
    • Layout
      • Margin
        • Horizontal Interval: The horizontal spacing between two legend items. This parameter is available only if the chart has multiple series of data.
        • Vertical Interval: The spacing between the legend items and the top border of the chart, and the spacing between the legend items and the bottom border of the chart.
      • Position: Optional. The position of the legend items.
  • Series: To add or delete a series, click + or click the Trash icon.
    • Series Name: The name of a series. You can set a name for the series as needed. If the series does not have a name, the value of s is automatically displayed as the series name. If the series has a name, make sure that the data is displayed in the correct order. For more information about how to configure a data series, see Frequently asked questions (User self-check process).
    • Color: The fill color type of a series. The available options are Solid Fill and Gradient Fill.
  • Animation: The animation of the bars. To display the animation option, click the Eye icon.
    • Original Duration: The period of time needed for the first time the widget renders the animation. The unit is milliseconds.
    • Easing: The animation easing. You can select an easing effect as needed.
    • Animations of All Series In Sequence: If you select this check box, the animations of all bars in the chart are displayed in sequence. If you clear this check box, the animations of all bars in the chart are displayed at the same time.
    • Duration for Data Update: The period of time needed for the widget to render the animation after data is updated. The unit is milliseconds.
    • Update from Latest Status: If you select this check box, the animation begins from the bar where the data is updated. If you clear this check box, the animation begins from the starting point of the y-axis.

Data

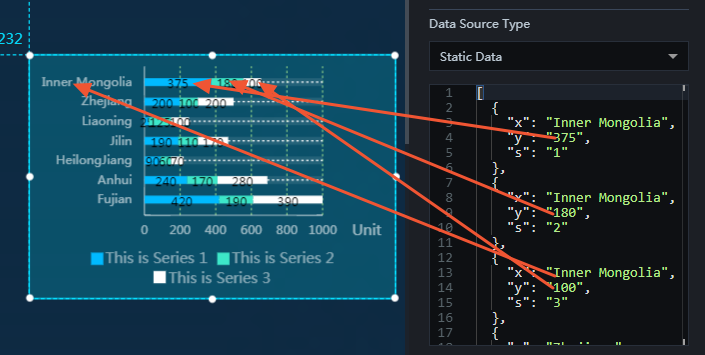

The JSON example in the preceding figure is as follows:
[
  {
    "x": "Inner Mongolia",
    "y": "375",
    "s": "1"
  },
  {
    "x": "Inner Mongolia",
    "y": "180",
    "s": "2"
  },
  {
    "x": "Inner Mongolia",
    "y": "100",
    "s": "3"
  },
  {
    "x": "Zhejiang",
    "y": "200",
    "s": "1"
  },
  {
    "x": "Zhejiang",
    "y": "100",
    "s": "2"
  },
  {
    "x": "Zhejiang",
    "y": "200",
    "s": "3"
  },
  {
    "x": "Liaoning",
    "y": "25",
    "s": "1"
  },
  {
    "x": "Liaoning",
    "y": "125",
    "s": "2"
  },
  {
    "x": "Liaoning",
    "y": "100",
    "s": "3"
  },
  {
    "x": "Jilin",
    "y": "190",
    "s": "1"
  },
  {
    "x": "Jilin",
    "y": "110",
    "s": "2"
  },
  {
    "x": "Jilin",
    "y": "170",
    "s": "3"
  },
  {
    "x": "Heilongjiang",
    "y": "90",
    "s": "1"
  },
  {
    "x": "Heilongjiang",
    "y": "60",
    "s": "2"
  },
  {
    "x": "Heilongjiang",
    "y": "70",
    "s": "3"
  },
  {
    "x": "Anhui",
    "y": "240",
    "s": "1"
  },
  {
    "x": "Anhui",
    "y": "170",
    "s": "2"
  },
  {
    "x": "Anhui",
    "y": "280",
    "s": "3"
  },
  {
    "x": "Fujian",
    "y": "420",
    "s": "1"
  },
  {
    "x": "Fujian",
    "y": "190",
    "s": "2"
  },
  {
    "x": "Fujian",
    "y": "390",
    "s": "3"
  }
]
  • x: The category text of each bar.
  • y: The actual data value of each bar.
  • s: Optional. The series data.

Interaction

This widget is not connected to any events yet.
