This topic describes how to mark a node as schedulable or unschedulable in the Container Service for Kubernetes (ACK) console. This allows you to optimize the distribution of the loads on each node.

Procedure

  1. Log on to the ACK console.
  2. In the left-side navigation pane of the ACK console, click Clusters.
  3. On the Clusters page, find the cluster that you want to manage and click the name of the cluster or click Details in the Actions column. The details page of the cluster appears.
  4. In the left-side navigation pane of the details page, choose Nodes > Nodes.
  5. On the Nodes page, find the node that you want to manage and perform the following operation in the Actions column:

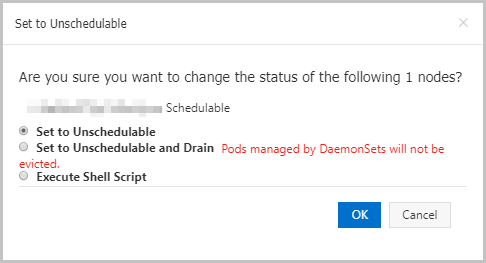

    • Choose More > Schedulability Settings. In the message that appears, click Confirm. This way, pods are no longer scheduled to the specified node when you deploy new applications.
    • Choose More > Drain. In the message that appears, click Confirm. This way, pods are no longer scheduled to the specified node when you deploy new applications. In addition, pods on the specified node are evicted, except for the pods that are managed by DaemonSets.
  6. Click Confirm.

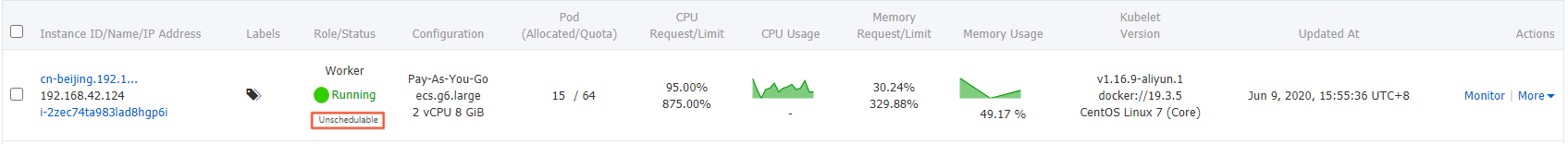

    The status of the specified node is changed to Unschedulable.

What to do next

If you want to resume an unschedulable node, perform the following operations:
  1. Find the node that you want to manage and choose More > Schedulability Settings in the Actions column.
  2. In the Schedulability Settings message, click Confirm.
The status of the node is changed to Schedulable.
