Plan VPC layout and CIDR blocks; choose Terway or Flannel—CNI and CIDRs are locked after creation.

Network scale planning

Region and zone

All zones in a region communicate over the internal network but are isolated from each other's failures. A VPC is a regional resource and cannot span regions.

When selecting a region and zone, consider the following:

Consideration	Description
Latency	Deploy close to end users to minimize network latency.
Service availability	Alibaba Cloud services vary by region and zone. Verify availability in your target region.
Cost	Cloud service pricing varies by region. Select a region that fits your budget.
High availability and disaster recovery	For workloads requiring high availability, deploy across zones within the same region. For stronger isolation, deploy across regions.
Compliance	Select a region that meets your data residency and regulatory requirements.

See Available regions.

A VPC cannot span regions. For multi-region systems, create one VPC per region and connect them using VPC peering connections, VPN Gateway, or Cloud Enterprise Network (CEN). A vSwitch is a zonal resource.

VPC count

VPCs are fully isolated. Resources in the same VPC communicate over the private network by default.

Scenario	Use case
Single VPC	Small single-region deployment with no isolation requirement. Cost-sensitive setups avoiding cross-VPC overhead.
Multiple VPCs	Multi-region deployments. Systems requiring strict isolation (for example, production and staging). Multi-team architectures with independent resource management.

Default quota: 10 VPCs per region. Increase via the Quota Management page or Quota Center.

vSwitch count

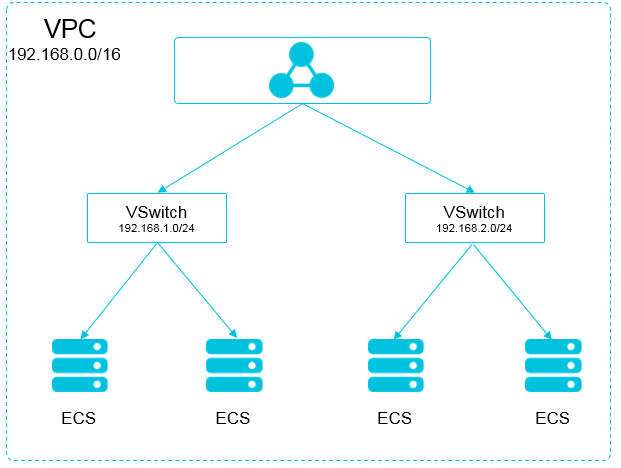

A vSwitch is a zonal resource. Cloud resources in a VPC attach to vSwitches, which communicate with each other by default.

Consideration	Guidance
Latency	Inter-zone latency is low but grows with complex system calls and cross-zone traffic. Balance high availability against latency.
High availability	Create at least two vSwitches in different zones. If one zone fails, the other continues serving traffic.
Business division	Group vSwitches by function—for example, web, logic, and data layers. Use a dedicated public vSwitch for Internet-facing services to simplify security rules.

Default quota: 150 vSwitches per VPC. Increase via the Quota Management page or Quota Center.

Cluster size

Node count	Use case	VPC planning	Zone planning
Fewer than 100 nodes	Non-core workloads	Single VPC	1 (2 or more recommended)
100 or more nodes	General workloads requiring multi-zone redundancy	Single VPC	2 or more
100 or more nodes	Core workloads requiring high reliability across multiple regions	Multiple VPCs	2 or more

Network connectivity planning

Single cluster in a single VPC

A VPC's CIDR block is fixed at creation. Assign non-overlapping pod and service CIDR blocks for each cluster.

Multiple clusters in a single VPC

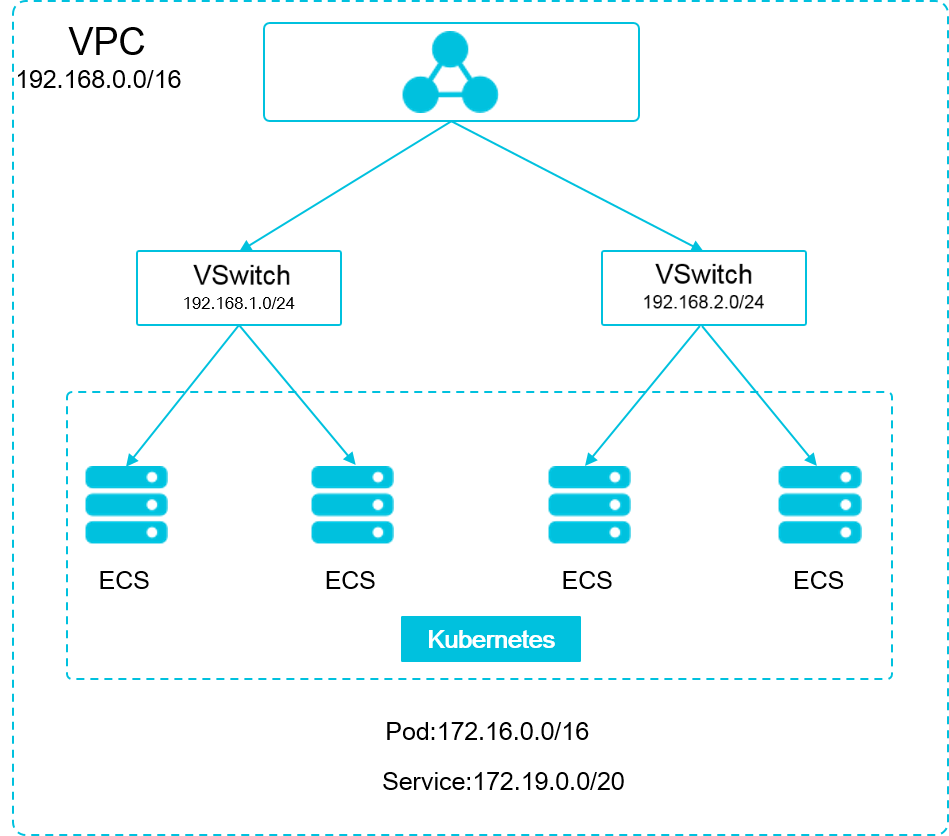

Multiple clusters can share one VPC. When planning CIDR blocks for each cluster:

The VPC CIDR block is fixed at creation. Each cluster must use non-overlapping CIDR blocks for the VPC, services, and pods.
Pod CIDR blocks across clusters must not overlap. Service CIDR blocks are virtual networks and may overlap across clusters.
In Flannel mode, pod packets route through the VPC. ACK automatically adds routes to each pod CIDR block in the VPC route table.

In this topology, pods in one cluster can access pods and ECS instances in other clusters, but not their ClusterIP services—those are cluster-local. Use LoadBalancer or Ingress for cross-cluster service access.

Multi-cluster inter-VPC connectivity

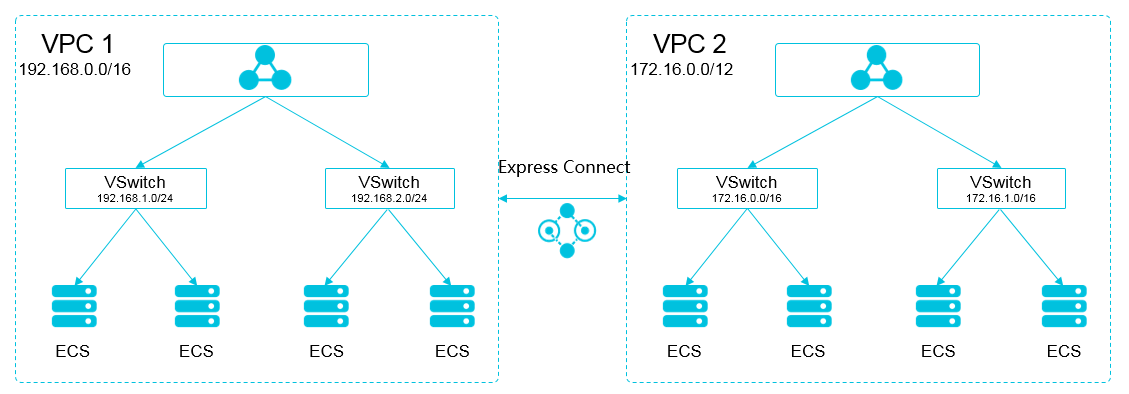

Plan inter-VPC connectivity for these scenarios.

Multi-region deployment

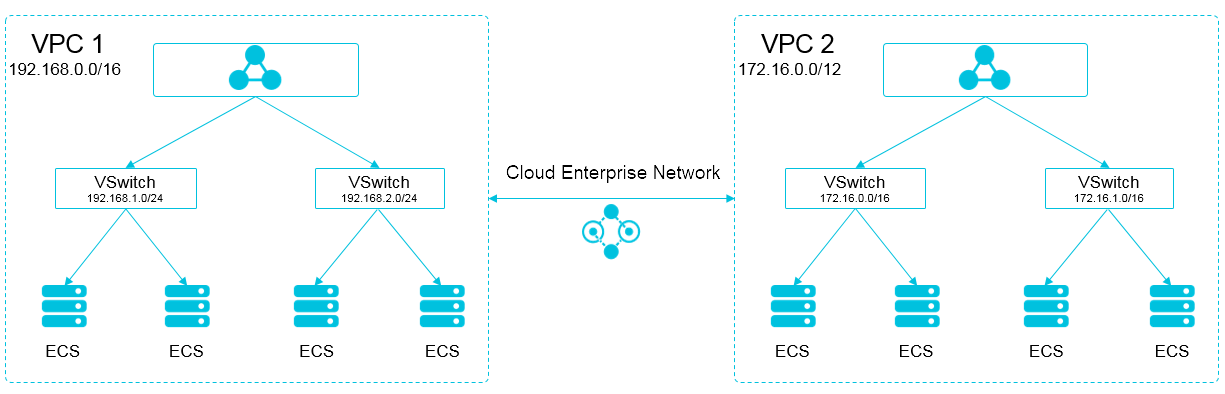

A VPC is a regional resource. For multi-region systems, create one VPC and cluster per region, then connect them using VPC peering connections, VPN Gateway, or Cloud Enterprise Network (CEN).

Isolation of multiple business systems

For strict network isolation between systems in one region—such as production and staging—deploy each in a separate VPC. Connect them using VPC peering connections, VPN Gateway, or Cloud Enterprise Network (CEN).

Large-scale multi-team architecture

Deploy separate VPCs per team for independent cluster and resource management. This simplifies access control and improves flexibility.

Important

To avoid IP conflicts in multi-cluster inter-VPC setups, verify that each new cluster's CIDR blocks do not overlap with:

Any VPC CIDR block in the connected network
Any other cluster's CIDR block
Any other cluster's pod CIDR block
Any other cluster's service CIDR block

Cloud cluster to on-premises data center connectivity

When connecting a cluster to an on-premises data center (IDC), pod addresses must not overlap with VPC CIDR blocks routed to the IDC. If the IDC needs direct access to pod addresses, configure routes in the Virtual Border Router (VBR) on the IDC side.

CNI plug-in planning

ACK supports two CNI plug-ins: Terway and Flannel. The plug-in cannot be changed after cluster creation and determines available network features and CIDR configuration.

Choose a CNI plug-in

Select the plug-in that fits your requirements:

	Terway	Flannel
Best for	Workloads needing NetworkPolicy, fixed pod IPs, pod-bound elastic IP addresses (EIPs), or inter-cluster access	Simpler setups where these features are not needed
Pod IP source	IPs assigned from VPC vSwitches	IPs assigned from a virtual CIDR block
IP pool size	Limited by vSwitch CIDR block size	Up to 65,536 pod IPs with a /16 container CIDR block
IPv6	Supported	Not supported

Feature comparison

Feature	Terway	Flannel
NetworkPolicy	Supported	Not supported
IPv4/IPv6 dual-stack	Supported	Not supported
Fixed pod IP	Supported	Not supported
Pod-bound EIP	Supported	Not supported
Inter-cluster access	Supported (when security groups allow the required ports)	Not supported

ACK uses a modified Flannel plug-in optimized for Alibaba Cloud; it does not track upstream changes. See Flannel for update history.

See Terway vs. Flannel container network plug-ins.

CIDR block planning

Terway network mode

In Terway mode, pods get IPs from dedicated pod vSwitches. Size pod vSwitch CIDR blocks to accommodate all pods across nodes and zones, plus rolling-upgrade headroom.

Configuration examples

Single-zone:

VPC CIDR block	vSwitch CIDR block	Pod vSwitch CIDR block	Service CIDR block	Maximum assignable pod IPs
192.168.0.0/16	Zone I: 192.168.0.0/19	192.168.32.0/19	172.21.0.0/20	8,192

Multi-zone:

VPC CIDR block	vSwitch CIDR block	Pod vSwitch CIDR block	Service CIDR block	Maximum assignable pod IPs
192.168.0.0/16	Zone I: 192.168.0.0/19	192.168.32.0/19	172.21.0.0/20	8,192
	Zone J: 192.168.64.0/19	192.168.96.0/19

VPC

For multi-VPC or hybrid cloud deployments, use subnets with a mask of /16 or shorter. Ensure no overlaps between VPCs or with on-premises data centers.

VPCs assign IPv6 CIDR blocks automatically when you enable IPv6. To use IPv6 for containers, choose Terway.

To use a public IP range for your VPC CIDR block, request the ack.white_list/supportVPCWithPublicIPRanges quota in the Quota Center.

vSwitch

vSwitches host ECS instances and handle node-to-node traffic. The vSwitch CIDR block must be a subset of the VPC CIDR block.

ECS instances get IPs from this CIDR block. Size it for all nodes.
Multiple vSwitches in one VPC must not have overlapping CIDR blocks.
Each pod vSwitch must be in the same zone as its corresponding node vSwitch.

Pod vSwitch

The pod vSwitch assigns IPs to pods and handles pod traffic. Its CIDR block must be a subset of the VPC CIDR block.

Size for maximum expected pod count, plus upgrade buffer.
The pod vSwitch CIDR block must not overlap with the Service CIDR block.

Service CIDR block

Important

The Service CIDR block cannot be modified after cluster creation.

The Service CIDR block defines the IP range for ClusterIP services. Each service gets one IP.

Service IPs are only reachable within the cluster—not from outside.
The Service CIDR block must not overlap with the vSwitch CIDR block or the pod vSwitch CIDR block.

Service IPv6 CIDR block (when IPv6 dual-stack is enabled)

Use a Unique Local Address (ULA) in the fc00::/7 range. The prefix length must be between /112 and /120.
Match the number of usable addresses in the Service CIDR block.

Flannel network mode

In Flannel mode, pod IPs come from a virtual container CIDR block—not tied to any vSwitch. Pod packets route through the VPC, and ACK automatically adds routes to each pod CIDR block in the VPC route table.

Configuration example

VPC CIDR block	vSwitch CIDR block	Container CIDR block	Service CIDR block	Maximum assignable pod IPs
192.168.0.0/16	192.168.0.0/24	172.20.0.0/16	172.21.0.0/20	65,536

VPC

Use one of the following RFC-standard private CIDR blocks—or a subnet—as your VPC's primary IPv4 CIDR block: 192.168.0.0/16, 172.16.0.0/12, or 10.0.0.0/8. Valid mask lengths range from /8 to /28 (varies by block). For multi-VPC or hybrid cloud deployments, use a mask of /16 or shorter with no overlaps between VPCs or with on-premises data centers.

To use a public IP range for your VPC CIDR block, request the ack.white_list/supportVPCWithPublicIPRanges quota in the Quota Center.

vSwitch

ECS instances get IPs from this CIDR block. Size it for all nodes.
Multiple vSwitches in one VPC must not have overlapping CIDR blocks.

Container CIDR block

Important

The container CIDR block cannot be modified after cluster creation.

This virtual CIDR block assigns pod IPs across the cluster.

It is not tied to any vSwitch.
It must not overlap with the vSwitch CIDR block or the Service CIDR block.

For example, if your VPC CIDR block is 172.16.0.0/12, do not use 172.16.0.0/16 or 172.17.0.0/16 for the container CIDR block—both fall within 172.16.0.0/12.

Service CIDR block

Important

The Service CIDR block cannot be modified after cluster creation.

The Service CIDR block defines the IP range for ClusterIP services.

Service IPs are only reachable within the cluster.
The Service CIDR block must not overlap with the vSwitch CIDR block or the container CIDR block.
