This topic describes how to set the SSH key pair logon mode for a Kubernetes cluster, and how to log on to the cluster by using an SSH key pair. Alibaba Cloud Container Service for Kubernetes provides this mode to secure SSH logon to a Kubernetes cluster.

Procedure

  1. Log on to the Container Service console.
  2. In the left-side navigation pane under Kubernetes, choose Clusters > Clusters.
  3. In the upper-right corner, click Create Kubernetes Cluster.

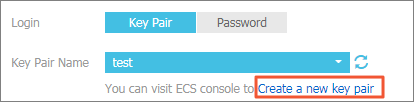

  4. Set the key pair logon mode for the cluster, and then set other cluster parameters. For more information, see Create a Kubernetes cluster. Then, click Create.
    • If you have created key pairs in the Elastic Compute Service (ECS) console, select a key pair from the drop-down list.
    • If you have not created any key pairs, click Create a new key pair to create one in the ECS console. For more information, see Create an SSH key pair.


  5. After the cluster is created, it is displayed in the cluster list. Click Manage on the right of the target cluster and record the Master node SSH IP address in the cluster information area.
  6. Download the .pem private key file and complete the cluster logon settings according to your operating system (which can be either Windows or Linux). This topic only describes one type of the cluster logon settings in a Linux operating system as follows:
    1. Find the directory where you have stored the downloaded .pem private key file. For example, /root/xxx.pem.
    2. Run the following command to modify the private key file attribute: chmod 400 [the directory where the .pem private key file is stored on your local host]. In this example, chmod 400 /root/xxx.pem is run.
    3. Run the following command to connect to the cluster: `ssh -i [the directory where the .pem private key file is stored on your local host] root@[Internet IP address]. In the command, the Internet IP address is the Master node SSH IP address. For example, ssh -i /root/xxx.pem root@10.10.10.100 is run in this example.

    For more information about the cluster logon settings in a Window or Linux operating system, see Connect to a Linux instance by using an SSH key pair.
