This topic describes how to use SSH key pairs to log on to a cluster of Container Service for Kubernetes (ACK). This logon method secures remote access to ACK clusters.

Procedure

  1. Log on to the ACK console.
  2. In the left-side navigation pane, click Clusters.
  3. On the Clusters page, click Create Kubernetes Cluster in the upper-right corner of the page.
  4. On the Select Cluster Template page, select a cluster type and click create.

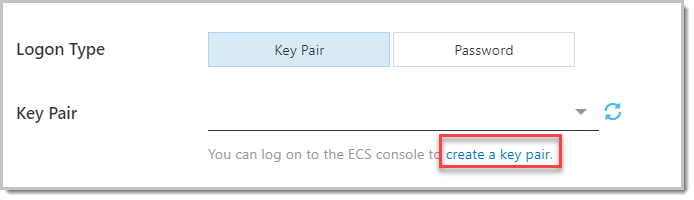

  5. Set the logon type to SSH key pair. Set the remaining parameters that are required to create an ACK cluster and click Create Cluster. For more information about the parameters, see Create a cluster of ACK Managed Edition.
    1. If you have created an SSH key pair in the Elastic Compute Service (ECS) console, you can select it from the Key Pair drop-down list.
    2. If no SSH key pair is available, click create a key pair to create one in the ECS console. For more information, see Create an SSH key pair.
    Create an SSH key pair.
  6. After the cluster is created, go to the Clusters page. On the Clusters page, find the newly created cluster and click Details in the Actions column. On the Basic Information tab, you can obtain the IP address for SSH connection to a master node, as shown in the following figure.
    Connect to a cluster
  7. Download the .pem private key file and configure SSH logon based on the operating system (Windows or Linux) of your local machine. For more information, see Create a cluster of ACK Managed Edition. In this example, the Linux operating system is used.
    1. Find the downloaded .pem private key file, for example, /root/xxx.pem.
    2. Run the following command to modify the attributes of the file: chmod 400 [path of .pem]. Example: chmod 400 /root/xxx.pem.
    3. Run the following command to use SSH to connect the cluster: ssh -i [path of .pem] root@[master-public-ip]. Replace master-public-ip with the IP address that you have obtained in Step 7, for example, ssh -i /root/xxx.pem root@10.10.xx.xxx.
