This topic describes the common syntax of Markdown charts and how to create a Markdown chart on a dashboard.

Prerequisites

Background information

You can add multiple analysis charts to a dashboard. This way, you can view multiple analysis results and monitor the status of multiple applications on a single dashboard. You can also add Markdown charts to a dashboard. A Markdown chart is edited by using the Markdown syntax.

You can create different Markdown charts based on your business requirements. Markdown charts can make a dashboard more intuitive. You can insert text such as background information, chart description, notes, extension information, and custom images in a Markdown chart. You can also insert saved searches or dashboard links of other projects to redirect to other query pages.

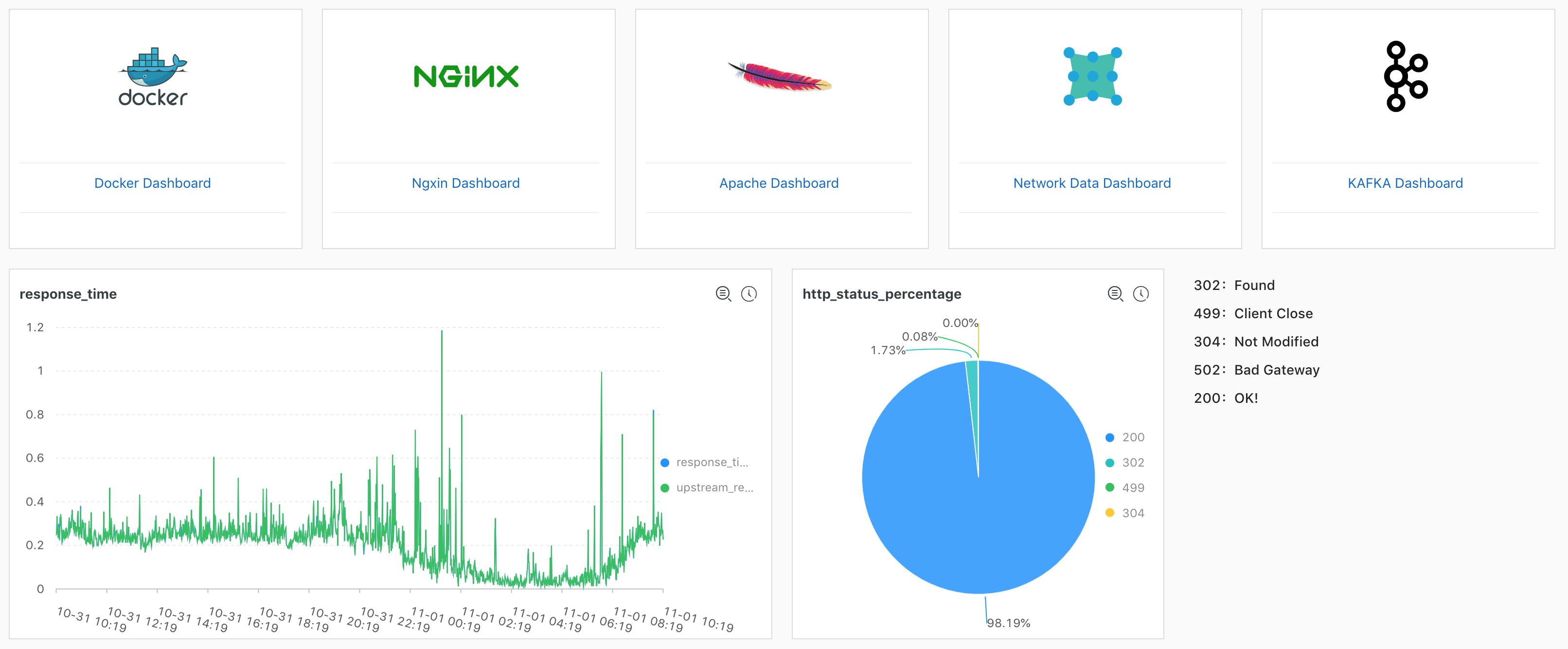

You can insert links in a Markdown chart to redirect to other dashboard pages of the current project. You can also insert an image that corresponds to each link. In addition, you can use a Markdown chart to describe the parameters of analysis charts. Display effect

Add a Markdown chart

  1. Log on to the Log Service console.
  2. In the Projects section, click a project.
  3. In the left-side navigation pane, click the Create an alert to monitor a chart - 001 icon.
  4. In the dashboard list that appears, click the target dashboard.
  5. In the upper-right corner of the dashboard page that appears, click Edit.
  6. In the edit mode, drag the markdown icon from the menu bar and drop the icon on a specified location to create a Markdown chart.
  7. Double-click the Markdown chart.
  8. In the Markdown Edit dialog box, set the parameters, and then click OK.
    Create a markdown chart
    Parameter Description
    Chart Name The name of the Markdown chart.
    Show Border Specifies whether to show the borders of the Markdown chart. You can turn on the Show Border switch to show the borders of the Markdown chart.
    Show Title Specifies whether to show the title of the Markdown chart. You can turn on the Show Title switch to show the title of the Markdown chart.
    Show Background Specifies whether to show the background of the Markdown chart. You can turn on the Show Background switch to show the background of the Markdown chart.
    Query Binding Specifies whether to associate a query statement with a Markdown chart. You can turn on the Query Binding switch and associate a query statement with a Markdown chart. Then, dynamic query results are displayed in the Markdown chart.
    1. Select a Logstore from which data is to be queried.
    2. Enter a query statement in the search box, set the time range, and then click Search.
      For more information, see Overview.
      Note The query results may contain logs that are generated 1 minute earlier or later than the specified time period.

      The first returned log entry is displayed.

    3. Click the plus sign next to a field to insert the corresponding query result to the Markdown Content column.
    Markdown Content Enter Markdown content in the Markdown content column on the left. Data preview is displayed in real time in the Show Chart column on the right. You can modify the Markdown content based on the data preview. For more information about the Markdown syntax, see Common Markdown syntax.
  9. Click Save.

Modify a Markdown chart

  1. In the upper-right corner of the dashboard page, click Edit.
  2. Modify the location and size of a Markdown chart
    Drag the Markdown icon and drop the icon on a specified location on the dashboard and drag the lower-right corner of the chart to adjust its size.
  3. Modify the properties of a Markdown chart
    1. Double-click the target Markdown chart.
    2. In the Markdown Edit dialog box, modify the parameters, and then click OK.
      You can modify the chart name, display settings, query settings, and Markdown content. For more information, see Add a Markdown chart.

Delete a chart

  1. In the upper-right corner of the dashboard page, click Edit.
  2. Find the target Markdown chart, and then choose Create an alert to monitor a chart > Delete.
  3. In the upper-right corner of the dashboard page, click Save.

Common Markdown syntax

  • Title
    • Markdown syntax
      # Level 1 heading
      ## Level 2 heading
      ### Level 3 heading
    • ResultTitle
  • Link
    • Markdown syntax
      ### Contents

      [Chart description](https://www.alibabacloud.com/help/doc-detail/69313.htm)

      [Dashboard](https://www.alibabacloud.com/help/doc-detail/59324.htm)
    • ResultLink
  • Image
    • Markdown syntax
      <div align=center>

      ![ Alt txt][id]

      With a reference later in the document defining the URL location

      [id]: https://octodex.github.com/images/dojocat.jpg  "The Dojocat"
    • PreviewImage
  • Special tag
    • Markdown syntax
      ---

      __Advertisement :)__

      ==some mark==   `some code`
      > Classic markup: :wink: :crush: :cry: :tear: :laughing: :yum:
      >> Shortcuts (emoticons): :-)  8-) ;)

      __This is bold text__

      *This is italic text*

      ---
    • ResultSpecial tag
